Planet FT-801 Manuale utente
Copyright
Copyright (C) PLANET Technology Corp. 2003.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technol-
ogy Corp. The information in this manual is subject to
change without notice. All other trademarks belong to
their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware
will work properly in all environments and applications,
and makes no warranty and representation, either
implied or expressed, with respect to the quality, per-
formance, merchantability, or tness for a particular
purpose.
PLANET has made every effort to ensure that this User’s
Manual is accurate; PLANET disclaims liability for any
inaccuracies or omissions that may have occurred.
Information in this User’s Manual is subject to change
without notice and does not represent a commitment on
the part of PLANET. PLANET assumes no responsibility
for any inaccuracies that may be contained in this User’s
Manual. PLANET makes no commitment to update or
keep current the information in this User’s Manual, and
reserves the right to make improvements to this User’s
Manual and/or to the products described in this User’s
Manual, at any time without notice.
If you nd information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your
comments and suggestions.
FCC Warning
This equipment has been tested and found to comply
with the regulations for a Class A digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference when the equipment is operated in
a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user’s guide,
may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area
is likely to cause harmful interference, in which case the
user will b
CE mark Warning
This is a Class A product. In a domestic environment,
this product may cause radio interference, in which case
the user may be required to take adequate measures.
Revision
User’s manual for PLANET Fast Ethernet Converter
Multi-mode: FT-801, FT-802
Single-mode: FT-802S
Rev 3.0 (May.2003)
Part No. 2010-000002-002
Table of Contents
Overview 1
Model List 1
Checklist 1
Product Outlook 2
Installing the Converter 3
Duplex Mode setting 4
LED indication 5
Cable Connection Parameter 6
FT-80X Technical Specifications 7
Power information 8
1
Overview
Thank you for purchasing PLANET FT-80X family 10/100Mbps
Ethernet Twisted pair to 100Base-FX Fiber-optic Bridge Converter.
This converter is used to convert one type media signal to other
type equivalent that allows two type segments connect easily,
efciently and inexpensively. This converter can be used as a
standalone unit or as a slide-in module to the 19” media chassis
(up to 15 units) for a TP and Fiber combined networks at a central
wiring closet. Please contact with your sales representative for
more about the 19” media chassis.
Model List
Your Fast Ethernet Converter comes with one of the following
models.
ð FT-801: on board ST fiber connector
ð FT-802/S: on board SC fiber connector
Models with last character “S” indicate the ber-port is with
“Single-Mode” optic ber connector.
In the following sections, the term “FT-80X” indicates the product
family above.
Checklist
Your FT-80X carton should contain the following items:
ð The Fast Ethernet Bridge Converter
ð AC-DC Power Adapter (Output: 5VDC, 2 A max.)
ð This user’s manual
If any item is missing or damaged, please consult the dealer from
whom you purchased your Fast Ethernet Converter.
2
3

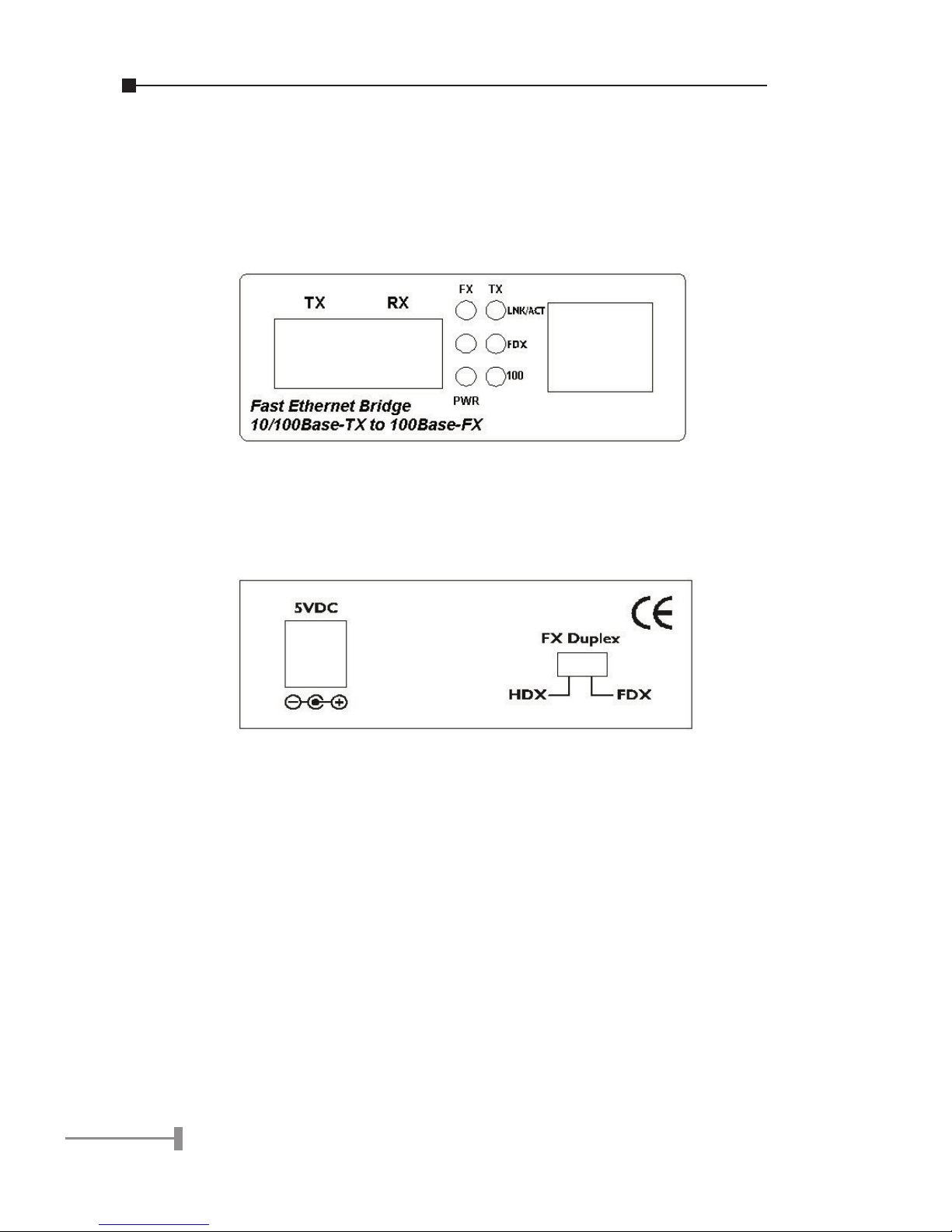

Product Outlook
Right View
There are one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one
ber-optic connector and six LED indicators.
Left View
One DIP switch for Fiber-optic mode operating selection, FDX for
full-duplex, and HDX for half-duplex.
2
3

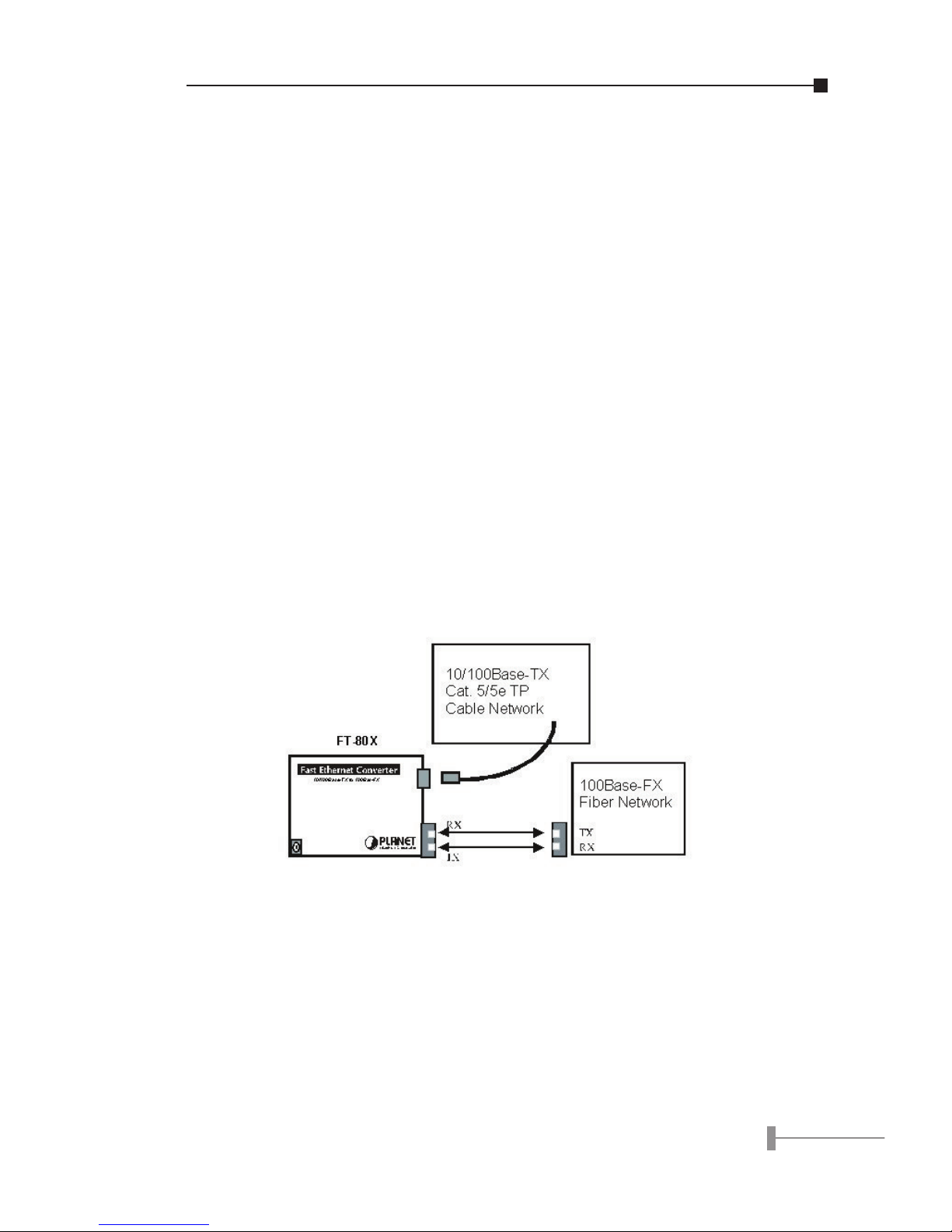

Installing the Converter
Please follow these steps to install the converter:
· Turn off the power of the device/station in a network to
which the FT-80X will be attached
· Ensure that there is no activity in the network
· Attach fiber cable from the FT-80X to the fiber network.
TX, RX must be paired at both ends
· Attach a Cat. 5 UTP cable from the 10/100Base-TX net-
work to the RJ-45 port on the FT-80X.
· Connect the 5VDC power adapter to the FT-80X and
verify that the Power LED lights up.
· Turn on the power of the device/station, the TX Link and
FX Link LEDs should light when all cables are attached
Note:
• RJ-45/STP, UTP Cat 5, straight/crossover cable is ac-
cepted
• Please refer to section 8 for more about the wiring
distance of your TP, Optic-fiber networks.
4
5
Duplex Mode setting
The TP port of FT-80X supports duplex mode detection by auto-
negotiation (A-N). The following is the duplex mode parameters:
Fast Ethernet Device FT-80X Duplex
Mode support
Ethernet / Fast Ethernet Hub Half-Duplex
Ethernet / Fast Ethernet Switch
(without A-N) Half-Duplex
Fast Ethernet Devices *
Support Auto-Negotiation
Full-Duplex /
Half-Duplex
Note: Normally, an A-N switch will detect and set to full-
duplex, where a dual-speed hub will detects half.
There is a DIP-switch as in the left view as section 4. Please
check and follow the duplex mode of the ber device and have
the duplex selection to your FT-80X.
4
5
LED indication
LED COLOR DESCRIPTION
FX LNK /
ACT Green
Blinks: when any FX packets trans-
mitting and receiving
Lit: when Fiber connection is good
TX LNK /
ACT Green
Blinks: when any TP packets trans-
mitting and receiving
Lit: when TP connection is good
FX FDX Green Lit: when Full-duplex mode is en-
abled in FX port
TX FDX Green
Lit: when Full-duplex mode is en-
abled (detect by Auto-Negotiation)
in TP port
100 Green
Lit when the TP port runs in
100Mbps.Remains off while LINK
LED lit represent the TP port runs
in 10Mbps
PWR Green Lit when +5VDC power detected
Note: Fiber-optic Partner should be set to the correct
mode according to this FDX indicator for optimal
network performance.
6
7
Cable Connection Parameter
The limitations are as below:
Duplex Connection Limitation (max.)
Twisted Pair
Half / Full Node to Node
Node to Switch/Hub 100 meters
Multi-Mode Converters
MM Half Node to Node
Node to Switch 412 meters
MM Full Node to Node
Node to Switch 2 kilometers
Single-Mode Converters (FT-802S*)
SM Full Node to Node
Node to Switch Depends on model
*Note: Consult your local dealer for more about our
single mode fiber connectivity.
6
7
FT-80X Technical Specifications
The FT-80X comes with the following standard features:
· Standard: IEEE802.3/u, 10/100Base-TX and
100Base-FX
· Connectors:
ð One RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568
ð One Fiber-optic, 1300nm wavelength, connector-
type vary with model
· Data Transfer Rate : 10/100Mbps ( TP), 100Mbps (FX)
· Duplex mode support : Full or half-duplex mode by
Auto- Negotiation (TP)
· LED indicators : PWR, FX LNK/ACT, FX FDX TP 100, TP
LNK/ACT, TP FDX
· Power Requirement : 5V DC, 2A
· Ambient Temperature : 0° to 50°C (operating)
· Humidity : 5% to 90% (non-condensing)
· Dimension : 26 x 70 x 97mm (HxWxD)
· Cable :
ð UTP : Cat 5 UTP cable
ð Fiber : MM: 50/125 mm or 62.5/125 mm optic
fiber
ð Fiber : SM: 8.3/125, 8.7/125, 9/125 mm optic
fiber
Connecting to Router, Bridge, or Switch, Hub, please refer to the
device’s Technical Manual.
