User's manual for PLANET Gigabit Ethernet Converter

For Models: GT-702, GT-702S, GT-705A, GT-706A15,

GT-706B15

Rev 4.0 (January. 2005)

Part No: 2010-000006-004

2010-000006-004.indd 2005/1/14, �� 06:132

Table of Contents

Chapter 1 Overview 1

Chapter 2 Product Features 2

Chapter 3 Model List 3

Chapter 4 Checklist 4

Chapter 5 Product Outlook 5

Chapter 6 Installing The Converter 6

Chapter 7 Duplex Mode Support 7

Chapter 8 Led Indication 8

Chapter 9 Cable Connection Parameter 9

Chapter 10 Product Specification 10

Chapter 11 Power Information 12

2010-000006-004.indd 2005/1/14, �� 06:133

This page is intentionally left blank

2010-000006-004.indd 2005/1/14, �� 06:134

Chapter 1

OVERVIEW

Thank you for purchasing PLANET GT-70X family Gigabit Ethernet

Media Converter products. This Gigabit Ethernet Media Converter

is used to convert one type media signal to other type equivalent

that allows two type segments connect easily, efciently and

inexpensively. The Giagbit Ethernet Media Converter introduced

here provides one channel media conversion between the

1000Base-T and 1000Base-SX/LX, 1000Base-SX/LX through SFP

Mini-GBIC(GT-705A only) or the 1000Base-LX WDM(GT-706A15/

B15 only).

This Gigabit Ethernet Media converter can be used as a standalone

unit or as a slide-in module to the 10”/19” media chassis (up

to 15 units) for a multi-mode and single-mode Fiber combined

networks at a central wiring closet. Please contact with your sales

representative for more about the 10”/19” media chassis.

About the Gigabit Ethernet Media Converter

This Gigabit Ethernet Media Converter utilizes a netrwork

technology specied by IEEE 802.3ab 1000Base-T and IEEE802.3z

1000Base-SX/LX standards. The Gigabit Ethernet Media Converter

is used to converter one type media signal to other type equivalent

that allows two type segments connect easily, effciently and

inexpensively.

2010-000006-004.indd 2005/1/14, �� 06:131

Chapter 2

PRODUCT FEATURES

• Comply with IEEE802.3ab 1000Base-T, IEEE802.3z

1000Base-SX/LX Ethernet standard

• Full-duplex supports for TP and fiber port

• Auto-negotiation on 1000Base-T port

• Auto-MDI/MDIX on TP port

• LED indicators for simple diagnostics and management

• Provides DIP switch to disable/ enable auto-negotiation

by-pass function

• 1000Base-SX interface for up to 550 meters (multi-

mode 50/125µm fiber) and 220 meters (multi-mode

62.5 /125µm fiber) on GT-702 and GT-705A

• 1000Base-LX interface for up to 10km (single mode

9/125µm fiber) on GT-702S and GT-705A

• 1000Base-LX WDM interface for up to 15km (single

mode 9/125µm fiber) on GT-706A15/B15

• One SFP (Mini-GBIC) slot supporting either multi-mode

or single mode fiber, flexibility in Gigabit Ethernet fiber-

optic wiring with different Mini-GBIC module installed

(GT-705A only)

• Compact in size, easy installation

• Can be installed on PLANET’s 10 /19 Media Converter

Chassis

2010-000006-004.indd 2005/1/14, �� 06:132

Chapter 3

MODEL LIST

Your Gigabit Ethernet Converter comes with one of the following

models.

ð GT-702: 1000Base-T to 1000Base-SX (SC)

ð GT-702S:1000Base-T to 1000Base-LX (SC)

ð GT-705A: 1000Base-T to 1000BaseSX/LX (LC)

ð GT-706A15: 1000Base-T to 1000Base-LX(WDM)

ð GT-706B15: 1000Base-T to 1000Base-LX(WDM)

In the following sections, the term “GT-70X” indicates the product

family above, the term “MM” and “SM” represent Multi-Mode and

Single Mode ber-optic mode.

 NOTE:

Please note GT-706A15/706B15 is designed

to work together. It means you must con-

nect GT-706A15 to GT-706B15 from them to

work normally. If both ends are GT-706A15

or GT-706B15, they can’t work normally and

may damage the fiber connectors.

2010-000006-004.indd 2005/1/14, �� 06:133

Chapter 4

CHECKLIST

Your GT-70X carton should contain the following items:

ð The Gigabit Ethernet Converter.

ð AC-DC Power Adapter (Output: 5VDC, 2A max.).

ð This user’s manual.

If any item is missing or damaged, please consult the dealer from

whom you purchased your Gigabit Ethernet Converter.

 Notice:

GT-705A is with one vacant SFP module slot.

The mini GBIC SFP module is not bundled

with in the package

2010-000006-004.indd 2005/1/14, �� 06:134

Chapter 5

PRODUCT OUTLOOK

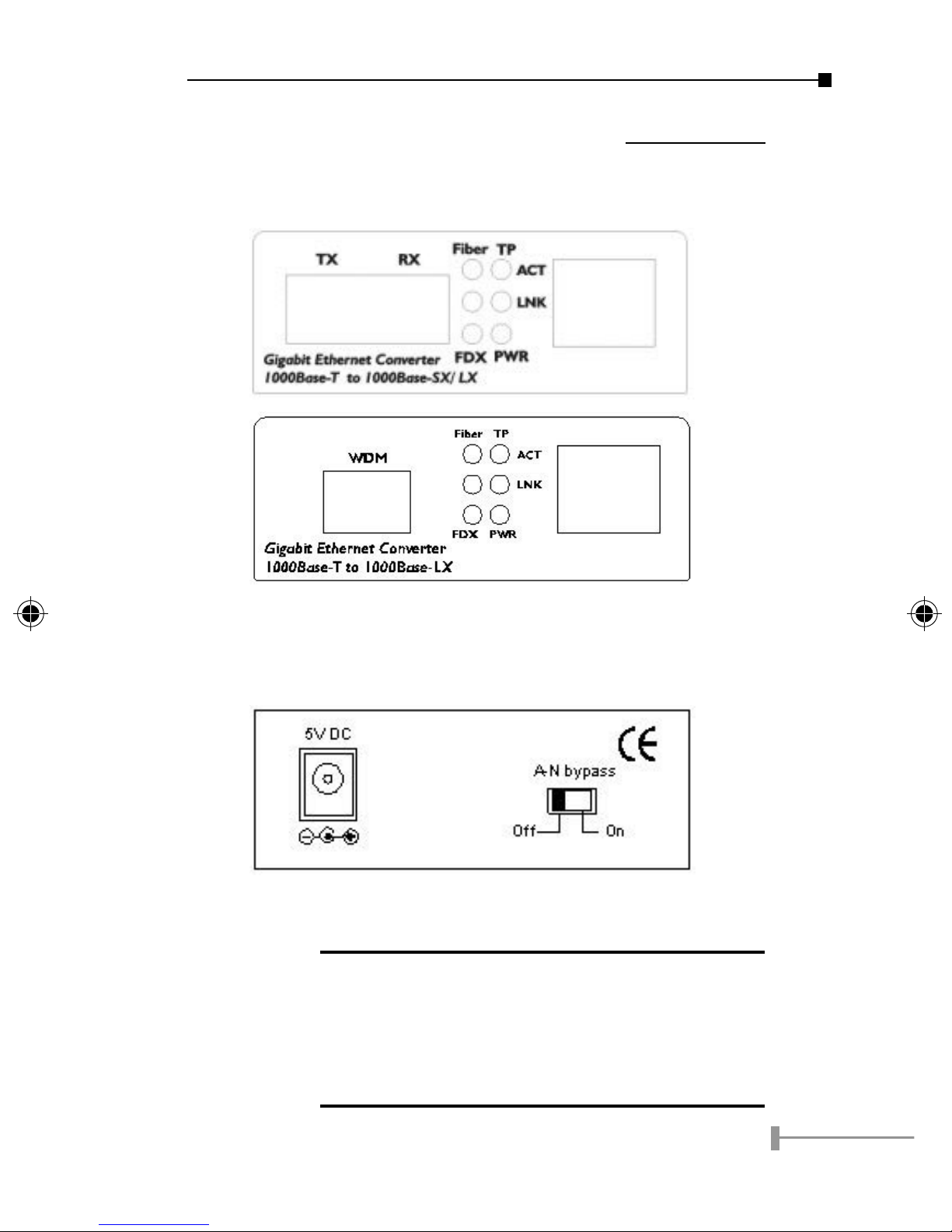

Right View (GT-70X)

Left: Fiber-optic connector, Right: TP connector.

Three LED indicators per TP, ber port.

Rear View (GT-70X)

One DC jack for DC power input and DIP switch to disable/enable

Auto by pass function.

 Notice:

Please to note that if converter is connect

with switch which is Auto negotiation, must

enable the Auto by pass function.

If both devices are conveters must disable

the Auto by pass function.

2010-000006-004.indd 2005/1/14, �� 06:135

Chapter 6

INSTALLING THE CONVERTER

Please follow these steps to install the converter:

• Turn off the power of the device/station in a network to

which the GT-70X will be attached.

• Ensure that there is no activity in the network.

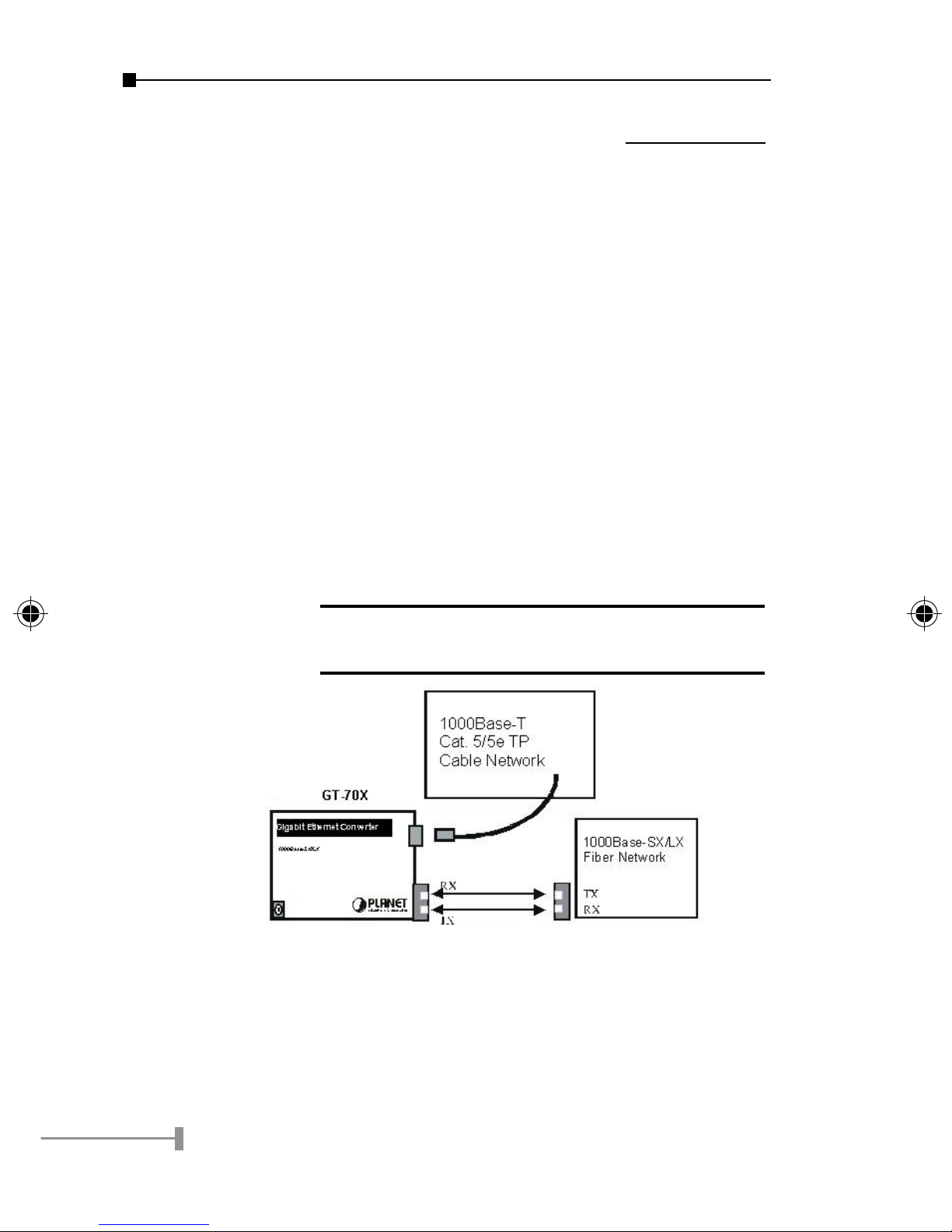

• Attach fiber cable from the GT-70X to the fiber network.

TX, RX must be paired at both ends.

• Connect the 5VDC power adapter to the GT-70X and

verify that the Power LED lights up.

• Turn on the power of the device/station; the PWR LEDs

should light when all cables are attached.

 Notice:

Please refers to section 9 for detailed wiring

information of the GT-70X.

To prevent from optic acceptor malfunction, check the both wires

/ transmitter before power on the converter.

2010-000006-004.indd 2005/1/14, �� 06:136
