Planet FNSW-4800v2 Manuale utente

48-Port 10/100Mbps Fast Ethernet Switch

FNSW-4800v2

User's Manual

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other

trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work

properly in all environments and applications, and makes no warranty

and representation, either implied or expressed, with respect to

the quality, performance, merchantability, or tness for a particular

purpose.

PLANET has made every effort to ensure that this User’s Manual is

accurate; PLANET disclaims liability for any inaccuracies or omissions

that may have occurred.

Information in this User’s Manual is subject to change without notice

and does not represent a commitment on the part of PLANET. PLANET

assumes no responsibility for any inaccuracies that may be contained in

this User’s Manual. PLANET makes no commitment to update or keep

current the information in this User’s Manual, and reserves the right

to make improvements to this User’s Manual and/or to the products

described in this User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect, misleading, or

incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the Instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to

take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human

health as a result of the presence of hazardous substances in

electrical and electronic equipment, end users of electrical

and electronic equipment should understand the meaning of

the crossed-out wheeled bin symbol. Do not dispose of WEEE as

unsorted municipal waste and have to collect such WEEE separately.

Revision

PLANET 48-Port 10/100Mbps Fast Ethernet Switch User's Manual

For Model: FNSW-4800v2

Revision: 1.1 (January 2008)

Part No: EM_FNSW48v2 (2011-A50110-001)

Table Of Contents

1. Introduction.............................................................................. 5

1.1 Checklist............................................................................. 5

1.2 About the Switch................................................................. 5

1.3 Features ............................................................................. 6

1.4 Specication........................................................................ 7

2. Hardware Description................................................................. 8

2.1 Front Panel ........................................................................ 8

2.2 Rear Panel ......................................................................... 9

2.3 Hardware Installation .......................................................... 9

3. Switch Operation......................................................................12

3.1 Address Table.....................................................................12

3.2 Learning ............................................................................12

3.3 Forwarding & Filtering.........................................................12

3.4 Store-and-Forward..............................................................12

3.5 Auto-Negotiation ................................................................13

4. Troubleshooting........................................................................14

Appendix A Networking Connection .................................................15

A.1 Switch‘s RJ-45 Pin Assignments...........................................15

A.2 RJ-45 cable pin assignment.................................................15

1. Introduction

1.1 Checklist

Check the contents of your package for following parts:

● FNSW-4800 x 1

● User’s manual x 1

● Power cord x 1

● Rubber feet x 4

● Two rack-mounting brackets with attachment screws x 1

If any of these pieces are missing or damaged, please contact your

dealer immediately, if possible, retain the carton including the original

packing material, and use them against to repack the product in case

there is a need to return it to us for repair.

In the following section, the term “Switch” means the FNSW-4800;

term of “switch” can be any third part switches

1.2 About the Switch

The PLANET FNSW-4800 is a 48-Port 10/100Mbps Fast Ethernet Switch

which boasts high performance switch architecture that is capable of

providing non-blocking switch fabric and wire-speed throughput as high

as 8.8Gbps. With its Auto-negotiation capability, all the RJ-45 ports can

be congured to speeds of 10/20Mbps or 100/200Mbps automatically.

The FNSW-4800 supports MDI/MDI-X convertible on 48-10/100Mbps

ports, the dual speed ports use standard twisted-pair cabling and are

ideal for SOHO or segmenting networks.

The FNSW-4800 also supports store-and-forward forwarding scheme

to ensure low latency and high data integrity, eliminates unnecessary

trafc and relieves congestion on critical network paths. With intelligent

address recognition algorithm, the FNSW-4800 could recognize up to

8K different MAC address, enables ltering and forwarding at full wire

speed.

The front panel of FNSW-4800 provides LEDs for easy recognition of

the switch operation status and troubleshooting. These LED indicators

display the power status for the system, LNK/ACT for each 10/100Mbps

port.

1.3 Features

● Comply with IEEE 802.3 and IEEE 802.3u standards for 10/100Base-

● 48-Port 10/100Mbps Fast Ethernet Switch

● Each Switching ports support auto-negotiation-10/20, 100/200Mbps

supported

● Auto-MDI/MDI-X detection on each RJ-45 port

● Prevents packet loss with back pressure (Half-duplex) and 802.3x

PAUSE frame ow control (Full-duplex)

● High performance Store and Forward architecture, broadcast storm

control, runt/CRC ltering eliminates erroneous packets to optimize

network bandwidth

● 8K MAC address table, automatic source address learning and ageing

● 2.5Mbit embedded memory for packet buffers

● Support up to 1522 bytes packet and 802.1Q VLAN transparent

● 19-inch rack mount size

● Internal full-range power supply suitable for worldwide use

● EMI standards comply with FCC, CE class A

1.4 Specication

Product FNSW-4800v2

48-Port 10/100Mbps Fast Ethernet Switch

Hardware Specication

Ports 48 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X

ports

Switch Processing

Scheme Store-and-Forward

Throughput (packet

per second) 6.6Mpps

Switch fabric 8.8Gbps

Address Table 8K entries

Share data Buffer 2.5Mbit

Flow Control Back pressure for half duplex, IEEE 802.3x

Pause Frame for full duplex

Dimensions

(W x D x H) 440 x 260 x 44 mm, 1U height

Weight 3.18kg

Power Requirement 100~240V AC, 50-60 Hz, 0.6A

Power Consumption

/ Dissipation 18 Watts / 61 BTU

Temperature Operating: 0~50 degree C, Storage -40~70

degree C

Humidity

Operating:

10% to 90%, Storage: 5% to 95% (Non-

condensing)

Standards Conformance

Regulation

Compliance FCC Part 15 Class A, CE

Standards

Compliance

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3x (Flow control)

2. Hardware Description

This product provides two different running speeds – 10Mbps, 100Mbps

in the same Switch and automatically distinguishes the speed of

incoming connection.

This section describes the hardware features of FNSW-4800. For easier

management and control of the Switch, familiarize yourself with its

display indicators, and ports. Front panel illustrations in this chapter

display the unit LED indicators. Before connecting any network device

to the FNSW-4800, read this chapter carefully.

2.1 Front Panel

The Front Panel of the FNSW-4800 Fast Ethernet Switch consists of 48x

Auto-Sensing 10/100Mbps Ethernet RJ-45 Ports, the LED Indicators are

also located on the front panel of the FNSW-4800.

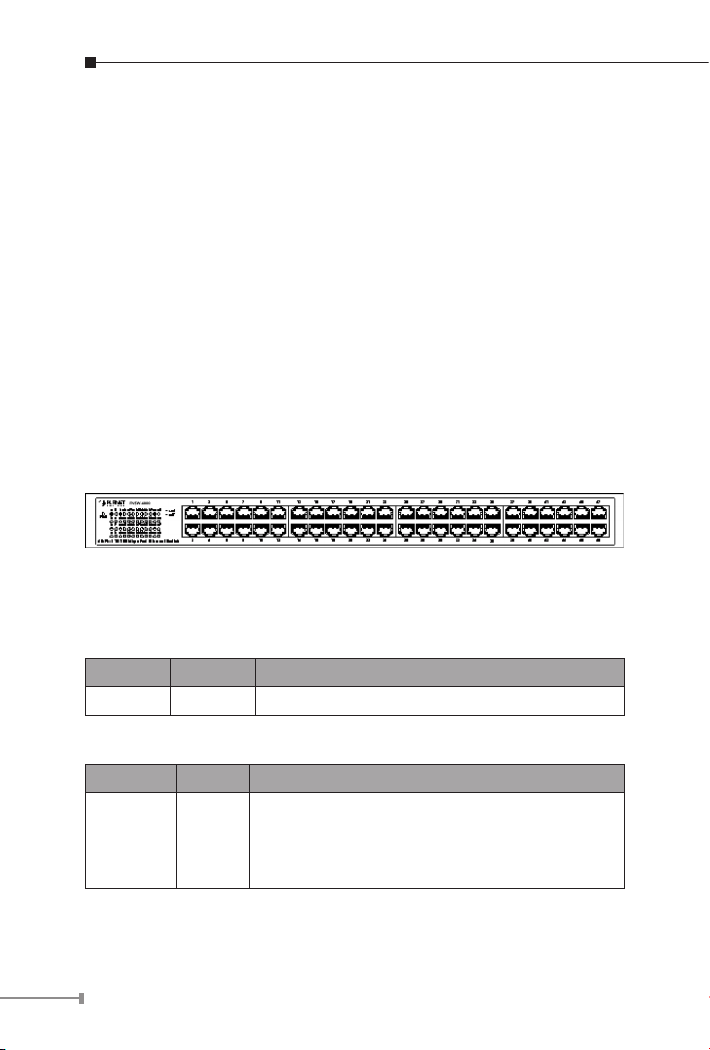

Figure 2-1 FNSW-4800 Switch front panel

2.1.1 LED indicators

System

LED Color Function

PWR Green Lights to indicate that the Switch has power.

Per 10/100Mbps port

LED Color Function

LNK/ACT Green

Lights to indicate the link through that port is

successfully established.

Blinks to indicate that Switch is actively

sending or receiving data over that port.

2.2 Rear Panel

The rear panel of the FNSW-4800 indicates an AC inlet power socket,

which accepts input power from 100 to 240V AC, 50-60Hz, and 0.6A

max.

Figure 2-2 FNSW-4800 Switch rear panel

Note

1. The device is a power-required device, it means,

it will not work till it is powered. If your networks

should active all the time, please consider using UPS

(Uninterrupted Power Supply) for your device. It

will prevent you from network data loss or network

downtime.

2. In some area, installing a surge suppression device

may also help to protect your FNSW-4800 from

being damaged by unregulated surge or current to

the FNSW-4800.

2.3 Hardware Installation

This part describes how to install your FNSW-4800 and make

connections to the Switch. Please read the following topics and perform

the procedures in the order being presented. To install your Switch on

a desktop or shelf, simply completed the following steps.

2.3.1 Desktop Installation

To install a Switch on a desktop or shelf, simply completed the following

steps:

Step 1: Attached the rubber feet to the recessed areas on the bottom

of the Switch.

Step 2: Place the Switch on a desktop or shelf near an AC power

source.

Step 3: Keep enough ventilation space between the Switch and the

surrounding objects.
