PLANET Layer3 Managed Switch

WGS3-2820 / WGS3-5220

WGS3-24000 / WGS3-24240

Quick Installation Guide

Table of Contents

1. Package Content.......................................................................................... 3

2. Requirements.............................................................................................. 4

3. Terminal Setup ............................................................................................ 5

4. Logon to the Console................................................................................... 6

5. Congure IP address.................................................................................... 7

6. Start Web Management................................................................................ 9

Customer Support .........................................................................................12

1. Package Content

Thank you for purchasing PLANET Layer 3 Managed Switch, WGS3-2820/WGS3-

5220/WGS3-24000/WGS3-24240. Terms of “WGS3 Layer 3 Switch” means the

Switches mentioned titled in the cover page of this Quick installation guide, i.e.

WGS3-2820, WGS3-5220 and WGS3-24000.

Open the box of the Layer 3 Switch and carefully unpack it. The box should

contain the following items:

The WGS3 Layer 3 Switch x 1

User’s manual CD x 1

 Quick installation guide x 1

RS232 cable x 1

Rubber feet x 4

 Two rack-mounting brackets with attachment screws x 1

 Power Cord x 1

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

 Workstations of subscribers running Windows 98/ME, NT4.0, 2000/XP, MAC OS9

or later, Linux, UNIX or other platform compatible with TCP/IP protocols.

 Workstation installed with Ethernet NIC (Network Card)

Serial Port connect (Terminal)

 Above PC with COM Port (DB-9)

Ethernet Port connect

 Network cables - Use standard network (UTP) cables with RJ45 connectors.

 Above PC installed with WEB Browser and JAVA runtime environment Plug-in

Note

It is recommended to use Internet Explore 6.0 or above to access

WGS3 Layer 3 Switch.

3. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the WGS3 Layer 3 Switch. The

console port of the WGS3 Layer 3 Switch is DCE already, so that you can connect

the console port directly through PC without the need of Null Modem.

A terminal program is required to make the software connection to the WGS3

Layer 3 Switch. Windows’ Hyper Terminal program may be a good choice. The

Hyper Terminal can be accessed from the Start menu.

1. Click START, then Programs, Accessories and then Hyper Terminal.

2. When the following screen appears, make sure that the COM port should be

congured as:

 Baud rate: 115200

 Parity: None

 Data bits: 8

 Stop bits: 1

 Flow Control: None

4. Logon to the Console

Once the terminal has connected to the device, power on the WGS3 Layer 3

Switch, the terminal will display that it is running testing procedures.

Then, the following message asks the login user name and password. The factory

default user name and password as following, and the login screen in gure 4-1

appears.

User name: admin

Password: admin

Figure 4-1 WGS3 Layer 3 Switch Console Login screen

Note

1. For security reason, please change and memorize the new

password after this first setup.

2. Only accept command in lowercase letter under console

interface.

5. Congure IP address

The WGS3 Layer 3 Switch is shipped with default IP address as following.

IP Address : 192.168.1.254

Subnet Mask : 255.255.255.0

To check the current IP address or modify a new IP address for the Switch, please

use the procedures as follow:

Show the current IP address

1. On “Routing>” prompt, enter “show network”.

2. The screen displays the current IP address, Subnet Mask and Gateway. As show

in Figure 5-1.

Figure 5-1 Show IP information screen

 Congure IP address

3. On “Routing>” prompt, type “enable” to enter the Privileged Exec Mode.

4. A Password required message prompt. For the rst time login, press Enter button.

(With the default setting, the enable password is empty.)

5. On “Routing#” prompt, enter the following command and press <Enter>. As

show in Figure 5-2.

Routing # network parms 192.168.1.100 255.255.255.0

The previous command would apply the follow settings for the Switch.

IP: 192.168.1.100

Subnet Mask: 255.255.255.0

Figure 5-2 Set IP address screen

6. Repeat Step 1 to check if the IP address is changed.

If the IP is successfully congured, the Switch will apply the new IP address setting

immediately. You can access the Web interface of WGS3 Layer 3 Switch through

the new IP address.

Note

If you do not familiar with console command or the related

parameter, enter “help” anytime in console to get the help

description.

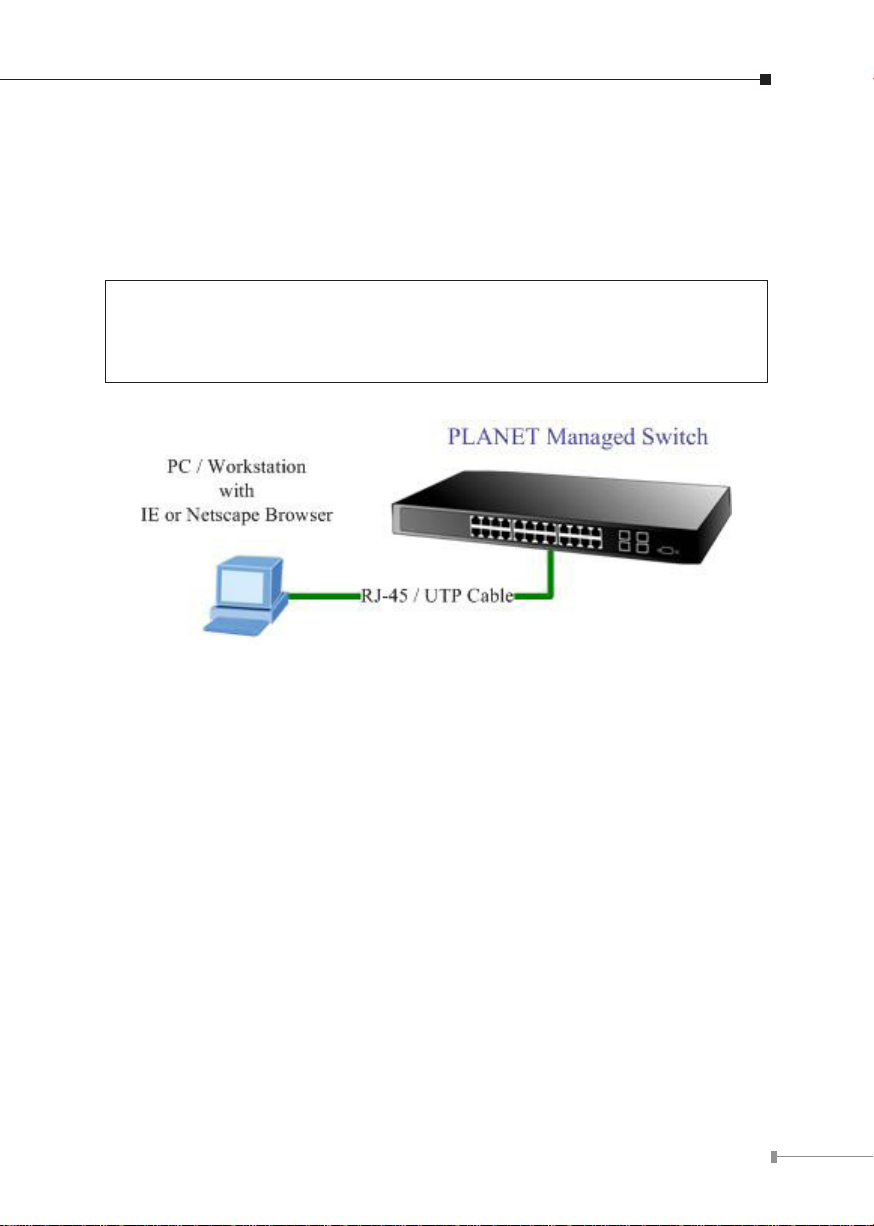

6. Start Web Management

The following shows how to startup the Web Management of the WGS3 Layer

3 Switch. Note the WGS3 Layer 3 Switch is congured through an Ethernet

connection, please make sure the manager PC must be set on the same IP subnet

address.

For example, the default IP address of the WGS3 Layer 3 Switch is

192.168.1.254, then the manager PC should be set at 192.168.1.x

(where x is a number between 1 and 253 and the default subnet mask is

255.255.255.0.

1. Use Internet Explorer 6.0 or above Web browser, enter IP address

http://192.168.1.254 (the factory-default IP address or that you have just

changed in console) to access the Web interface.
