Planet ICA-750 Manuale utente
Dual Mode CCD Box Internet Camera
ICA-750
Version 1.0
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. System Requirements ................................................................................. 4
3. Outlook...................................................................................................... 5
3.1 Front Panel ........................................................................................... 5
3.2 Rear Panel ............................................................................................ 6
4. Physical Installation .................................................................................... 7
5. SetupWizardConguration ......................................................................... 8
3
1. Package Contents
● 1xICA-750
● 1xCameraStand
● 1xPowerAdapter
● 1xAllenWrench
● 2xQuickInstallationGuide
● 1xCD-ROM
Note
Pleaseusethepoweradapterinthispackage.Usingapowersupply
with a different voltage rating will damage and void the warranty
forthisproduct.
4
2. System Requirements
Network Interface 10/100Base-TXEthernet
Monitoring System RecommendedforInternetExplorer6.0orlater
System Hardware
●CPU:Pentium4,1.5GHzorabove
●MemorySize:512MBorabove
●VGAcardresolution:1024x768orabove
●Network bandwidth : In VGA resolu-
tion mode, minimum upload bandwidth is
1Mbps.
Optional:
●SoundCard
●Microphone(forPC)
●Speaker(forPCandICA-750)
5
3. Outlook
3.1 Front Panel
LED Status LED Description
PWR
Off Nopower.
On Poweron.
Blinking ThePowerLEDwillblinkduringstartup(15~20sec).
LAN
Off LANconnectionisnotdetected.
On LANconnectionisdetected.
Blinking DataisbeingtransmittedorreceivedviatheLAN
connection.
LAN
Microphone
PWR
6
3.2 Rear Panel
Reset LAN (PoE)
PWR AUDIO
IN
AUDIO
OUT
DI / DO
I/O Info
PORT PORT Description
Reset
Resettomanufacturerdefaultvaluedandreboot.
Whenpressedandheldover10seconds,thesettingsofIP
Camerawillbesettothedefaultvalues.
Uponcompletion,thePWELEDwillblinkthreetimes.
LAN(PoE)
ConnectyourCameratoa10/100Base-TXhuborswitch.Itis
compliantwithIEEE802.3afstandardPoE.Bothmid-span&
end-spancanbeused.
PWR
Connecttothesuppliedpoweradapter12VDC,1A.Whenthis
deviceisobtainingpowerfromPoEalready,youdon’thaveto
attachthepoweradaptertoICA-750.
DI/DO Theterminalblockincludes2inputportsand2outputports.
AUDIOIN Anexternalmicrophonecanbepluggedin.Thatwilldisablethe
built-inmicrophoneonthefrontpanel.
AUDIOOUT Anexternalspeakercanbepluggedin.
7
4. Physical Installation
1.ConnectanEthernetcable
ConnectoneendofanEthernetcabletotheLANportlocatedontheIPcamera’s
rearpanelandconnecttheotherendtothenetworkdevice(huborswitch).
2.Attachtheexternalpowersupply
Attach the provided power adapter to the IP camera’s connector labeled “PWR”
on the rear panel.
3.ChecktheLEDs
a.The Power LED will turn on briey, and then start blinking during startup. Af-
terstartupiscompleted,thePowerLEDwillremainON.
b.TheLANLEDwillbeON.
8
5. Setup Wizard Conguration
Initial setup should be performed by using the supplied Windows-based Setup
Wizardasfollows:
1.Insert the bundled Product CD into CD-ROM drive to launch the autorun pro-
gram.
2.Afterthewebpage displayed,clickthe“Setup Wizard” hyperlink on the menu
tostartthecongurationprocess.
Note
If the CD’s menu does not appear, click “Start” on the task bar
andselect“Run”totype“X:\Utility\SetupWizard\SetupWizard.
exe”,assumeXisyourCD-Romdrive.
3.Thewelcomescreenappears.Clickon“Setup Camera”buttontostartthewiz-
ard.
9
4.Afterclickingthesetupcamerabutton,itwillautosearchfortheIPCamerason
yournetwork.Clickon to continue.
5.The next screen below will list the IP Camera on your network. Select it from
the list on the left side, the current settings table will be displayed on the right
side. Click on to continue.
10

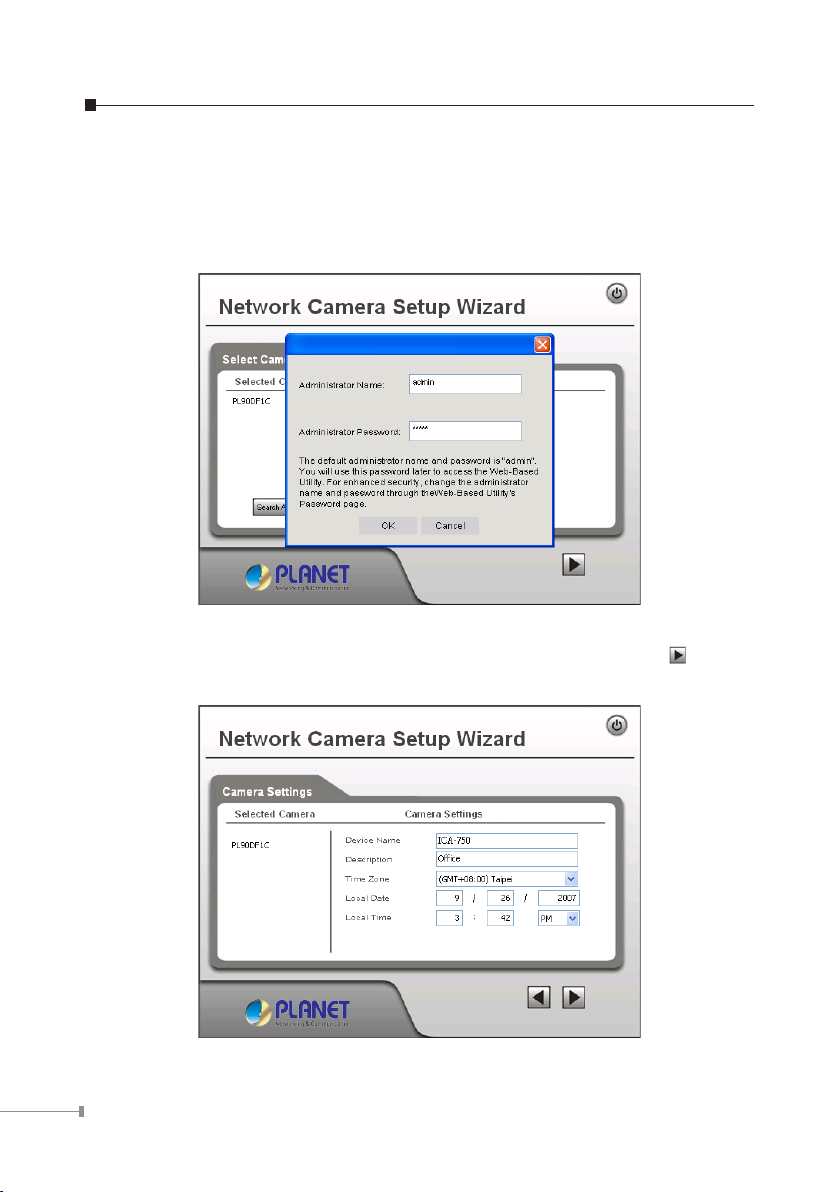

6.The administrator login window will pop up. If the Administrator Name and Ad-
ministrator Password have been set, you will be prompted to enter them. If us-
ing the default values, please enter “admin” for both the name and the pass-
word.Clickon“OK” to continue.
7.On the following Camera Settings screen, you can ll and congure the Device
Name, Description, Time Zone, Local Date and time here. Click on to con-
tinue.
