Plantronics APC-4 Manuale utente

Headset Hookswitch

Control Adapter

QUICK START GUIDE

For Cisco Unified IP Phone models 7975G, 7965G, 7945G, 7962G, and 7942G

Model: APC-4

2

WELCOME/INFORMATION

Welcome! This Quick Start Guide provides information for the installation and use of

the Headset Hookswitch Control (HHC) adapter compatible with Cisco Unified IP Phone

models 7975G, 7965G, 7945G, 7962G, and 7942G.

The HHC adapter enables wireless electronic hookswitch control and telephone

ringer alert for Plantronics CS50, CS60, CS70, DECT headset families and Voyager 510

Bluetooth headsets.

INSTALLATION

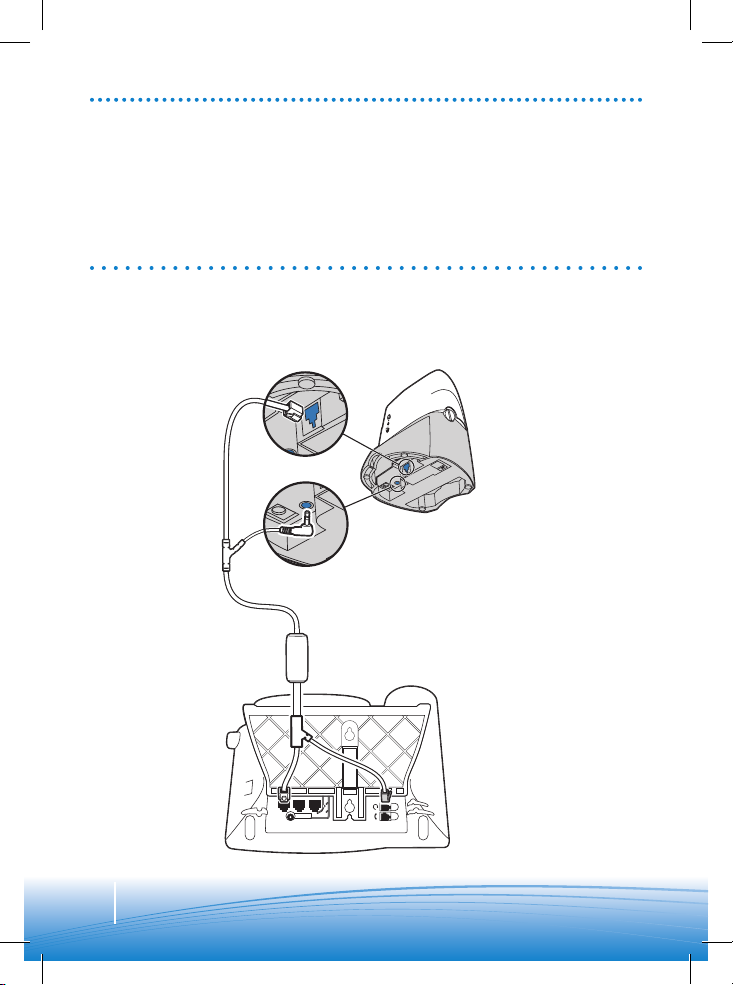

Connect the HHC adapter as shown in the diagram. Consult the headset user

documentation that came with the headset for further details regarding installation. HHC

software functionality must first be enabled through the Cisco Unified Communications

Manager Administration application. Contact your system administrator to activate this

feature.

3

IMPORTANT SAFETY INFORMATION

Please read the following instructions before use:

•TheHHCadapterissuitableforindooruseonly.

•UseonlywithPlantronicsCS50,CS60,CS70andPlantronicsVoyager510S

wireless headsets and Cisco Unified IP Phones 7975G, 7965G, 7945G, 7962G,

and 7942G.

•Donotspillliquidofanytypeontheproduct.

•Donotimmerseinanytypeofliquid.

•Toreducetheriskofelectricalshock,donotdisassemblethisproductyourself.

•Keepallproducts,cordsandcablesawayfromoperatingmachinery

USING THE CISCO HHC ADAPTER

Ring Alert Signal: The HHC adapter automatically sends a ring alert signal to the

headset when the phone rings.

Headset Hookswitch Control: The HHC adapter facilitates hookswitch control remotely,

eliminating the need to remove and replace the handset when placing, receiving, or

ending a call. To place, receive or end a call, press the Call Control Button on the

headset - the phone will go off and on-hook electronically. Consult the headset user

documentation that came with the headset for further details on operation.

WARRANTY AND SERVICE

•Plantronicsguaranteesthesatisfactoryconditionoftheequipmentwithregardto

manufacturing and material defects for 1 year from the date of purchase. (Please

retain the original receipt and refer to the Limited Warranty Terms and Conditions,

availableat:www.plantronics.com/warranty,forwarrantydetailsandrequirements).

•Thisproductshouldbeinstalledandusedinaccordancewiththeinstructions

covered in this Quick Start Guide.

•Thisdoesnotaffectyourstatutoryrights.

WEEE DISPOSAL INFORMATION

Products labelled with the symbol of a crossed-out wheelie bin as shown below are

electricalandelectronicequipment.Thecrossed-outwheeliebindenotesthatwaste

electricalandelectronicequipmentmustnotbedisposedwiththeremainderofnon-

separated household waste, but should instead be collected separately as prescribed

by the local laws and regulations. For more detailed information, please refer to our

website www.plantronics.com

©2001 - 2008 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Plantronics Voyager,

and Sound Innovation, are trademarks or registered trademarks of Plantronics, Inc. All other trade-

marks are property of their respective owners.

37980-01 (03/08)

Plantronics, Inc.

345 Encinal Street

Santa Cruz, CA 95060 USA

Tel: (800) 544-4660

www.plantronics.com
