Thank you for selecting the DuoPro

Headset from Plantronics.

The DuoPro range comprises of:

Model 151 – Over-the-ear headset

Model 161 – Over-the-head headset

Model 171 – Convertible headset

(over-the-head or

over-the-ear)

All styles are available either with

a noise-cancelling microphone or

voice tube. Polaris models are

also available.

This user guide provides instructions

on the assembly and usage of

your headset.

WELCOME

UK D DK E F I N NL P SF SW

DuoPro™ Headset

www.plantronics.co.uk

5647 DuoPro User Guide 9/10/01 10:36am Page 8

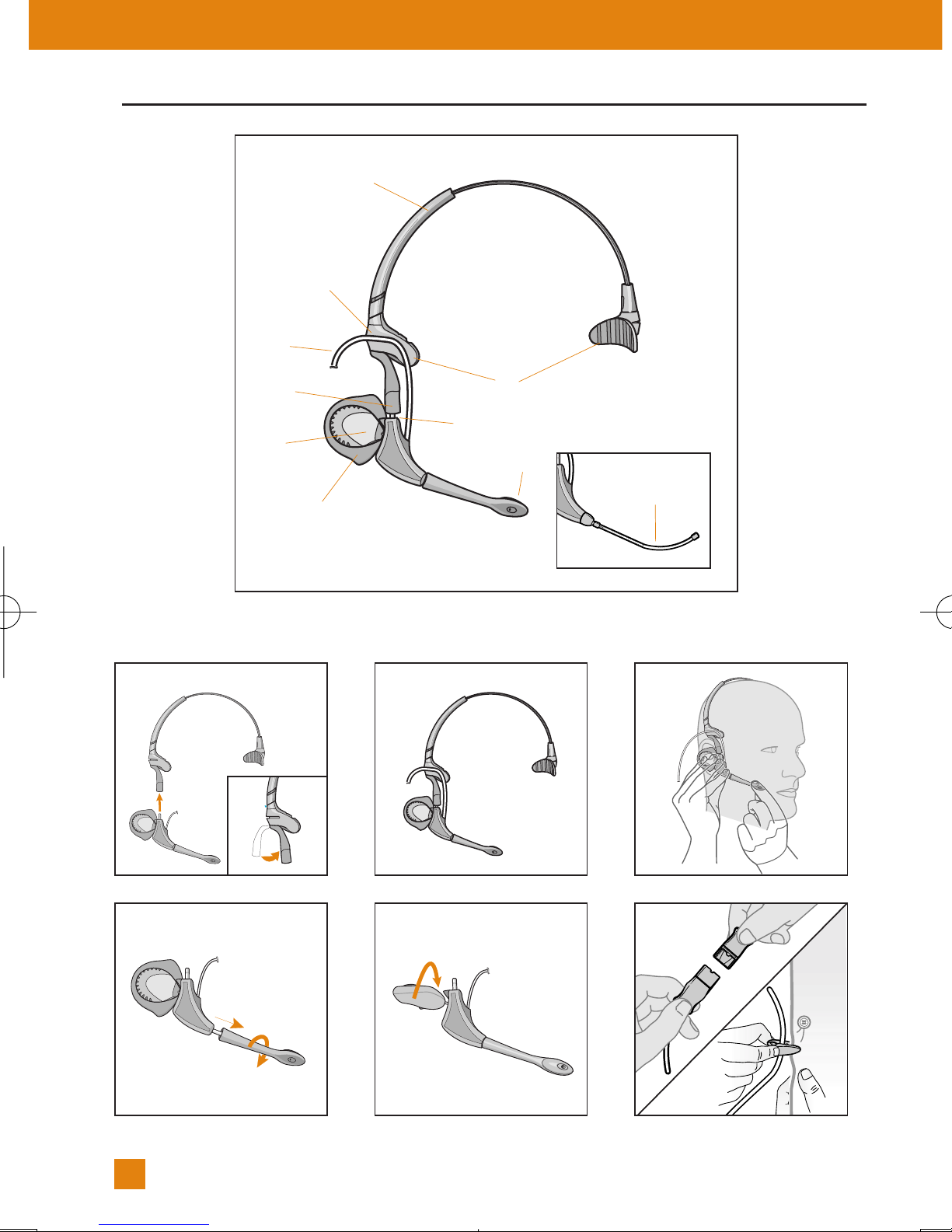

HEADSET ASSEMBLY: OVER-THE-HEAD

To identify headset components, please refer to the above

diagram key (1-12). For assembly instructions, please refer to

the diagrams A-F on page 3.

Please note that the headset is supplied configured for right ear

use. If this is how you wish to wear the headset refer to Fig A-C.

Fig A. Ensuring that the pivot pin holder on the headband is facing

forwards, push the pivot pin on the receiver into the pivot

pin holder.

Fig B. Press the headset cable into the cable stabiliser channel and

then connect the headset cable to your telephone or amplifier.

Fig C. Adjust the headband length so the stabiliser bars rest gently

above your ears. Then push the receiver close to your ear until

it feels comfortable. Position the noise-cancelling microphone

or voice tube towards your mouth. Adjust the position of the

boom by either raising or lowering the boom or swivelling the

headset forward and backwards from the pivot point. You are

now ready to make and receive calls.

1Adjustable Headband

2Stabiliser Bars

3Receiver

4Ear Cushion

5Headset Cable

6Noise-Cancelling

Microphone Boom

7Voice Tube Boom

8Pivot Pin

9Pivot Pin Holder

10 Cable Stabiliser Channel

11 Earloop

12 Earloop Cable Retainer

DIAGRAM KEY

5647 DuoPro User Guide 9/10/01 10:36am Page 9

To convert to left ear use refer to Fig D-E.

Fig D. To convert the headset for left ear use, first pull out the front

part of the boom (on noise-cancelling models) then rotate it

downward so that it faces the opposite direction. Voice tubes

should simply be rotated.

Fig E. Rotate the receiver downward in the opposite direction to the

boom. The headset is now converted for left ear wear.

Fig F. Quick Disconnect™ Connector – This feature allows you to

move away from the telephone wearing your headset without

disconnecting your call. Before using your headset, join the

connectors together. To move away from your desk, pull the

connectors apart. To resume your call, reconnect.

Clothing Clip – The clothing clip helps to keep the headset free

from the weight of the headset cable. Attach the clip to your

clothing at a comfortable level.

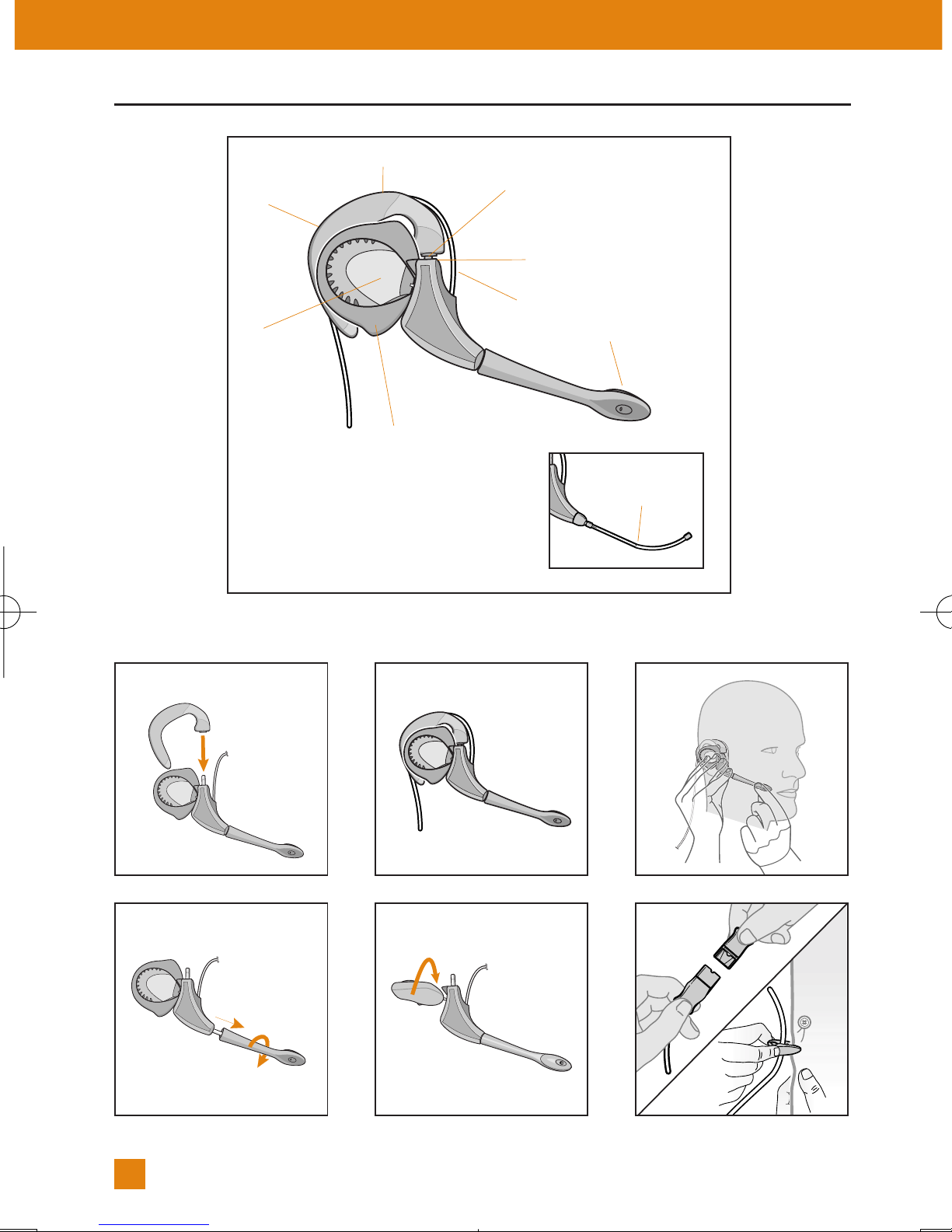

HEADSET ASSEMBLY: OVER-THE-EAR

To identify headset components, please refer to the diagram key

(1-12). For assembly instructions, please refer to the diagrams

G-L on page 4.

Please note that the headset is supplied configured for right ear

use. If this is how you wish to wear the headset refer to Fig G-I.

Fig G. Push the pivot pin on the receiver into the pivot pin holder on

the earloop.

Fig H. Press the headset cable into the earloop cable retainer on the

earloop and secure within the notches. Connect the headset

cable to your telephone or amplifer.

Fig I. To position the headset move the earloop away from the receiver

and place the earloop over your ear. Then push the receiver close

to your ear until it feels comfortable. Position the noise-cancelling

microphone or voice tube towards your mouth. Adjust the position

of the boom by either raising or lowering the boom or swivelling

the headset forward and backwards from the pivot point. You are

now ready to make and receive calls.
