Voyager Edge Series

User Guide

Contents

What's in the box 3

Headset overview 4

Be safe 4

Charge case overview 5

Pair 6

Bluetooth pairing 6

NFC pairing 6

Pair Another Phone 6

Select language 7

Charge 8

Check headset battery status 8

Use the charge case 9

Fit 10

Adjust the fit 10

The Basics 11

Make/Take/End Calls 11

Mute 12

Adjust the volume 12

Use Smart Sensors 12

Play or pause streaming audio 13

More Features 14

Voice alerts 14

Voice commands 14

Use two phones 15

Change headset settings 15

Update headset firmware 15

Specifications 16

Support 17

Headset with medium eartip Charge case

Car charger* Micro USB cable*

Earloop Small and large eartip

NOTE *Charger style may vary by product.

What's in the box

Call button

Volume button

Micro-USB charge port

Mute button

Voice button

Play/Pause button

Power button

Headset LED (indicator light)

Please read the safety guide for important safety, charging, battery and regulatory information

before using your new headset.

Headset overview

Be safe

IMPORTANT The charge case is placed in deep sleep mode after manufacturing to save power and

protect the battery. To wake-up the charge case, plug it into a power source for a minimum of 1

minute. The LED's flash when charging.

Charge case LEDs; indicates case/headset battery status

Headset: Touch the icon to display the headset battery status

Charge case: Touch the icon to display the charge case battery status

Micro USB charge port

When fully charged, the charge case provides an extra 10 hours of battery life for the headset.

Charge case overview

NOTE If your phone supports Near Field Communication (NFC), go to NFC pairing.

1Wearing your headset, power it on. You hear “welcome” in all the supported languages and then

"pairing" in the default language. The headset LED flashes red and blue.

2Activate Bluetooth®on your phone and set it to search for new devices.

•iPhone Settings > Bluetooth > On*

•Android™Settings > Bluetooth: On > Scan for devices*

NOTE *Menus may vary by device.

3Select “PLT_Edge.” If necessary, enter four zeros (0000) for the passcode or accept the

connection. Once successfully paired, you hear “pairing successful."

1Ensure NFC is on and your phone’s display is unlocked.

2Tap and hold the headset to the phone’s NFC tag location until NFC pairing completes. If

necessary, accept the connection.

TIP Keep an eye on your Smartphone's screen for prompts to start and accept the pairing process.

NOTE The headset’s NFC tag is located on the top of the headset. Phone NFC tag locations vary.

After pairing your headset to your phone, you may want to pair another phone.

1Power on your headset.

2Choose:

• Tap the Voice button and say “Pair mode”

•Press and hold the Call button until you hear "pairing"

3Activate Bluetooth on your phone and set it to search for new devices.

4Select “PLT_Edge.”

If necessary, enter four zeros (0000) for the passcode or accept the connection.

Once successfully paired, you hear “pairing successful” and the headset indicator lights stop

flashing.

Pair

Bluetooth pairing

NFC pairing

Pair Another Phone

Once your headset is paired and connected to your phone, you can change the headset

language.

1Wearing your headset, power it on.

2Press and hold the Volume up + and down – buttons together until you hear “welcome." The

language selection directions repeat in every supported language.

3Follow the voice-guided prompts to select the headset language.

Select language

It takes 90 minutes to fully charge the headset. The indicator light turns off once charging is

complete.

TIP To reset the accuracy of the talk time prompt, deplete the headset battery then charge fully.

Headset LED behavior while charging with micro USB cable

Off Charging complete

Battery high

Battery medium

Battery low

Battery critical

There are three ways to check your headset battery status.

1Wearing the headset, tap the Voice button, say "Check battery" and listen to the voice alert.

2Wearing the headset, tap the Call control button and listen to the voice alert.

3When not wearing the headset, tap the Call control button and observe the headset LEDs.

Headset LED behavior for battery status

Off Charging complete

Battery high

Battery low, less than 30 minutes remaining

Battery critical , under 10 minutes remaining

Charge

Check headset battery

status

A fully charged case can supply an additional 10 hours of headset talk time.

IMPORTANT The charge case is placed in deep sleep mode after manufacturing to save power and

protect the battery. To wake-up the charge case, plug it into a power source for a minimum of 1

minute. The LED's flash when charging.

Check the charge case or headset battery status by touching/swiping either the case or headset

icons. The LEDs indicate the battery status.

Battery status LEDs for charge case and headset

Battery high

Battery medium

Battery low

Battery critical; Recharge case/headset

Use the charge case

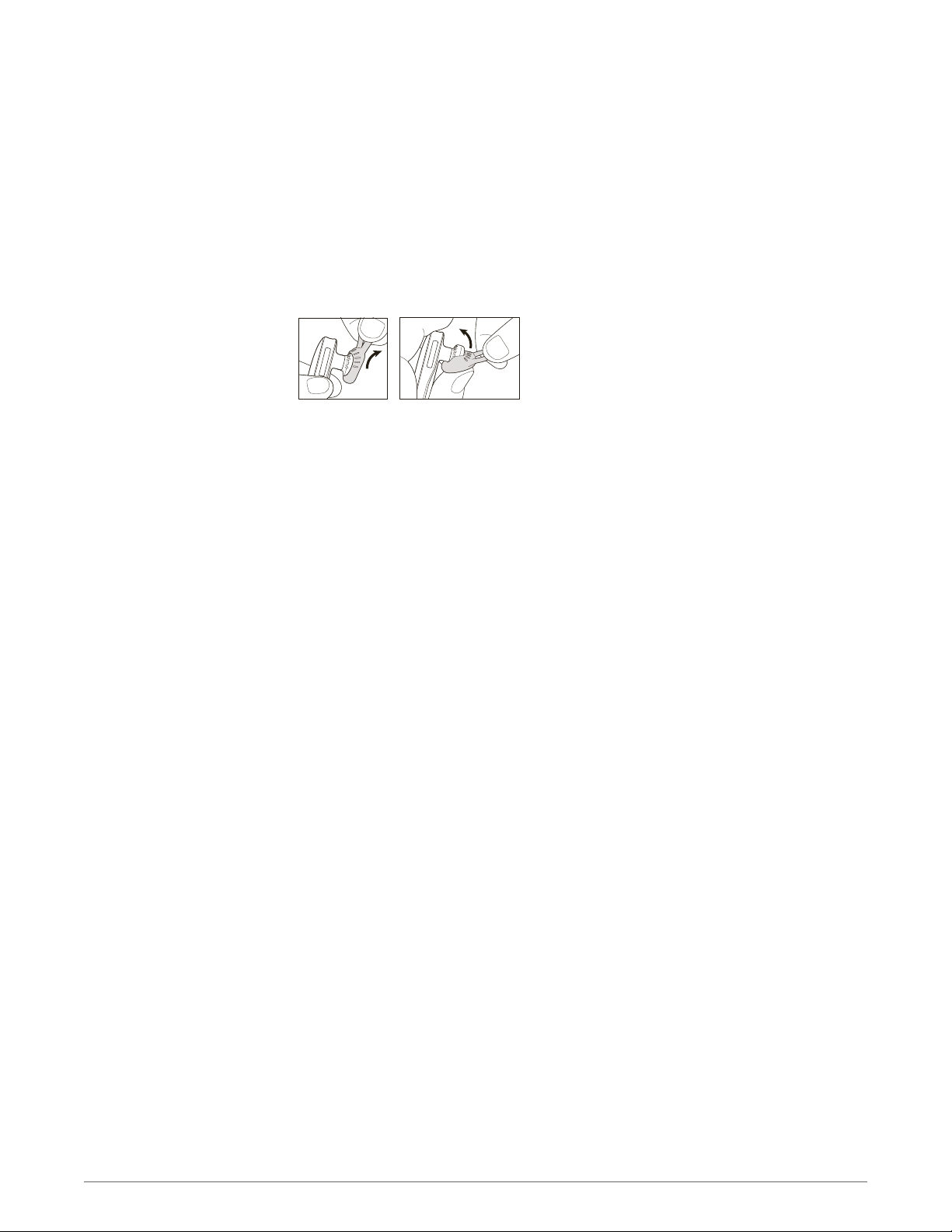

The loop of the gel eartip tucks into the back curve of your ear for a stable fit.

1With the headset powered off, replace the eartip with one of the two alternate sizes if it feels

loose or tight in you ear.

2To adjust the ﬁt, rotate the eartip on the headset or add the optional clip-on earloop.

NOTE If the eartip feels loose after use, remove the eartip, wash it in warm water, let it dry and

reattach.

Fit

Adjust the fit
