Plantronics Voyager Legend Manuale utente

Voyager Legend

User Guide

Contents

What's in the Box 3

Accessories 4

Headset Overview 5

Pairing 6

Pair first time 6

Pair another phone 6

Charge 7

Fit 8

Change the eartip 8

Wear on the left or right 8

The Basics 9

Make/Take/End Calls 9

Mute 10

Adjust the volume 10

Use sensors 10

Play or pause streaming audio 10

More Features 11

Voice alerts 11

Voice commands 11

Customize your headset 12

Multipoint 12

Specifications 13

Headset USB charge cable

AC charger

Foam eartip covers and

silicone eartips

What's in the Box

Sold separately.

1 2

3 4 5

6 7

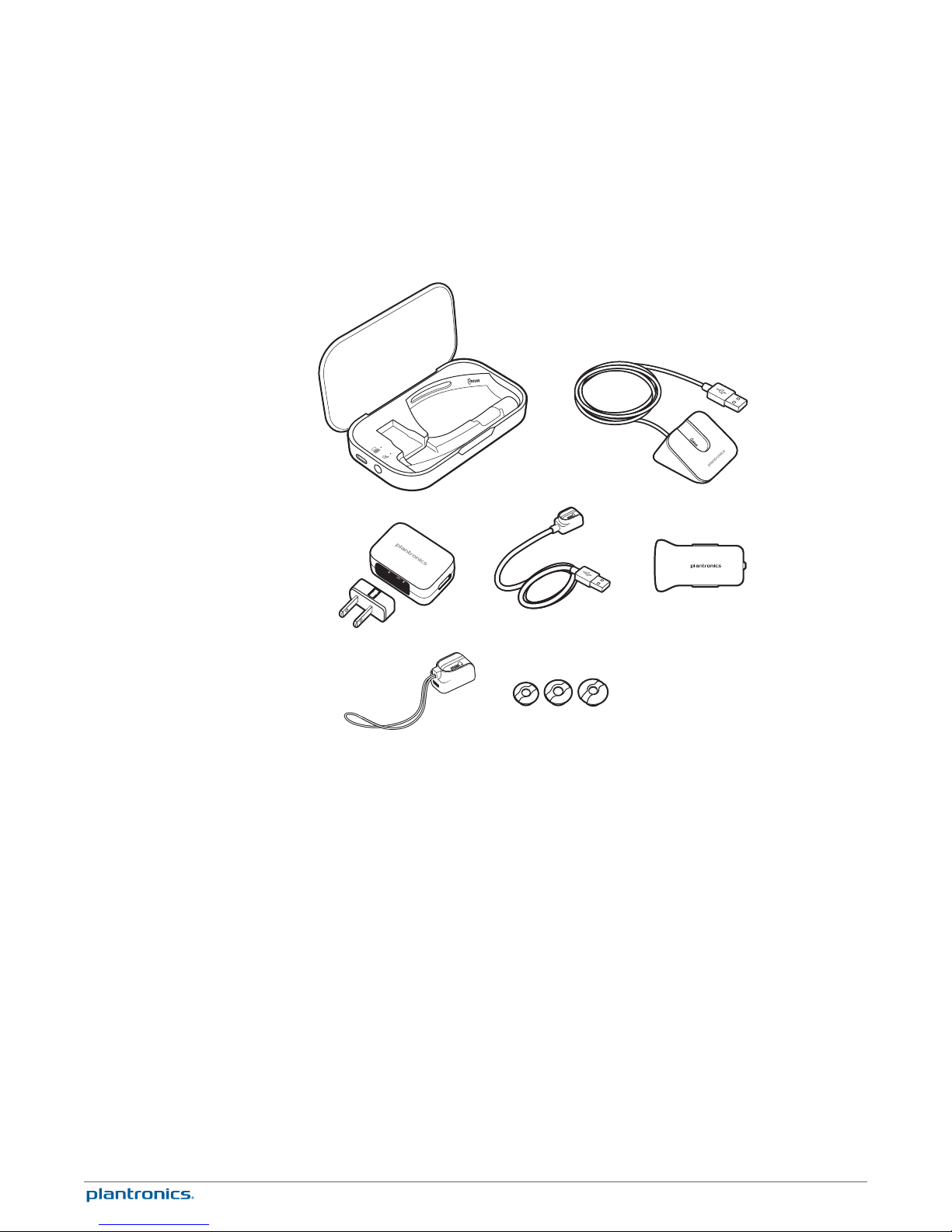

1Portable charge case

2Desktop charge stand

3AC charger

4USB charge cable

5Car charge adapter

6Micro USB charge adapter

7Eartip kit (available in S, M, L)

Accessories

voice

Call button

Volume button

Headset LED (indicator light)

Power button

Magnetic charge port

Mute button

Voice button

Play/Pause button

Headset Overview

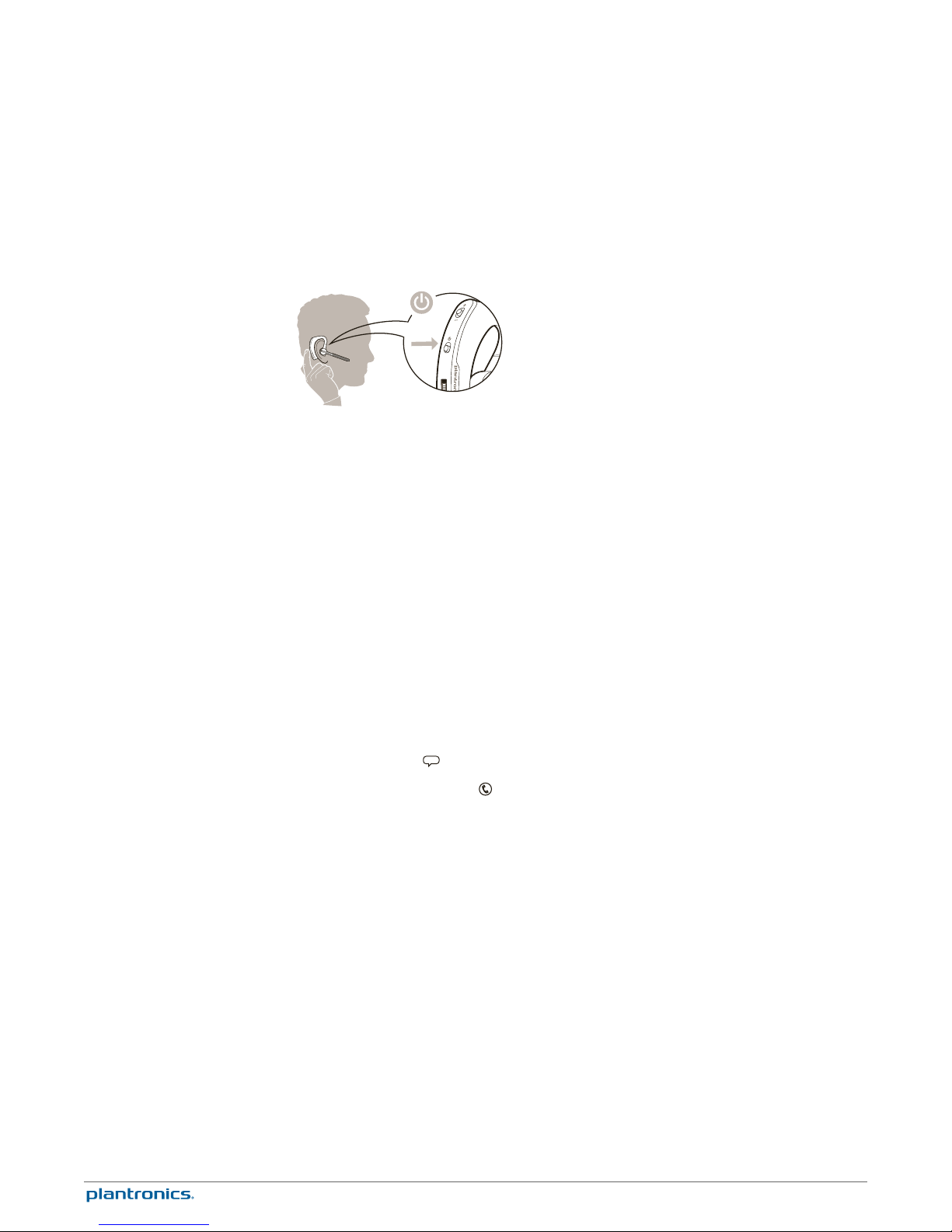

The first time you switch on your headset it begins the pairing process.

1Put the headset on and turn it on.

2While the headset LEDs are flashing red and blue, activate Bluetooth®on your phone and set it

to search for new devices.

•iPhONE

Settings > General > Bluetooth > On

•Android™Smartphones

Settings > Wireless & Networks > Bluetooth: On > Scan for Devices

NOTE Menus may vary by device.

3Select “PLT_Legend.” If your phone asks, enter four zeros (0000) for the passcode or accept the

connection.

4Once successfully paired, LEDs stop flashing red and blue and you hear “pairing successful.”

NOTE To enable caller name announcement, allow access to your contacts if your phone prompts

you.

After pairing your headset to your phone you may want to pair another or new phone.

1Switch on your headset then choose:

• Tap the Voice button and say “Pair mode,” or

•Press and hold the Call button until you hear “Pairing”

2While the headset LEDs are flashing red and blue, activate Bluetooth®on your phone and set it

to search for new devices.

3Select “PLT_Legend.” If your phone asks, enter four zeros (0000) for the passcode or accept the

connection.

4Once successfully paired, LEDs stop flashing red and blue and you hear “pairing successful.”

NOTE To enable caller name announcement, allow access to your contacts if your phone prompts

you.

Pairing

Pair first time

Pair another phone

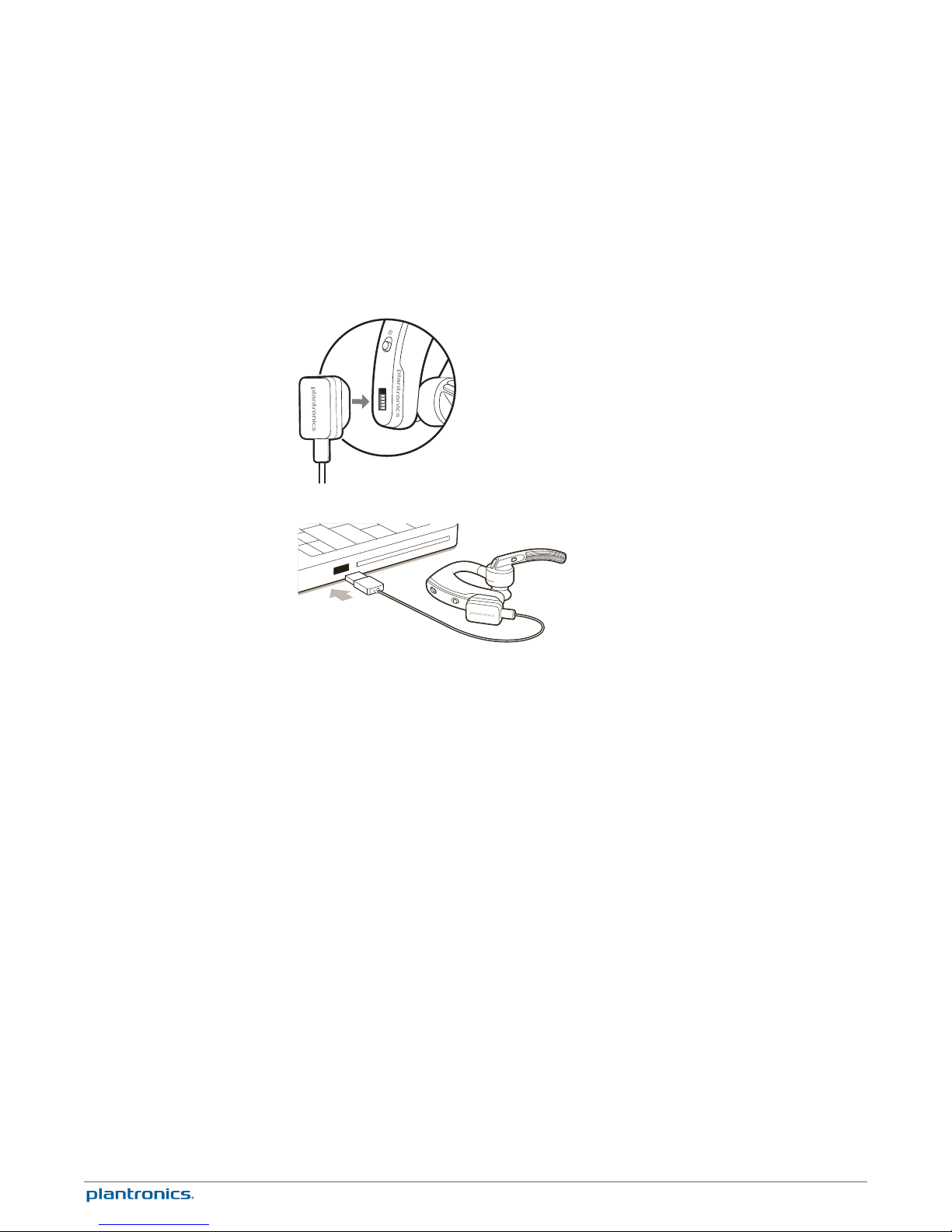

Your new headset has enough power to pair and make a few calls before

charging is needed, though you may charge at any time.

1Align snap-fit magnetic areas of headset and USB cable.

2Attach cable to USB wall charger or laptop for 90 minutes. LEDs turn off once fully charged.

Charge

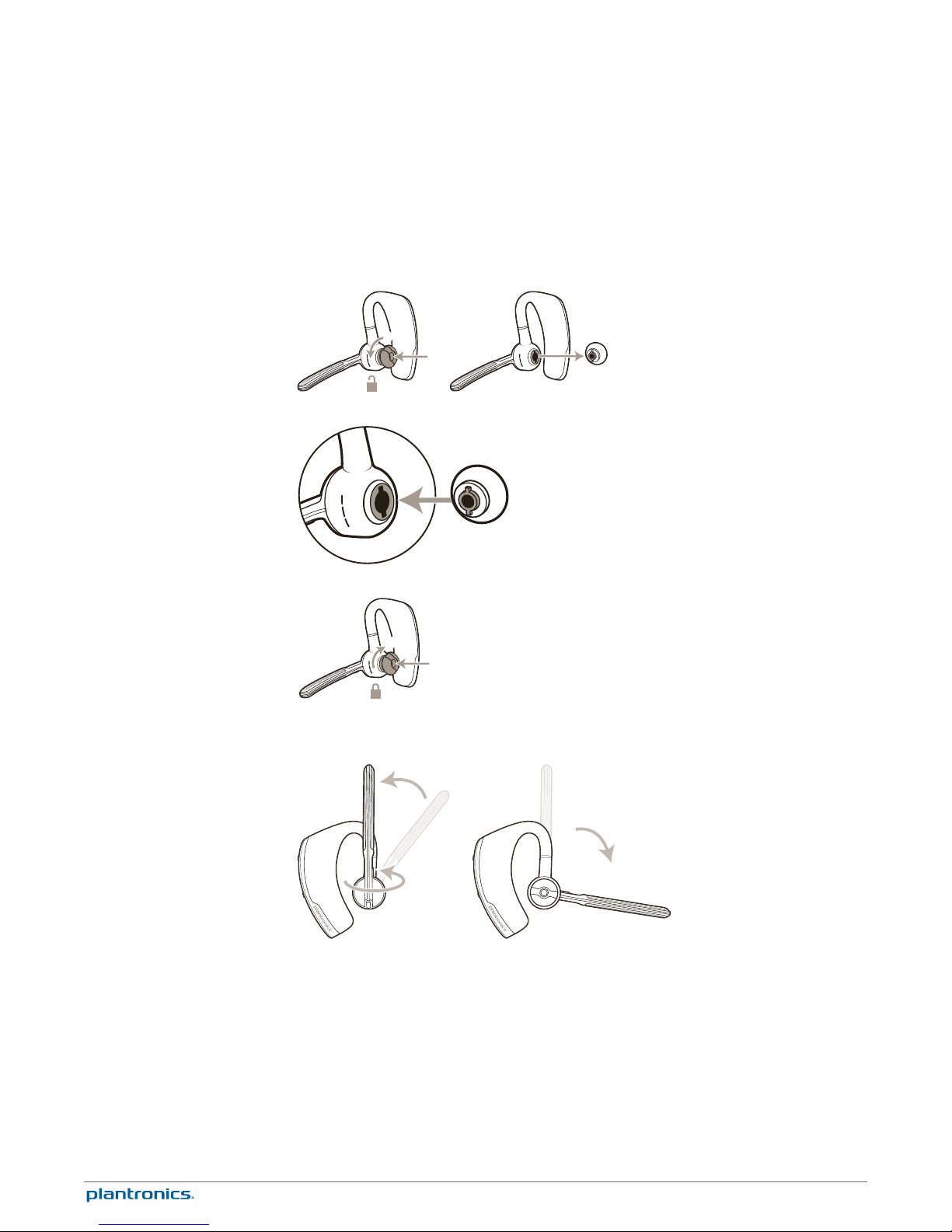

Change the eartip for a better fit.

1Push in eartip and rotate to the left to unlock it.

2Align new eartip into slot.

3Rotate it to the right to lock it into place.

To wear the headset on your other ear, rotate the boom upwards then twist it around so the

eartip is on the other side before lowering the boom.

Fit

Change the eartip

Wear on the left or right

voice

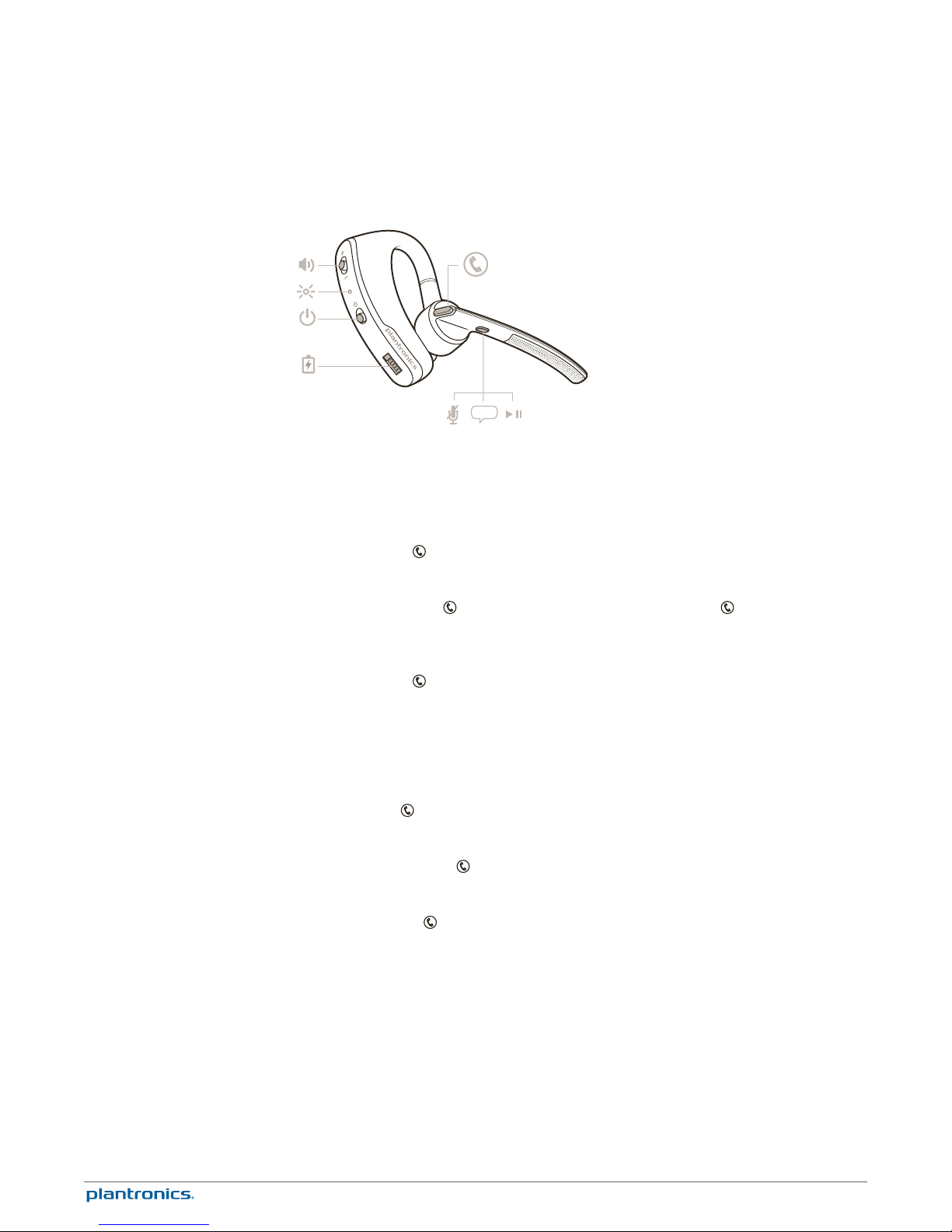

Answer a call

Choose:

• Put on the headset to answer call, or

• Say “answer” after call is announced, or

•Tap the Call button

Answer a second call

First, tap the Call button to end current call, then tap the Call button again to answer new

call.

End a call

Tap the Call button to end current call.

Reject a call

Choose:

• Take off the headset , or

• Say “ignore” after call is announced, or

•Press Call button for 2 seconds

Call back last call

Double-tap the Call button .

Voice dial (phone feature)

Press the Call button for 2 seconds, wait for phone prompt and then tell the phone to dial the

name of a stored contact.

Caller Announcement

When wearing your headset, you will hear the name of a contact calling you so you can decide

whether to answer or ignore the call.

An incoming caller name is announced:

• if your phone has the Phone Book Access Profile (PBAP)

• if you granted access to your contacts during pairing process

• if they are a stored contact

However, in the following situations, an incoming caller name is not announced:

• if you use the sensors to automatically answer a call while putting on your headset

The Basics

Make/Take/End Calls

• if the caller is unknown, unlisted, or blocked

During a call, you can mute the microphone.

Tap the Mute button. You will hear “mute on” confirmation. An alert repeats every 15 minutes

to remind you of microphone mute. Tap the Mute button again to open the microphone and

hear “mute off” confirmation.

Toggle the Volume button up (+) or down (–) during a call or while streaming audio.

Smart Sensors™technology in this headset recognizes if the headset is being worn and can

automatically perform time-saving functions.

Putting on your headset will:

• Answer an incoming call

• Transfer an active call from your phone

• Resume streaming audio

Taking off your headset will:

• Reject an incoming call

• Transfer an active call to your phone handset

• Pause streaming audio

• Lock the Call button to avoid accidental calls

Reset Sensors

You may need to reset the sensors if they are not working as expected.

1Test Wearing the headset, tap the Call button to test sensors.

A talk time voice alert means sensors are working. A tone means sensors need to be reset .

2Reset To reset the sensors, charge your headset and place on a flat non-metallic surface for

more than 10 seconds.

A 2-second press of the Play/Pause button will either pause or resume playback of

streaming audio.

NOTE You must pause your streaming audio before you:

• use your headset's voice commands

• initiate an outbound call with your headset (call back or voice dial)

NOTE If you power off the headset or go out of phone range while streaming audio, your headset will

not play/pause the stream upon reconnecting until you manually resume streaming with your phone.

Mute

Adjust the volume

Use sensors

Play or pause streaming

audio
