2| Dimmer User Manual

Product Features

Main Features of Plasson LED Dimmer are as follows:

●Fully integrated digital control

system

●Input

Power Supply System: Automated

Voltage Detection and Switching

●120VAC / 50HZ(or 60Hz) Allowable

voltage uctuation range: 90-

140VAC

●220VAC / 50HZ(or 60Hz) Allowable

voltage uctuation range: 170-

260VAC

●Output

Two Zones: Zone1 and Zone2

Output voltage control range

●0-120V/50Hz (or 60Hz)

●0-220V/50Hz (or 60Hz)

Each Zone Output current range:

●0-9A(in 110VAC system)

●0-4.5A(in 220VAC system)

●Control input:

●Keypad Control in Manual Mode

●Analog Voltage Control of 0-10VDC

in Slave Mode

●Program Lighting Control in

Master Mode

●I GBT Control

●User interface:

●Keypad on front

●LCD display

●Status LEDs on front (normal,

alarm)

●No audible noise

●Protection

●Surge protection:

Lightning surge protection

●Overvoltage protection:

Dimmer will cut o output when

input voltage is over 160V or 260V

(in 110V/220V system).

●Short circuit protection:

Dimmer will cut o system

immediately when load current

ows over 30A

●Overload protection:

Dimmer will cut o output when

load current per Zone ows

over 9A

●Over Heat protection:

Dimmer will cut o output when

the temperature of dimmer is over

70° C (158° F)

●Allowable Loads:

Type: Incandescent bulbs, LED bulbs

| 3

Climate HousingDrinkingFeeding

Mounting Instructions

W-A

50 mm

(2”)

Ø 4 mm

(Ø 5/32”)

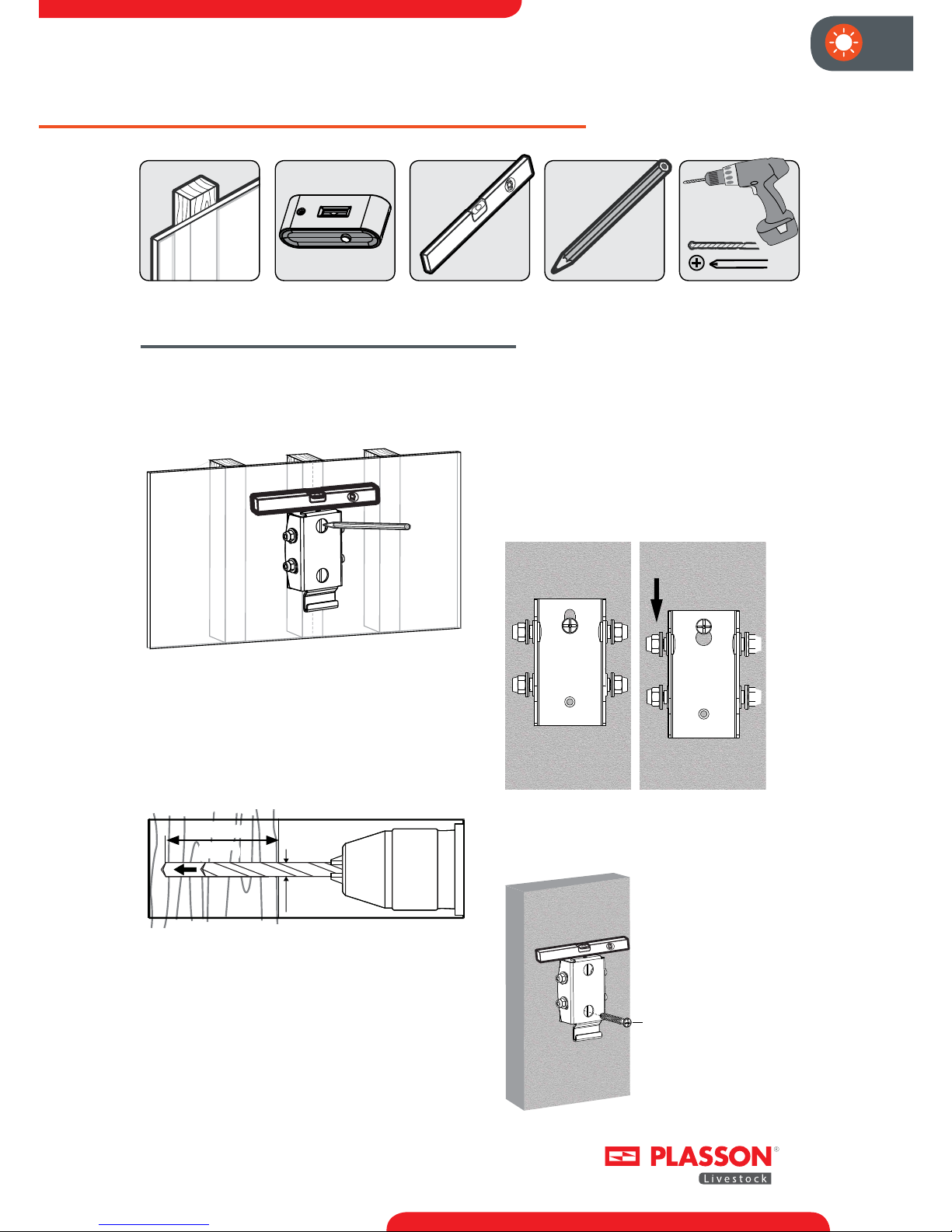

Step 1: Using a level, set the wall

mount against the wall and mark the

screw holes on the wall.

Step 2: Drill pilot holes into the wall if

necessary.

Step 3: Install screw into the wall and

tighten to within 3 to 5mm from the

wall

Step 4: Align the top hole of the wall

plate to the screw in the wall and lower

the wall plate until the screw is seated

in the upper area of the teardrop

mounting hole.

(For clarity, the outer cover is not

shown)

Step 5: Install the other screw and level

the wall plate, then tighten all screws

for security.

W-A

50 mm

(2”)

Ø 4 mm

(Ø 5/32”)

Installing the wall plate to the wall

W-A

50 mm

(2”)

Ø 4 mm

(Ø 5/32”)

W-A

50 mm

(2”)

Ø 4 mm

(Ø 5/32”)

4| Dimmer User Manual

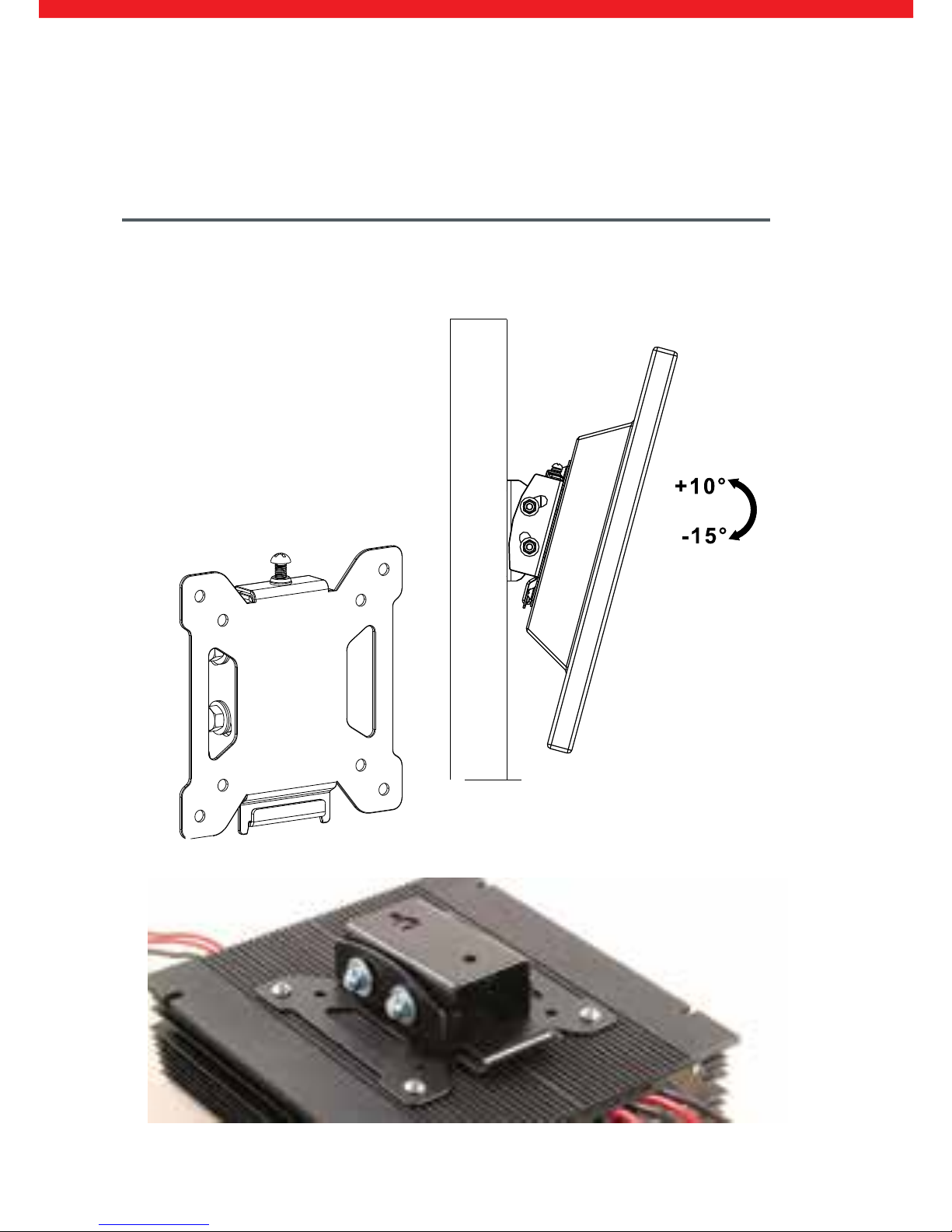

Attaching the Dimmer Attachment Plate

(which is already attached to the dimmer) to the Wall Mount

Use a screwdriver to tighten the screws from the top of the attachment plate into

the wall mount which is hung on the wall.

wall

Push or pull from the top

or bottom of the display to

obtain a desired angle.

| 5

Climate HousingDrinkingFeeding

Connection Method

Fig. 1 The LIFELAMP Dimmer-Controller

ZONE 2 Analog Command Input -

ZONE 2 Analog Command Input +

ZONE 1 Analog Command Input +

ZONE 1 Analog Command Input -

Fig. 3a LifeLam

Fig. 3

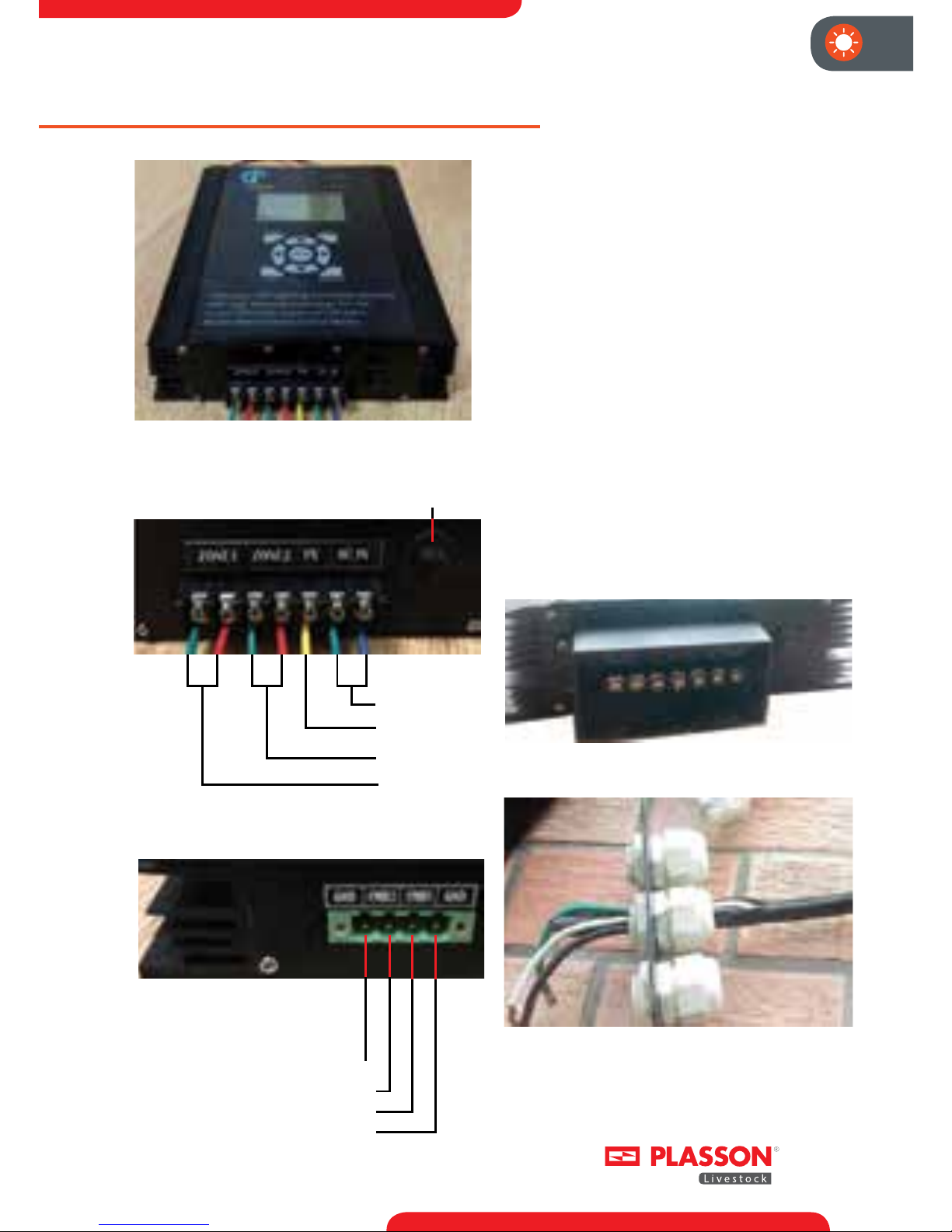

Before starting to connect the wires

to the dimmer, install the connector

terminal frame over the connectors

with the four screws provided. The

installed frame should look like the

image below in Figure 3a.

ALL Wires which will be connected

to the dimmer should be threaded

through the connecter bladders found

on the terminal frame cover. These

bladders will accept up to a Romex

12-3 cable. Each bladder accepts a

Romex cable for main power (right

side), light line 1 (left Side) and light line

2 (Center). Figure 3b below shows the

light line 2 ROMEX threaded through

the center frame cover bladder.

Fig. 1: The Plasson Dimmer-Controller

AC Input

Earth GND

Zone 1 Output

Zone 2 Output

z + z + z +

Overload Protector

Fig. 2: The connection of AC Power lines.

Fig. 3: Connection of slave

analog command voltage.

Fig. 3a: Connector frame

Fig. 3b: Connector frame cover with bladders

6| Dimmer User Manual

Note: Now it is time to connect the wires. Remember that the center Romex/

wire connects to Light Line 2 (shown in Figure 3c. on right, The right Romex/wire

connects to power and the left Romex/

wire connects to Light Line 1. It is critical

that you connect the positive and neutral

wires to the same terminal connections

for the AC in Zone 1 and Zone 2. The

left terminal connection is ALWAYS the

neutral connection and the right terminal

connection is ALWAYS the positive

connection. DO NOT MIX THESE UP WHEN

CONNECTING THE DIMMER!

START BY CONNECTING THE GROUND

WIRE!

Connections are shown in Figure 2.

After all the wires are connected to the dimmer, now slide the connector fame cover

and bladder assembly over the connection terminal frame and screw the cover into

place. At this time all of the wires will be coming out of the bottom of the dimmer

as shown below in Figure 3d.

Figure 3d: Final connected dimmer

Fig 3 Li

Fig. 3

| 7

Climate HousingDrinkingFeeding

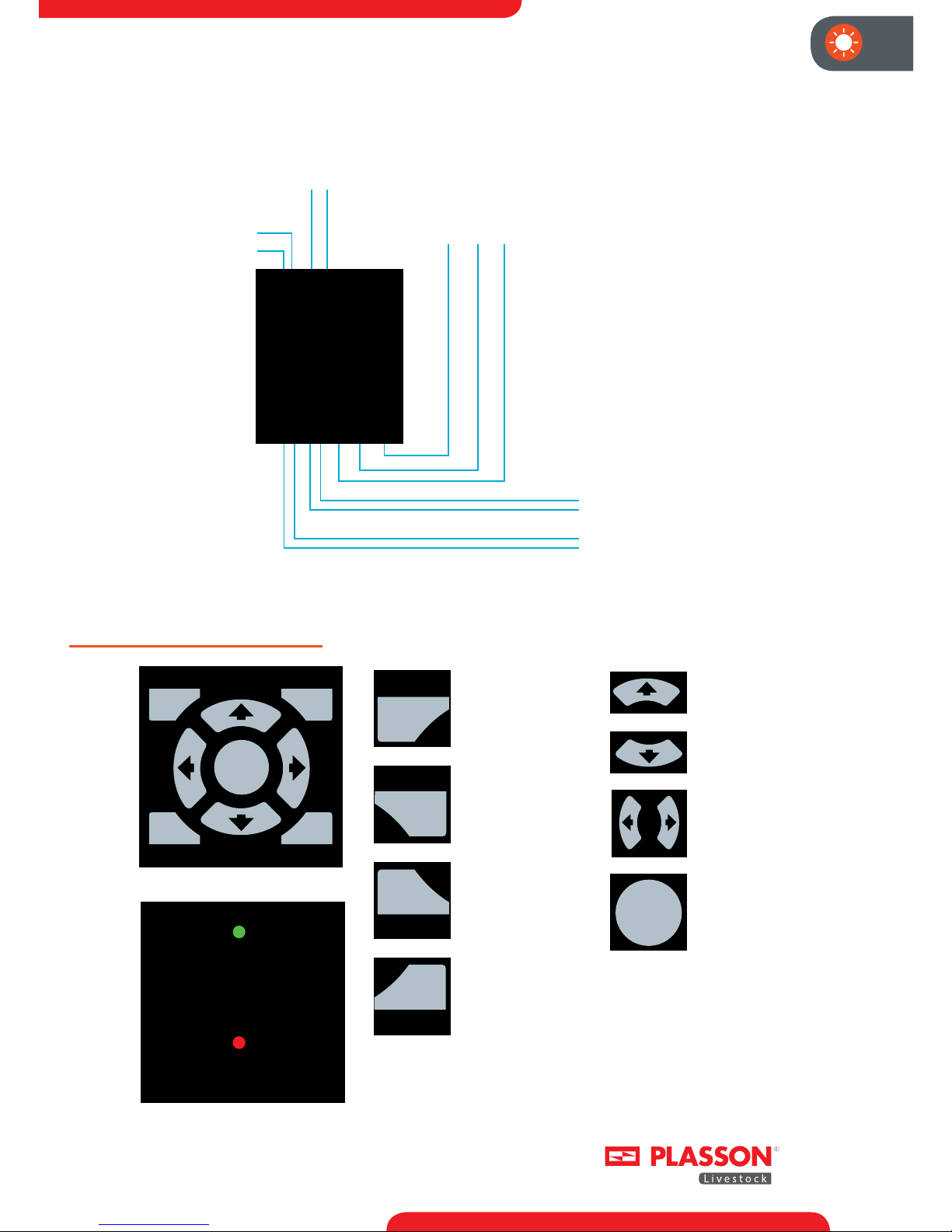

The Keypad

Negative

Positive

Negative

Positive

0-10 vsc control Zone 1

0-10 vsc control Zone 2

Light Line Zone or Circuit 1

Power In

110-240 Volts

Light Line Zone or Circuit 2

Cannot have common

Neutral between

Light Lines and

Dimmer/Controller

Dimmer

Plasson

Controller

Hot

Neutral

Ground

Hot

Neutral

Hot

Neutral

ENTER

POWER

EXIT PROGRAM

BACK

ENTER

EXIT

POWER

BACK

PROGRAM

Normal

Alarm

Fig. 5: Keypad

Fig. 6: Leds

Power

on/o key

Back key

Exit key

Program key

Up key

Down key

Left, right key

Entry key

Fig 4: Full installation wiring

for Plasson Dimmer-Controller

8| Dimmer User Manual

Programming Methods

Initial Startup

When input power is supplied, previous

operating state is loaded. In other

words, the previous operating state (On

in Manual/Slave/Master Mode or Power

O )is restored as long as the operating

temperature of the dimmer is less than

70° Celsius.

●If the dimmer is overheated above

70° C, overheat error state is

displayed in LCD and alarm LED on

the front panel will blink.

●If the previous state is in "Power o"

state by power button, then normal

LED on front will blink and LCD is

not powered on. In this state, output

is turned o.

In this case, user must press power

button in order for Dimmer to run.

●If the previous state is in one of the

three modes "Manual/Slave/Master"

power on state, then the previous

state is restored and the normal LED

on the front panel comes on. In this

state, output is turned on.

Normal Operation

Assuming the dimmer/controller does

not sense an overvoltage, overcurrent

or overheat error it will start up in its

normal operational state. There are

three modes of control: Manual Mode,

Slave Mode, Master Mode.

●Manual Mode

In Manual Mode, the lighting intensity

of the Plasson LED Bulbs is controlled

manually.

The main screen of the Manual Mode

display looks like Figure 7.

anual

Fig. 7: Main Screen of Manual Mode

"Mode: Manual" means that the

dimmer is in manual operation mode.

"xxx xx/xx xx:xx am" displays present

DAY OF WEEK/MONTH/DAY/TIME.

"Z1:xxx% Z2:yyy%" displays the lighting

intensity level of Zone 1 & the lighting

intensity level of zone 2.

Programming Dimmer in

Manual Mode:

The user will use the "LEFT" and "RIGHT"

navigation buttons to change the

selected Zone to modify. The user will

use the navigation "UP" and "DOWN"

buttons to set the desired lighting

intensity level. This can be anything

between 0 and 100%. 0% is lights o

and 100% is lights 100% on. You can set

this level at anything in-between using

the navigation up and down buttons.

Press the "LEFT" Key in the main

window of Manual Mode, then Zone

1 "xxx%" will blink. In this state, if you

press the "UP/DOWN" key, the lighting

intensity level of Zone 1 "xxx%" will

increase or decrease accordingly.

| 9

Climate HousingDrinkingFeeding

To save a manual setting press the

"ENTER" key, and the present lighting

intensity Zone 1 will be saved.

Press the "RIGHT" key in main window

of Manual Mode, hen Zone 2 "yyy%"

will blink. In this state, if you press the

"UP/DOWN" key, the lighting intensity

level of

Zone 2 "yyy%" will increase or decrease

accordingly. To save a manual setting

press the "ENTER" key, and the

present lighting intensity Zone 2 will

be saved.

●Slave Mode

In Slave Mode, the lighting intensity

of the Plasson Bulbs is controlled by

an analog control signal (1-10VDC). The

main screen of Slave Mode displays

like this:

Slave

Fig. 8: Main Screen of Slave Mode

"Mode: Slave" means that the dimmer

is in slave operation mode.

"xxx xx/xx xx:xx am" displays the current

DAY OF WEEK/MONTH/DAY/TIME.

"Z1:xxx% Z2:yyy%" says that the

lighting intensity level of Zone 1 is

xxx% and the lighting intensity level

of Zone 2 is yyy%. In Slave Mode, the

lighting intensity is controlled by an

external analog signal, so the "UP/

DOWN/LEFT/RIGHT" keys don't aect

the operation and program of the

dimmer.

●Master Mode

In Master Mode, the lighting intensity

of the Plasson Bulbs is controlled by the

on board program. The main screen of

Master Mode displays Figure 9.

Fig. 9: Main Screen of Master Mode

"Mode: Master" means that the dimmer

is in master operational mode.

"xxx xx/xx xx:xx am" displays the current

DAY OF WEEK/MONTH/DAY/TIME.

"Z1:xxx% Z2:yyy%" says that the

lighting intensity level of Zone 1 is

xxx% and the lighting intensity level

of Zone 2 is yyy%. "Program Day xxx"

means that present date in master

mode is "xxx".

Keypad Control if Dimmer-Controller

is in normal operational state:

●You can select the "POWER" button

to turn the system on and o. If the

unit is in power o state, the LCD is

also turned o.

●You can always select the ""BACK" key

on the front panel of the dimmer if

you wish to go back one level within

the interface.

10 | Dimmer User Manual

●You can select "EXIT" key to go to the

main display screen (Manual/Slave/

Master).

●You can select "ENTER" key in main

display screen (Manual/Slave/Master)

to go to the product information and

statement display screen (Product

version display › statement display

(input voltage, frequency and

load current) › error (overvoltage,

overcurrent, overheat) history

display).

Programming

Select the "PROGRAM" Button on the

front panel of the dimmer. The rst

screen that will appear is as follows:

Program Time

Program Lighting

Program Mode

Fig. 10: Program Mode Menu

In the "Program Time" section, you can

set and/or correct the present time.

In the "Program Lighting" section,

you can program the Master Mode

operation. In the "Program Mode"

section, you can select the operation

mode you want (Manual/Slave/Master).

With the "UP" and "DOWN" buttons

on the navigation cluster scroll to the

programming method you wish to

congure and select "ENTER".

●Program Time

You can set the present date and time.

The 12 Hour time clock comes up to

view along with date.

04:31 pm 01-24-14

Fig. 11: Time edit window

Use the "RIGHT' and "LEFT' navigation

buttons to scroll through each time

eld. When over the eld you wish

to modify, use the navigation "UP"

and "DOWN" buttons to change the

value. Once you are nished with the

changes you wish to make to the time

and date hit "Enter" and the changes

will be saved.

●Program Lighting

The rst screen that appears when

you select "Program lighting" from

the main programming screen is the

zone screen. When the user enters

the Program Lighting Menus, they

are Programing the Dimmer to be

controlled under the "Master" Mode

●The rst screen to appear when

selecting the Program Lighting

function is found below:

Zone 1

Zone 2

Program same

Fig. 12: Program Lighting window

Indice

Altri manuali Plasson Controllori

Plasson

Plasson Water On Demand Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
