Installation manual

Wave

1Content

1. Content .......................................................................................... 1

2. Component overview ........................................................... 2

2.1 Steel components & pre-installed electronics

2.2 Other components

3. Construction .............................................................................. 3

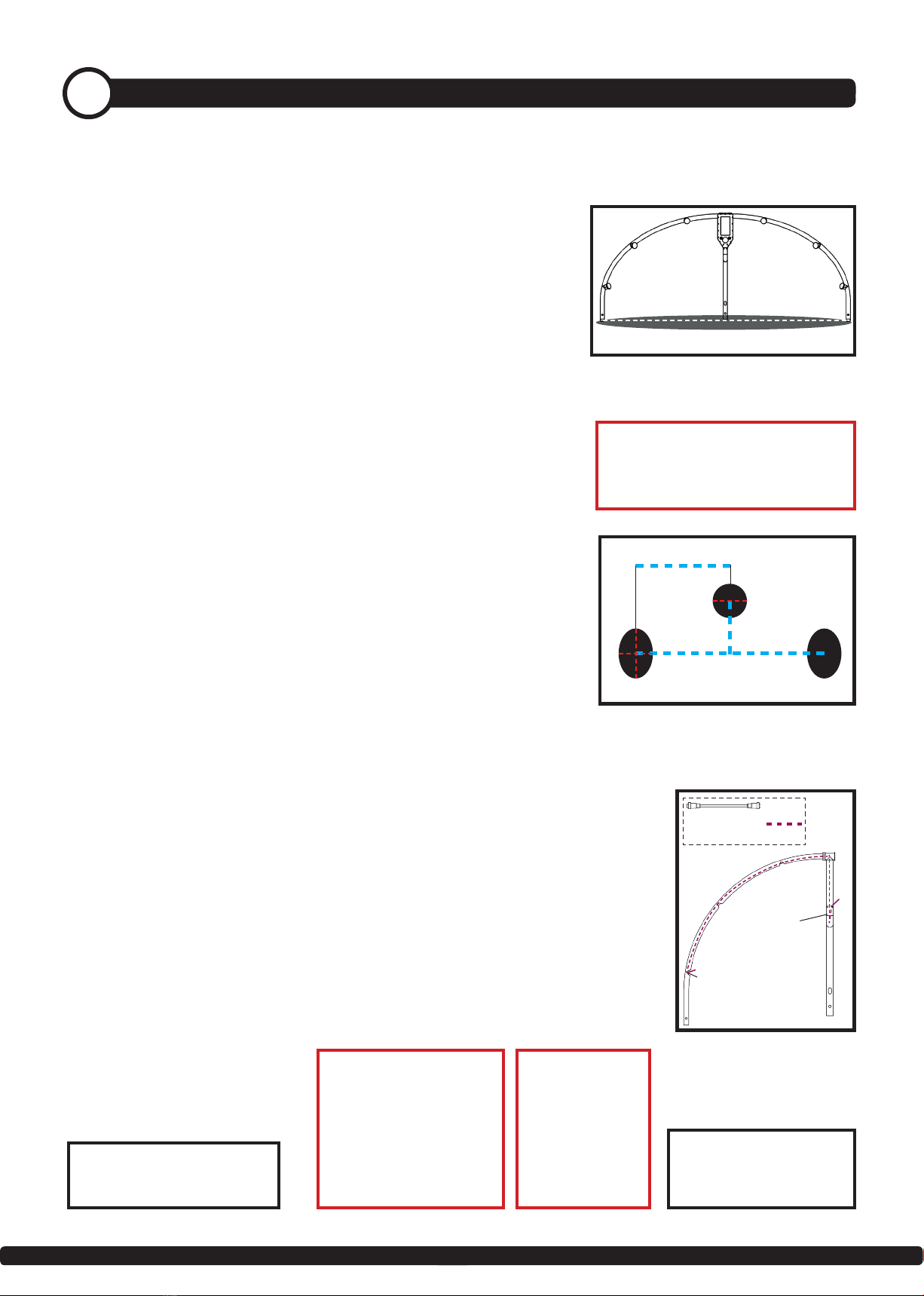

3.1 Overview of construction site

3.2 Prepare for installation

3.3 Initial pulling of cables

3.4 Assembling Wave

3.5 Casting the Wave

4. Installation of electronic components ..................... 5

4.1 Connecting power cable

4.2 Pulling devicenet cables

4.3 Installation of satellites

4.4 Installation of game controller

5. Start up ......................................................................................... 8

5.1 Turn the system on

5.2 Start a game and test the setup

6. Games included in Wave ................................................... 9

6.1 Games

7. Appendix ................................................................................... 10

7.1 General introduction to PlayAlives technology platform

2Component overview

2.1 Steel components & pre-installed electronics

2.2 Other components

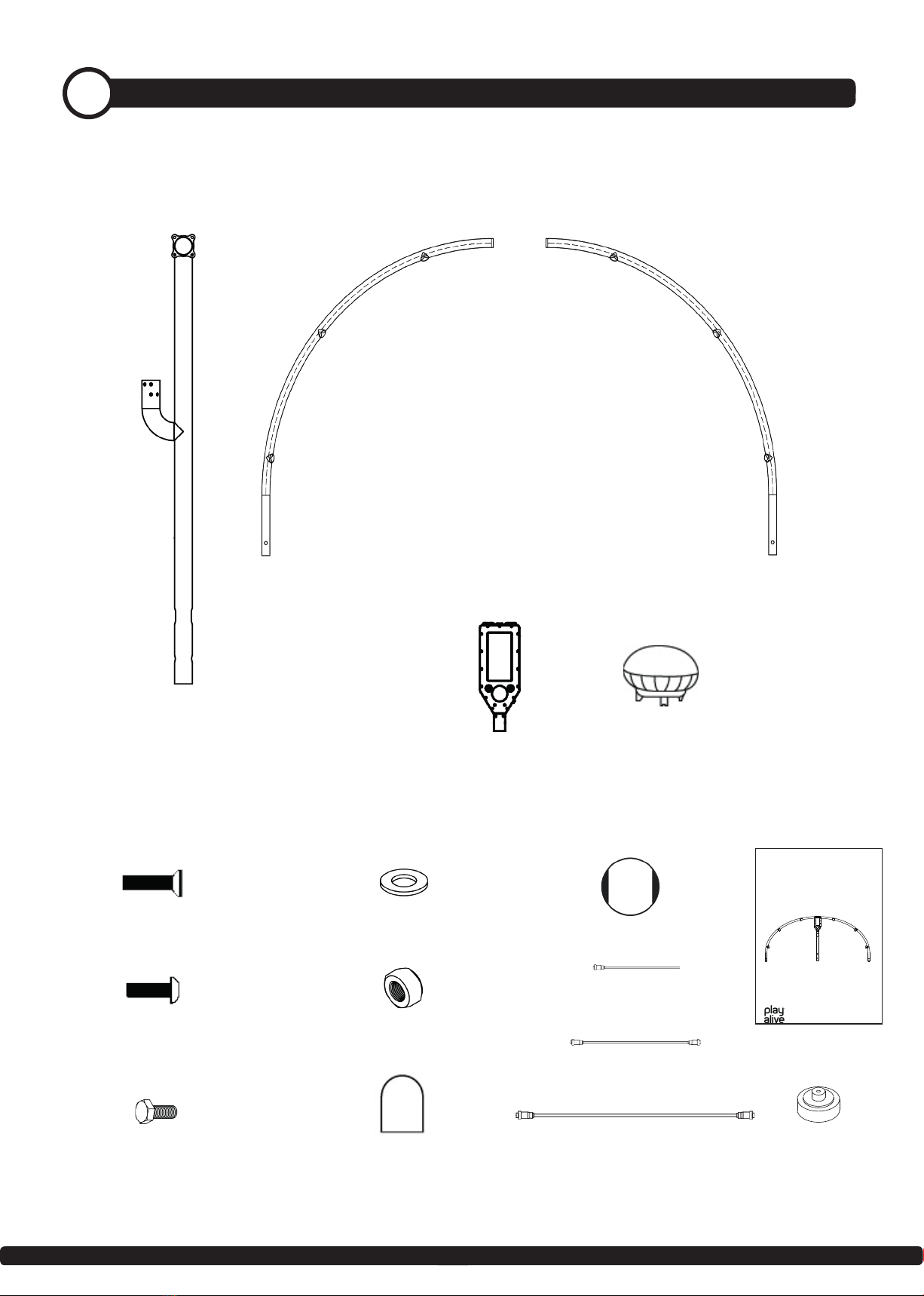

1x Wave left leg 1x Wave right leg

1x Middle pillar

Installation manual

Wave

1x Wave manual

1x Game controller

6x Satellite

18x Countersunk screw M5 x 12 mm

8x Buttonhead M5 x 12 mm

8x Hexagon bolt M10 x 25 mm

5x PlayAlive cable, Red

1x PlayAlive cable, Purple

1x Pigtail cable

1x Rubber ring

2 m, P00254

5,5 m, P00256

0,3 m,

1x Chogori

connector

end Plug

2345678

1 2 345678

Dept. Technical reference Created by Approved by

Document type Document status

Title DWG No.

Rev. Date of issue Sheet

05-05-2022

1/1

Prop

Natacha Nielsen

P00020

P00499

8x Lock nut bolt M10

16x Washer M10

16x Protection cap M10

3Construction

3.1 Overview of construction site

3.2 Prepare for installation

The site for the placement of wave should have a

minimum diameter of 5,3 m.

Note that the Wave should have a power supply of

230 V drawn to the middle pillar. This needs to be

done by an electrician.

Dig a hole for the middle pillar. It should be 0,5 m deep and

have a diameter of 300 mm. Please make sure to align this

with the 230 V power cable.

Once this is done, dig two holes for the legs of the Wave.

The holes should be an ellipse, 300 mm wide and 600 mm

long. The holes should be dug with a tilt of approximately

45°.

The two holes should have a distance of 5,3 m between

them, measured from the center of the holes. Make sure

that the holes are dug 2 m infront of the hole for the middle

pillar. As well as the hole for the middle pillar will be aligned

with the middle between the two holes for the legs. See

illustration “overview of holes placement”.

Please prepare for the following installtion by reading instal-

lation point 7 “Appendix”.

2 m

5,3 m

2,65 m

Important: when digging the

hole keep in mind the power

cable (230 V) should be pulled

through the middle pillar.

Overview of holes

placement.

3.3 Initial pulling of cables

The purple PlayAlive cable should be pulled now, before any asem-

bly is begun.

Push it through the middle pillar arm and upwards, so that the cable

will go through the middle pillar and to its top. Then push it down

through the left leg of the wave, and leave the connector of the

cable outside the hole. See illustration “overview of initial pulling of

devicenet cable”. Please see installation point 3.4 for orientation of

wave left leg and middle pillar.

Please make sure to leave the connectors of the cable outside the

holes and that they stay there doring the next steps of the installa-

tion process.

Also note that this step

is only performed once,

on the left side of the

wave.

Important: Make

sure that the connec-

tors of the cables are

left outside the pillars

throughout the entire

assembly process, so

that they won’t be

lost inside the pillars.

Important:

If this step is

not completed

know step 4.2

and 4.3 will be

very dicult to

complete.

Overview of initial pulling

of devicenet cable.

Satellites

hole bottom

Middle

pillar arm

Notice: This installa-

tion step is only per-

formed once, on the

left side of the Wave.

300 mm

600 mm

5,3 m

5,5 m Play-

Alive cable

Notice: When pulling

this cable it can be help-

ful to use a pulling string.

3.5 Casting the Wave

Important: Please make

sure that the power cable

of 230 V is pulled through

the middle pillar so that it is

reachable from the middle

pillar arm before casting.

Once the Wave has been assembled it is ready to be placed

in the dug holes and cast. Please note that the wave legs

and middle pillar, should be cast 0,4 m below the surface.

Before casting make sure to pull the power cable through

the middle pillar so that it is reachable from the middle

pillar arm. Please ensure that the purple PlayAlive cable is

still in place, and that one end can be reached through the

bottom hole for satellites, and the other through the middle

pillar arm.

Also please be sure that the middle pillar is completely lev-

eled.

Once this is done and the

middle pillar is leveled and the

cables are in place, the middle

pillar and the wave legs should

be cast.

3.4 Assembling Wave

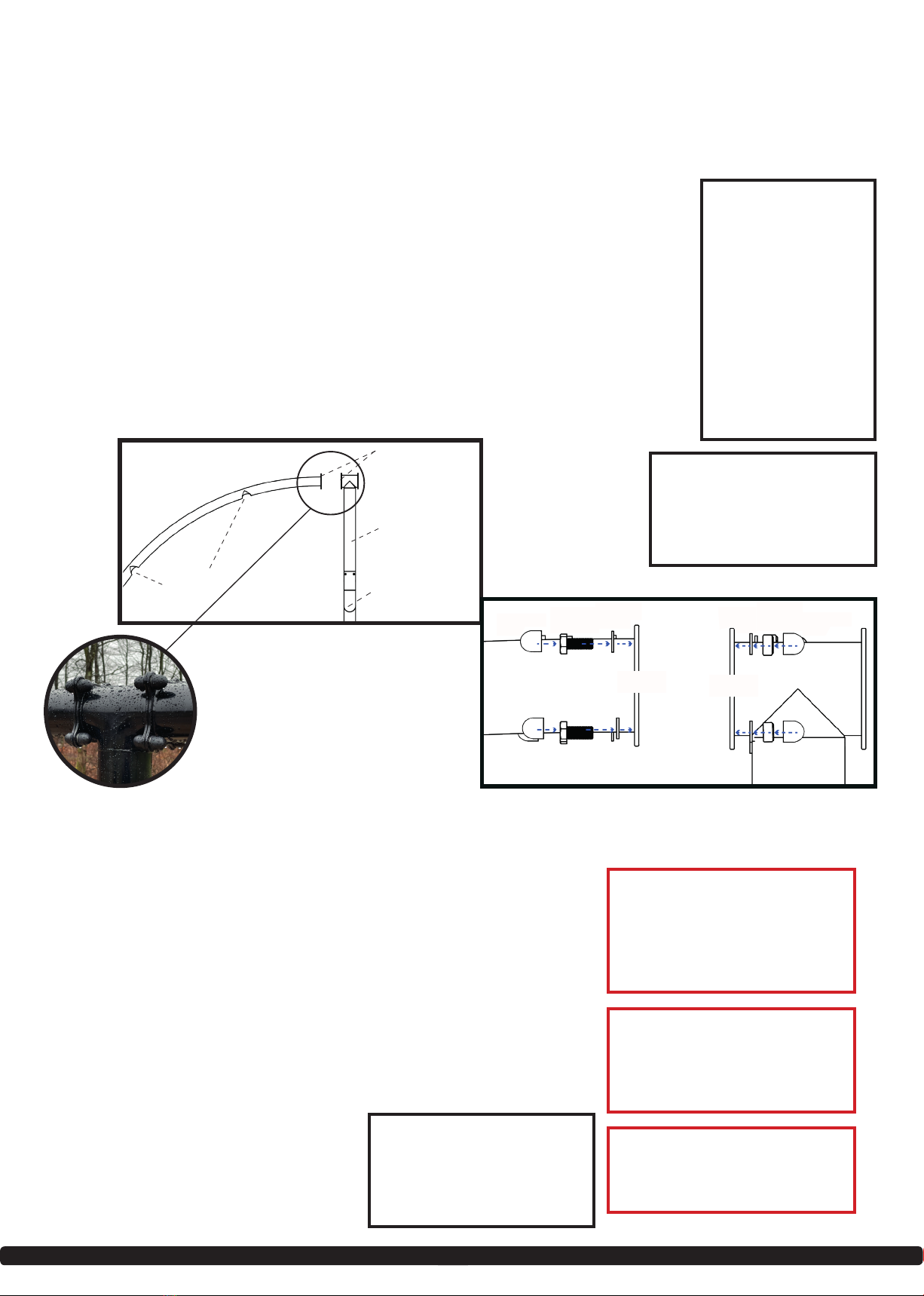

Assemble the Wave by bolting the wave legs to the middle pillar. Please make sure that

the Wave’s legs are turned the correct way before bolting. The legs should be turned so

that the bolt ange is at the top. Note that the Wave’s legs have 3 holes

for satellites along their curve, please make sure that these are facing the

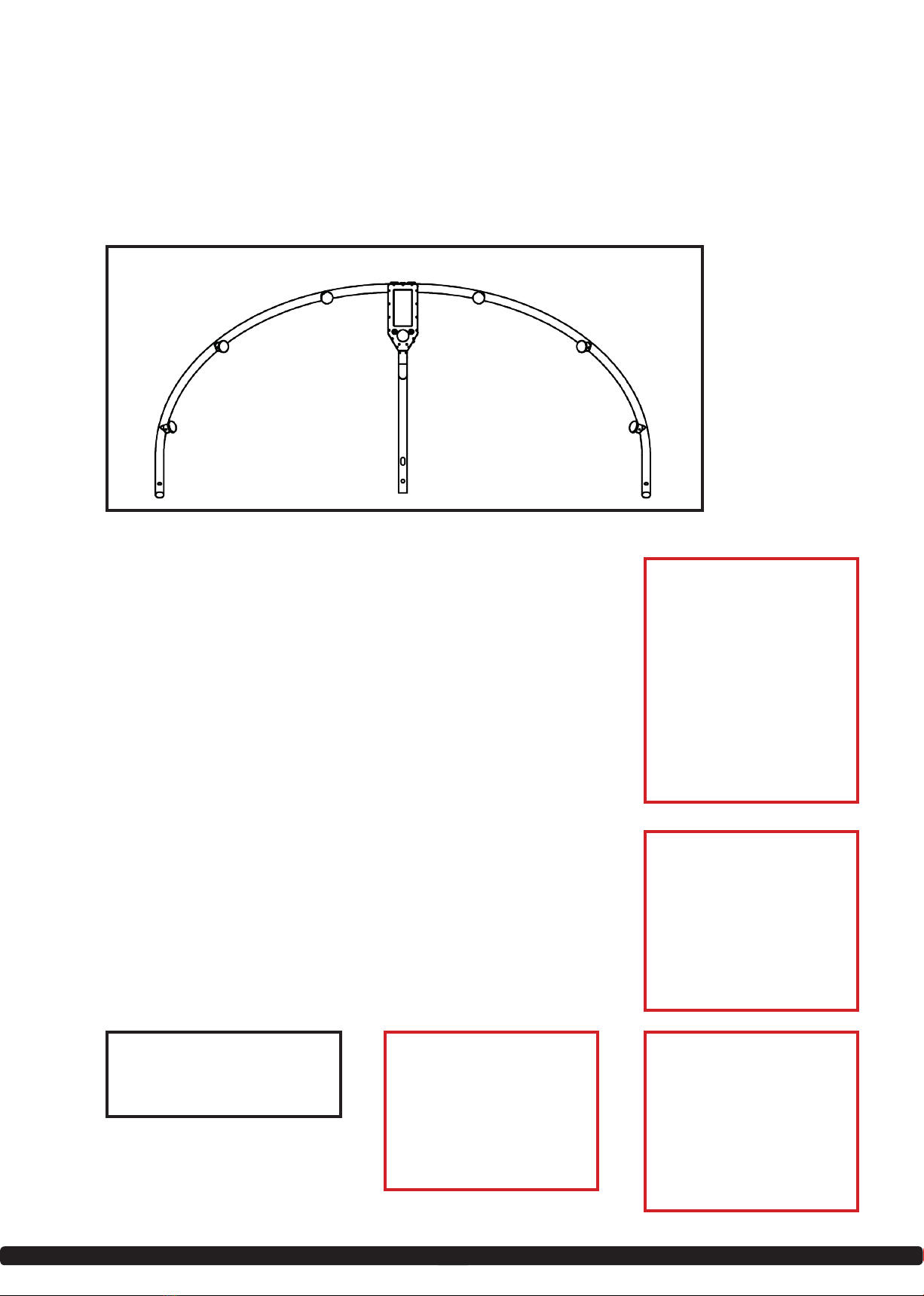

same way as the middle pillar arm, see illustration “overview of assembly”.

Once the Wave’s legs are turned the correct way, the Wave can be assem-

bled by bolting the bolt ange at the top of the left leg to the bolt ange

at the left side at the top of the middle pillar. Start by pushing a washer

onto the bolt, then push the bolt through the wave leg ange and then the

middle pillar ange. Then push another washer onto the bolt and lock it all

in place with the lock nut bolt. Finish by mounting the protection caps onto

the lock nut bolts’ and bolts’ heads. Repeat this process on all four corners

of the ange. see illustration “bolting process”.

Do the same with the wave’s right leg, though do remember to mirror it so

that the bolt’s head will be at the wave leg bolt ange and the lock nut bolt

at the middle pillar bolt ange.

Holes for sat-

ellites Middle pillar

arm

Bolt

ange

Notice: This instal-

lation step is sym-

metric. Therefore,

the procedure is the

same for both sides

of the wave.

Though do remem-

ber to mirror the

process, so that

the bolt’s head will

be by the wave leg

ange, and the lock

nut bolts by the

middle pillar ange.

Overview of assembly.

Important: Please make

sure that the purple PlayAlive

cable is still in place and will

be both reachable and opera-

ble after casting.

Important: Please make

sure that the middle pillar is

completely leveled, before

casting.

Middle

pillar

Notice: For this step (3.4)

it could be an advantage to

be 2 people, or more. As

some of it will be decult

to complete on your own.

Notice: For this step (3.5)

it could be an advantage to

be 2 people, or more. As

some of it will be decult

to complete on your own.

Wave leg

bolt ange Middle pillar

bolt ange

Protection

caps

Bolt M10

x25 mm

Washer

M10 Washer

M10

Lock nuts

bolt M10 Protection

caps

Bolting process.

4Installation of electronic components

4.2 Pulling devicenet cables

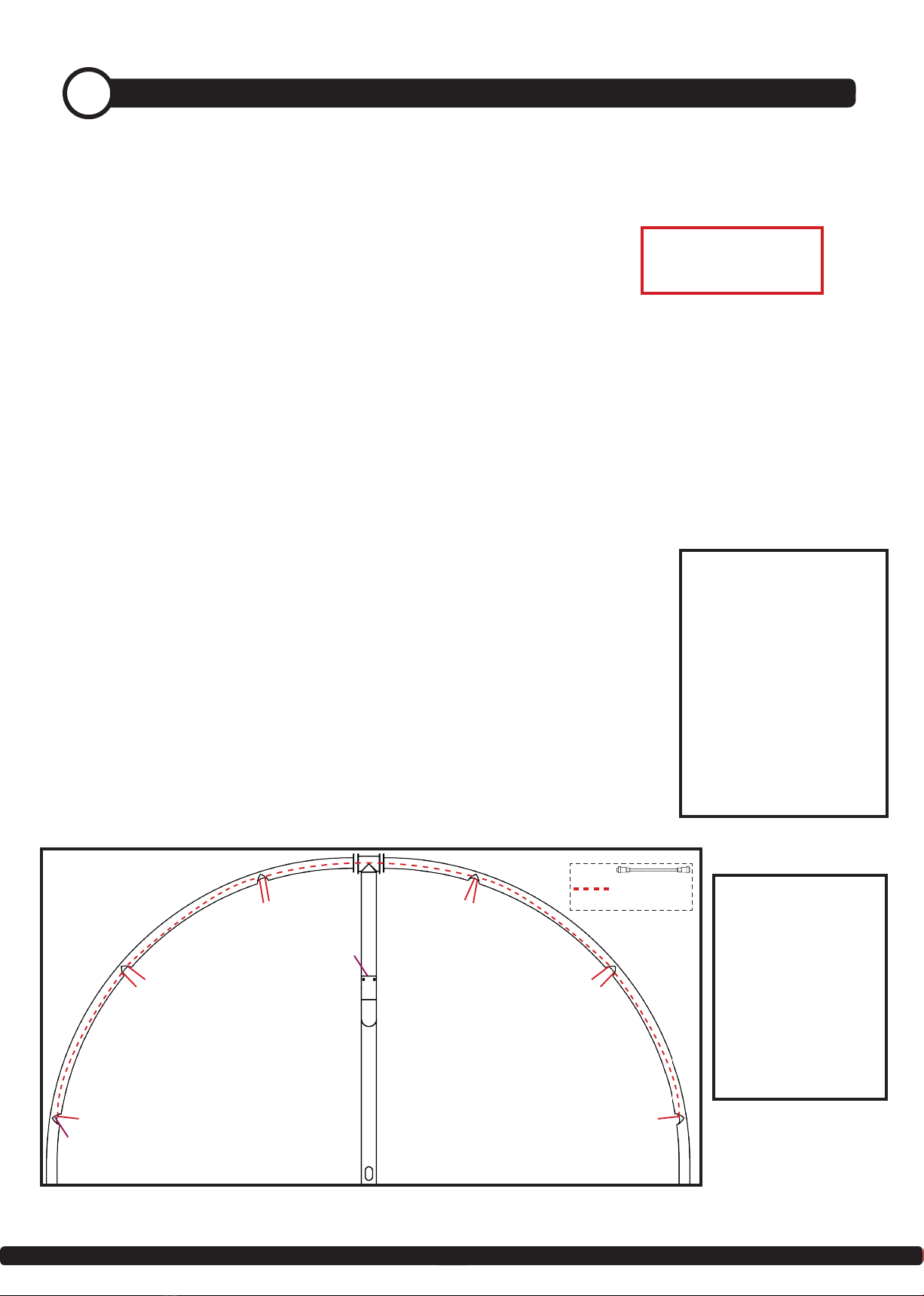

The devicenet cables will be pulled through the holes for the satellites. When pulling the

cables it is easiest to start at the top and guide the cables downwards.

1. Start by pushing a red PlayAlive cable through the satellite hole top, in the left leg.

Push it in an upwards motion so that it will go across the middle pillar and to the satel-

lite hole top in the right leg.

2. Then push another red PlayAlive cable through the satellite hole

top in the left leg, the same as in point 1. Push the cable trough in a

downwards direction, so that it can be pulled through the satellite hole

middle in the left leg.

3. Take another red PlayAlive cable and push it through the satellite

hole middle, in the left leg, in a downwards direction so that it can be

pulled out the satellite hole bottom, in the left leg.

See illustration “pulling of devicenet cables” for more guidance.

Once you have completed this repeat point 2 and 3 on the wave’s right

leg.

Notice: To ensure easy

access and connection to

the game controller and

satellites please make

sure that you keep a

hold of one end of the

cables by the starting

point, to keep it in place

here. Do the same at

the nish point.

This will also prevent the

cables from falling down

through the legs of the

Wave.

Notice: Point 2 and

3 of this installation

point are symmet-

ric. Therefore, the

procedure is the

same on both sides.

The order the de-

vicenet cables are

pulled in does not

matter, however,

the described order

is recommended.

Satellites

hole top

Satellites

hole middle

Satellites

hole bottom

4.1 Connecting power cable

Once the Wave has been cast and secured the electronics can be

installed.

Start by having an electrician connect the power cable to the

pigtail cable.

Here it is important to keep in mind that the cable should be able

to reach the top of the middle pillar arm, and be operable after-

wards.

Important: This job

must be performed

by an electrician.

Pulling of devicenet cables.

Satellites

hole top

Satellites

hole middle

Satellites

hole bottom

2 m Play-

Alive cable

4.3 Installation of satellites

Once the devicenet cables have been pulled the electronic components can be connect-

ed.

1. Start by identifying the satellites ID. All satellites have an individual ID labelled at its

rear. Please make sure that each satellite is placed correctly as illustrated in “placement

of satellites”.

Important: When in-

stalling the satellites

please make sure that

the sattelites are turned

the correct way. This is

very important as some

of the games cannot be

played if the satellites are

turned the wrong way.

ID: 3

ID: 2

ID: 1

ID: 4

ID: 5

ID: 6

2. Connecting the satellites.Connect the satellites to the pulled

cables.

Note that the the cables cannot be installed wrong as they only

t to the connector one way.

Satellites ID 1,2,3,4, and 5 will each be connected to the two

cables at their position. Where satellite 6 will only be connect-

ed to the one cable at its position. The chogori connector end

plug should be installed to this satellite as well.

3. Fixing the satellites. The satellites must be xed to the Wave

legs with 3 Countersunk M5 x 12 mm screws. The components

are designed so that the screws can be screwed in with one’s

ngers. Please do that to prevent a possible cold welding.

If this is not possible try to adjust the satellite, so that the

holes lign up better.

The holes in the wave legs are asymmetric to ensure the cor-

rect orientation, as this is important for some of the games.

The correct orientation of the satellites, are so PlayAlive’s logo

is turned in the danish reading direction, left to right.

It is advised to hold of on xing the screws completely until

installation step 5 has been completed, so that you are sure

everything is working correctly.

Important: The wave

legs have air holes placed

by the satellites. Please

make sure that they are

clear!

They enable potential

moisture to leave the

steel components.

Important: Please start

by screwing the screws

in using your ngers,

to avoid a possible cold

welding. If this is not

possible try to adjust the

satellite to align with the

holes better. Then try

again, using your ngers.

Notice: It is advised to wait

until point 5 is complete

before xing the screws

completely.

Placement of satellites.

Important: Please make

sure that there is NO

power running through

the cables when they are

being connected to the

satellites. This is import-

ant as having power run

through the cables while

cables are being con-

nected and disconnected

from the satellites could

potentially break the

satellites.

4.4 Installation of game controller

Now the Game Controller can be installed.

1. Start by pulliing the rubber ring onto the bottom of the game

controller. It is important the the rubber ring is turned so that the

sides with the greater width is at the back and front of the game controller. Please

note that the display pannel is on the front of the game controller. See illustration “at-

tachment of rubber ring”.

2. Connect the game controller to the devicenet cable from the

satellite. This will be the cable with the purple stripe. Note that it

is very important that the PlayAlive cable is connected to the game

controller before it is connected to the power cable, as failing to

do so will break the electronic parts.

3. When the satellites have been connected, the power cable can

be connected to the game controller as well. This will be the sec-

ond, and last, cable. Please make sure to follow this order when

connecting the cables.

4. Now place the game controller in the middle pillar arm.

Make sure that the display on the game controller is fac-

ing forward, as shown in illustration “placement of game

controller“. Fix it with 8 Buttonhead M5 x 12 mm screws.

These components are designed so that the screws can be

screwed in using your ngers. Please do this to avoid possi-

ble cold welding. If this is not possible please try to adjust

the game controller so the holes are better aligned.

It is advised to hold of on xing the screws completely until

installation step 5 has been completed, so that you are sure

everything is working correctly.

Important: Please start

by screwing the screws

in using your ngers, to

avoid possible cold weld-

ing. If this is not possible

try to adjust the game

controller to align the

the holes better. Then try

again, using your ngers.

Notice: It is advised to

wait until point 5 is com-

plete before xing the

screws completely.

Notice: For this installa-

tion step (4.4) it could be

an advantage to be 2 peo-

ple, or more. As some of it

will be decult to complete

on your own.

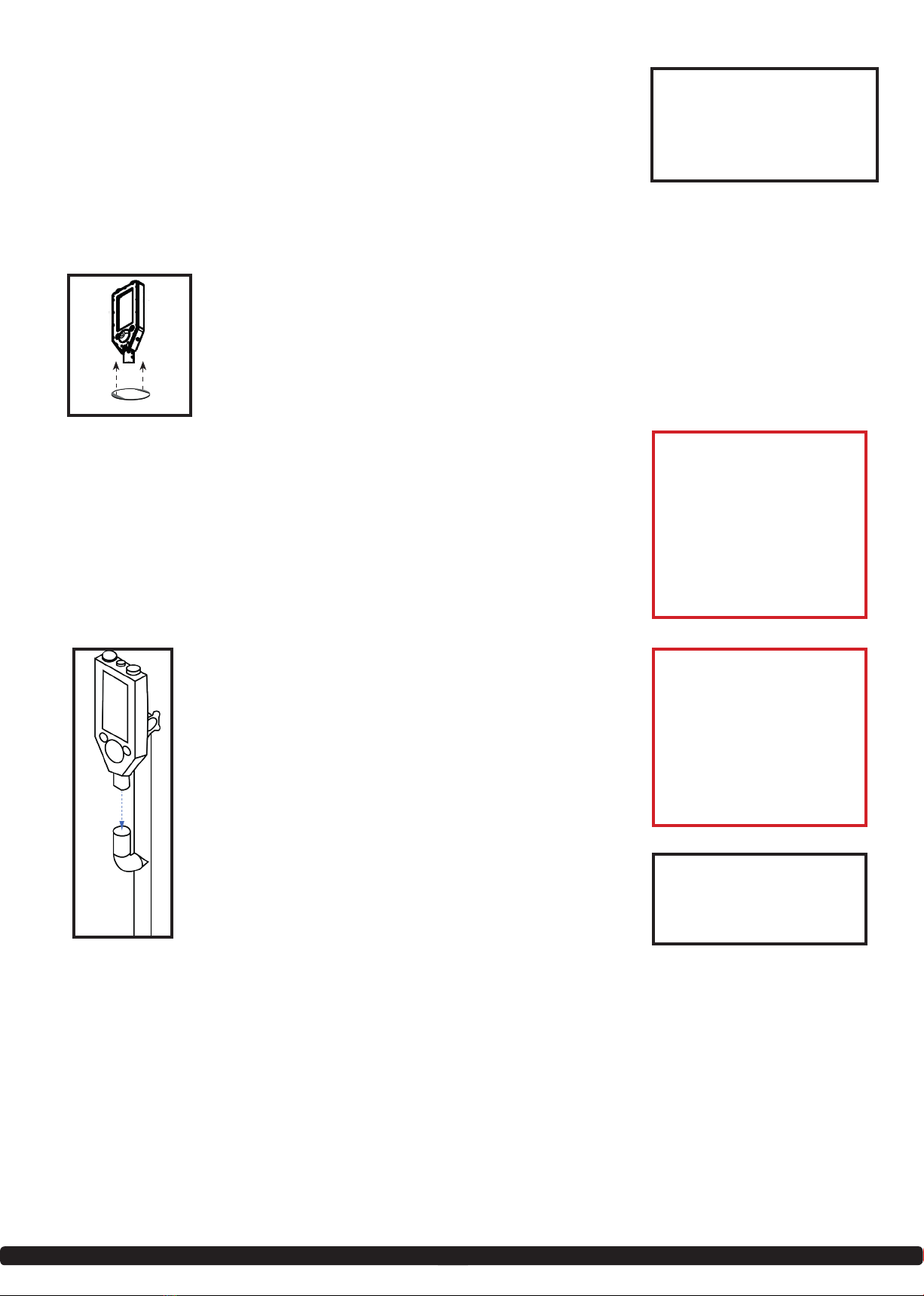

Attachment of

rubber ring.

Placement of

game controller.

Important: Please

make sure to connect

the cables in the order

described in this instal-

lation point. This is very

important as some of the

PlayAlive components

could break if the cables

are installed in the wrong

order.

5Start up

5.1 Turn the system on and wait

5.2 Start a game and test the setup

If you have been able to conduct the steps as described in section

5.1 and 5.2 the PlayAlive product has been successfully installed.

Please complete the installation by fastning the screws holding the

satellites and game controller in place.

Thank you for your eort installing another PlayAlive product.

Go to the display and select a game. For this test please select Combo. When touching

the satellite that lit up please make sure that the satellite despawns (goes back to not

having a color). During the onboarding only one satellite will light up at a time. However,

once the onboarding is done (after making a combo of two), please make sure that; all

satellites spawns (gets a color), the game controller counts points for each selected sat-

ellite, that when selecting a satellite a sound is played, and that the satellites despawns

and respawns.

If this is not the case please see section 3.3 and all of section 4 again.

If desired an elaboration of the game, and the others included, can be seen in installa-

tion point 6 “Games included in Wave”.

Please turn on the power. The system will then start up. Note that this can take some

time as the start-up time depend on updates and internet connection. Though it will typ-

ically be between 5 and 10 minutes. Once started the game controller will light up and

the system is ready for you to select a game.

If this is not the case please check that the power cable is properly in, and that it does

in fact supply the game controller with power.

Important: Please nish

this installation by ensur-

ing that the screws hold-

ing the game controller

and satellites in place are

properly fastened.

6Games included in Wave

6.1 Games

Agents Here you have to nd the matching sat-

ellites, within the given time frame. By

nding the correct number of matches

before the time runs out the next level is

unlocked.

The faster you nd the matching the sat-

ellites the more dicult the next level will

become.

Combo Collect as many gems (e.g. diamonds and

rubies) as you can within the game’s time

frame. The dierent gems (colors) have

the same point value however the more of

the same gem (e.g. diamonds) you collect

in one go (color combinations), the more

points you will get.

Versus This game allows up to 4 players to com-

pete against each other in a series of

games. One game consists of 5 smaller

games selected at random, however, the

rst smaller game (out of the 5 in one

game) will always be the same.

These smaller games can dier between

upbeat, quick reaction games and slower

games that require more strategy then

speed.

An explanation of the games are included below.

Additional games can be uploaded, contact PlayAlive for more information.

Indice

Altri manuali PlayAlive Set da gioco e attrezzature per parchi giochi

PlayAlive

PlayAlive Sport Manuale utente

PlayAlive

PlayAlive Spider Guida

Manuali Set da gioco e attrezzature per parchi giochi popolari di altre marche

Ledon

Ledon 302040 Manuale utente

FUNormous

FUNormous Disney Junior MICKEY MOUSE Manuale utente

b4Adventure

b4Adventure Slackers TREEZONE ADVENTURE THREE HOUSE Manuale utente

PoolMaster

PoolMaster 72775 Manuale utente

Palmako

Palmako 4743142009857 Manuale dell'installatore

BOERPLAY

BOERPLAY PSTE000.019 Manuale utente

MGA Entertainment

MGA Entertainment Little Tikes Dunk'n Toss Bouncer Guida utente

stilum

stilum Erika Manuale utente

Costway

Costway NP10816 Manuale utente

Trigano

Trigano VABI Manuale utente

Outward

Outward OUT116 Manuale utente

GALOPIN

GALOPIN ARC02 Manuale utente

stilum

stilum levis Specifiche tecniche

Ledon

Ledon BASIC Bai LB012 Manuale utente

BOERPLAY

BOERPLAY PSTE115.002 Manuale utente

Europlay

Europlay S306 Manuale di programmazione

SportsPlay Equipment

SportsPlay Equipment 361-509H Manuale utente

Ledon

Ledon 302250 Manuale utente
