Pocket Wizard PLUS III Manuale utente
Quick Guide
340.00 - 354.00 MHz, US FCC/IC
433.42 - 434.42 MHz, CE
The Plus III is a radio transceiver, capable of acting as a transmitter
or receiver for triggering remote ashes and cameras. It requires
at least one other PocketWizard radio for wireless triggering. It
can be connected to almost any remote ash or camera with the
proper connecting cable. See the cable nder at PocketWizard.com
to nd the correct cables for your ashes and cameras.
•Please read this Quick Guide thoroughly before operating.
•Visitwiki.PocketWizard.comforcompleteoperating
information.
IMPORTANT: US FCC/Canada frequency radios are NOT
compatible with CE frequency radios and vice versa. For more
information on frequency, please go to: PocketWizard.com/
wheretobuy/frequency
Internal Antenna
(PG. 12)
Backlit LCD
Test Button
(2 Stage Trigger)
(PG. 12)
Power On/Off and
MODE Button (PG. 5)
Zone Toggle
Buttons
(A, B, C, D) (PG. 11)
Status LED
(PG. 12)
Channel Up/Down Buttons
(PG. 11)
Hot Shoe with
Locking Ring
READ ME FIRST:
Transceiver
• All equipment should be turned OFF when making connections.
Otherwise unwanted triggering or erratic behavior may occur.
• If operation is erratic, check batteries in all equipment rst.
• You will need a PocketWizard Transceiver/Receiving PocketWizard radio
for each remote ash.
• Set all radios to the same channel.
INCLUDED IN BOX:
Lanyard Loop
USB Connector
Flash/Camera Port
Battery Door Latch
Battery Door (PG. 4)
1/4 - 20 Mount
Transceiver
• Plus III Transceiver
• PC Sync Cable
• 3.5mm (1/8” Miniphone) Cable
• 6.35mm (1/4” Phone) Adapter
• Lanyard
• Quick Guide
3
Transceiver
Battery Level
Channel
Triggering
Mode
Half/Full Press
Indicator Selected Zones
Illustrations FPO
• Always turn OFF all equipment (PocketWizard radios, electronic ashes,
cameras, etc.) before making connections or replacing batteries.
• The Plus III will operate reliably using almost any pair of ~1.5 volt AA
(IEC:LR6) batteries. Rechargeable batteries will work, though operation
time may be reduced and battery level display may not be as accurate.
See wiki.PocketWizard.com for more information.
Using your
Connecting:
Connect a Plus III to your camera via the hot shoe. This will be your transmit-
ting radio. Connect a Plus III to each of your remote ashes using a connecting
cable (see PocketWizard.com/support/cable_nder). These will be your receiving
radios.
Powering On:
Install batteries noting the proper polarity. To turn on your Plus III, hold down the
Power On/Off and MODE Button < > for about two seconds. The Status LED
blinks green every few seconds to indicate normal operation. It will blink red in
sync with a trigger. Hold down the Power On/Off and MODE Button for about two
seconds to turn off your Plus III.
Channels & Zones:
Your Plus III needs to be on the same channel as other PocketWizard radios.
Channels can be set via the Plus III’s Channel Up/Down Buttons < >. Any
transmitting PocketWizard radio can trigger a receiving Plus III and a Plus III can
trigger any receiving PocketWizard radio. When using Channels 17-32, you can
specify Zones A, B, C, and D. See “Channels and Zones” section for more info.
Plus III Transceiver Basics
5
NOTE: The Plus III slides into hot shoe with the LCD screen facing the side of the camera. See
diagram below.
Connect the transmitting Plus III to camera
hot shoe and tighten the locking ring
Connect the receiving Plus III to your ashes
with the appropriate sync cable
Triggering a Remote Flash with your Plus®III Transceiver
Remote Flash Triggering
1. Connect a Plus III to your remote ash via the appropriate sync cable.
2. Attach a Plus III to your camera’s hot shoe. You may also connect the Plus III
radio to your camera’s PC sync port using the included cable.
3. Select the Channel and Zone A, B, C, or D via Channel Up/Down
Buttons < > and Zone Toggle Buttons. Set any other PocketWizard
radios to a matching Channel and Zone. (See the “Using Zones” section for
more information)
4. Take pictures normally at or below your camera’s X-Sync speed.
MomentarilypressingtheTESTbuttonwilltesttriggertheash.
Camera with Plus III in Hot Shoe
(Transmitting)
Any PocketWizard receiver
connected to remote ash
(Receiving)
NOTE: With the transmitting and receiving PocketWizard radios set to the same channel and
zone, remote ashes will be synchronized with the camera. To nd the right sync cable for your
ash visit the Cable Finder at PocketWizard.com/support/cable_nder
7
Remote Camera Triggering
Triggering a Remote Camera with your Plus III Transceiver
1. Connect a Plus III to your remote camera via the appropriate remote camera
cable.
2. Select the Channel and Zone A, B, C, or D via the Channel Up/Down
Buttons < > and Zone Toggle Buttons.
3. Press the TEST button on the PocketWizard radio in your hands. The remote
camera will trigger.
If the PocketWizard radio in your hands is also a Plus III, you can
pre-release the remote camera by pressing the TEST button half way < >.
This wakes up the camera and lets it respond more quickly and consistently.
It can also engage autofocus. To read more about remote camera
triggering visit the PocketWizard wiki at http://wiki.PocketWizard.com/
Camera in hand OR Plus III
(Transmitting)
Remote Camera
(Receiving)
NOTE: The transmitting PocketWizard radio triggers the receiving PocketWizard radio, which res the
remote camera via a remote camera cable. To nd the right remote camera cable for your equipment
visit the Cable Finder at PocketWizard.com/support/cable_nder
Using Auto-Relay Mode
1. Set the transmitting PocketWizard radio in your hands to a desired channel and zone.
2. Set the relaying Plus III for your remote camera to the same channel
as the radio in your hands and set Triggering Mode to TxRx.
3. Connect the relaying Plus III’s Flash/Camera port to the remote camera
triggering port of the camera via a remote camera cable.
4. Slide the relaying Plus III into your remote camera’s hot shoe.
5. Connect your remote ash to a PocketWizard receiver via the appropriate sync cable
and set it to one channel higher than the transmitting PocketWizard radio in
your hands.
6. Press and release TEST on the PocketWizard transmitter in your hands to
begin the sequence. Make sure your transmitting and relaying PocketWizard
radios are set to the same zone.
Plus III
(Transmitting)
Remote Camera
(Receiving & Transmitting)
Remote Flash
(Receiving)
Channel 1
Channel 2
NOTE: Auto-Relay Mode allows you to trigger remote ashes in sync with a remote camera and
requires only three PocketWizard radios. A Plus III Transceiver attached to a remote camera can
receive on one channel and then transmit on another channel to trigger remote ashes in sync
with the remote camera.
Auto-Relay Mode
Triggering Modes
Modes of Operation
Your Plus III Transceiver supports six modes of triggering for different
applications. You can switch between modes by pressing and quickly releasing
the MODE button.
TxRx Mode allows the radio to be used as a transmitter
attached to a camera or as a receiver connected to a remote
ash or remote camera. It automatically switches between
transmit and receive. This is the default mode.
Tx ONLY Mode disables all receiving (Rx) functionality
and allows you to use your Plus III as a transmitter only.
Use this mode when sharing remote ashes with other
photographers. This mode will prevent the other
photographer from triggering the Plus III on your camera.
Rx ONLY Mode disables all transmit (Tx) functionality
allowing you to use your Plus III radios as receivers for
remote ashes or remote cameras. Use this mode when
you do not want a remote Plus III to perform relay functions
when mounted in the shoe of a remote camera, or to prevent
a remote Plus III from triggering other radios when its TEST
button is pressed.
LR (Long Range) Mode doubles the maximum range of
a radio in a given shooting environment. Long Range Mode
must be enabled on both transmitting and receiving
99
Triggering Modes
radios. Use this mode when triggering remote cameras at
greater distances. It can also be used with remote ash,
but there may be a reduction in maximum X-sync speed.
RP (Repeater) Mode automatically retransmits any
triggers received on the selected channel. Use this mode
to increase the maximum triggering distance for a remote
camera or ash by placing a Plus III half-way between a pair
of transmitting and receiving radios. This mode is
recommended for use when triggering remote cameras,
though it can be used with ash with a reduction in
maximum x-sync speed (this is not the same operation as
Auto-Relay Mode). Note: You may use multiple radios in
repeater mode for extremely long distances. Make sure
that each repealing radio can only receive the signal from
one other radio, otherwise an endless trigger loop may occur!
HSR (High Speed Receive) Mode shortens the contact
time of the FLASH/CAMERA port, allowing for triggering
of remote ashes at higher FPS (frames per second).
For more information about triggering modes, visit
wiki.PocketWizard.com
Altri manuali per PLUS III
4
Indice
Altri manuali Pocket Wizard Ricetrasmettitore
Pocket Wizard

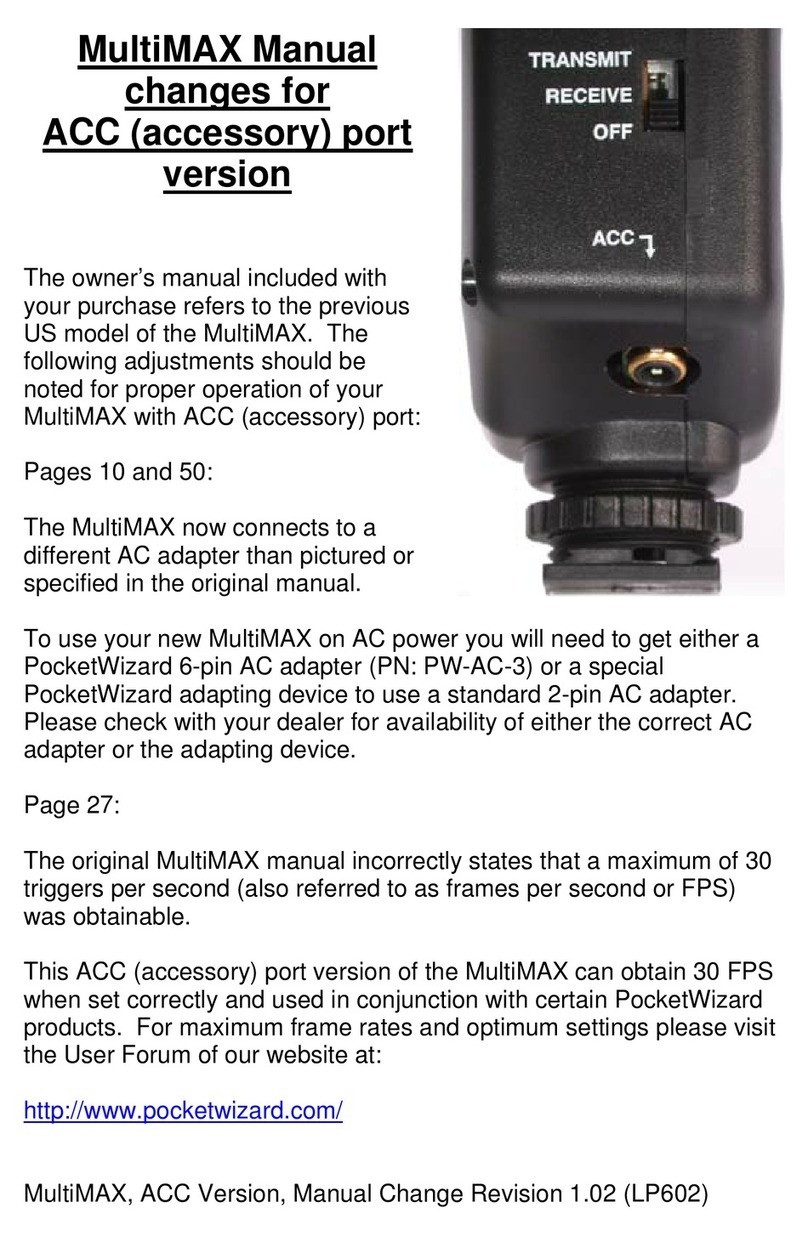

Pocket Wizard MultiMAX Manuale utente
