PoeWit WAP-1 Manuale utente
poewit.com
MOUNTING INSTRUCTIONS
WAP-1
1
Step 1: Attach 24mm T-bar bracket to AP with two M3*8 screws
Step 2: Slide T-bar bracket onto recessed T-bar and rotate AP clockwise to secure
DROP CEILING MOUNT
Using 24mm Recessed T-Bar Bracket
24mm T-Bar Bracket
M3*8 Screws: 2pcs
Recessed T-Bar
poewit.com
MOUNTING INSTRUCTIONS
WAP-1
2

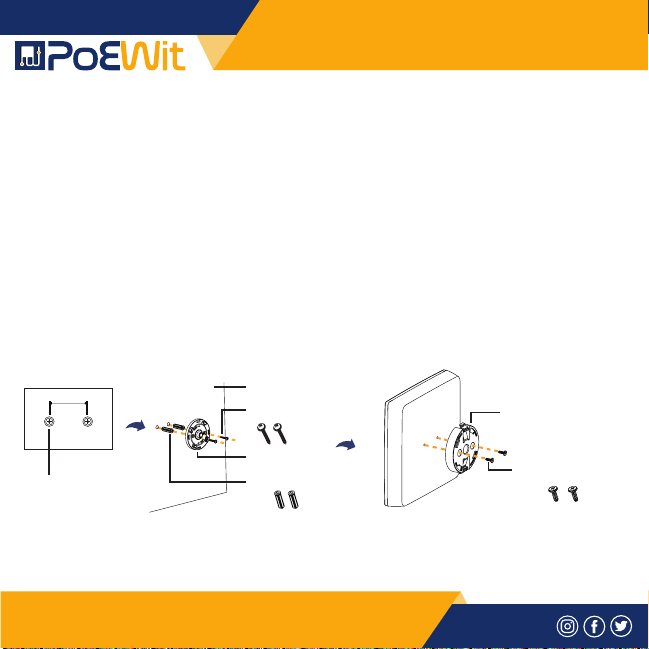

HARD CEILING/WALL MONUT
Using Security Bracket
Step 1: Drill two holes with 32mm pitch (approx. 1-1/4”) into hard ceiling/wall.
Step 2: Insert plastic anchors into drill holes, align security bracket with
anchors, and attach bracket to ceiling/wall using two I3*20 self-tapping screws.
Step 3: Attach AP housing bracket to AP with two M3*8 screws.
Step 4: Insert AP housing bracket into security bracket and rotate AP
clockwise to secure.
NOTE: To release, push in release clips on both sides of security bracket
simultaneously and rotate AP counterclockwise.
32 mm
6.5mm (Depth:30mm)
Hard Ceiling/Wall
Security
Bracket
Plastic Anchors: 2pcs
I3*20 Self-Tapping
Screws: 2pcs Housing Bracket
M3*8 Screw: 2pcs
PoEWit Technologies Inc. All Rights Reserved 2023.
