Comfort heat & fan
2200W PTC Fan heater
POHF60HC
User Manual
1
POINT PRO SERIES Ceramic Fan Heater.
POINT PRO SERIES Ceramic-vifteovn.
POINT PRO SERIES Ceramic -tuuletinlämmittimen.
Ceramic Keramiske varmeapparatet fra POINT PRO
Ceramic-värmefläkt från POINT PRO SERIES.
SERIES.
2
4Instruction Manual - English - 14
48- 58
37 - 47
15 - 25
26- 36
3
READ AND SAVE THESE IMPORTANT SAFETY
INRUSTRUCTIONS.
1. Warning: In order to avoid overheating, do not
cover the heater.
2. If the mains power cable is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
4. The heater must not be located immediately below a
mains power wall socket.
5. Do not use this heater in the immediate surroundings of
a bath, a shower or a swimming pool.
6. Children of less than 3 years should be kept away unless
continuously supervised. Children aged from 3 years and
provided that it has been placed or installed in its intended
normal operating position and they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
SAFETY INSTRUCTION
4
GB
Children aged from 3 years and less than 8 years shall not
plug in, regulate and clean the appliance or perform user
maintenance.
7. CAUTION — Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
8. Do not use this heater if it has been dropped;
9. Do not use if there are visible signs of damage to the
heater.
10.Use this heater on a horizontal and stable surface
11. WARNING: Do not use this heater in small rooms
when they are occupied by persons not capable of
leaving the room on their own, unless constant
supervision is provided
12.WARNING: To reduce the risk of fire, keep textiles,
curtains, or any other flammable material a minimum
distance of 1 m from the air outletDetails concerning
precautions during user maintenance
13.Consider all the information, including the
information contained in the“CLEANING AND
MAINTENANCE INSTRUCTION ”chapter.
5
GB
Remote control
Control Panel
Display Screen
Air outlet
Power switch
Rear shell

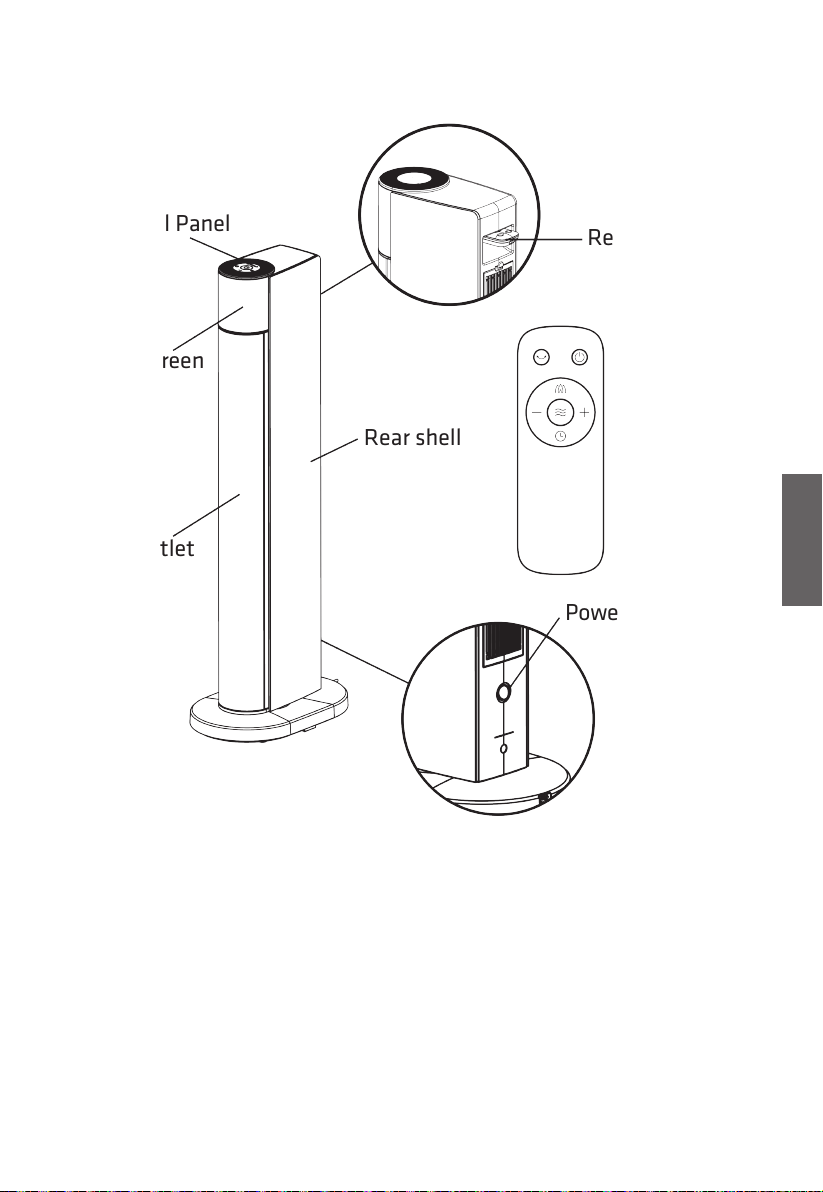

PRODUCT OVERVIEW
6
Before Use
1. Check the mains power cable and plug are in good condition.
2. Check that the mains power voltage corresponds to the voltage staed on
the rating label of the product. The mains power socket must not be lower
then 10A or an accident could occur.
Operation

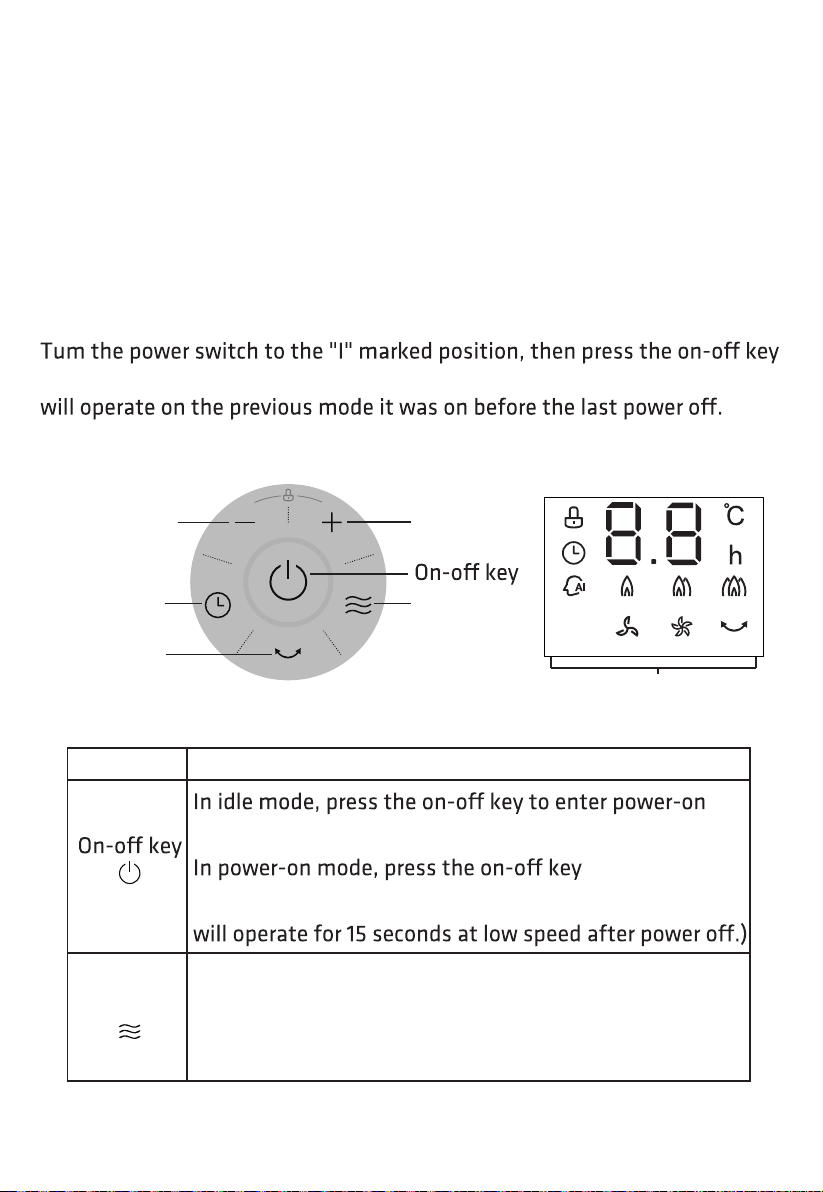

[Start Up]
on the control panel to start up the heater. After starting up, the heater
Sway key
Mode key
Display screen
“-” key “+” key
Timing key
Mode key
Key Function Description
mode. The heater starts up and will operate
on the mode and temperature that it was previously on.
to enter the idle mode, and the heater will stop
operating. (Note: In heating mode, the draught fan
After power-on, the heater is in intelligent mode by
default. Repeatedly press the “mode key”, and the
heater shifts in circular order among the following
modes; “intelligent mode, low warm wind, high warm
wind, strong warm wind, breeze, and gentle breeze”.
7
GB
+ and - key
Sway key
Timing key
During operation, press the “+” or “-” keys to set the
working temperature. The temperature setting range is
5°C~35°C and every temperature value of 1°C between
the 2 values. The heater confirms and displays the set
temperature value if without operation within 3 seconds
after the setting. After the room temperature reaches
the set temperature, the display screen blinks for 10
seconds and the heating unit stops working; when
temperature is below the set temperature, machine
restarts to heat. In low warm wind, high warm wind, and
strong warm wind modes, it can be set to without
temperature control, the display will show “--”.
In power-on mode, press the timing key to select a
timed shutdown setting. The timing indicator lights up,
screen blinks and shows the rest time of the last
setting. Press “+” or “-” keys to set shutdown time, the
setting range is 0~24 hours. The machine confirms the
time and the quits the timing setting state if the timing
key is not pressed again within 5 seconds. If the set
time is 0, it heater cancelling the timing setting; if the
set time is not 0, the machine shuts down
timing icon when reaching the set time. Set the time
after time again setting, to retime the heater.
In idle mode, press the timing key to set the timing
power-on, following the same operation as timing
shutdown. The time unit of the timer is hour.
In power-on mode, press the sway key to start swaying,
and press again to stop swaying.
8

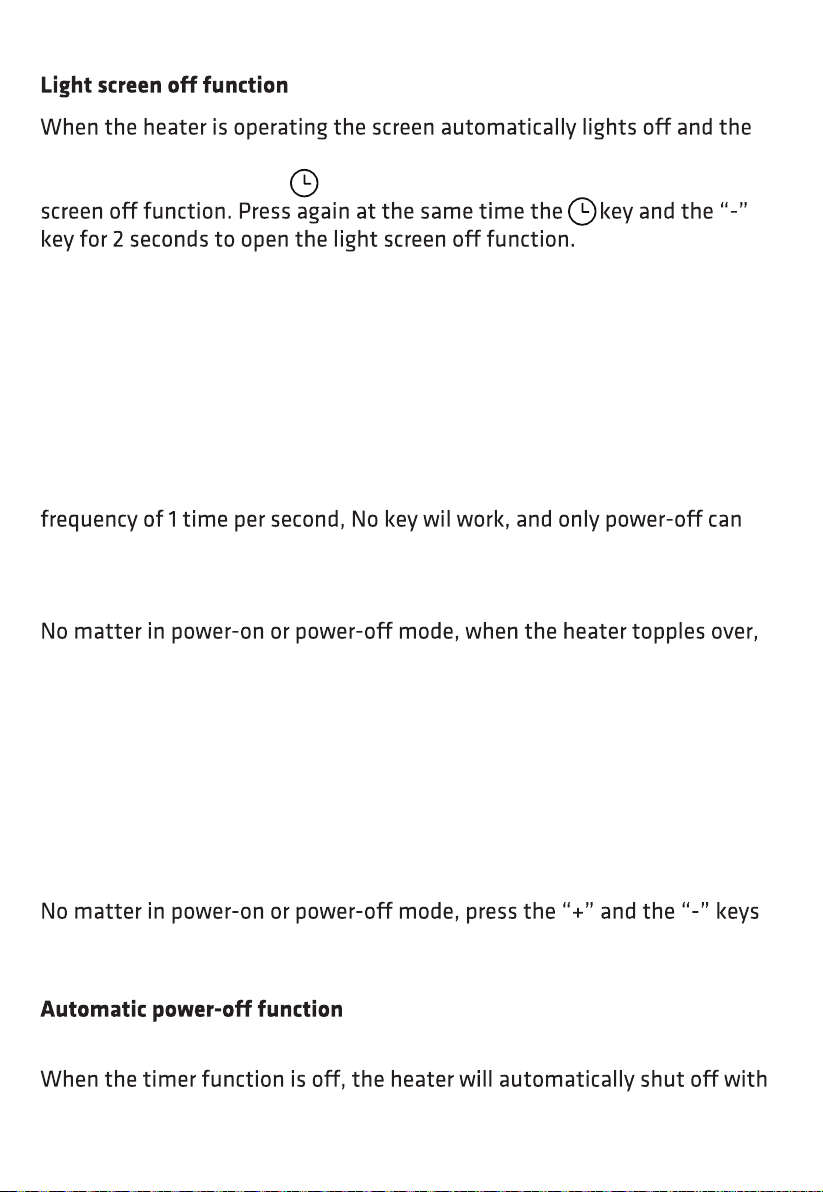

operating mode icon retains up if without operation within 1 minute. Press
at the same time the key and the “-” key for 2 seconds to close the light
Temperature sensor short circuit and open circuit protection
In any mode, when the short circuit or open circuit protection occurs to the
temperature sensor, the digital screen displays E1 or E2 and blinks
unceasingly, no key will work, and the buzzer rings 10 times.
Safety protection
In power-on mode, when the room temperature exceeds 50°C, the system
closes all outputs, the digital screen displays “FF” and blinks at the
quit the safety protection.
Toppling over protection function
the system immediately shuts down all heating components and displays
“E3”, No keys will work.
Close key fancy light and buzzer
In the power-on mode, press at the same time the “timing key” and the
“mode key” for 2 seconds to close key fancy light and buzzer output.
Repeat this action to open them.
Child lock function
simultaneously for 2 seconds to open the child lock function. Repeat this
action to close it.
The screen displays “--” if the heater is not in Temperature Control mode.
no operation during 12 hours.
9
