point POHS10PRO Manuale utente
Handheld Garment Steamer
POHS10PRO
User Manual
HANDHELD GARMENT STEAMER
Håndholdt tøydamper
KANNETTAVA VAATEHÖYRYSTIN.
HÅNDHOLDT DAMPRENSER.
Handhållen klädångare.
4-10
11 -18
19 -26
27 -34
35-42
33
4
SAFETY INSTRUCTIONS
1.Do not operate the appliance unless you read this manual
thoroughly.
2.Follow these instructions and do not use this appliance
for any other purpose then its intended use.
3.The water for the appliance shall be domestic potable
water. If your fabric is important, purified water is rec-
ommended.
4.Before using this appliance to ensure that the working
voltage of appliance are in conformity with the voltage
of power supply in your home. Please use the 30 MA
leakage protection switch, and it must use the rated
current greater than 6A of the socket.
5.Before using this appliance, please pull out the power
cord. Please don’t share a power supply with other large
power appliances. Please don’t use line board to avoid
overload to prevent fire hazard.
6.Before using this appliance, please add water, and don’t
exceed the maximum water level. Installed to accesso-
ries, and then turn on the power switch.
7.Please don’t add detergent or other liquid to the water
tank.
8.The appliance shall not be operated by these people (
including children ): the physically, tactilely or mentally
disabled or those who lack of experience and knowledge,
unless they are supervised or guided by someone who is
responsible for their safety in respect of the application
of the appliance.
9.Children shall be monitored to be prevented from playing
with the appliance.
5
10.When the appliance is in use, the iron brush should be
kept clear of people , animals and household appliances
and other equipment. You should turn off the power
switch when it is not in use, to avoid hurting or damage
to people or others.
11.During operation , please don’t touch the steam outlet on
the iron head.
12.Use dry soft cloth and neutral detergent to clean the
appliance surface and don’t use solvents such as gaso-
line, alcohol, banana oil, etc.
13.Do not soak the appliance, power cord or plug in water or
other solution.
14.Please do not place the appliance in harsh environments
for a long time , such as moisture, strong sunlight or
corrosive gases, etc.
15.Keep the appliance away from flammable or explosive
objects.
16.If find any damage on the equipment especially the
appliance body and power cord, stop using the appliance.
Please do not repair by yourself, you should inform the
company of the maintenance service center of the pro-
fessional personnel to repair.
17.The appliance can only be used indoors.
18.When using the product, please pay attention to the
danger of steam spitting.
19.You should pull out the power plug when cleaning or
when not in use.
20.Pay attention to the danger of steam.
6
PRODUCT OVERVIEW
ACCESSORIES:
Nozzle
steam level indicator light
self-cleaning
power light
handle
Power cord
Steam button
Water tank
fur brush heat-insulated cover
BEFORE USE :
Clean with a soft damp cloth.
During first use a small smoke emmission may occur,that’s normal
7
OPERATION

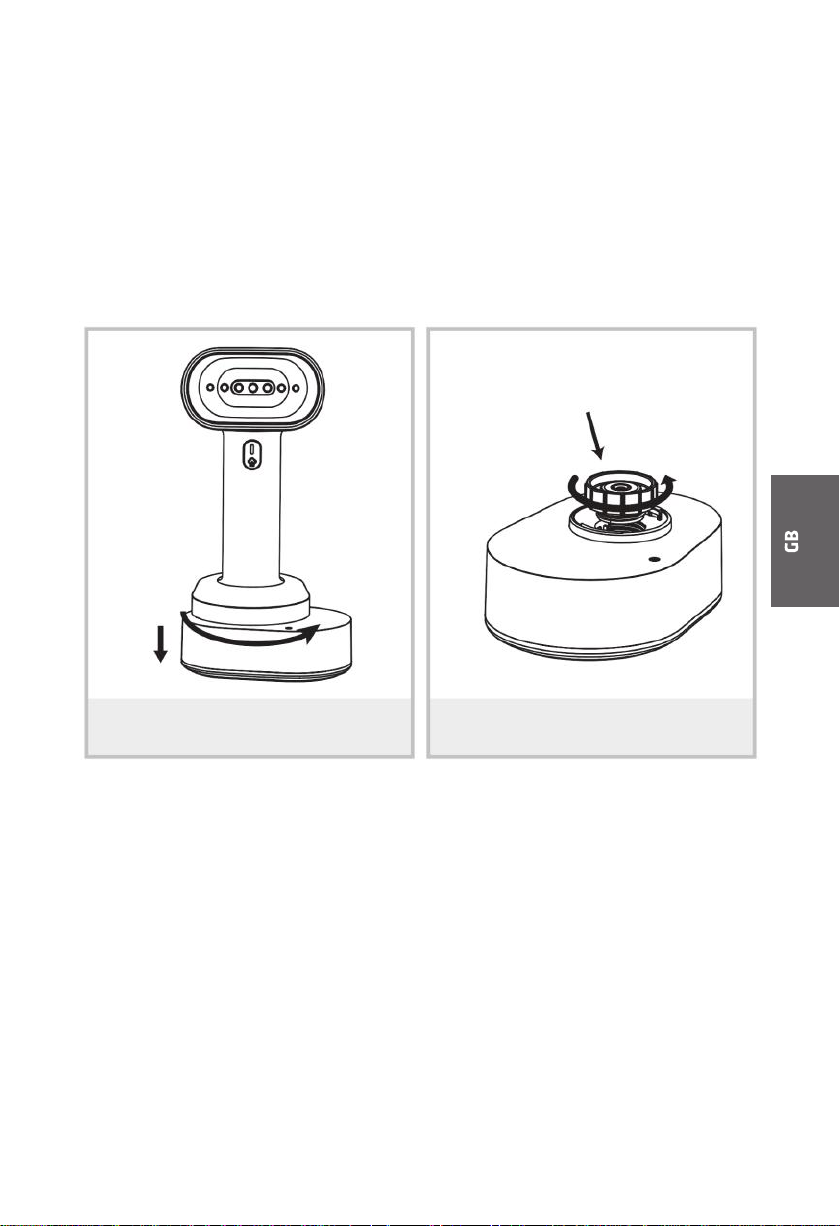

1.Filling water :
Ensure appliance is unplugged,Turn the water tank clockwise,separate it
from the Main body. (pic 1)Unscrewing the water tank cover(pic 2).then fill in
the water,Don't exceed the maximum water level.Then turn it to tight, match
it to the main body.
Note:Your appliance was designed to operate using pure demineralized
water.
Unscrewing the water tank cover
TIPS: CHECK THE FABRIC’S LABEL FOR RECOMMENDATIONS:
• We recommended that you test acrylic, nylon or other synthetic fabrics in
an inconspicuous area to ensure these fabrics are not damaged by hot steam
• As steam is very hot: never attempt to remove creases from a garment
while it is being worn, always hang garments on a clothes hanger.
2. Hang your garment on a clothes hanger.
3. Plug-in the appliance, push the power on, the power light is green flashing.
The appliance heat up. After 30s, the power light will be green lighting.it
means you can use the appliance now.
4.You can use the brush accessory to open better the weaves of the fabrics
for better steam effect. And you can use the anti-insulated cover too.When
you need, hold the appliance handle, with the other hand install fur brush to

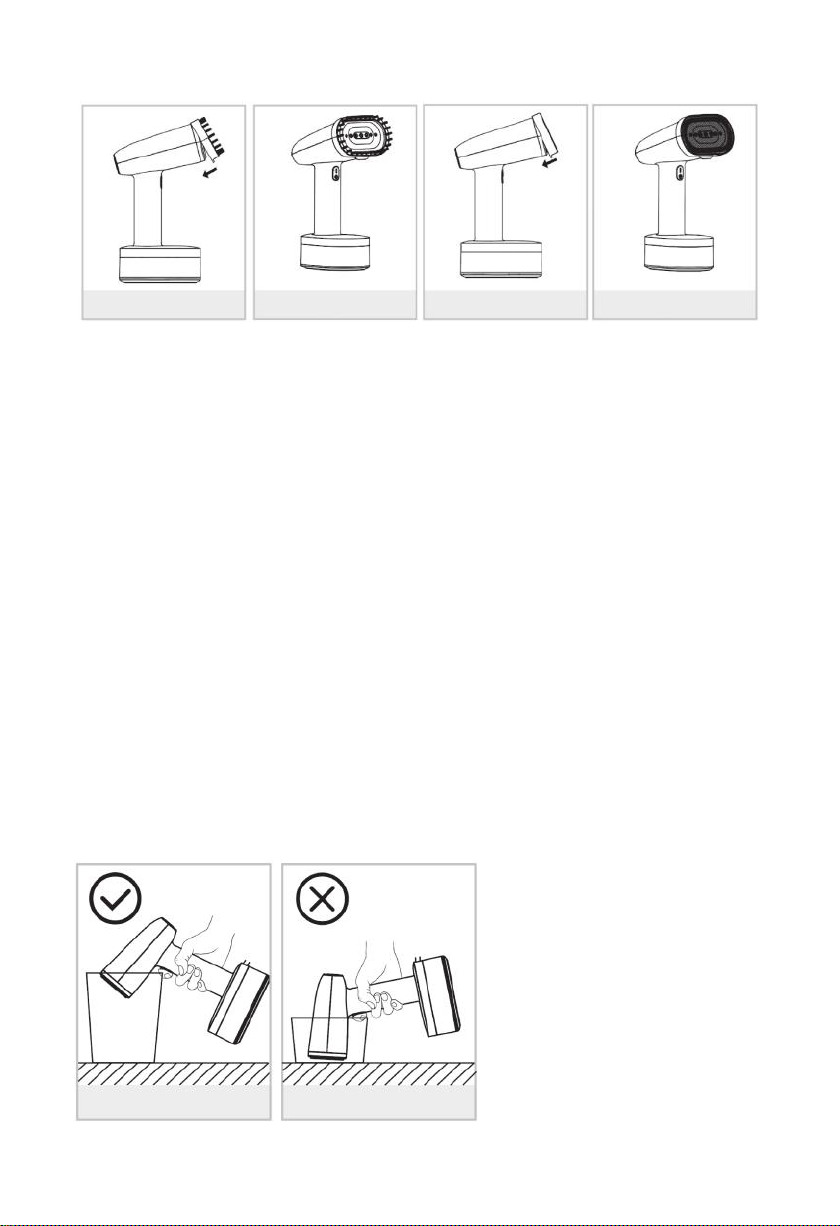

iron head, and installed correctly.(see picture 3-6）
PIC 1 PIC 2
8
Note: before removing or attaching the steam brush, unplug your appliance
and allow it to cool down.
6. After use, unplug the appliance.
7. Remove the water tank, empty the water tank completely, then return the
water tank to its place on the appliance.
Note: If there is no water, it will automatically stop after 45'S, and the power
lighting will be quick flashing. Static protect after 8 mins stop heating will be
quick flashing.
During use or while the unit is heating or cooling, place the product on a flat
stable and heat-resistant place.
SELF-CLEANING FUNCTION
Note:Please make sure the appliance is cold when use Self-cleaning function
When you want to use this function,first you need to prepare a contain-
er,handle the appliance to put nozzle down into the container(pic 7),don’t
directly put the nozzle against bottom if container(pic 8).fill water into water
tank to max,plug in the appliance,long press the self-clean button 5s,then
the appliance began self-cleaning,now the appliance will spray water
out,which is normal.You will listen warning sound after self-clean
finished.now you can unplug the appliance.
PIC 3 PIC 4 PIC 5 PIC 6
PIC 7 PIC 8
9
PRODUCT MAINTENANCE AND FAULT RECOVERY
SPECIFICATION
Model: POHS10PRO
Rated voltage: 220-240V~, 50/60 Hz
Rated power: 1600 W
Tank Capacity: 260 ml
Fault
The appliance does not
produce steam
The water leaked from the
tank
When the steam engine
works, there is a loud hum
or a pumping sound.
check the water level, if there is no water or
low water level, please fill water promptly.
Solution
* Check whether the water level and water
tank are properly loaded.
* Check whether the indicator is green.
* Make the appliance in a vertical position.
* Ensure that water is not more than the
highest water level.
* Please ensure that the water tank and
stopper is installed in place.
* According to the instructions, keep to
vertical of the appliance.
This symbol on the product or in the instructions means that
your electrical and electronic equipment should be disposed at
the end of its life separately from your household waste. There
is separate collection systems for recycling in the EU. For more
information please contact the local authority or your retailer
where you purchased the product.
10
