Polanik PP-171 Manuale utente

TECHNICAL SPECIFICATION

INSTRUCTION MANUAL

Competition steel-aluminium collapsible hu dle

PP-171

PP-171/6a

PP-171/6b

PP-171/6c

File: 2015-09-17

PRODUCT SUPPORT

Pawel Ciechanowski

p.ciechanowski polanik.com

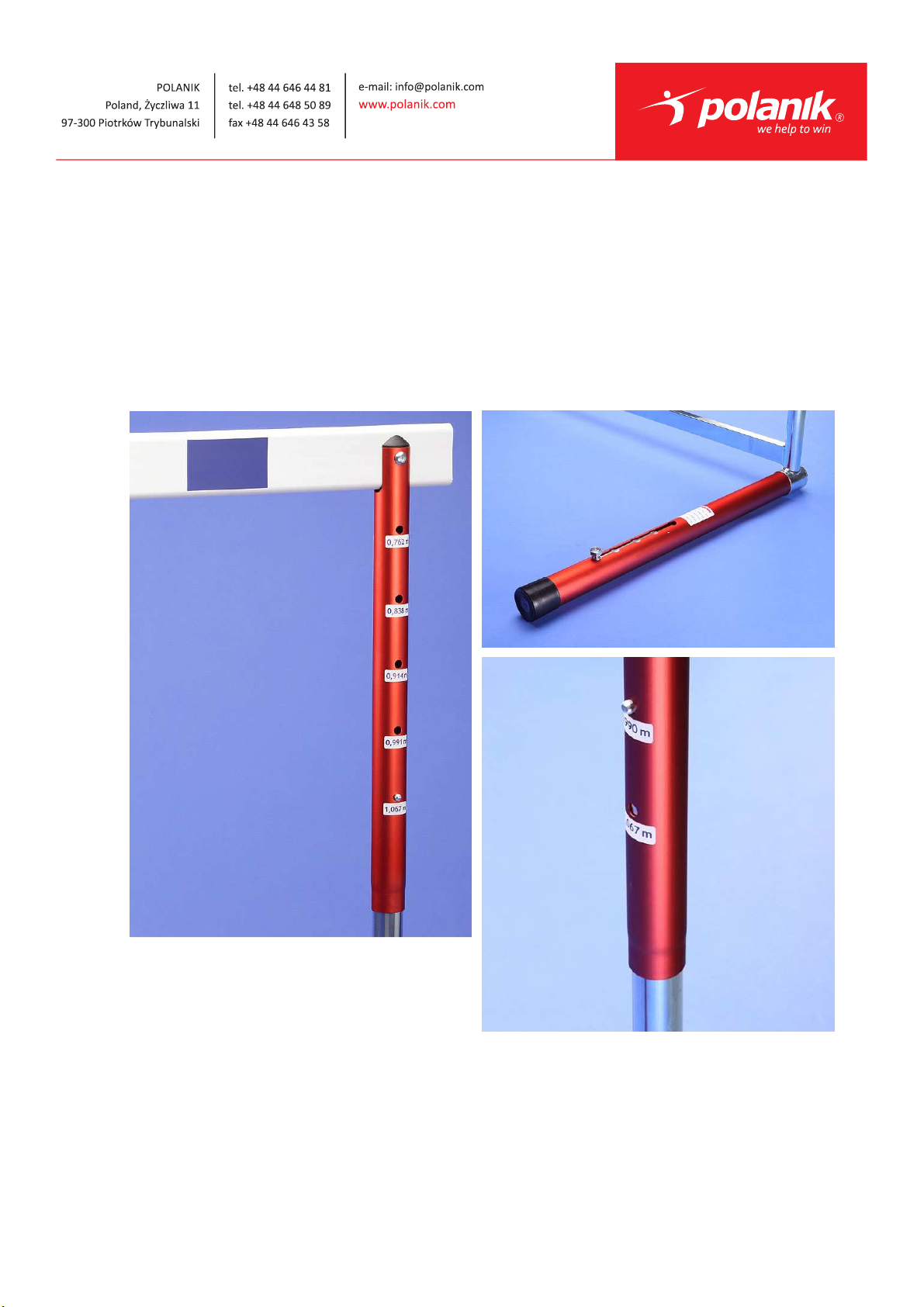

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 2 / 13

I. Gene al desc iption and use

PP-171 (PP-171/6a 6b 6c) is a resistant to weather, inexpensive in transport and high quality competition hurdle,

which is designed for national and international competitions. Main features:

•very durable construction – anodized telescope tubes and feet, galvanized frame and highly durable plastic

top board made of ribbed profile

•collapsible construction economical in transport

•spring-loaded button systems of height adjustment and counterweight selection

•special cut-outs for mounting top boards

•it meets the international quality standards

•IAAF certificates (PP-171 and PP-171/6a only)

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 3 / 13

II. Technical specification

*There may be differences in hue between the telescope tubes and the hurdle feet.

Code PP-171 PP-171/6a PP-171/6b PP-171/6c

Hu dle type competition collapsible

certified

competition collapsible

certified competition collapsible competition collapsible

(A)

Top boa d plastic, with inside ribbing plastic, with inside ribbing plastic, with inside ribbing plastic, with inside ribbing

(B)

Telescope

tube

aluminium anodized*,

spring-loaded button

system of height

adjustment

aluminium anodized*,

spring-loaded button

system of height

adjustment

aluminium anodized*,

spring-loaded button

system of height

adjustment

aluminium anodized*,

spring-loaded button

system of height

adjustment

(C)

F ame steel galvanized steel galvanized steel galvanized steel galvanized

(D)

Feet

aluminium anodized*,

spring-loaded button

system of counterweight

selection, counterweights

installed on stainless steel

balls

aluminium anodized*,

spring-loaded button

system of counterweight

selection, counterweights

installed on stainless steel

balls

aluminium anodized*,

spring-loaded button

system of counterweight

selection, counterweights

installed on stainless steel

balls

aluminium anodized*,

spring-loaded button

system of counterweight

selection, counterweights

installed on stainless steel

balls

Heights

[mm]

- - 680 680

- 686 - -

762 762 762 762

840 840 840 840

- - - 891

914 914 914 -

990 990 - -

- - 1000 1000

1067 1067 1067 1067

Weight [kg] 13 13 13 13

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 4 / 13

III. Packing and t anspo t

The hurdles are put on pallets in parts (frames, feet and foot screws separately) and wrapped with foil. The packed

pallet (to be foiled) is presented below:

Package type foiled pallet

Dim.

[cm]

contents 25 pcs

length 120

width 80

height 100

Volume m3] 0,96

Gross weight [kg] 350

box with

hurdle feet

box with foot

screws

frames with telescope tubes and

top boards mounted

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 5 / 13

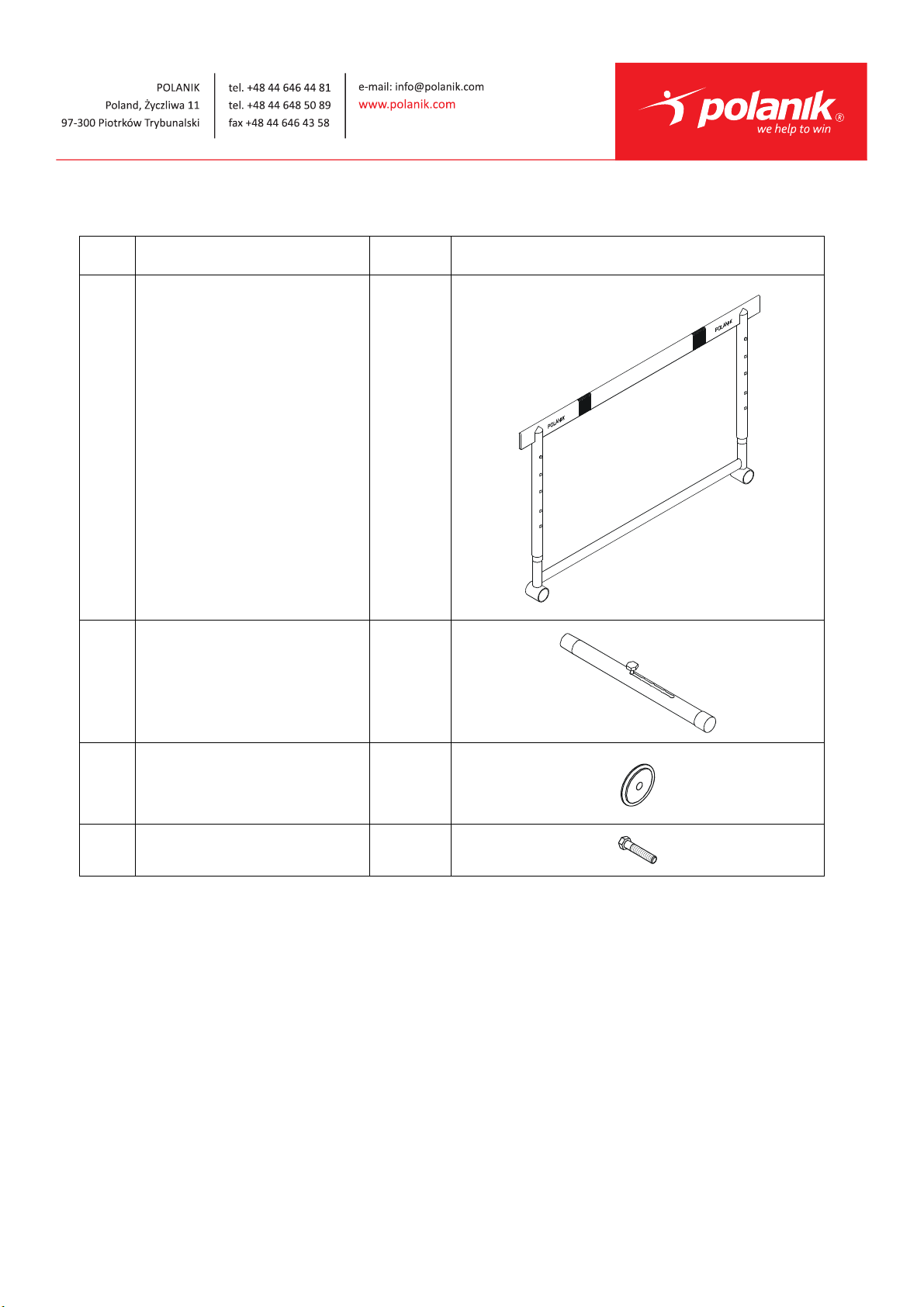

IV. Pa ts list (pa t sets)

Item Part/set description Q-ty pcs Sketch

1 Hurdle frame 1

2 Hurdle foot 2

3 Washer 2

4 Foot screw 2

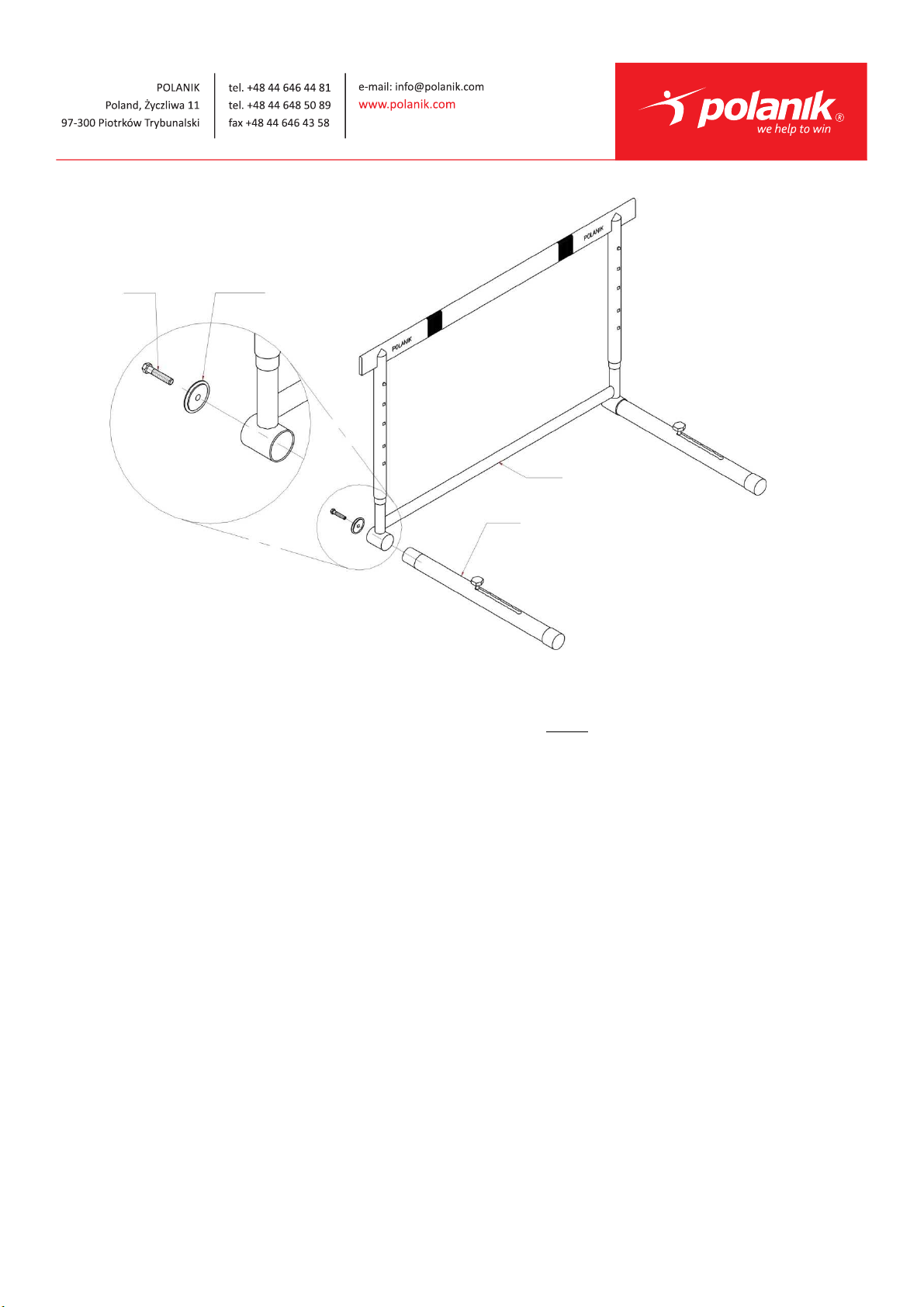

V. Assembly

A wrench 17 is needed to perform the assembly. Although one person can prepare the hurdle for use, a convenient

and fast assembly process requires two persons.

To assemble the hurdle please do the following:

a) slide carefully one hurdle foot (item 2) into one frame socket (item 1),

b) make sure the foot (item 2) is properly placed in the socket, if it is not straight, please correct its position,

c) screw the foot (item 2) to the hurdle frame (item 1) by means of the foot screw (item 4) and the washer

(item3),

d) install the other foot in the same way.

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 6 / 13

The main goal of the hurdle collapsible construction is to assure easy and cheap transport. Note that once you screw

the feet down, the hurdle is practically non-dismountable. Therefore we do not recommend unscrewing the hurdle

feet during idle periods. Removing the feet without proper tools can cause serious hurdle damages which Polanik shall

not be liable for.

Item 1

Item

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 7 / 13

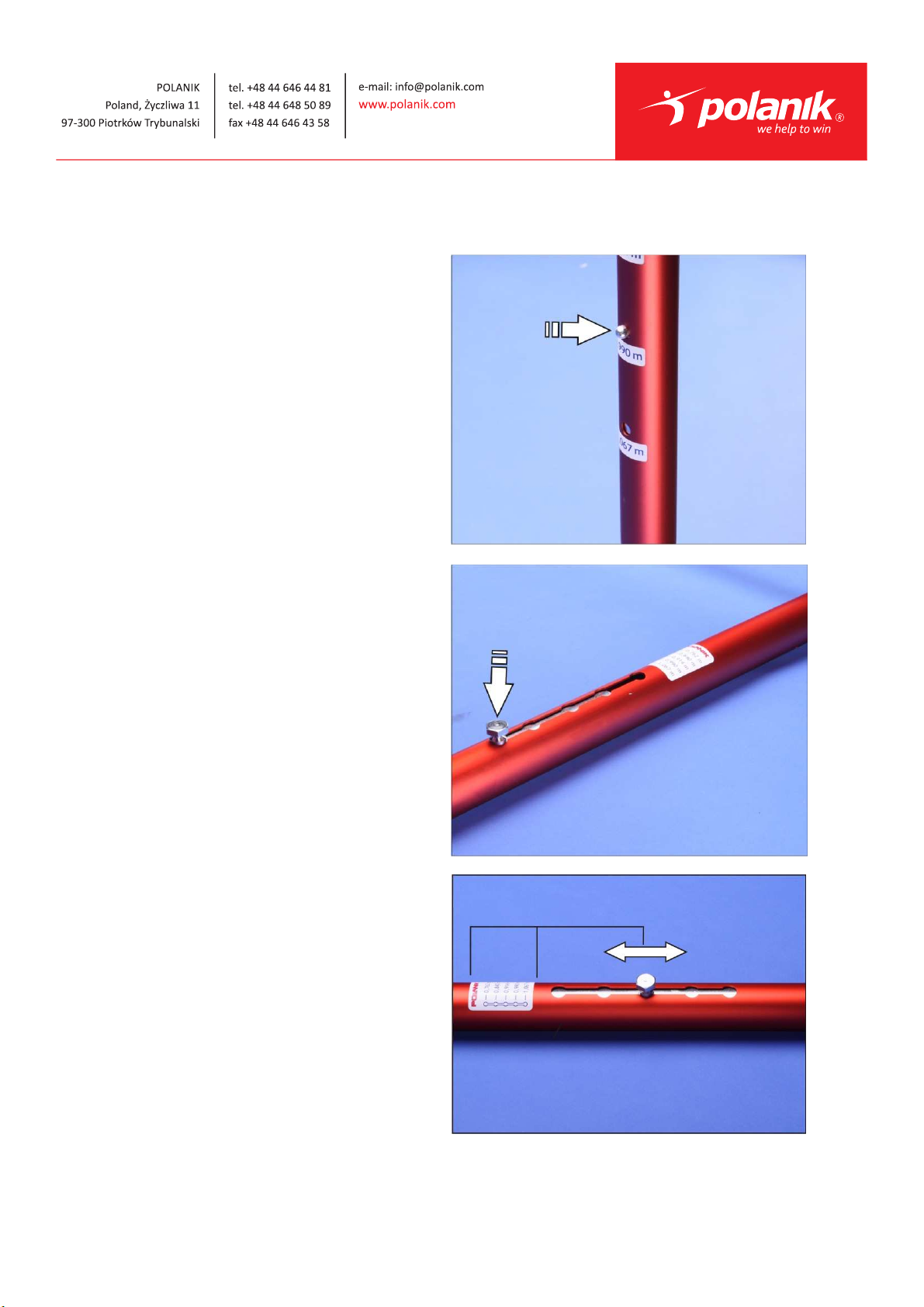

VI. Ope ation and maintenance

The height adjustment is done as follows:

a) while holding the telescope tubes press the

spring-loaded buttons simultaneously,

b) slide the telescopes down or up to adjust the

height until the buttons click,

c) next the hurdle toppling force should be

adjusted accordingly, so press and hold the

knob in the hurdle foot,

d) then slide the counterweight to the

corresponding height according to the label,

then release the knob, do the same with the

other hurdle foot.

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 8 / 13

During idle periods the hurdles must be stored in a roofed dry place. For optimal performance they should be stored

and transported on Polanik hurdle carts: HC-23 and HC-34.

After every athletics season the hurdles must be cleaned from sand (mud, dust and etc). Special attention is required

for the counterweight sliding mechanisms, which should be dismounted, cleaned and greased.

Before you begin the maintenance work, you should gather the following items:

 hurdle foot plastic plug for PP-171 (2 pcs for each hurdle) code: S-0008-001-00-00-05,

grease (approx. 50g for each foot),

wrench 19,

hex key 5.

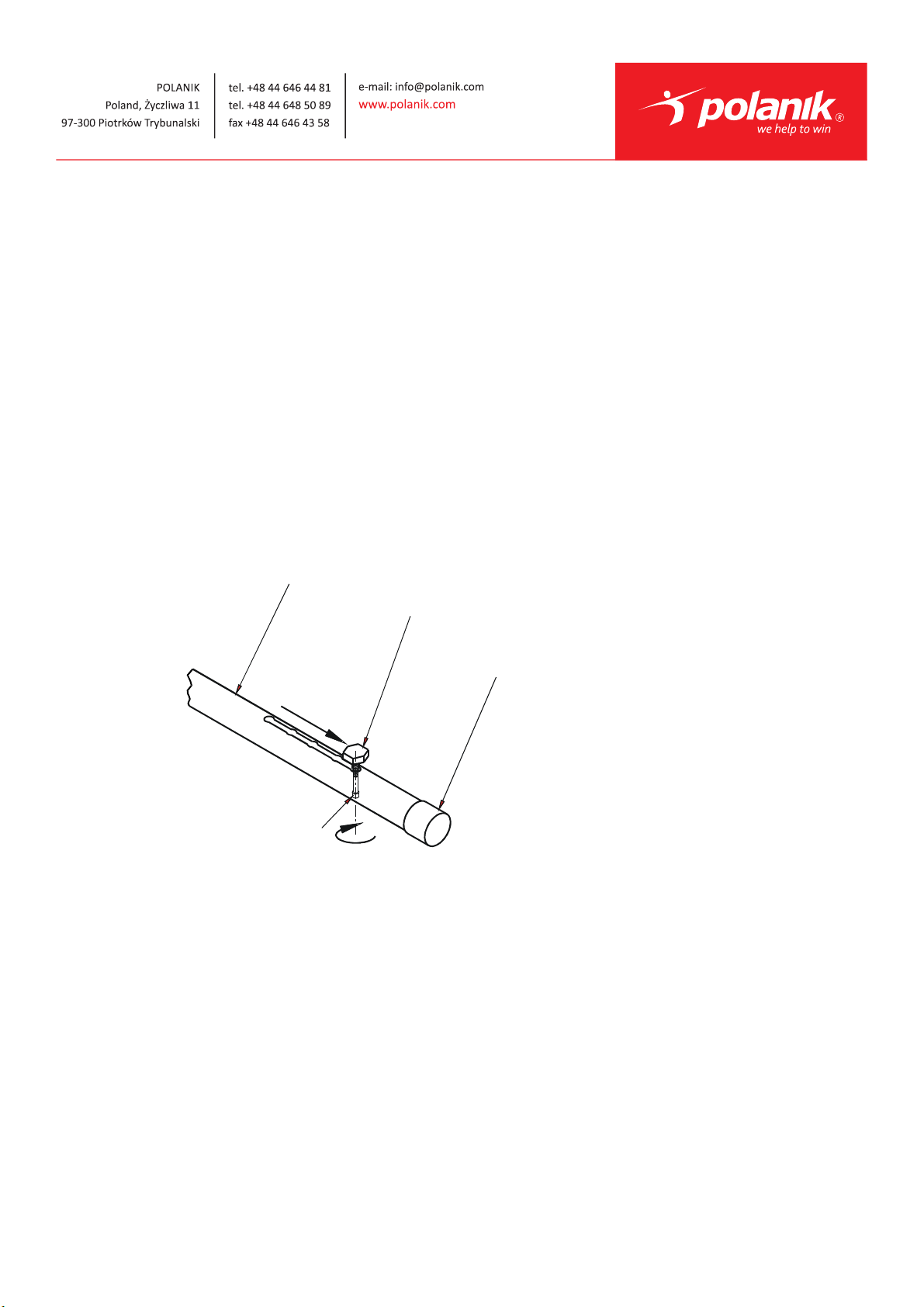

The counterweight disassembly is done as follows:

a) push down the foot catch and slide it toward the plastic plug,

b) put hex key into the bolt M6 through the technological hole under the foot,

c) hold the foot catch bolt with wrench 19 and unscrew the bolt M6 with the hex key,

d) remove the foot catch bolt and the spring from the counterweight,

Bolt M6

Foot plastic plug

Foot catch bolt

Hurdle foot

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 9 / 13

Counterweight

Hurdle foot

Foot catch bolt

Spring

Foot plastic plug

Bolt M6

Foot plastic plug

Spring

Foot

catch

Hurdle foot

e) remove the foot plastic plug from the foot tube (it often happens that the plug is damaged while removing, that is

why the spare plugs should be purchased before the disassembly)

f) slide out the counte weight ca efully – pay attention to the stainless steel bea ing balls installed in the bottom of

the counte weight – they may fall out , and remove the bolt M6,

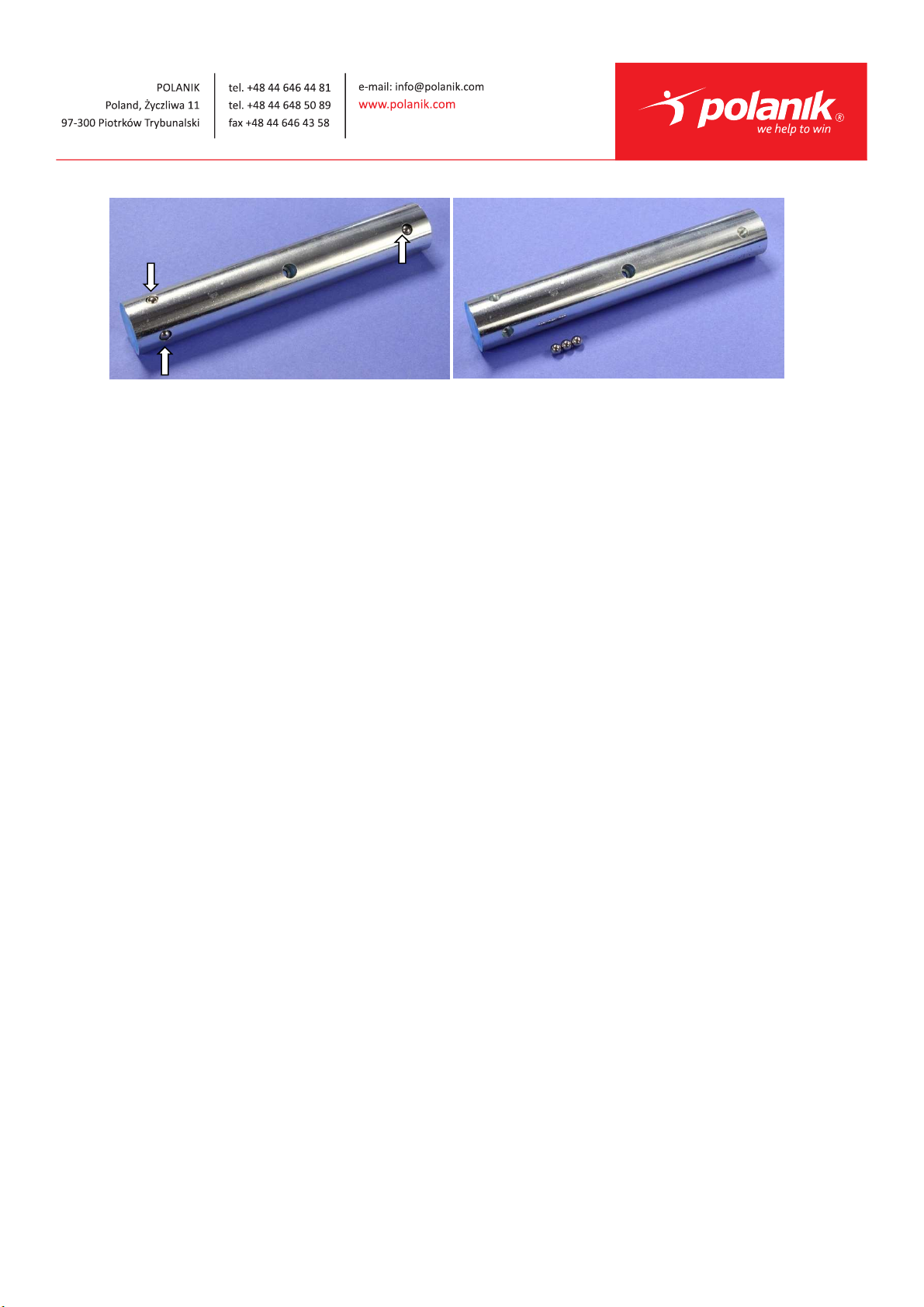

g) take out the balls from their sockets,

Tech. specification and instruction manual PP-171 PP-171/6a 6b 6c 10 / 13

h) the counterweight, the ball sockets and the inside of the foot tube should be cleaned from dirt and old grease,

i) grease the inside of the ball sockets and install the balls,

j) slide in the counterweight carefully,

j) the assembly process is done in the reverse sequence.
