MONOBLOC BACKUP HEATER
INSTALLATION
AND OWNER’S MANUAL
Thank you very much for purchasing our product,
Before using your unit , please read this manual carefully and keep it for future reference.
IMPORTANT NOTE:
BH30A
BH30B
BH45B
BH45B/R
BH90B/R
1 SAFETY PRECAUTIONS
2 GENERAL INTRODUCTION
3 PREPARATION
4 INSTALLATION
5 STARTING UP THE SYSTEM
6 MAIN PARAMETERS
01
02
03
04
11
11
CONTENTS
Read these instructions carefully before installation. Keep this manual in a handy for future reference.
Improper installation of equipment or accessories may result in electric shock, short-circuit, leakage, fire or other
damage to the equipment. Be sure to only use accessories made by the supplier, which are specifically designed for
the equipment and make sure to get installation done by a professional.
All the activities described in this manual must be carried out by a licensed technician. Be sure to wear adequate
personal protection equipment such as gloves and safety glasses while installing the unit or carrying out
maintenance activities.
Contact your dealer for any furthur assistance.
INFORMATION
i
1 SAFETY PRECAUTIONS
The precautions listed here are divided into the following types.They are quite important, so be sure to follow them carefully.
Meanings of DANGER, WARNING, CAUTION and NOTE symbols.
Indicates an imminently hazardous situation which if not avoided, will result in death or serious injury.
DANGER
Indicates a potentially hazardous situation which if not avoided, could result in death or serious injury.
WARNING
CAUTION
Indicates a potentially hazardous situation which if not avoided, may result in minor or moderate injury.
It is also used to alert against unsafe practices.
Indicates situations that could only result in accidental equipment or property damage.
NOTE
NOTE
This document is prepared for authorised installers, read this document carefully before installation. keep this manual
in a handy place for future reference.
Improper installation or attachment of equipment or accessories could result in electrical shock, short circuit, leaks, fire
or other damage to the equipment.
All activities described in this manual shall be carried out by a licensed technician.
Be sure to wear adequate personal protection equipment(protection gloves, safety glasses) when performing
installation, maintenance or service to the unit.
If unsure of installation procedure or use, always contact your dealer for advice and information.
This appliance BH45B can be connected only to a supply with system impedance no more than 0.298 Ω. In case
necessary, please consult your supply authority for system impedance information.
The unit described here is designed for indoor installation.
01
1 Automatic air purge valve
2 Backup heater
3 Water INLET connection
4 Water OUTLET connection
5 Thermal protector
Installation &owner’s
manual(this book)
M4 screws
Mounting bracket
2.2 Backup heater（IBH）
2.2.1 Structure of the backup heater
1）Remove the front cover of the backup heater.
3
1
4
2
7
5
6
8
9
10
BH45B/R
7
5
10
8
9
6
BH45B
7
5
6
8
9
10
BH30A
BH30B
BH90B/R
65
8
10
9
Adapter
(
Optional: G5/4"change
to G1")
6 Circuit breaker
7 Terminal block
8 Terminal block
9 Terminal block
10 Backup heater contactor
2 GENERAL INTRODUCTION
2.1 Accessories
Accessory Name
Qty.
2
3
2
1
1
1
Shape
M8 expansion screws
Mounting bracket
Picture in this manual for reference only, please refer to the actual product.
02
1
T1 connecter wire
(Optional)
03
3 PREPARATION
3.1 Preparing installation site
3.1.1 Installation site requirements of the backup heater
Keep in mind the guidelines for the measures:
▪
Mind the following spacing installation guidelines:
(Unit:mm)
3.2 Preparing water piping
3.3 Preparing electrical wiring
>300
>300
>300
>350
>500
Maximum distance between the
backup heater and the external drive
5m (If you exceed this
distance, you need an
additional water pump）
Operating range (Internal installation) 5~35 ℃
Item Description Wires
Maximum
running
current
Interconnection cable
1
4/5
Interconnection
cable between
backup heater kit
and outdoor unit
(a)
(a)Minimum cable section: 0.75 mm2;
Minimum cable section: 4 mm2;
Backup
heater Power supply Required number
of conductors
0.2A
BH45B/R 380-415V 3~ 50Hz 4Wires
380-415V 3N~ 50Hz 5Wires
BH30A
BH30B
BH45B
220-240V~ 50Hz 3Wires
75 70 105
280 220 170
140
Ø11
30X11
20
780
630
35
The backup heater is designed to be wall mounted in indoor locations only.
Make sure the installation surface is a flat and vertical noncombustible wall.
When installing the backup heater in the system, make sure the required minimum water flow rate is guaranteed at all times.
For more information, refer to the installation manual of the outdoor unit.
3.3.1 Overview of electrical connections for external and internal actuators.
NOTE
More technical specifications of the different connections are indicated on the inside of the backup heater.
BH90B/R
4 INSTALLATION
4.1 Opening the units
4.1.1 To open the backup heater
1
8×
2
3×
4.2 Mounting the backup heater
4.2.1 To install the backup heater 2 Fix the wall bracket to the backup heater with M4 screws.
3 Hang the backup heater onto the wall bracket. Make sure it
is fixed properly.
4 Fix the bottom of the backup heater to the wall with an M8
expansion screw.
2
3
1
1 Fix the wall bracket to the wall with M8 screws.
Mark the position of the hole at the bottom of the backup heater.
Drill a hole for the bottom screw and insert a plug.
04
4.3 Connecting the water piping
4.3.1 To connect the water piping
Connect the water piping (field supply) to the water inlet and outlet of the backup heater.
3Water inlet
4Water outlet
3 4
4.4 Connecting the electrical wiring
NOTE
Do not use excessive force when connecting the piping. Deformation of the piping can cause malfunction of the unit.
INFORMATION
An automatic air purge valve is installed inside the unit. Make sure the air purge valve is not tightened so that the air
in the water circuit can be expelled.
The power supply should be an independent circuit with rated voltage.
Power supply circuit should be earthed effectively.
The wiring must be performed by professional technicians in accordance with national wiring regulations and this
circuit diagram.
An all-pole disconnection device which has at least 3mm separation distance in all pole and a residual current
device(RCD)with the rating of above 10mA shall be incorporated in the fixed wiring according to the national rule.
Set the electric leakage protector electric technical standards of the state.
The power cord and the signal cord and properly without mutual interference connection pipe or valve.
After wire connection, check it again correctness before power on.
If you want to rotate the electric box, please release the iron tie on the top of the E-box to avoid sensor's connection
loosing.
05
06
4.4.1 To connect the electrical wiring on the backup heater
Routing Possible cables
(depends on the installed options)
a
Low voltage
▪
Backup heater kit sensor
(interconnection with outdoor unit)
▪
b
High voltage
Backup heater kit connection
(to outdoor unit)
▪
Main power supply
1 Insert the wiring from the bottom of the backup heater.
2 Inside the backup heater, route the wiring as follows:
b Low voltage wiring
a High voltage wiring
3 Fix the wiring with cable ties to the cable tie mountings.
4.4.2 To connect the backup heater power supply
a b
NOTE
To guarantee the unit is completely earthed, always connect the backup heater power supply and the earth cable.
Leakage Protection Switch must be installed to the Power Supply of the electric heating.
For the power supply, connect 3 wires to XT5/L+N+
Power Supply Wires
220-240V~ 50Hz
XT5
L N
1 2 3 4 5 6
For the power supply, connect 4 wires to XT5/L1+L2+L3+
L1 L2 L3
XT5
Power Supply Wires
380-415V 3~ 50Hz
1 2 3 4 5 6
▪
▪
07
L1 L2 L3 N
XT5
Power Supply Wires
380-415V 3N~ 50Hz
For the power supply, connect 5 wires to XT5/L1+L2+L3+N+
1 2 3 4 5 6
WARNING
If a tank with a builtin electrical booster heater is part of the system, use a dedicated power circuit for the backup heater
and booster heater.
NEVER use a power circuit shared by another appliance. This power circuit must be protected with the required safety
devices according to the applicable legislation.
08

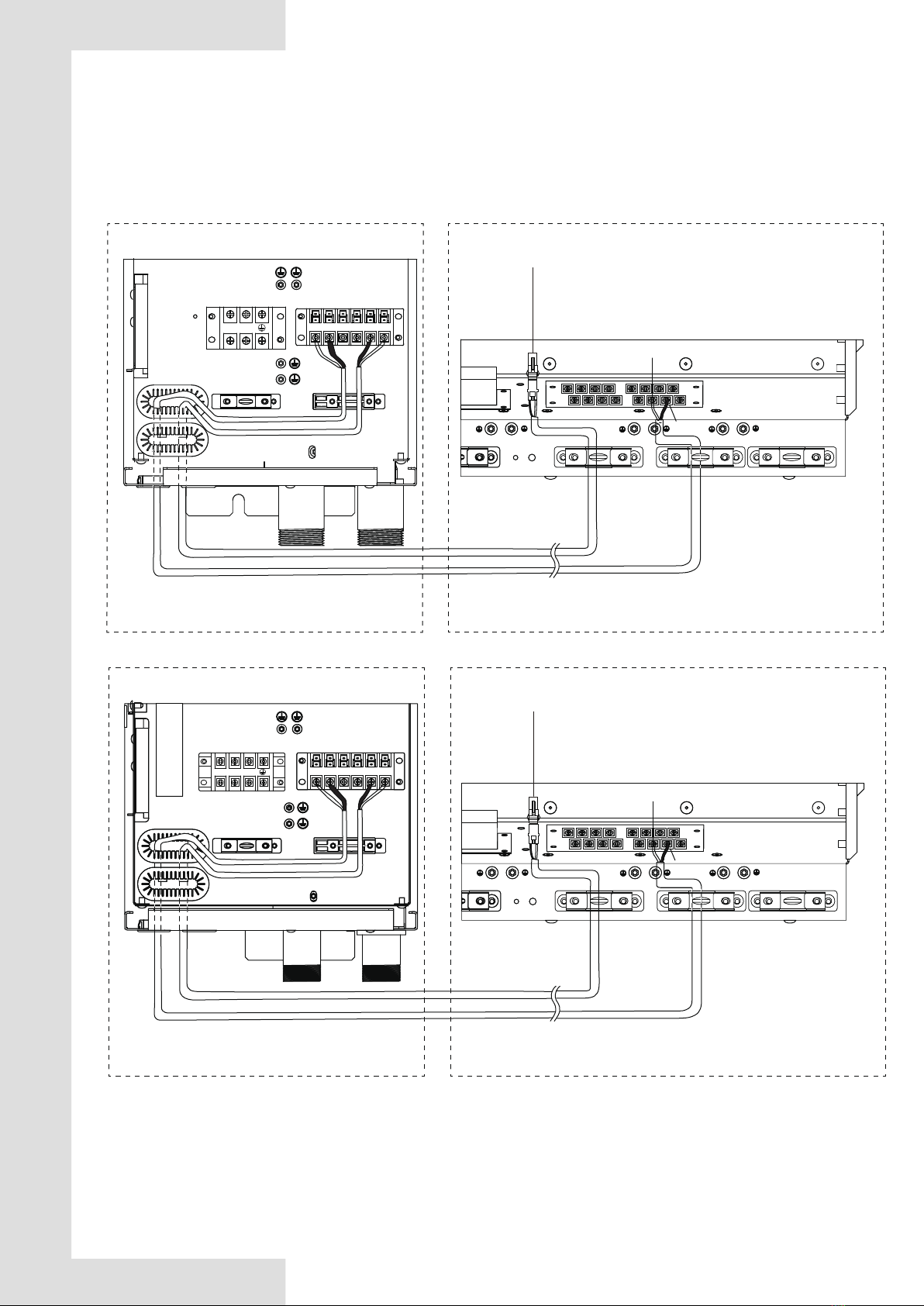

4.4.3 To connect the backup heater kit to the outdoor unit
For the sensor, connect 2 wires between backup heater terminals XT20/5+6 and control box connector T1.
For the connection with the control box, connect 2 wires between backup heater terminals XT20/1+2 and control box terminals XT7/20+21.
123456
XT7
XT20 20(IBH1)
21(N)
Backup heater
BH30A
BH30B
BH45B
Heat pump system
E series
L N
TO T1
E series
Backup heater Heat pump system
123456
XT7
XT20
20(IBH1)
21(N)
L1 L2 L3
BH45B/R
TO T1
