Polaroid IM1836 Manuale utente

IMPORTANT: Install the Polaroid Instant Memories Software

and click on GET MANUAL for the full User Manual

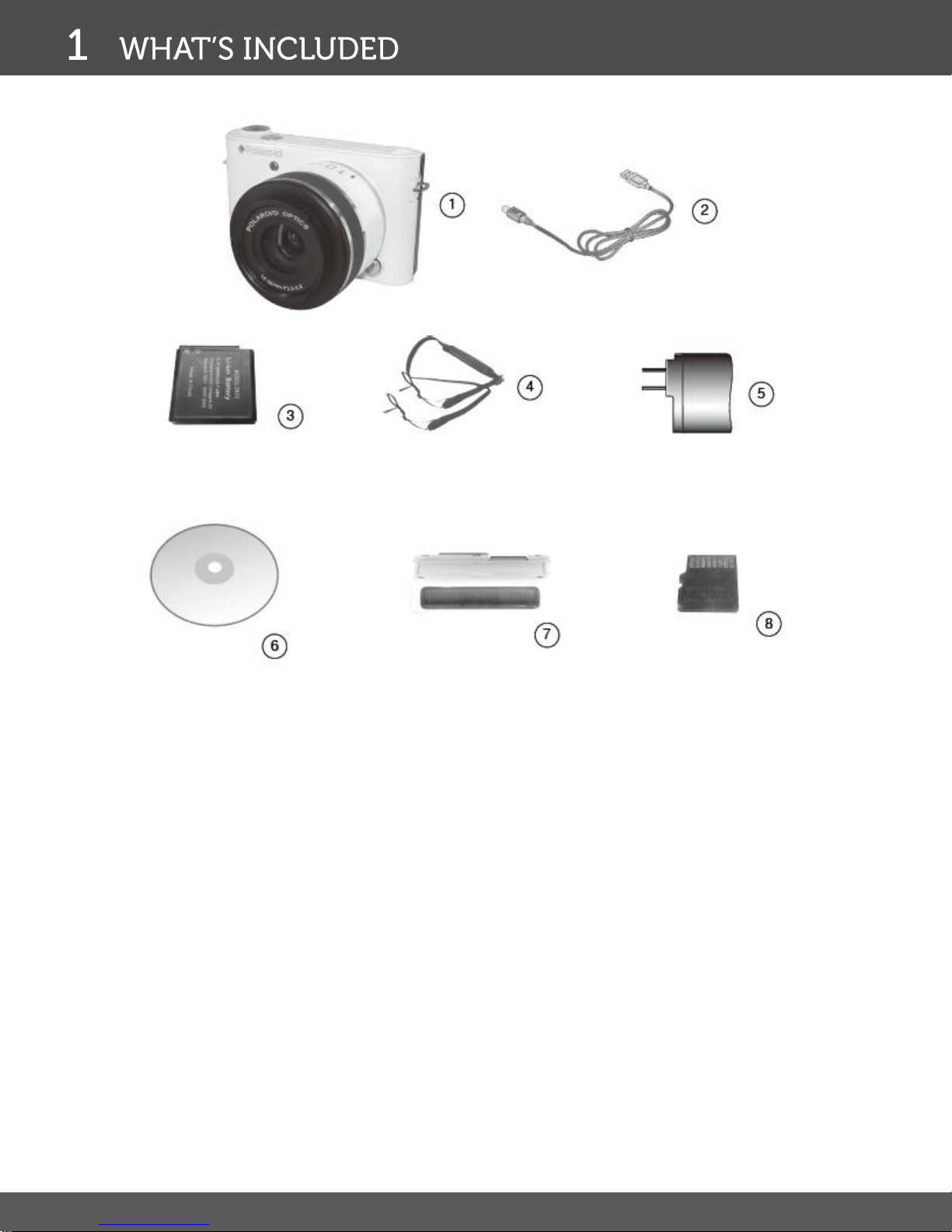

1) Digital Camera

2) USB Cable

3) Lithium Battery

4) Shoulder Strap

5) AC Charger

6) Polaroid Instant Memories Software Installation CD

7) Flash

8) 4GB Micro SD Card (Installed in the Micro SD Memory Card slot

of your camera)

Note: 2 AAA batteries required for Flash not included.

1. Power ON/OFF Button

2. Flash Screw

3. Flash Indicator

4. Flash

5. Interchangeable Lens

6. Zoom Ring

7. Lens Attachment Ring

8. Lens Release Button

9. AF Assist Lamp

10. Strap ring

11. Battery Cover

12. Tripod Socket

13. Memory Card Slot

14. LCD Monitor

15. Back Button

16. Editor Mode

17. Android Application Mode

18. Camera Mode

19. Android Manual

20. Mode Dial

21. Microphone

22. LED Indicator

23. Shutter Button

Installing the Battery:

1. Open the battery compartment.

2. Insert the battery as shown above.

3. Close the battery compartment and lock it.

Charging the Battery:

1. Power Off the camera.

2. Connect the camera using the USB cable to the

computer's USB port or to theAC Charger (which

is then connected to a standard wall socket).

3. Charge light will turn off when the battery is fully

charged.

4. When charging using the AC Charger we

recommend to charge up to 2 hours. It will take

longer to charge when using your computer.

NOTE : YOUR CAMERA IS ALREADY

PREINSTALLED WITH 4GB MICRO SD CARD.

Installing Micro SD Memory Card:

1. Open the Micro SD Card slot cover flap.

2. Insert the Micro SD Card as shown above.

3. This camera can support up to 32GB Micro

SD Card.

IMPORTANT :

We highly recommend that you format the

Micro SD card the first time before using.

You must use a Class 10 Micro SD Card or

higher only.

Attaching the Lens:

1. Attach the lens to the camera - Aligning the red dots of the camera and the lens (1 and 4).

2. Hold the base of the camera securely and turn the lens clockwise about 45 degrees till it snaps in place.

Removing the Lens:

Important : Turn off the camera to standby mode by clicking on the "ON/OFF" button once.

Your camera screen will be off at this mode. Now you can safely remove the lens.

Holding the Lens Release button (3), turn the lens anticlockwise direction about 45 degrees and pull out the lens.

1. Red Dot (Camera)

2. Lens Connector Pin

3. Lens Release Button

4. Red Dot (lens)

5. Lens Connector Base

1. Insert 2 AAA batteries to the ash and close the battery cover.

2. Insert the Flash Pin (4) in the Flash Pin Receptor (1) till it goes all the way in.

Tighten the connection by turning the ash screw head in a clockwise direction.

Make sure the ash screw head is tightened properly.

1. Flash Pin Receptor

2. Flash Screw Receptor

3. Flash Screw

4. Flash Pin

5. Flash Screw Head

1. Your camera has a standby mode.

From that mode you will see the lock screen as shown above.

2. Swipe the lock icon up to the unlock position to enter theAndroid Mode.

Swipe it down to the camera icon will open the Camera Mode.

1. Press the Power button to turn on the camera.

2. You will see the Polaroid welcome screen once the camera is turned on.

3. Your camera will be in the Android Mode by default.

4. To turn on the Camera Mode use one of the following options:

- Select the camera icon on the left tool bar of the screen.

- Click on the Shutter button.

- Click the Polaroidcam APP in Android Mode.

Your camera has different modes for the

various camera functions. You can switch

modes by rotating the MODE Dial on your

camera after the camera has been powered

ON.

Rotate the Mode Dial to select one of the Camera Shooting Modes:

No.

Icon

Mode

Description

Auto

Take still pictures automatic mode.

The camera detects the shooting condition and

automatically switches to the appropriate scene mode.

Program

The camera automatically configures the appropriate

settings, so you can capture images with ease.

Shutter Priority

You can choose a shutter speed, while the aperture value

is automatically determined by the lighting condition of

the subject.

Aperture Priority

You can choose an aperture value, while the shutter

speed is automatically determined by the lighting

condition of the subject.

Manual

Lets you set both aperture and shutter speed manually.

Multi Shot

Lets you capture a series of 3 consecutive shots with a

single press of the Shutter button.

Video

Use this mode to record videos with your camera.

Scene Mode

Lets you select the desired scene mode that suits your

shooting environment.

MODE DIAL

No.

Icon

Mode

Description

Android Manual

Android Manual.

Camera

Go to Camera Mode.

Home

Go to Android Home.

Image Editor

Mode

View / edit your media files from the Image Editor APP.

Back

Go back to the previous screen.

1. Your camera has pre-default shortcuts on the left tool bar of the screen.

2. Touching any of these icons to open that respective mode.

1. Turn the camera on and turn the dial to Auto mode.

2. Make sure your lens is attached to the camera and the lens cover is removed.

3. Press the Shutter button once to activate the camera.

4. Press and hold the Shutter button half way down to focus on the subject. When the subject

is in focus you will hear a beeping sound - now push the button all the way down to take

the picture.

1. Turn the Camera Dial to the Video Mode and press the Shutter button once to record video.

2. When the video is being recorded you will notice a flashing red circle and REC icon with

the video record time on the bottom right.

3. Press the Shutter button again to stop recording.

1. Touch on the Image Viewer icon to view all the media files that you have recorded.

2. You will see a thumbnail of all the media files.

3. Select the file that you want.

To learn more about the other camera modes and features, please refer to the full user manual which is

available by clicking the GET MANUAL button after installing the ‘Polaroid Instant Memories’software. You

can also access manual form the Android Mode by clicking on the HELP app.

Hold the camera securely.

Turn the ring on the lens

clockwise or counter clockwise to

zoom in and zoom out.

Lightly press the Shutter

button halfway to focus on

the subject, and then press

the Shutter button fully to

take a picture.

1. APP View icon : Touch the App View icon to view all the preinstalled apps.

2. Touch and hold an App icon to create a shortcut in the Home screen or in the Shortcut Bar

located on the right.

1. Touch and hold the App shortcut for a few seconds.

2. On the left of the screen, you will see an "X" delete icon in red.

3. Drag the App shortcut icon to the "X" symbol to delete.

NOTE : This will not uninstall the App but just remove the shortcut from the Home

screen or the Shortcut Bar. You can access these Apps by touching on the App

View icon.

1. Touch the Setting icon .

2. Touch to turn the Wifi position to ‘On’ position.

3. Select the WiFi option.

4. Choose your network from that list and enter the password if required.
