Polaroid Spectra AF Manuale utente

SPECTRA AF

This book contains operating instructions

for the Polaroid Spectra AF camera

(see p. 2.)The text refers to pictures

on these fold-out pages.

Este manual contiene las instrucciones

de operation de la camara Polaroid Spectra AF

(p. 23). El texto hate referencia a las ﬁguras de

estas hojas desplegables.

•Get in close to subject (p. 20)

•Acerquese al sujeto (p. 42)

•Add foreground interest (p. 20)

•Anada interes al fondo (p. 42)

16 17

•Use color in pictures (p. 20)

•Use el color en las fotografías (p. 42)

•Keep background simple (p. 20)

•Mantegna un fondo sencillo (p. 42)

14 15

•Distant background: too dark (p. 10)

•Fondo distante: demasiado oscuro (p. 32)

•Close background: good picture (p. 10)

•Fondo cercano: buena fotografía (p. 32)

12 13

•Flash off: facial shadows (p. 8)

•Flash: apagado sombras en la cara (p. 30)

•Add foreground interest (p. 20)

•Anada interes al fondo (p. 42)

10 11

IMPORTANT

SAFEGUARDS

As with any battery-operated equipment, observe

these basic safety precautions:

FOLLOW ALL OFTHESE INSTRUCTIONS.

CLOSELY SUPERVISE CAMERAWHEN IT IS

BEING USED BY OR NEAR CHILDREN.

DO NOT USE CAMERA IF IT HAS BEEN

DROPPED OR DAMAGED - UNTIL IT HAS

BEEN EXAMINED AT AN AUTHORIZED

POLAROID SERVICE CENTER.

TO AVOID ELECTRICAL SHOCK HAZARDS,

DO NOT DISASSEMBLE CAMERA. SERVICE

OR REPAIRWORK MUST BE DONE ONLY BY

AN AUTHORIZED POLAROID SERVICE

CENTER. INCORRECT REASSEMBLY CAN

CAUSE ELECTRICAL SHOCKWHEN CAMERA

IS USED AGAIN. DO NOT IMMERSE IN

WATER OR OTHER FLUIDS.

PLEASE KEEPTHESE

INSTRUCTIONS

The camera

The camera 2

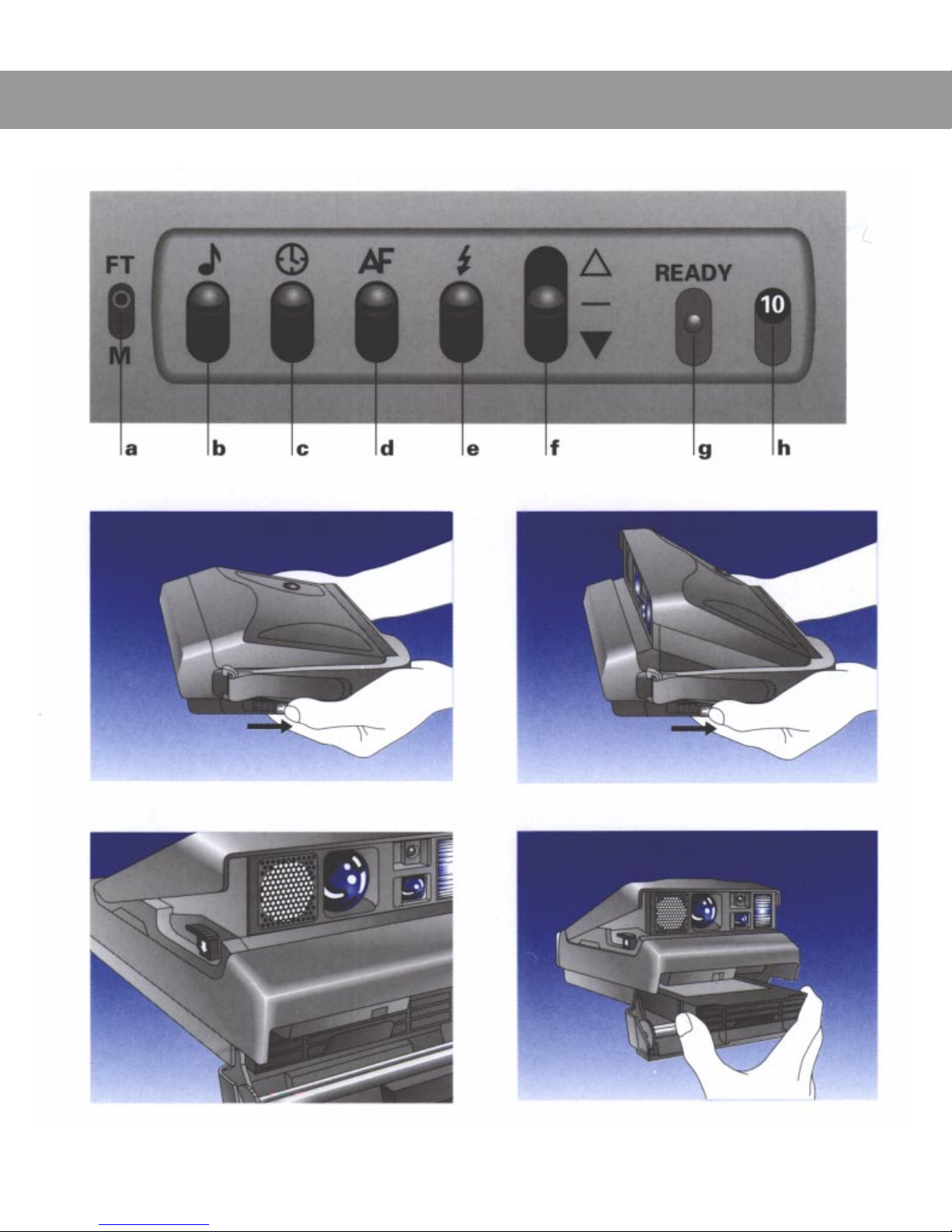

The control panel 3

Using the camera

Open the camera 4

Check the control panel 4

Load the film 4

Position your subject 4

Take the picture 5

To remove an empty film pack 5

Features

The autofocus system 6

The viewfinder displays 7

The programmed flash 8

The recharge indicator 8

Flash range 9

The exposure control 9

The self-timer 11

Photographing through glass 12

Guide to better pictures

Lens care 13

Picture care 13

Film care 13

For information and help 14

Warranty 15

Troubleshooting guide 16

Picture-taking tips 20

Camera, film specifications 21

Contents

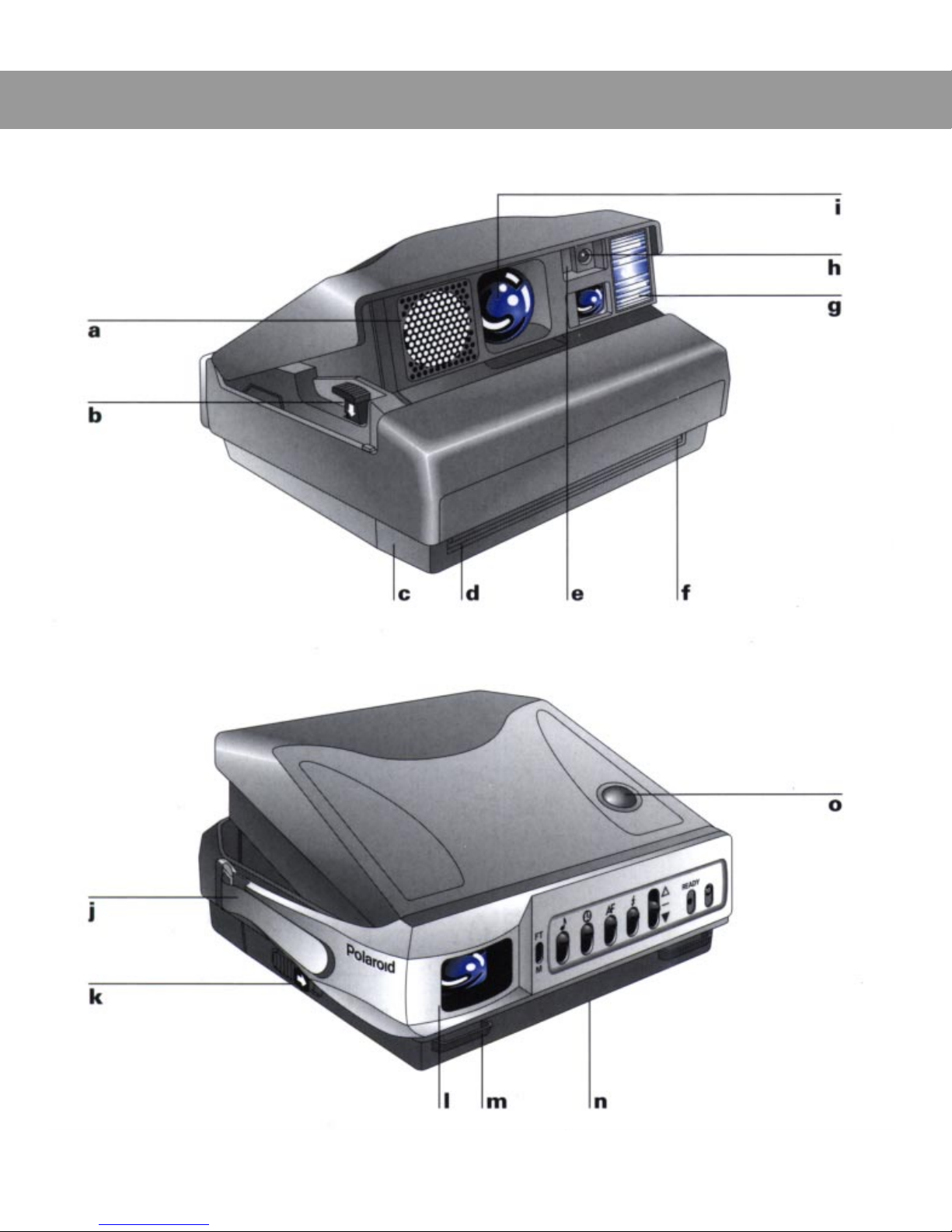

The camera a Sonar rangeﬁnder

(sends out sound waves

to measure the distance

to your subject).

b Film door release

c Film door

d Film exit slot

e Photocell-silicon photo-

diodes

(measures light

from the scene and light

from the ﬂash, indoors

and outdoors).

f Film shade

(protects the

picture from light as it

exits the camera).

g Programmed ﬂash

h Self-timer indicator

i Patented Quintic lens

(three element, 125mm

lens system.)Ten-zone

focusing from 2 feet

(0.6m ) to inﬁnity.

j Hand strap

(adjustable)

k Release latch

(opens

and closes the camera).

l Viewﬁnder

m Neck strap connector

(see attachment instruc-

tions that come with

neck strap).

n Tripod socket

(under-

neath the camera).

o Two-stage shutter but-

ton

(press halfway to

restore the green light;

press the rest of the way

to take the picture.To

delay ejecting the pic-

ture, hold the shutter

button down).

The camera
