Polaroid PL-POD1017 Manuale utente
10.1” Portable
DVD Player
User Manual
PL-POD1017
2
Welcome
Welcome to your experience with Polaroid products.
All Polaroid products we bring to you are manufactured to the highest standards of performance and safety. As part of
our philosophy of customer service and satisfaction, your purchase is backed by a comprehensive 1 Year Warranty.
This user manual tells you all you need to know about setting up and using your new product.
Please take special note of any important safety and usage information presented with the symbol.
3
Welcome 2
Product Overview 4
Controls and Connections 5
Remote Control 9
Operation 12
Troubleshooting 20
Specications 22
Compliance and Responsible Disposal 23
Contents
4 | PRODUCT OVERVIEW
Product Overview

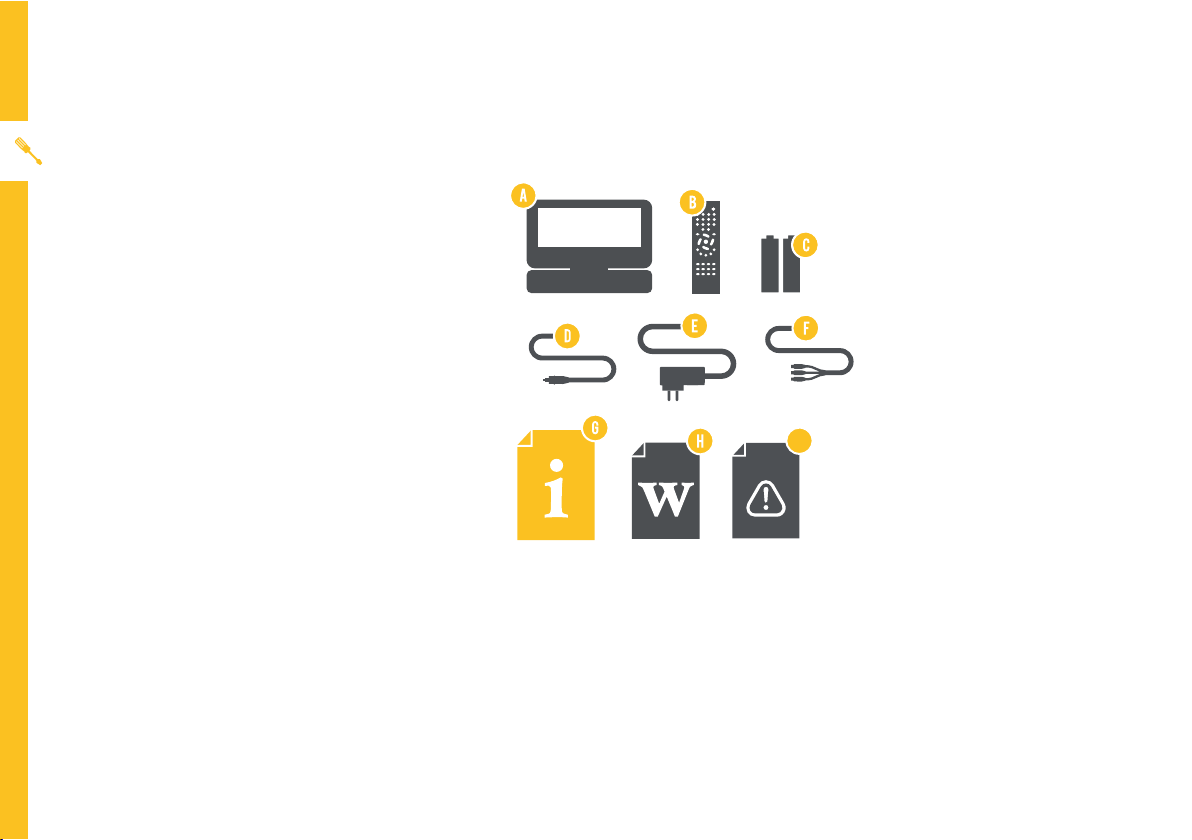

What’s in the box:
A. 10.1” Portable DVD Player
B. Remote Control
C. AAA Batteries
D. 12V Car Adaptor
E. AC Adaptor
F. AV Cable
G. User Manual
H. Warranty Certicate
I. General Safety Warnings
I
CONTROLS AND CONNECTIONS | 5
Controls and Connections
1
3
2
Front view
1. LCD TFT screen
2. Speakers
3. Infra-red signal receiver: Accepts
remote control signal.
Let LED Indicator: RED when charging;
GREEN when fully charged.
Right LED Indicator: RED when on
standby; GREEN when the player is
ON.
6 | CONTROLS AND CONNECTIONS
4
5
15
6
16
7
17
9
8
18
10
11
12
13
14
4. OPEN: Push down to open the disc compartment cover.
5. TITLE: When in DVD mode, go to the title menu of a DVD.
6. LCD ON/OFF: Turn the display on/o.
7. SETUP: Enter/exit the System Setup menu. In AV mode,
press to enter/exit the TFT setup menu.
8. MODE: Press repeatedly to cycle through DVD/AV modes.
9. USB/CARD: Switch between DVD, USB and SD Card
modes.
10. PREV/UP: Skip to the previous title,
chapter or track; navigate up.
11. OK: Conrm or enter.
12. FWD/RIGHT: Fast forward; navigate right.
13. REV/LEFT: Fast rewind; navigate let.
14. NEXT/DOWN: Skip to the next title,
chapter or track; navigate down.
15. MENU: Return to the disc’s main menu
when in DVD mode. Set the PBC menu
function on/o in VCD mode.
16. PLAY/PAUSE: Play or pause playback.
17. STOP: Stop media playback.
18. VOL-/VOL+: Decrease or increase the
volume level.
CONTROLS AND CONNECTIONS | 7
19 20 21 22 23 24 25
19 USB
STORAGE
Playback your multi-media files, including videos, music and
photos.
20 SD/MMC Card
Slot
STORAGE
Insert a SD/MMC memory card to playback your multi-media files,
including videos, music and photos.
21
Earphone
Jack
SOUND
Connect to your earphones, amplifier or audio device, using an
AUX cable (not included).
19. USB Slot: See below.
20. SD Card Slot: See below.
21. Headphone Jack: See below
22. AV OUT Socket: See next page.
23. AV IN Socket: See next page.
24. ON/OFF Switch:Turn ON/OFF power to the unit completely.
25. DC IN: See next page.
8 | CONTROLS AND CONNECTIONS
22 AV OUT
SOUND
Send the image from the DVD player to a TV screen using the
supplied AV cable. The AV cable must be connected to an external
TV device and the DVD screen will be off when viewing from a TV
screen.
23 AV IN
SOUND
Send the image from another device to the DVD player using the
supplied AV cable.
25 DC IN
POWER
Connect the supplied AC adaptor or car adaptor to power and
charge the unit.
REMOTE CONTROL | 9
Setup
Insert two AAA size batteries according to the polarity
markings (+ / -) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any guidelines
for recycling and disposal of batteries that apply in
your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AAA size
batteries
included
1
2
3
10 | REMOTE CONTROL
POWER
VOLUME
1 2 3 +
-
4 5 6
7 8 9
0/10 10+
MUTE
MODESETUP
OK
OSD DVD/USB/SD
LCD ON/OFF
Buttons and functions
LCD ON/OFF: Turns o the display
while still playing audio to help save
battery life.
NUMBER BUTTONS: Numerical
input to directly access a specific
chapter or track.
SETUP: Access/exit the system
setup menu.
/ / / : Navigate the
system menu.
OK: Confirm a selection.
: Skip to the previous title,
chapter or track.
: Fast rewind current track.
POWER: Put the DVD player on
standby/on.
VOL + / - : Increase/Decrease
volume.
/ MUTE: Mute the sound. Press
again to restore the sound (This will
mute the AV output sound as well).
MODE: Press repeatedly to cycle
through DVD/AV IN mode.
: Skip to the next title, chapter
or track.
: Fast forward current track.
: Play/pause playback.
