Polaroid TTM-2410 Manuale utente

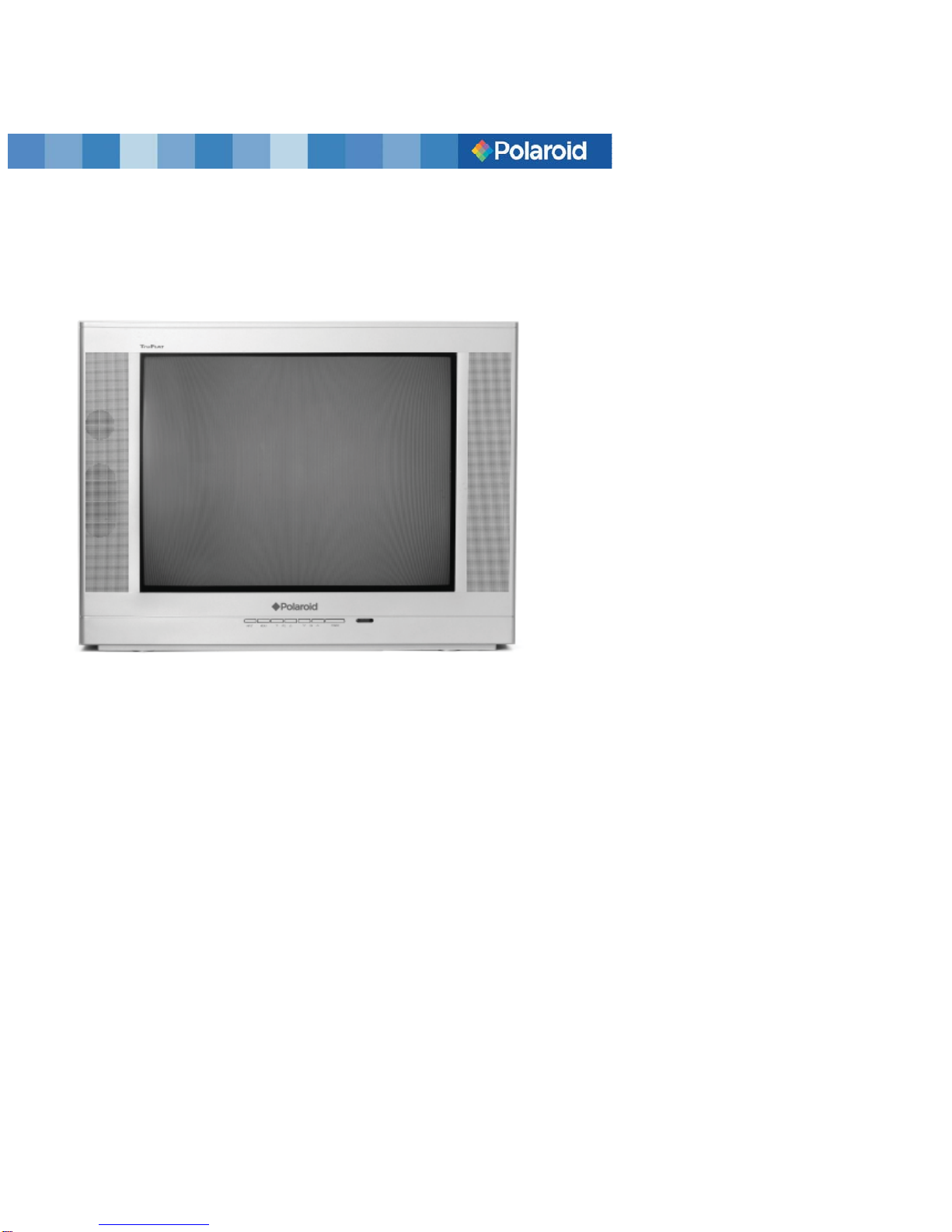

24” Pure Flat Tube Stereo TV

TTM-2410

20060630

2. To avoid the fire, no naked flame

source, such as lighted candles,

should be placed on the apparatus;

3. At least 10 cm space should be left

around the apparatus for sufﬁcient

ventilation;

5. In case of smoke, strange noise or

strange smell from the unit, switch

it off, unplug it from the wall outlet

and contact your dealer or service

center.

2. Unplug the apparatus from the AC

outlet when it will not be used for a

long period of time. And when there

is a lightning, unplug the unit from the

AC outlet immediately. Never touch

the antenna wire during lightning.

1. To reduce the risk of ﬁre or electric

shock, do not expose this product to

rain or moisture.

Theapparatusshallnotbeexposedto

dripping or splashing and that no ob-

jectsﬁlledwith liquids, such asvases,

shall be placed on the apparatus;

4. Theventilation should not be impeded

by covering the ventilation opening

with items, such as newspapers,

table-cloths, curtains, etc.

NOTE

1. For your protection, please

read this instruction completely, and

keep this manual for future refer-

ence;

3. The apparatus is not suitable for chil-

dren under 3-year to operate.

Important Safety precautions

CAUTION

Risk of electric shock, do not open.

Do not attempt to service this product yourself as opening or

removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualiﬁed service personnel;

WARNING

5. Do not place this apparatus near water,

for example, near a bath tub, wash bowl,

kitchensink,or laundry tub; inawetbase-

ment; or a swimming pool; and the like;

7. Unplug this apparatus from theAC outlet

before cleaning. Do not use liquid clean-

ersoraerosol cleaners. Use adampcloth

for cleaning;

9. Place the apparatus in such a position

that the screen is not exposed to direct

sunlight. It is best to have soft indirect

lighting while watching and avoid com-

plete dark environment and reflection

from the screen as these may cause eye

fatigue;

10.Keep TV set away from high magnetic

ﬁeld(i.e.power-ampliﬁed power speaker)

to avoid affecting the tint;

12.Use an isolated power transformer in

maintenance as the chassis of the ap-

paratus may be electriﬁed.

4. Do not push objects of any kind into

this apparatus through cabinet slots

as they could touch current carrying

parts or short-circuit parts resulting in

ﬁre, electric shock or damage to the

unit. Never spill liquid of any kind on

the apparatus;

6. Keepthe apparatus awayfrom radia-

tors and other heat sources;

8. Powersupply cords shouldbe routed

safety to prevent life and property

from dangerous with damaged cord;

11.When the TV being moved in from

cold place, it needs some right time

for dew inside unit evaporating fully

before turn on the unit.

Important Safety precautions

13.To protect our living environment, please

send waste batteries and waste product to

legal agents for proper disposal.

Contents

Overview 4

External connection 6

Remote control 8

Basic operation 10

Menu Basic operation 12

Using the PICTURE menu 12

Using the SOUND menu 13

Using the PRESET menu 14

Using the FUNCTION menu 15

Picture defects and countermeasures (AIR reception) 18

Troubleshooting 19

Appendix

Color TV receiving systems table 20

Color TV Functions table 20

Color TV Speciﬁcations table 20

Color TV Dimensions and Weights table 21

Color TV Remote control table 21

Color TV Accessories table 21

Note: Please read the carton or name plate on the TV back cabinet to sure which

model you have purchased before you read this manual.

Polaroid. Add a little color to your life.

Since 1937, America has turned to Polaroid for their photography needs. Today, families

look to Polaroid for consumer electronics that deﬁne the digital age: TVs, plasma TVs and

LCD TVs, portable and standard DVD players, digital cameras.And while our selection has

changed, you’ll still receive the same friendly, helpful service that made Polaroid an American

icon. Congratulations on your new Polaroid TV purchase. To ensure your new TV provides

you with years of enjoyment, please read this guide carefully.

Overview of the function keys

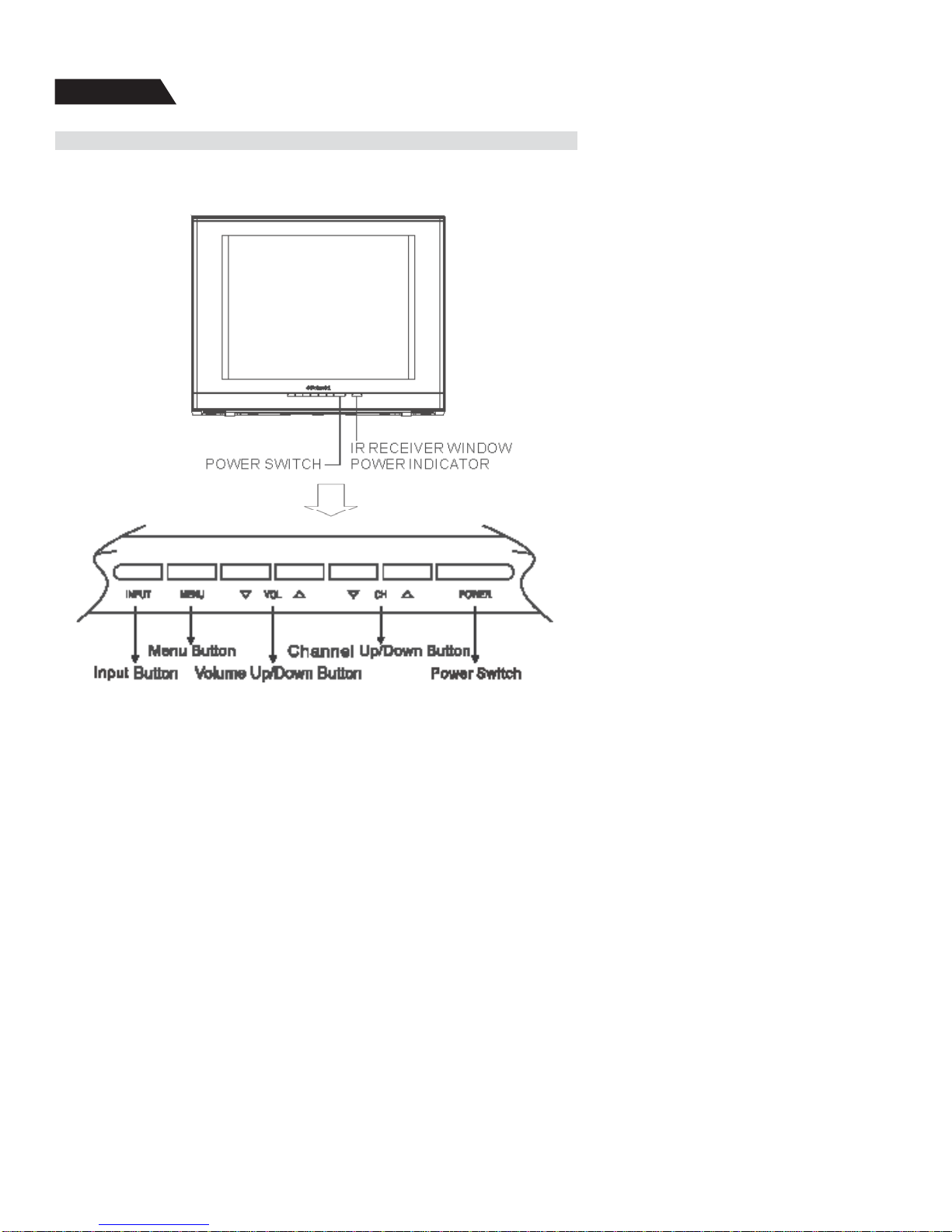

Identify the function keys on the TV and refer to the following diagram to learn every

function key.

Overview

Overview of the back AV jacks

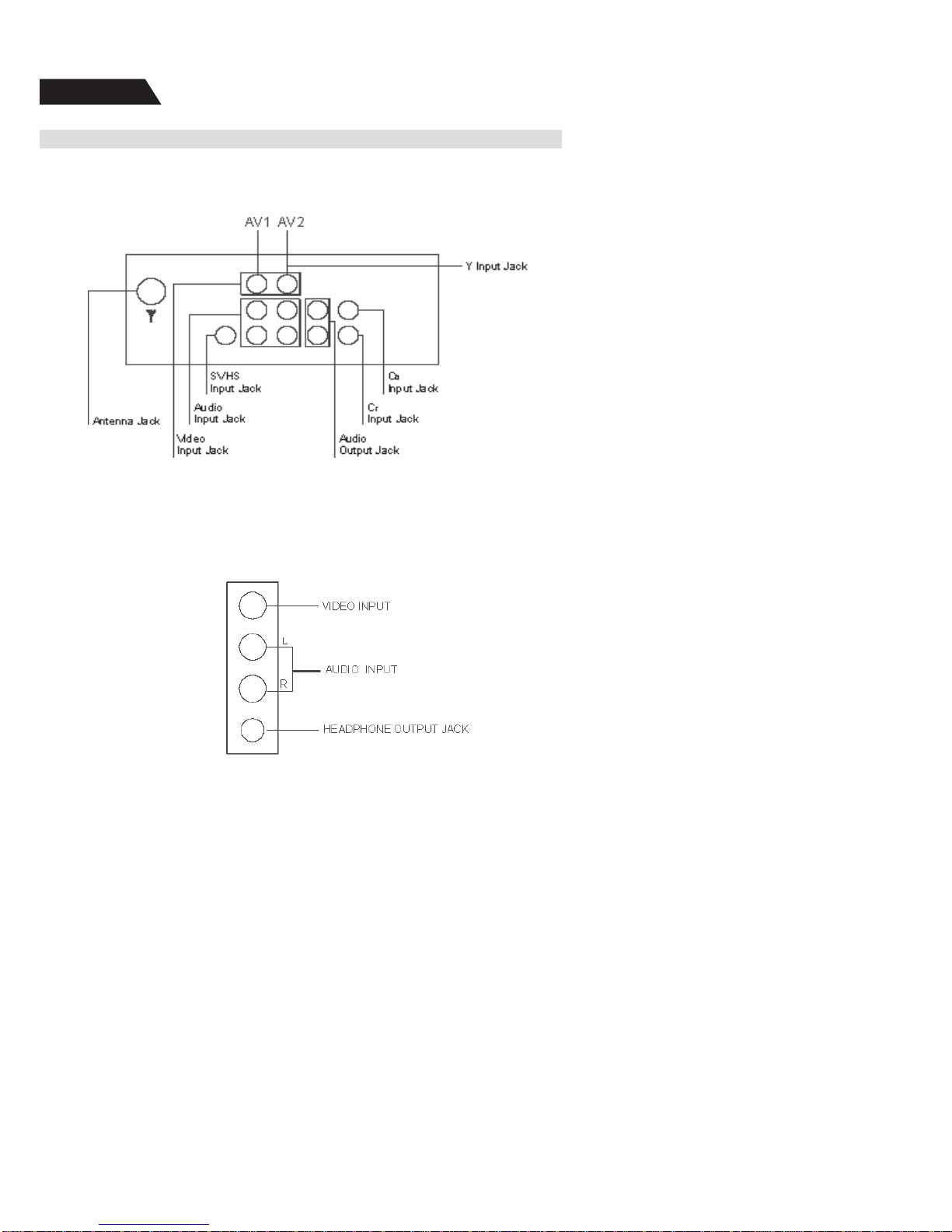

Observe the AV jacks on the back of TV, and refer to the following diagram to learn

the function of every AV jack.

Note: Different model may have different jack. Please refer toSA-U series

color TV Functions tablein page 21 for your model.

Side AV and Headphone jacks

Make sure your TV has sideAV and headphone jacks. If it has sideAV inputs,

please refer to the following diagram to learn the function of every side jack.

Antenna connection

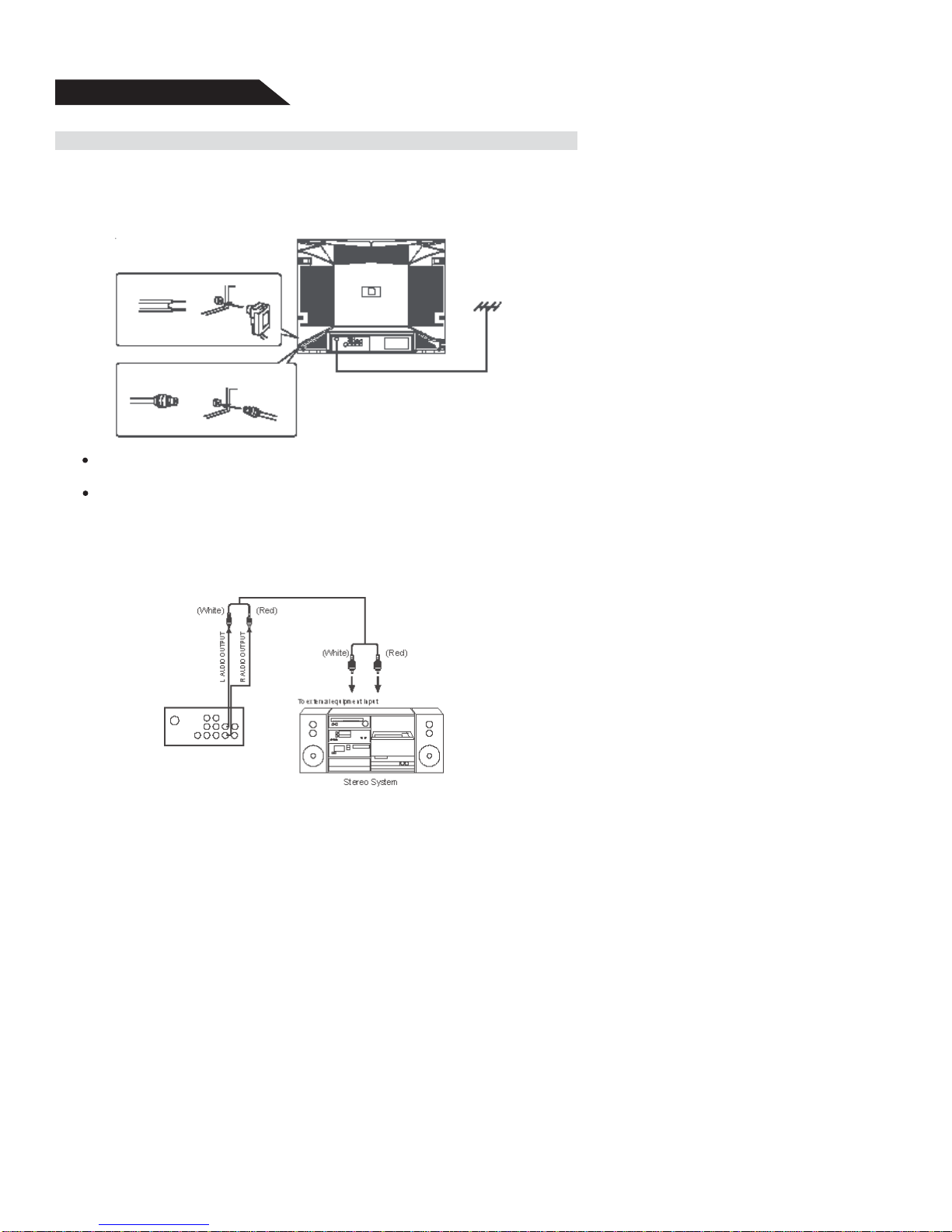

Theantennainputimpedanceused in this model is 75ohm, just connect 75ohm coaxial

cable of VHF/UHF antenna to the antenna jack on the back of TV directely. If you use

300 ﬂat feeder, you need connect it with one 300 /75ohm converter ﬁrst, then connect

the converter into the antenna jack.

Note:

It is recommended to use 75ohm coaxial cable to eliminate interference and

noise caused by radio wave.

Do not bind the antenna cable and power cord together.

Connect to Audio equipment

Connect this unit with the audio input terminal (pinhole) of a stereo system, then you

may enjoy quality sound at the same time of enjoying quality picture.

External connection

If your model has side AV jacks or headphone jack, please connect as the

following ﬁgure shown:

Connect to video equipment (VCD, DVD) and headphone jack

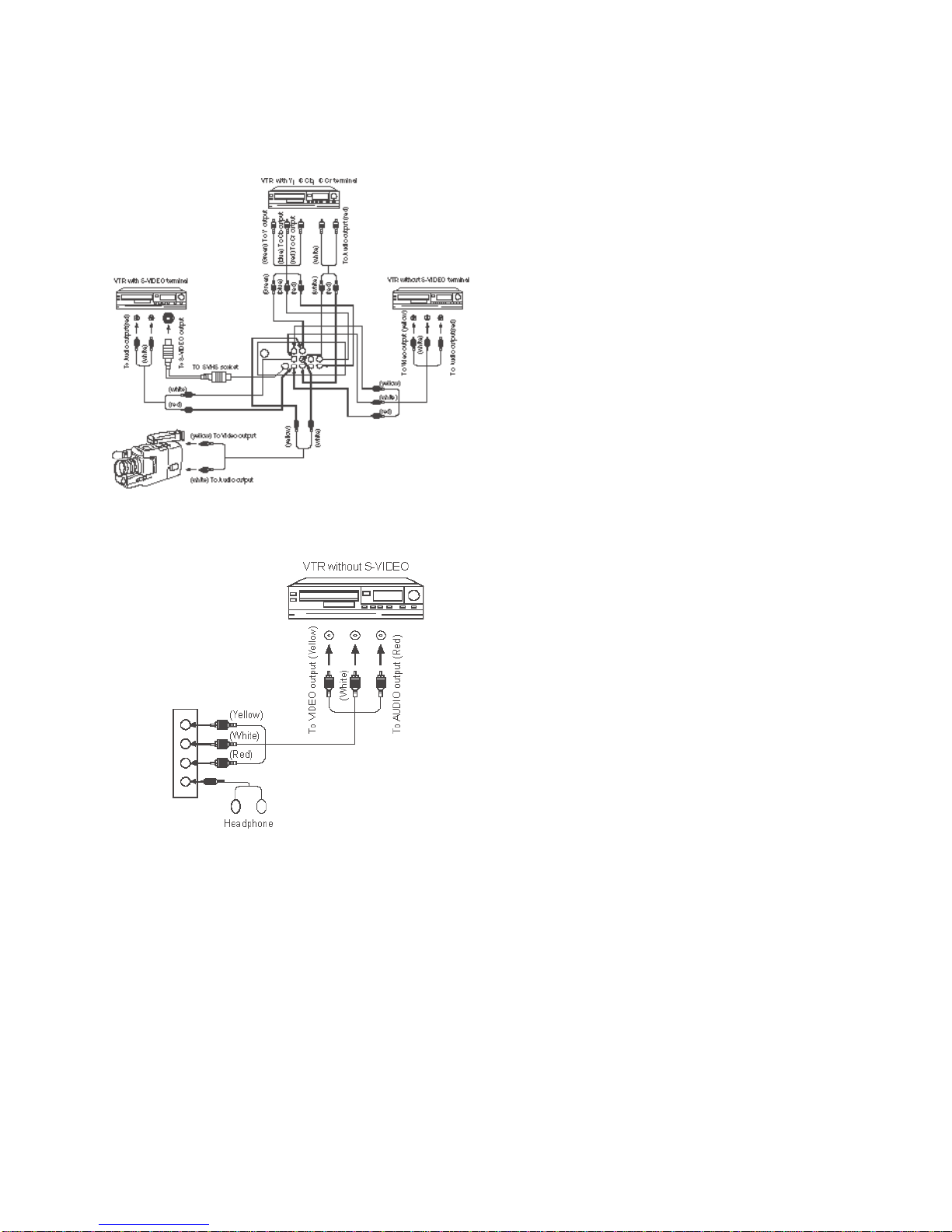

Connect back AV jacks as the following ﬁgure shown:

S-terminal has the same AUDIO IN jack as AV1, but you can not input AV signal

from these two terminals at the same time. YUV has the sameAUDIO IN jack as

AV2, but you can not inputAV signal from these two terminals at the same time.

Remote control

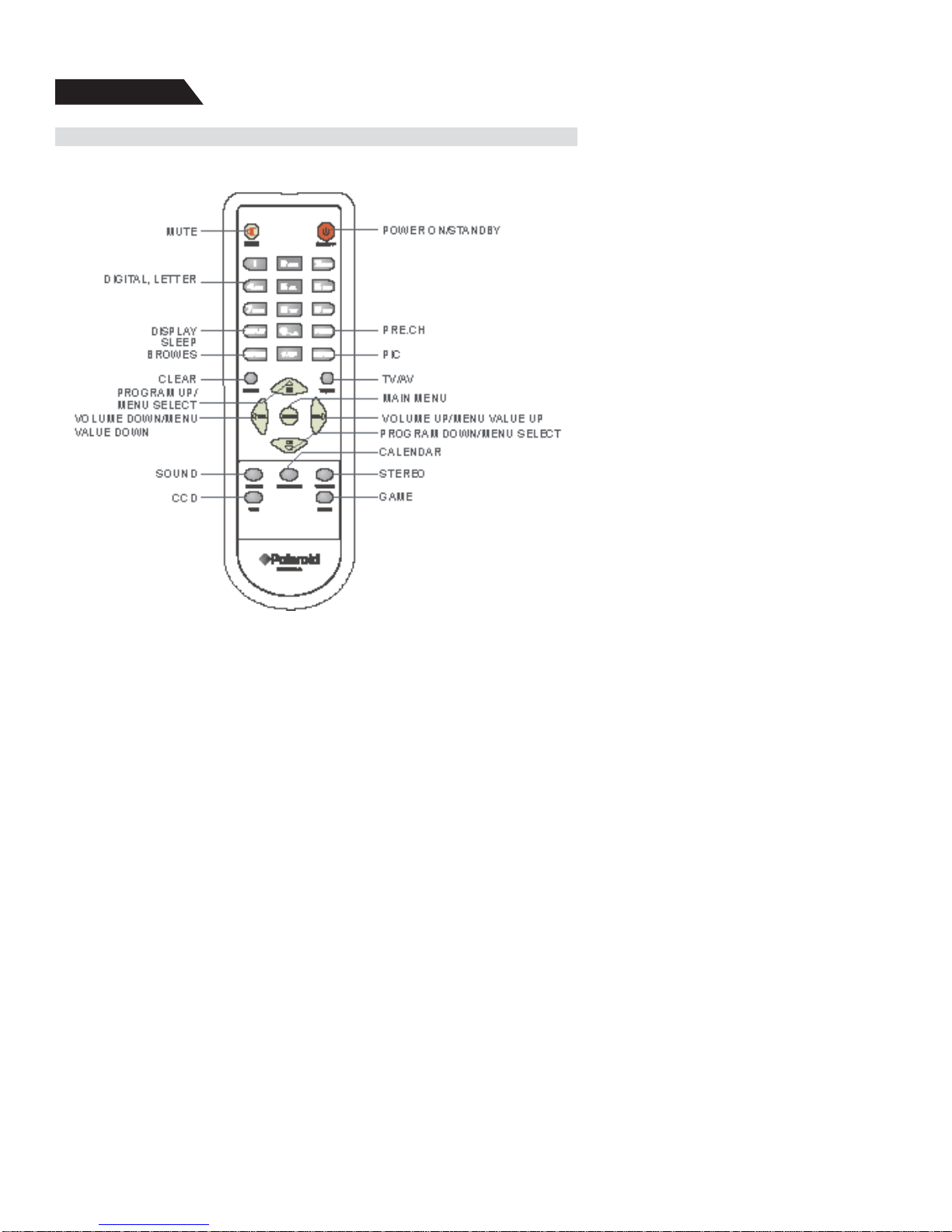

Mute button Lowers the volume to its minimum level. Press again to

restore volume.

ON/OFF Turns the TV on and off.

0-9(Number buttons) Digit buttons on the remote control are used for direct

channel selection. Press 0-9 to select a channel (inter-

val time of two or three pressing should be less than 1.5

seconds), for example, to select channel 10, press 1 and

0, the channel will change after 1.5 seconds. If you input

0 ﬁrstly, when input the second number, the channel will

change to this channel number without waiting, for ex-

ample, to select channel 8, press 0 and 8, the channel will

change immidiately.

Remote control

DISPLAY Displays channel information.

PRE.CH Returns you to the previous channel.If the user is in the

menu system,Go Back will take the user to the previous

menu screen.

BROWSE “Browse”feature.Pressing the button twice will begin chan-

nel scan,again will stop at current channel.

SLEEP Set the sleep timer.

PIC Steps through picture presets

MEMORY,STANDARD,DYNAMIC and MILD.

CLEAR Remove any menu or display form the screen and returns

you to TV reviewing.For menu with digit inputs ,pressing

CLEAR button will clear the last number entered.

TV/AV Toggles the set between availableAV inputs and RF input.

MENU Displays the TV’s Main menu.

VOL (left and right)buttons Decrease or increase the TV’s volume,or move

through the on-screen menu system.

CH.(up and down)buttons Scan up or down through the current channel list.Press

once to change the channel up or down;press and hold

to continue changing channels,or move through the on-

screen menu system.

SOUND Four preset audio settings for you to select (MEMORY/

STANDARD/NEWS/MUSIC).

STEREO Four available audio modes (AUTO/MONO/STEREO/

SAP)

CCD Turns on or turns off the closed caption.

Loading batteries: Remove the lid of the battery compartment,insert 2 size

AAA batteries with the polarities as indicated inside the compartment then replace

the lid.

Note:

1. One loading of batteries will last 1 year under normal use.

2. If you do not intend to use the remote control for a long period of time, remove

the batteries.
