-IC

CONDENSER

MICROPHONE

HANDHELD

FOR IOS®/ANDROID DEVICES

PRODUCT

MANUAL

HANDHELD CONDENSER

MICROPHONE FOR IOS®/

ANDROID DEVICES

HH-IC

THANK YOU FOR CHOOSING POLSEN.

The Polsen HH-IC microphone is a handheld, condenser

microphone designed for recording high-quality audio on a

mobile device. It is an ideal tool for the singer, instrumentalist,

or songwriter on the go, but it is also perfect for journalists and

podcasters conducting interviews or gathering audio in the eld.

The HH-IC plugs directly into a 3.5 mm input jack of iOS®

devices, most Mac®computers, and many Android devices

(see compatibility requirements) to create professional-quality

recordings anywhere. It works seamlessly with GarageBand®and

many other recording apps. The 3.5 mm output allows for direct,

real-time monitoring when used with software like GarageBand®

that offer monitoring capability. With the appropriate cable, the

headphone output of the HH-IC can also connect to a PA system,

mixing console, or speakers.

At the heart of the HH-IC is the 16 mm back electret capsule that

provides distinctly clear and accurate sound that is far superior to

the built-in microphones of mobile devices like smartphones and

tablets. Its cardioid polar pattern is ideal for recording vocals and

acoustic instruments. The two-level switch with high-gain and

low-gain settings makes the HH-IC capable of recording in a wide

range of sound pressure conditions.

The HH-IC’s plug-and-play capability means that setup is as simple as connecting the

microphone to a device and plugging headphones into the output jack. Singers will love the

weight and shape of this premium handheld microphone. For hands-free operation, a desktop

mic stand and a mic clip are included leaving the operator free to control the recording

software. Its durable metal body will withstand the rigors of use on the road, making it an

ideal tool for the mobile musician.

Among the benets you’ll enjoy:

• Condenser microphone that provides high-quality recording.

• Plugs directly into a 3.5 mm input jack of iOS®devices, Mac®computers, and many Android

devices (see compatibility requirements).

• 3.5mm output jack for real-time monitoring through select apps with monitoring capability

• High-gain and low-gain settings for varying sound pressure conditions.

• Cardioid polar pattern ideal for recording vocals and acoustic instruments.

• Works with GarageBand®and can be used with a wide variety of apps.

• Integrated Windscreen

OVERVIEW

1. Microphone grille and

integrated windscreen

2. Gain-control switch

3. High gain

4. Low gain

5. Mic cable

6. Headphone output jack

7. Adjustable mic clip

8. Desktop mic stand

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.

• Keep this product away from water and all ammable gasses or liquids.

• Do not attempt to disassemble or repair this product.

• Make sure that this product is intact and that there are no missing parts.

• All photos are for illustrative purposes only.

COMPATIBILITY REQUIREMENTS

iOS®Devices

All of the following devices must run OS 4.3 or later

• iPhone®:3Gs, 4, 4S, 5, 5C, 5S

• iPod touch®3rd generation, 4th generation, 5th generation

• iPad®:2, 3rd generation, 4th generation, Air, Mini , Mini 2nd generation

Android Devices

The HH-IC microphone is only compatible with CTIA/AHJ compliant Android devices and with apps

that accept audio from the external mic input.

Partial list of compatible Android devices:

• Google®:Nexus S, Nexus7

• HTC Desire®HD, HTC One®X

• Samsung Galaxy S®:II, III, 4

• Samsung Galaxy W®

• Samsung Galaxy Note®:Note, Note 2, Note 3

• Samsung Galaxy Tab®:Tab, Tab 2, Tab 3, Tab 7 plus, Tab 10.1

• Samsung Galaxy Nexus®

Macintosh™Computers

• Mac®computers 2008 and later (excluding Mac Pro)

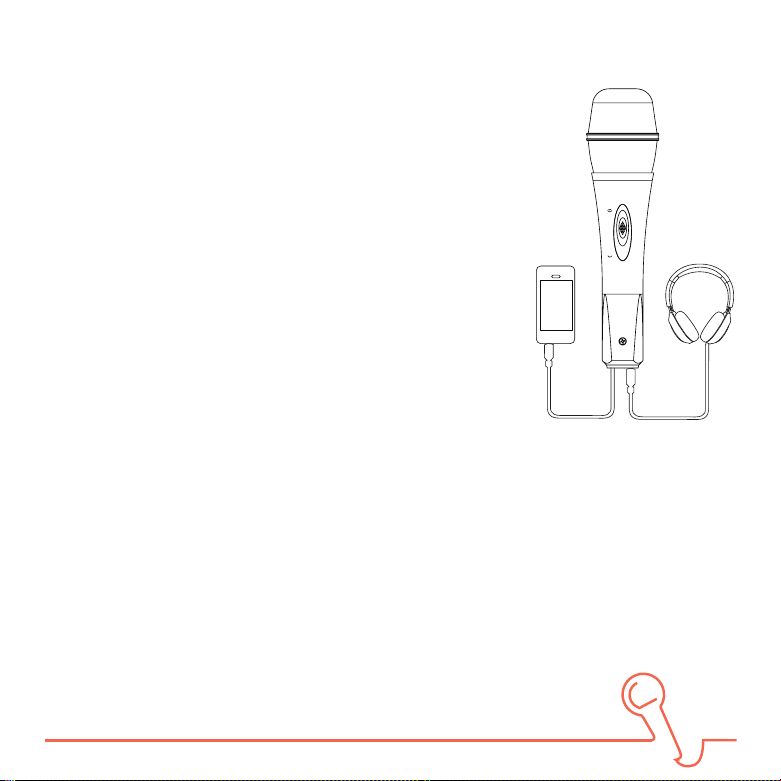

RECORDING WITH THE HH-IC

1. Connect the mic cable to the 3.5 mm headphone jack of an

iOS®or Android device, or Mac®computer. (See compatibility

requirements.)

2. Connect headphones to the 3.5 mm headphone output jack at

the base of the microphone.

3. The headphone jack of the HH-IC can also be connected to a

PA system, speakers or a mixing console with the proper cable.

4. Launch the recording app on your device.

5. Make sure the target track is in record mode and that the

monitoring feature is enabled.

Note:If the software does not offer real time monitoring, you will

only be able to hear audio on playback.

6. Select the high- or low-gain setting on the gain control switch.

If the recording app includes a level meter, select the gain setting that doesn’t overload the

meter.

If the app doesn’t have a level meter, you should make a test recording to determine the best

recording level and position for the microphone.

Note:For the best results, it’s recommended to always do a test recording.

PLAYBACK

1. Playback can be monitored through the headphone output jack.

Problem Solution

No sound is being

recorded

Make sure the mic cable from the HH-IC is completely inserted into the

headphone jack of the recording device.

Make sure the recording app or software is properly congured to

receive input.

Recorded sound is

too soft

Select the high-gain setting on the gain control switch.

Move the microphone closer to the sound source.

Raise the input level on the audio recording app.

Recorded sound is

too loud and distorts.

Select the low-gain setting on the gain control switch.

Move the microphone further away from the sound source.

Lower the input level on the audio recording app.

No sound in the

headphones.

Make sure the 3.5 mm headphone plug is completely inserted into the

headphone output jack at the base of the HH-IC.

Make sure your audio recording app or software provides real-time

monitoring, and that it is enabled.

If using an Android device, make sure it is CTIA/AHJ compliant.

TROUBLESHOOTING

Problem Solution

No sound when

monitoring a

recording.

Make sure the monitoring feature of the recording app or software is

enabled.

If Android device is CTIA/AHJ compatible, try using a different

application to record.

No sound during

playback.

Make sure the headphones are completely connected to the

headphone output jack of the HH-IC.

Make sure the settings in the audio recording app are correct.

If using an Android device, make sure it is CTIA/AHJ compliant.

SPECIFICATIONS

ELEMENT 16 mm back electret diaphragm capsule condenser mic

POLAR PATTERN Cardioid

FREQUENCY RESPONSE 20 Hz - 20 KHz

SENSITIVITY -40db+/-2db, 0db=1v/Pa (1 KHz @1Pa)

MAXIMUM SOUND PRESSURE 120 dB

WINDSCREEN Built-in

CABLE CONNECTOR 1/8” (3.5 mm) plug

CABLE LENGTH 6’ (1.8 m)

SYSTEM REQUIREMENTS

iOS®4.3 or later

ANDROID Must be compliant with CTIA/AHJ wiring standard

MAC®COMPUTERS 2008 or later (excluding Mac Pro)

LENGTH (EXCLUDING CABLE) 7” (17.8 cm)

WEIGHT 0.8 lb. (0.36 kg)
