Polycom SpectraLink 6000 System Manuale utente

July 2008 Edition

1725-36127-001

Version F

Installing the Outdoor

Base Station

SpectraLink 6000 System

Installing the Outdoor Base Station

1725-36127-001-F.doc

Trademark Information

Polycom® and the logo designs

SpectraLink®

LinkPlus

Link

NetLink

SVP

Are trademarks and registered

trademarks of Polycom, Inc. in the

United States of America and various

countries. All other trademarks used

herein are the property of their

respective owners.

Patent Information

The accompanying product is protected

by one or more US and foreign patents

and/or pending patent applications held

by Polycom, Inc.

Inc.

International and pan-American

No part of this manual, or the software

described herein, may be reproduced or

transmitted in any form or by any

means, or translated into another

language or format, in whole or in part,

without the express written permission

of Polycom, Inc.

Do not remove (or allow any third party

to remove) any product identification,

Every effort has been made to ensure

that the information in this document is

accurate. Polycom, Inc. is not

responsible for printing or clerical

errors. Information in this document is

subject to change without notice and

does not represent a commitment on the

part of Polycom, Inc.

Notice

Polycom, Inc. has prepared this

document for use by Polycom personnel

and customers. The drawings and

specifications contained herein are the

property of Polycom and shall be neither

reproduced in whole or in part without

the prior written approval of Polycom,

nor be implied to grant any license to

make, use, or sell equipment

manufactured in accordance herewith.

Polycom reserves the right to make

changes in specifications and other

information contained in this document

without prior notice, and the reader

should in all cases consult Polycom to

determine whether any such changes

have been made.

No representation or other affirmation of

fact contained in this document

including but not limited to statements

regarding capacity, response-time

performance, suitability for use, or

performance of products described

herein shall be deemed to be a warranty

by Polycom for any purpose, or give rise

to any liability of Polycom whatsoever.

Contact Information

Please contact your Polycom Authorized

Reseller for assistance.

Polycom, Inc.

4750 Willow Road,

Pleasanton, CA 94588

http://www.polycom.com

1725-36127-001-F.doc 3

About this Guide

The Outdoor Base Station is designed to withstand environmental

hazards such as rain and excessive heat and cold. The outdoor

enclosure is mounted into position and the Base Station is then

installed within it. The entire unit is then referred to as an Outdoor

Base Station.

This document covers the installation of the Outdoor Base Station

in a variety of situations. It supplements the installation

documentation for the SpectraLink 6000 System using either the

SpectraLink 6300 MCU or the SpectraLink 6100 MCU.

Polycom Corporation Model Numbers

This document covers the following registered model numbers:

RCO400, RCO410, RHO400

Related Documents 3

Contacting Polycom 3

1Installing Flush Against a Wall or Hard Ceiling ....6

2Installing on an I-Beam.......................................8

3Installing on a Light Pole or Electrical Pole .........10

1725-36127-001-F.doc

Installing Flush Against a Wall

or Hard Ceiling

Items provided: Outdoor enclosure, Base Station

Items needed: 4 anchor bolts (length and type depends on

wall or ceiling material Base Station is being

mounted to)

1. Mark and drill four holes into the wall or ceiling, using the

mounting flanges of the outdoor enclosure as a guide.

2. Mount outdoor enclosure to wall or ceiling using anchor bolts.

The outdoor enclosure can be mounted with the compression

fitting in any direction.

3. Slide the Base Station cable through the compression fitting

and tighten fitting.

Compression

fittin

Installing Flush Against a Wall or Hard Ceiling

1725-36127-001-F.doc

4. Crimp an RJ45 onto the Base Station cable using the same

wiring guide as the indoor Base Station.

5. Plug the RJ45 into the RJ48C connector.

6. Place the Base Station into the enclosure with the side of the

Base Station with the mounting hole facing the wall or ceiling.

The Base Station should fit tightly into the foam blocks.

7. Screw the outdoor enclosure lid back onto the enclosure.

RJ48C

connector

Mounting

hole

1725-36127-001-F.doc

Installing on an I-Beam

Items provided : Outdoor enclosure, Base Station

Items needed : 4 – “Caddy” or “B-Line” 3/8” Beam Clamps

4 – 1/2” long 1/4” x 20 bolts

4 – 2” long 1/4” x 20 bolts

4 – 1/4” x 20 nuts

1. Attach a beam clamp to the center of the top and bottom

flanges on the outdoor enclosure.

2. Attach a second beam clamp to each of the beam clamps on the

enclosure using a 1/2” long 1/4” x 20 bolt and a nut. (See

figure below.)

3. Attach the outdoor enclosure to I-beam using the beam clamps

attached in step 2.

See figures in Chapter 1 for pictorial data for the remaining steps:

4. Slide the Base Station cable through the compression fitting

and tighten the fitting.

5. Crimp on RJ45 onto the Base Station cable using the same

wiring guide as the indoor Base Station.

6. Plug the RJ45 into the RJ48C connector.

Installing on an I-Beam

1725-36127-001-F.doc 9

7. Place the Base Station into the enclosure with the side of the

Base Station with the mounting hole facing the I-beam. The

Base Station should fit tightly between the foam blocks.

8. Screw the outdoor enclosure lid back onto the enclosure.

1725-36127-001-F.doc

Installing on a Light Pole or

Electrical Pole

Items provided: Outdoor enclosure, Base Station

Items needed: 4 - “Caddy” or “B-Line” 3/8” beam clamps

2 - EOG 100 or equivalent band clamps

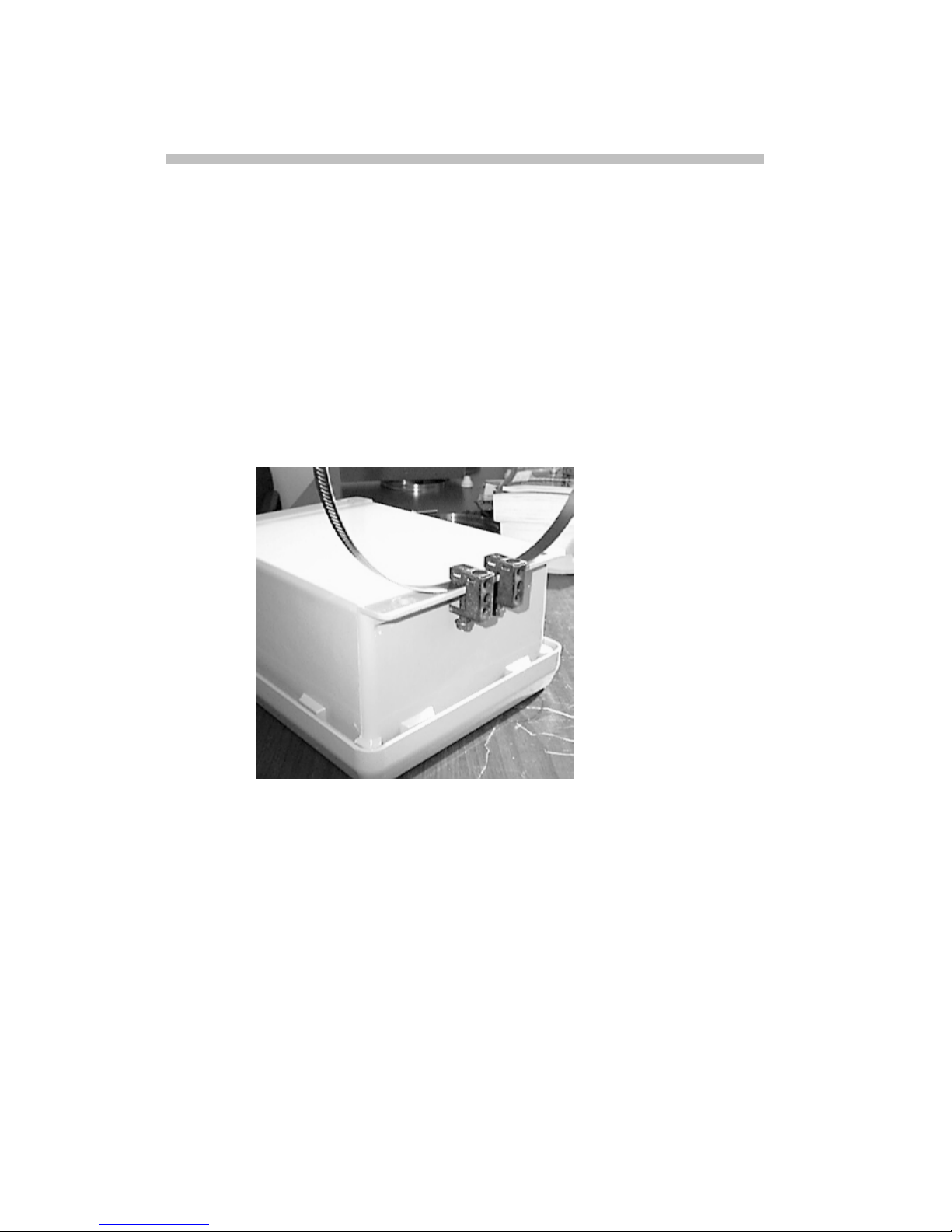

1. Attach one band to the top flange of the outdoor enclosure

using two beam clamps (see the figure below).

2. Attach the second band to the bottom flange of the enclosure

using the remaining two beam clamps.

3. Wrap the band clamps around the pole and tighten using the

screw on the band clamps.

See figures in Chapter 1 for pictorial data for the remaining steps:

4. Slide the Base Station cable through the compression fitting

and tighten the fitting.

5. Crimp an RJ45 onto the Base Station cable using the same

wiring guide as the indoor Base Station.

6. Plug the RJ45 into the RJ48C connector.
