Polycom VVX 400 Series Guida
Polycom VVX400
1
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
Using Your Polycom VVX 400 Phone
Become familiar with your Polycom VVX 400 series phone features and user interface.

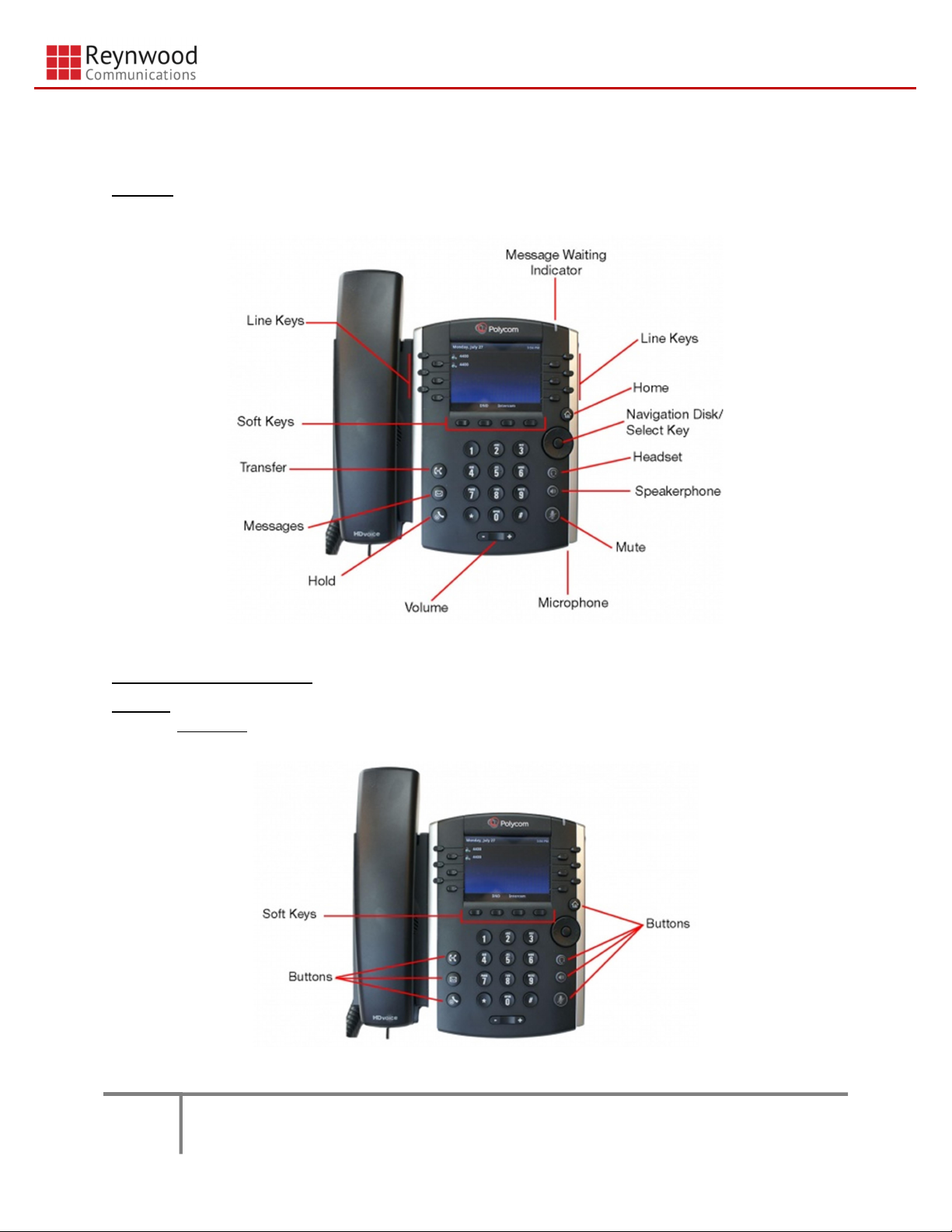

Layout
The following figure shows the important phone features.
Soft Keys and Buttons
Buttons are physical keys on your phone which always perform the function for which they are
labeled. Soft keys are functions you see on the LCD screen that change depending upon what
you are doing. Select a soft key function by pressing the plastic button directly underneath it.
Polycom VVX400
2
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
Phone Views
Your phone has three main views: Lines (the default), Home, and Calls. Use the Home button
to toggle between all available views.
Lines – This view is your phone’s default display showing your phone's extension(s), and soft
keys.
Home – Access this view by pressing the Home button and use your phone's Navigation Disk to
scroll through and select icons for various functions that may be available to you
.
Calls – This view displays any time you have at least one active call. Use the up and down
arrow keys on the Navigation Disk to see and select calls. If your phone has multiple lines, calls
display under the associated line.
Polycom VVX400
3
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
Common Features & Functions
Placing Calls
You can perform all the functions of your VVX 400 series phone with the handset still in the
cradle (On Hook) or with the handset out of the cradle (Off Hook).
Using the Dial Pad
On Hook
Dial the number on the dial pad.
Complete your call by taking one of the following steps:
o Press the Dial soft key
o Press the Line key (of the extension you want to call from)
o Press the Speakerphone button
o Lift the handset
Off Hook
Lift the handset to hear dial tone
Dial the number on the dial pad.
Wait – and the number will be dialed after a few seconds
Note: If you lift the handset before dialing, the system will attempt to dial the digits already entered after a
slight pause. Leaving the handset in the cradle until you are finished dialing will provide you all the time
you need to enter the number in full. You do not have to preface numbers with a ‘1’ or a ‘9.’
Using the Dialer
The Dialer initially displays a list of previously-placed calls. As you enter digits on the dial pad,
the Dialer shows you recently called numbers which match the one you are currently dialing.
You can use the up and down navigation arrows to highlight the number you want to call. Once
the number is highlighted, press the Send soft key.
Using Recent Call Lists
When your phone is showing the Lines View, the left, right, and down arrows are a one-touch
shortcut to different Recent Calls lists. Press an arrow to access a list, then highlight the number
and press send (see ‘Using the Dialer’ section) to place the call.
Answering Calls
Polycom VVX400
4
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
You can answer an incoming call in any of the following ways:
Pick up the handset
Press the Line key on which the call appears
Press the Answer soft key
Press the Speakerphone button
Note: Except for answering with the handset – all methods above engage the speakerphone. If you have
a headset connected to your phone you will also have that option – not covered in this document.
Answering/Managing Multiple Incoming Calls
With call waiting on, up to 4 simultaneous calls can be active on one extension. You will see the
next incoming call displayed on the screen – and you will hear a call waiting tone.
Press the Answer soft key and the active call will automatically be placed on hold
Use the up and down navigation arrows to toggle between calls
The soft key functions will apply to whichever call is ‘highlighted’ on your screen
Polycom VVX400
5
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
To place an active call on hold, use the up and down arrow keys to highlight it and press
the Hold soft key. To pick a held call, highlight it, and press the Resume soft key.
If you have a second extension ringing on your phone it will work similarly. However, the line
keys will light based on the active and held incoming calls.
Transferring Calls
There are three methods of transferring calls: Consultative, Blind, and Direct-to-Voicemail.
Consultative – To transfer a call to some with ‘consultation’ – that is, you speak to the person
you are transferring the call to first…
With a call in progress, press the Transfer button. The caller will automatically be placed
on hold.
Dial the recipient – then Send
Polycom VVX400
6
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
When the recipient answers, announce the caller.
Press the Transfer button again to complete the transfer. The caller and the party you
are transferring to will be immediately connected, so it is recommended that you get into
the habit of telling the party you are transferring the call then hit the button
Note: You may also use the Transfer soft key instead of the Transfer button. Also, when transferring with
consultation, the person you are transferring to will see your caller id and not the caller’s id that you are
transferring.
Blind – To perform a ‘blind’ transfer – that is, sending the call to another party directly without
any consultation…
Hold the Transfer button or soft key down for a few seconds and you will be offered a
chance to select the ‘Blind’ transfer method.
Once ‘Blind’ is selected, dial the number to which you want to transfer the caller and hit
Send. The held caller will immediately ring to the party you are transferring to.
Note: Blind transfer sends the calling party’s caller id.
Directly to Voicemail – To transfer a caller directly to a voicemail box of a co-worker…
Polycom VVX400
7
Reynwood Communications ● Tinton Falls, NJ 07701 ● (800) 747-1703 ● reynwood.com
Follow the steps for a consultative transfer – but dial *55 after hitting the Transfer button
the first time. You will be prompted to enter the ‘mailbox id’ – that is the extension – of
whose voicemail you want to send the caller. Follow the extension by the # sign and the
caller will be transferred directly to that extension’s voice mailbox.
Note: If you press the # key without entering an extension, the caller will drop into the voice mailbox of
the extension you answered the call on. The system will not allow a transfer to an extension that does
not have voicemail turned on. However, if you try to transfer to voicemail of an invalid extension (one that
doesn’t exist in your group because you have misdialed, perhaps) the caller will be connected to your
voice portal and not be able to get anywhere and hang up,
Cancel a Transfer – at any time during the process of transferring you may hit the Cancel soft
key and you will resume your call and be directly connected to the caller again.
Voicemail
Access your voice portal by pressing the Messages button and follow prompts.
Voicemail Notes:
If you have multiple extensions displayed on your phone, hit ‘1’ to select the ‘Message
Center…’ – and then select the extension you are checking voicemail for.
If you want to check the voicemail of an extension that is not on your phone – press *
first – then enter the extension you want to check (followed by #)
You can dial into your voice portal while away from the office using your group’s outside
voice portal number. Contact your administrator for your group’s number.
There are various options with voicemail – like sending messages to email or ‘zeroing’
out to another number. Contact your administrator or Reynwood for more information.
