PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 1 of 13

USER MANUAL

FOR THE

PolyCom EX System

Prepared by: M. Dreger

Edited by: A. Nickoloff, Manager Service Development & Training

August 18, 2004 Version 1.1

If you require assistance, please contact the NORTH Network Support Centre at

1-866-480-2255 or [email protected]

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 2 of 13

Table of Contents

CHAPTER 1 – GENERAL SYSTEM INFORMATION ............................3

Using The Remote Control................................................................................... 3

The Remote ControlThe Remote Control Buttons Explained ....................................4

The Remote Control Buttons Explained.......................................................................5

Turning the PolyCom EX System ON & OFF ...................................................... 6

PLACING A VIDEO CALL............................................................................................. 7

Placing a Call from the Address Book .........................................................................7

Speed Dialing a Frequently Called Site ........................................................................8

Ending a Video Call ........................................................................................................8

VOLUME CONTROL.................................................................................................... 8

CAMERA CONTROLS.................................................................................................. 9

Near End Camera............................................................................................................9

Far End Camera ..............................................................................................................9

Pan and Tilt .....................................................................................................................9

Zoom................................................................................................................................9

Camera Presets - Storing.............................................................................................10

Camera Presets – Accessing ......................................................................................10

Camera Presets - Deleting ...........................................................................................11

Snapshots .....................................................................................................................11

PICTURE-IN-PICTURE (PIP)...................................................................................... 12

Turning the PIP ON/OFF During a Video Call ............................................................12

CHAPTER 2 – TROUBLESHOOTING..................................................13

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 3 of 13

CHAPTER 1 – GENERAL SYSTEM INFORMATION

USING THE REMOTE CONTROL

The remote control works very much like a television remote control. The remote control is

used to move the camera right and left (pan), up and down (tilt), zoom in and out, adjust the

volume and make video calls.

There are two sensors located on the bottom of the remote control. When you place the

remote control down on the table, the image that you see on your monitor may change. To

keep the image the same, lay the remote control on its side when not in use.

The word Far refers to the site(s) that you are connecting to over the PolyCom EX. This is

commonly called the “Remote Site.”

The word Near refers to the site at which you’re located. This is commonly called the “Local

Site.”

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 4 of 13

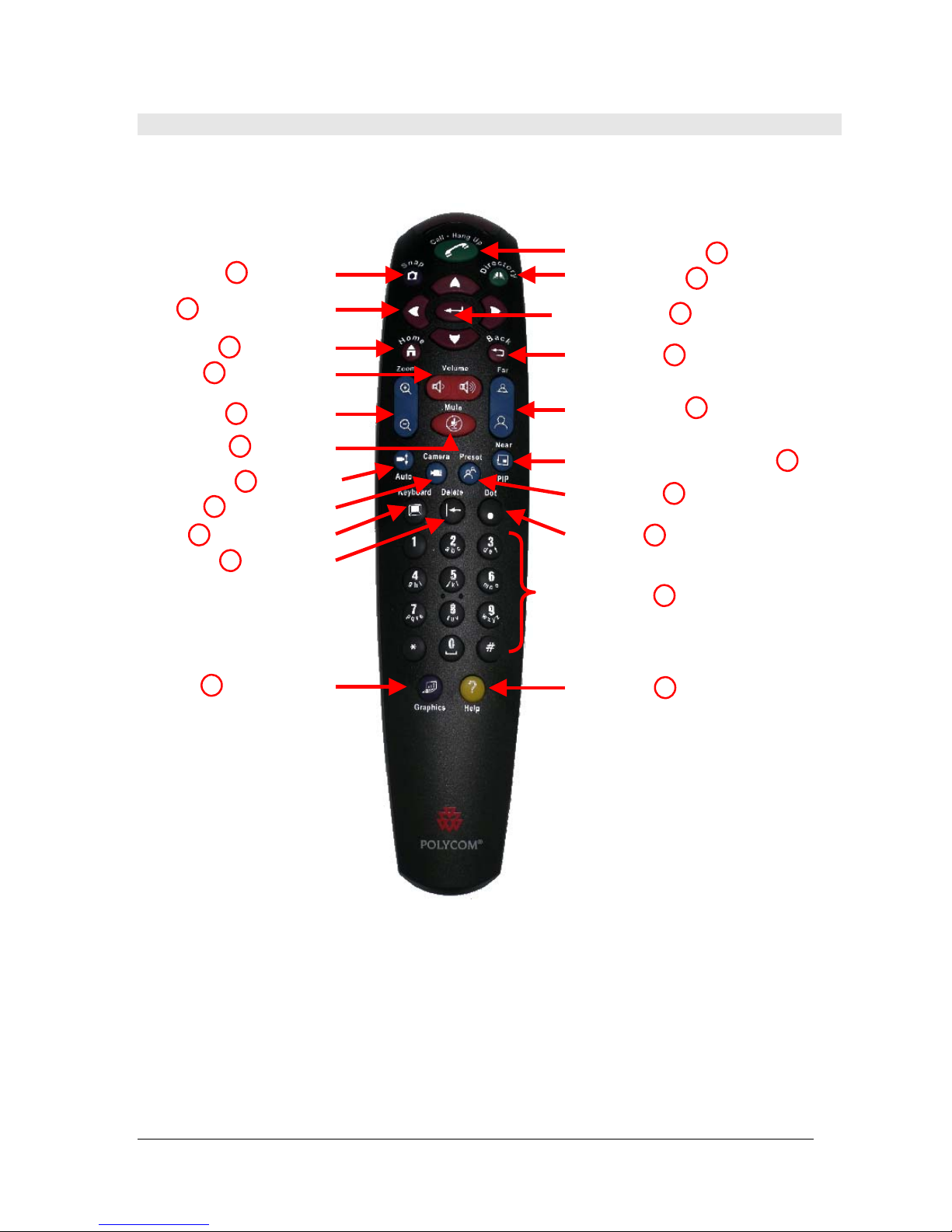

The Remote Control

Back

Snap button

Directional

Home button

Volume

Zoom button

Mute

btt

uto

Camera

Delete button

Number

Dot

Preset

Picture in Picture (PIP)

Far/Near buttons

Directory button

Call/hang up button

Graphics button Help

board button

Select button

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 5 of 13

The Remote Control Buttons Explained

1 Snap Button

The snap button allows you to preview and send still images to the far site.

2 Directional Buttons

The directional buttons allow you to adjust the camera and navigate through menus.

3 Home Button

The home button returns you to the main (home) screen.

4 Volume Button

The volume button allows you to increase or decrease the sound you hear from the far sites.

5 Zoom Button

The zoom button allows you to zoom the camera image in or out.

6 Mute Button

The mute button mutes the sound you’re sending to the far sites.

7 Auto Button

The auto button turns automatic camera tracking on or off.

8 Camera Button

The camera button allows you to select a camera or other video source.

9 Keyboard Button

The keyboard button allows you to display the on-screen keyboard for text input.

10 Delete Button

The delete button allows you to delete letters or numbers when entering text.

11 Graphics Button

The graphics button starts and stops sending content to far sites when using the Visual

Concert FX device; select PowerPoint presentations.

12 Call/Hang Up Button

The call/hang up button allows you to place or end a call.

13 Directory Button

The directory button opens the address book to make a call or work with an entry.

14 Back Button

The back button returns you to the previous screen.

15 Far/Near Button

The far/near button allows you to toggle between controlling the near-site and far-site

cameras.

16 Picture-in-Picture (PIP) Button

This button allows you to show or hide the Picture-in-Picture (PIP).

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 6 of 13

17 Preset Button

The preset button allows you to store camera positions (when followed by a number) or

delete all stored camera positions.

18 Dot Button

The dot button allows you to manually enter a period in an IP address.

19 Number Buttons

The number buttons allow you to enter in numbers or move the camera to a stored preset.

20 Help Button

The help button allows you to access online help; access the Network Status screen if you

are in a call.

21 Select Button

Use the directional buttons to locate what you want to do then press the select button to

choose it.

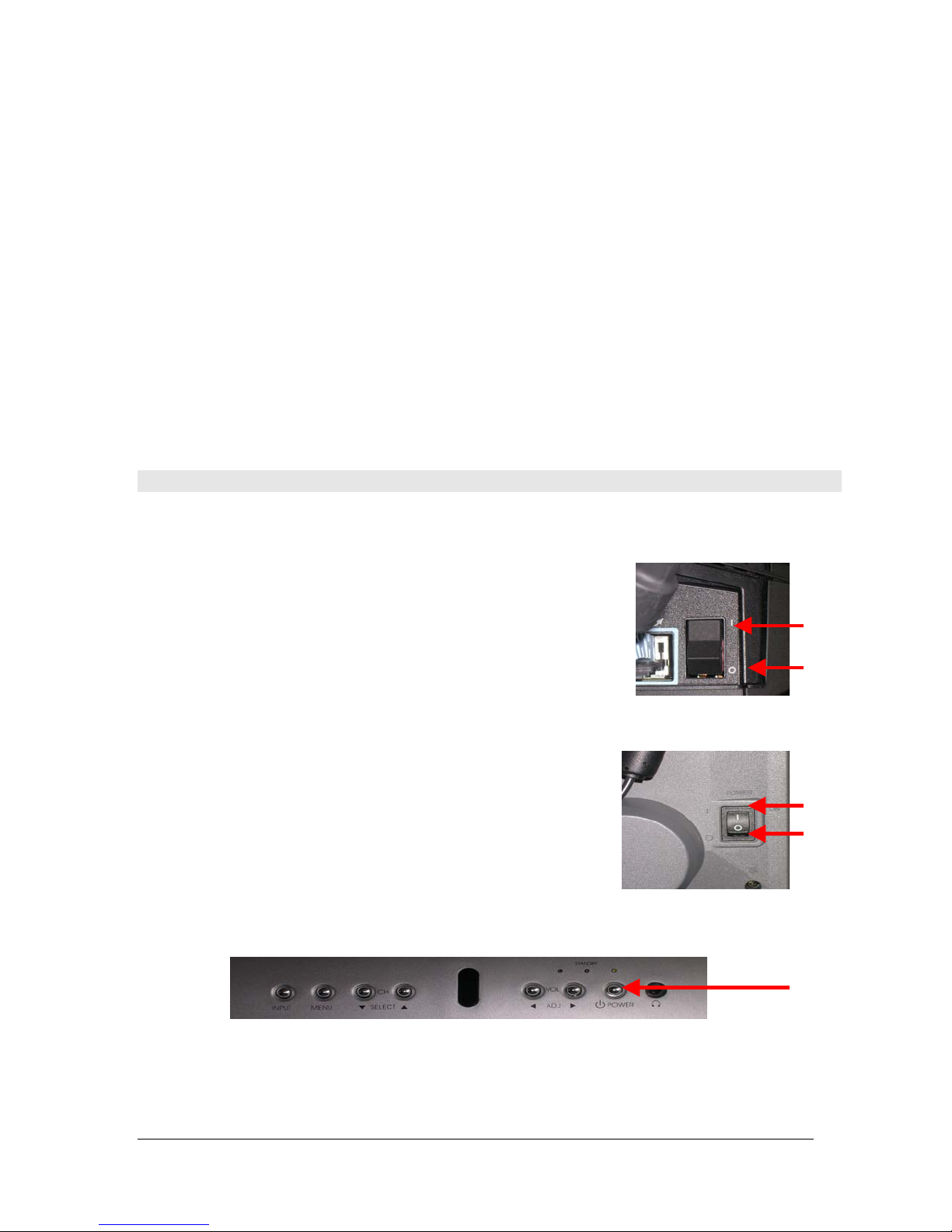

TURNING THE POLYCOM EX SYSTEM ON & OFF

To operate the PolyCom EX system you have to turn both the camera and LCD monitor ON.

TURNING THE CAMERA ON/OFF

1. Locate the I/O switch at the back of the camera on the

right hand side.

2. Position the switch to I to turn the camera ON and O to

turn the camera OFF.

TURNING THE LCD MONITOR ON/OFF

1. Locate the I/O switch at the back of the monitor on the

bottom right hand corner.

2. Position the switch to I to turn the monitor ON and O

to turn the monitor OFF.

You may also need to press the power button on the front of the monitor.

The system requires approximately 1 minute to completely turn ON. During this time, the

camera will move through its testing sequence. When the system has completely turned ON,

the main menu screen will appear on the monitor.

OFF

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 7 of 13

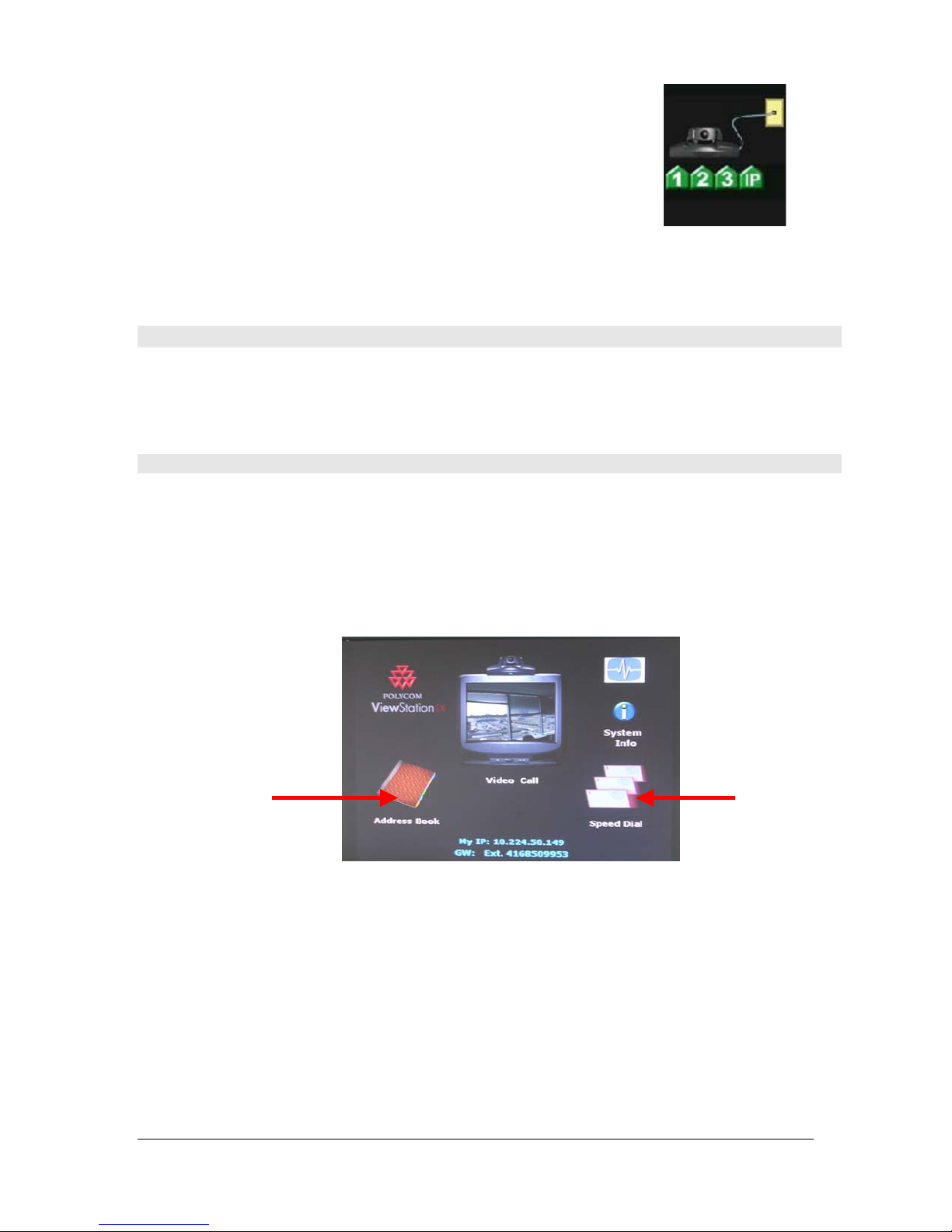

To ensure that the unit has been connected properly to the

network, a green “up arrow” for each network connection will

appear on the screen.

Note: If any of the network connections have not been made, a red “down arrow” will

appear. Once all network connections have been made, the network information will

disappear from the screen and the system will be ready for use.

PLACING A VIDEO CALL

The NORTH Network technical team will enter the IP addresses for all NORTH Network

sites into your Address Book when your site is being set up. They will also be responsible

for keeping your Address Book up to date and updates as necessary.

Placing a Call from the Address Book

1) Access the Address Book on the Main Menu, by using the red DIRECTIONAL

buttons to highlight the Address Book icon and press the SELECT button. The

Address Book screen appears.

Note: Alternatively, you can press the DIRECTORY button on the remote control,

and that will bring you right to the address screen.

2) Place the call by scrolling to the site you want to call in the Address Book screen

and press the green CALL/HANG-UP button on the remote control.

3) The far site will appear on your monitor within 75 seconds.

As the system tries to make a connection, both the near and far sites hear the systems ring.

The ring is similar to that of a telephone. A green lottery ball in the bottom left hand corner of

the screen will confirm the connection.

Address

Book Speed

Dial

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 8 of 13

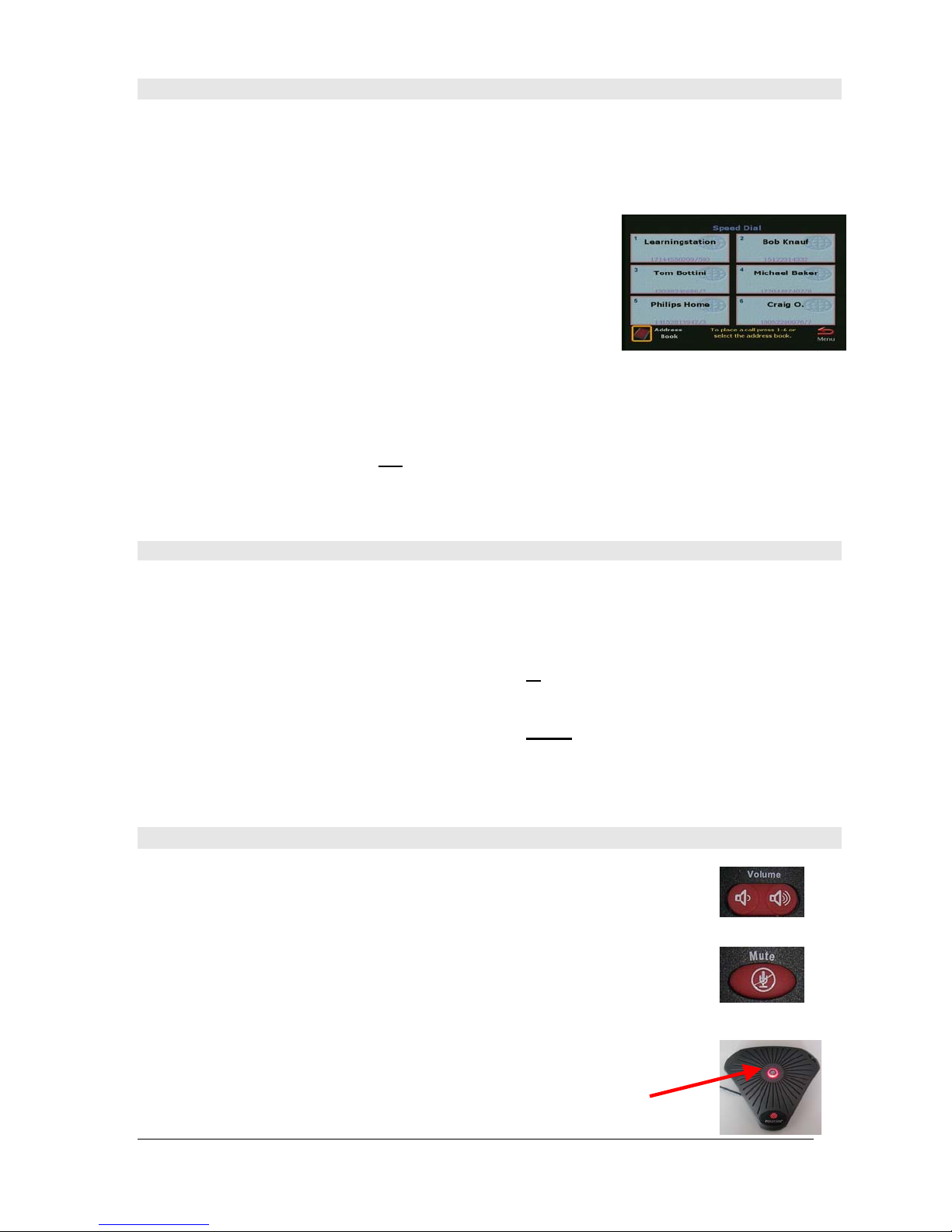

Speed Dialing a Frequently Called Site

If you call certain site frequently you can use the Speed Dial option to access the six most

recent video calls made from your location.

To speed dial a frequently called site:

1. Access the Speed Dial on the Main Menu, by using

the red DIRECTIONAL buttons to highlight the Speed

Dial icon and press the SELECT button. The Speed

Dial List screen appears.

2. If the site you want to call appears as one of the six

entries in the Speed Dial List, scroll to highlight that

site and press the green CALL/HANG-UP button on

the remote control.

3. The far site will appear on your monitor within 75 seconds.

If the site you want to call does not appear as one of the six entries in the Speed Dial List,

scroll and select the ADDRESS BOOK icon found in the bottom left hand corner of the

screen.

Ending a Video Call

1) Press the green CALL/HANG-UP button on the remote control. The DISCONNECT

VIDEO CALL window should now be highlighted.

2) If the DISCONNECT VIDEO CALL window is highlighted, press the CALL/HANG-

UP button a second time. The call will be terminated.

3) If the DISCONNECT VIDEO CALL window is not highlighted, use the red

DIRECTIONAL buttons to highlight DISCONNECT VIDEO CALL and press the

CALL/HANG-UP button on the remote control. The call will be terminated.

VOLUME CONTROL

To increase or decrease the volume, use the VOLUME button on the

remote control under the DIRECTIONAL buttons.

To mute the sound that you are transmitting, click the MUTE button on the

remote below the VOLUME button.

Alternatively, you can press the mute button on the microphone. When

the button is red, you are muted.

Mute button turns red

when the system is

muted.

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 9 of 13

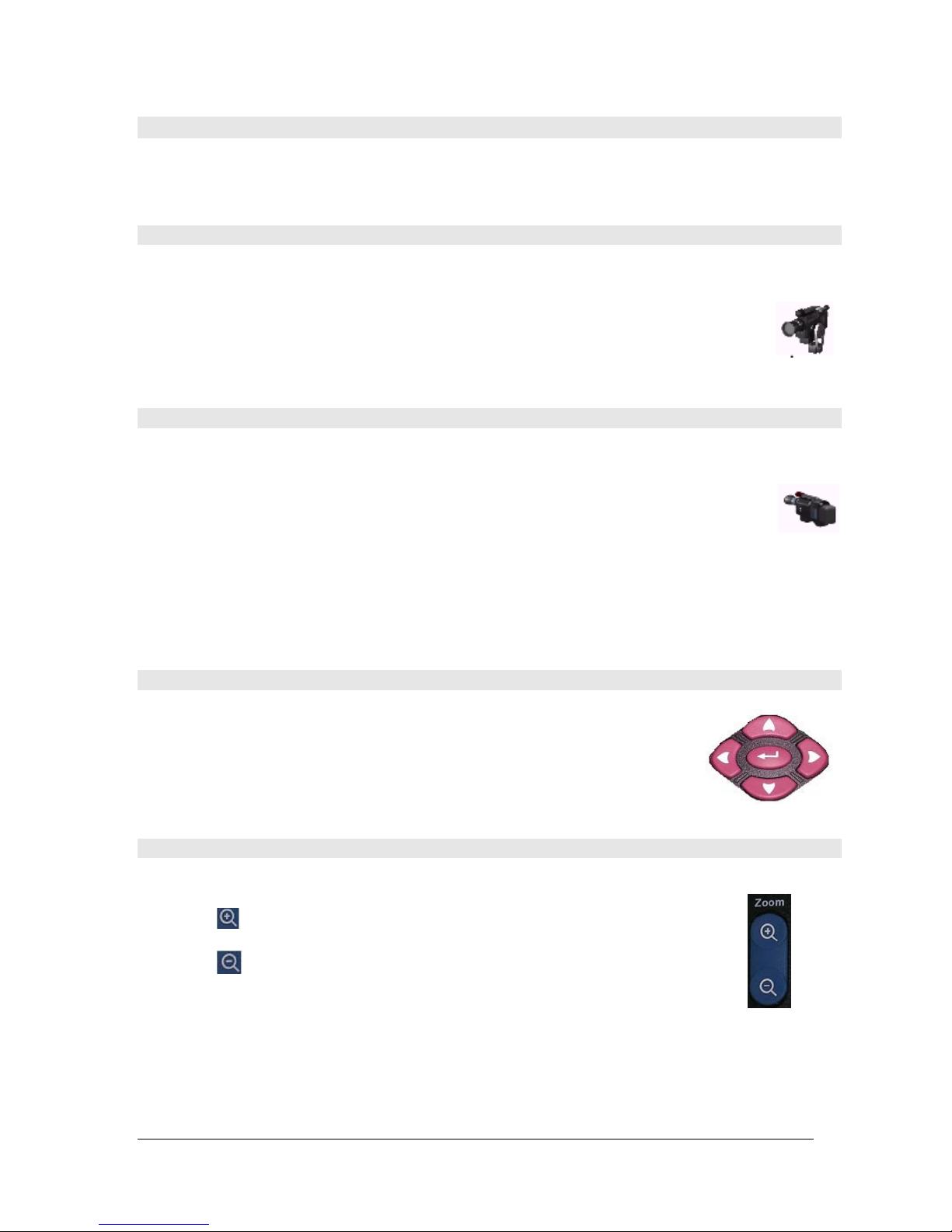

CAMERA CONTROLS

You can control both your camera (Near End) and the camera at the other location (Far

End).

Near End Camera

To adjust your camera, press the NEAR button on the remote control once.

 The camera icon found in the top right hand corner of the

television monitor will point towards you.

 If the camera is already facing you, pressing the NEAR button

temporarily displays other icons.

Far End Camera

To control the far end camera during a call, press the FAR button on the remote control

once.

 The camera icon in the top right hand corner of the monitor will

point away from you.

 If the camera icon is already pointing away from you, pressing the FAR

button temporarily displays other icons.

Note: You can only have Far End Camera control if the Far End site allows you to.

Pan and Tilt

To move the camera to the left, right, up and down, use the red

DIRECTIONAL buttons on the remote control.

Zoom

To zoom in or out, press the ZOOM buttons found below the red DIRECTIONAL buttons.

Press the button to get a close up of an image.

Press the button to get a far away view of an image.

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

PolyCom EX User Manual Aug. 18, 2004 v 1.1 Page 10 of 13

Camera Presets - Storing

It is suggested that all camera presets be done before starting a videoconference. A total of

10 presets are available.

YOUR CAMERA:

The camera icon in the top right corner should be pointing towards you. If not,

press the NEAR button.

Frame the individual(s) or objects using the ZOOM button and

DIRECTIONAL buttons.

FAR END CAMERA:

The camera icon in the top right corner should be pointing away from you. If

not, press the FAR button.

Frame the individual(s) or objects using the ZOOM button and

DIRECTIONAL buttons.

To set your camera presets:

1. Press the PRESET button on the remote.

2. Press the number that you want to assign the preset set to.

3. The screen will display a message saying, “Preset X stored” (where X is the number

you assigned).

4. Test your preset by moving your camera to a different view, then press the number

you assigned to the preset. The camera should move to the pre-programmed

position.

Note: If you physically move the PolyCom EX system, the presets may need to be reset.

Camera Presets – Accessing

YOUR CAMERA:

The camera icon must be facing you. Select numbers 0-9 on the remote

control. The camera will automatically move to the pre-programmed position.

FAR END CAMERA:

The camera icon must be pointing away from you. The camera will

automatically move to the pre-programmed position.

The information herein may be reproduced provided that it is accurate and NORTH Network is credited as the source.

Indice

Altri manuali Polycom Telecomando universale

Polycom

Polycom VIEWSTATION EX Istruzioni per il montaggio

Manuali Telecomando universale popolari di altre marche

Pronto

Pronto Peel Manuale utente

GE 24929 Manuale utente

Radio Shack

Radio Shack Wireless Remote Control System Manuale utente

AUVIO

AUVIO Universal Home Theater Remote Manuale utente

Philips

Philips Icon SRU4106 Manuale utente

THOMSON

THOMSON ROC4309 Manuale utente

Philips

Philips pm625S Manuale utente

GE RM94931 Manuale utente

RCA

RCA RCU600WMS - Universal Remote Control Manuale utente

Blackweb

Blackweb BWB17AV002 Manuale utente

Marmitek

Marmitek DoorGuard 300 Manuale utente

Chunghop

Chunghop RM-L618 Manuale utente

GE RM24965 Manuale utente

Anderic

Anderic KTN828 Manuale utente

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manuale utente

Medion

Medion E74023 Manuale utente

intensity

intensity RM02A Manuale utente

GE RM24950 Manuale utente
