FLEETTM SERIES SINK
FS3-0026
Page 4 of 16
September 2023

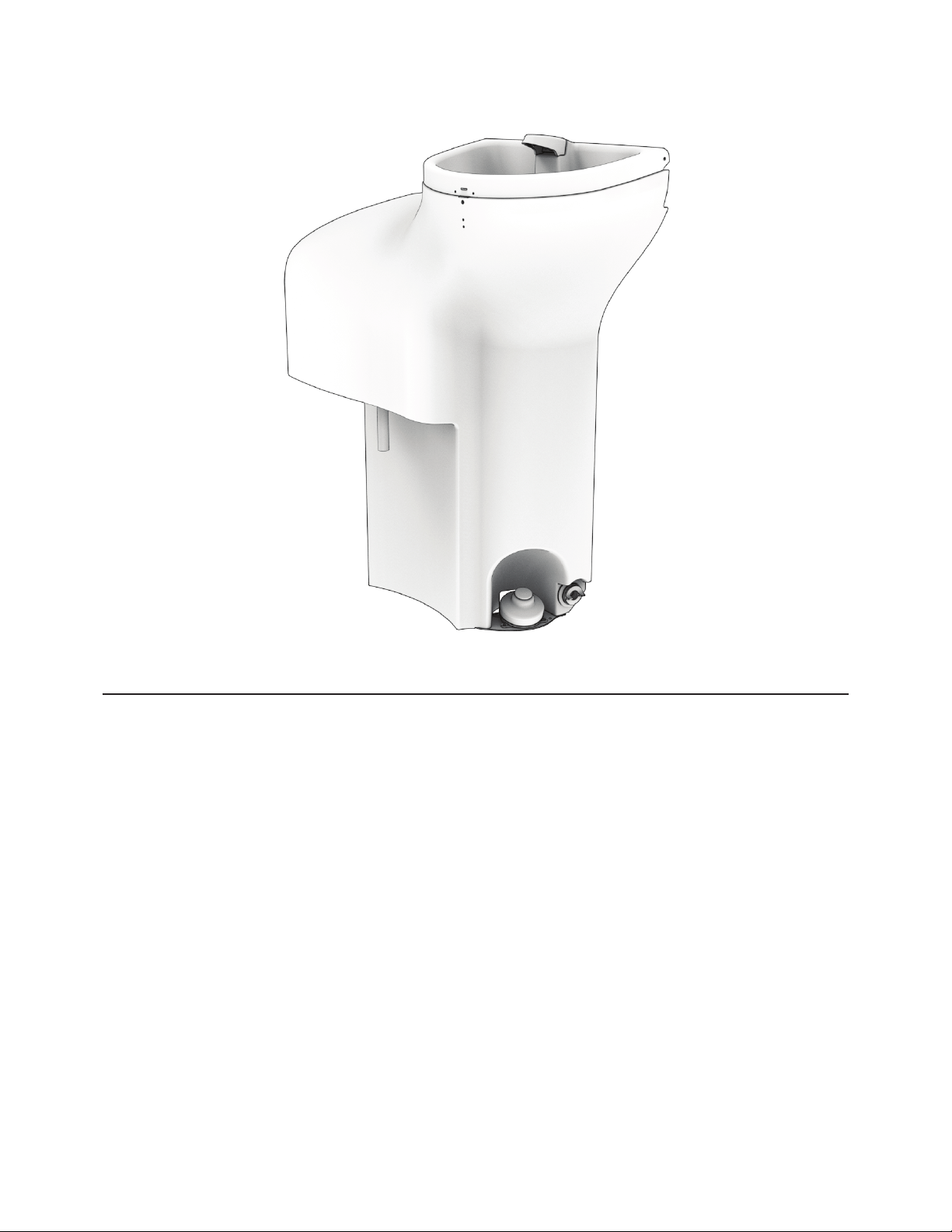

These self-contained hand wash sinks have been engineered with a larger bowl so users may wash up to their elbows.
Designed for either Flushing or Non-Flushing FS3 Fleet Series Portable Restrooms. Sinks are supplied fully assembled
including all fasteners for installation. One person will
be required to install the sink with the exception of some
assistance to hold the back-up washers when riveting the
sink to the wall panel. Installation of a sink into a flushing
unit will require two people.
The sink bowl is attached to the sink tank with (2) PC-
000107 rivets that act as hinges. To unlock the sink,
insert a long thin object (the key for the lock on the T.P.
Dispenser works well) into the 1/4” hole directly below
the bottom of the sink lid (as shown below) while pushing
down on the front of the lid of the sink, push the key in to
release the catch, and lift up the lid.
PRODUCT OVERVIEW
NOT FOR COOKING OR DRINKING - is required by law in certain areas of the U.S. Other geographical areas
require that the materials used to manufacture the sinks comply with the U.S. Federal Food and Drug Administration (FDA)
guidelines 21 CFR 175.300 (resins), 177.1520 (olefin polymers) and 178.3297 (colorants for polymers). The materials
also comply with the U.S. Public Service Drinking Water Standards, 42 CFR part 72 and U.S Environmental Protection
Agency Interim Primary Drinking Water Regulations 40 CFR part 141.
HANDS FREE SINK - instruction for user to use foot pump to operate the sink.
UNIT MUST BE DRAINED BEFORE TRANSPORTING - reminds service operator to empty the sink before
transporting.
IMPORTANT DECALS
