Pool Systems Avenger Manuale utente

Instruction

Manual &

Warranty

SECTION 1. INTRODUCTION

SECTION 2. ASSEMBLY COMPONENTS

SECTION 3. INSTALLATION INSTRUCTIONS

SECTION 4. IMPORTANT ADJUSTMENTS

SECTION 5. CARING FOR YOUR AVENGER

SECTION 6. AVENGER® SPARE PARTS

SECTION 7. REPLACING THE DIAPHRAGM

SECTION 8. TROUBLESHOOTING GUIDE

SECTION 9. AVENGER®TWO-YEAR WARRANTY

SECTION 10. PURCHASE DETAILS

SECTION 11. OWNER REGISTRATION

This product is protected by one or more of the following:

AUST. PATENT APP. 2008902923

AUST. DESIGN APP. 11325/2008

AUST. DESIGN APP. 11326/2008

AUST. INNOVATION PAT. 2006100934

INTERNATIONAL PATENTS PENDING

www.avengerpoolcleaner.com

Avenger®and AutoPilot®are registered trademarks

Warranty claims valid only with proof of purchase receipt.

POOL SYSTEMS - AVENGER®INSTRUCTIONS

1. INTRODUCTION

Congratulations on your purchase of the Avenger®High Performance Pool Cleaner.

The Avenger®has been designed to be user friendly and low maintenance providing

years of trouble free service.

Dependable - contains just one internal moving part.

Quiet Operation - proven diaphragm technology.

Efficient - cleans the walls as well as the floor.

Economical - no additional running cost powered by suction from your filtration system.

Durable - no nuts, bolts, screws or gears.

Performance - AutoPilot®revolutionary steering and buoyancy control.

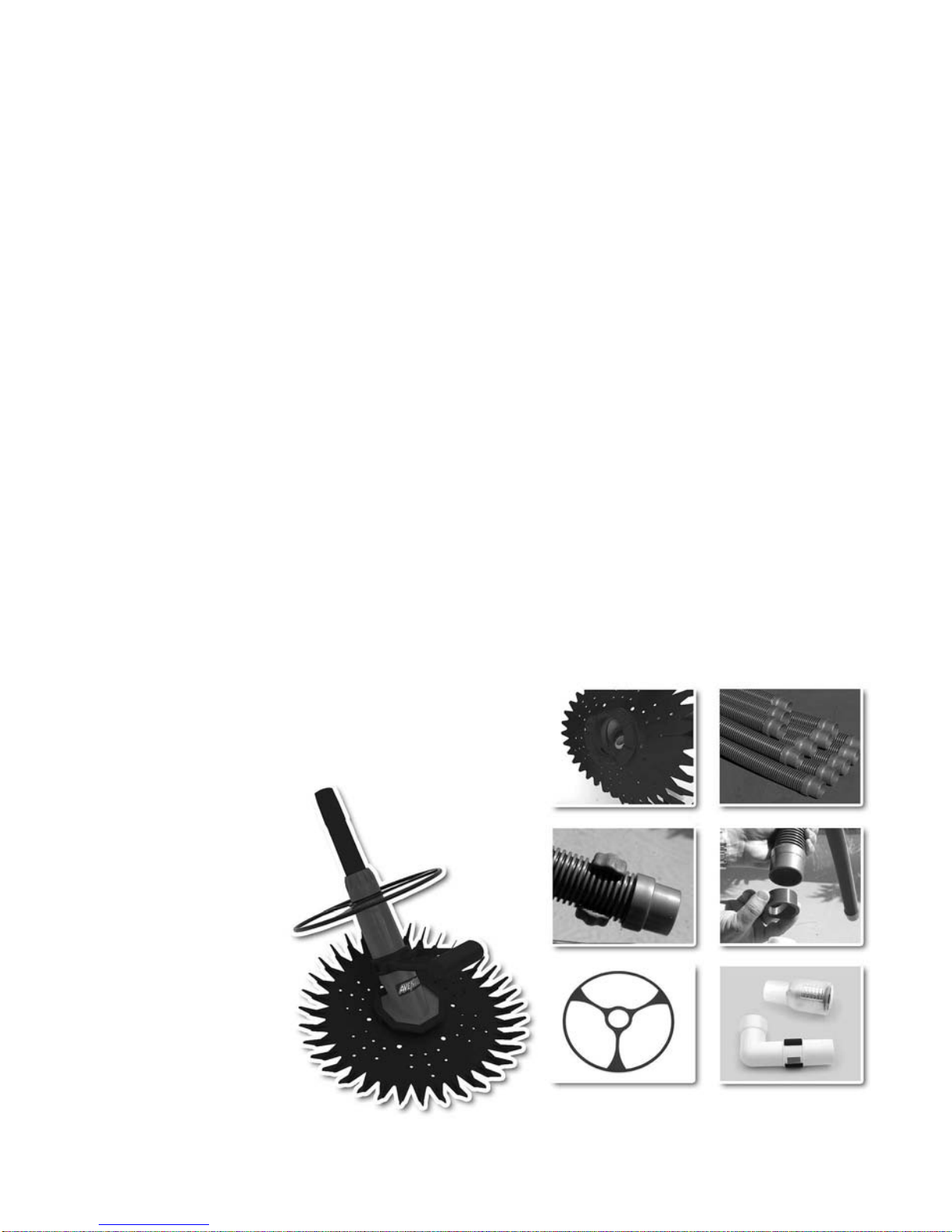

2. ASSEMBLY COMPONENTS

Please check the following items have been provided:

a. Avenger®Head Assembly (inc. Disc & Foot)

b. Hose (Twelve Lengths Total)

c. Hose Weight

d. Leader Hose Adaptor

e. Deflector Wheel

f. Weir Cuff Elbow/

Speed Controller

g. Suction Tester

h. Instructions

If any items are missing please contact your place of purchase.

3. INSTALLATION INSTRUCTIONS

Your Avenger®has been designed for simple installation and low maintenance.

Step 1. Clean or backwash your filter and empty the skimmer basket.

Step 2. Turn off all ancillary equipment such as waterfalls, spa seats and spillover

spas while the Avenger®is operating to ensure maximum performance.

Check the main drain opening is plugged (vacuum position) in the skimmer

box and, if applicable, secondary skimmers are closed. Your Avenger®needs

good suction to work correctly. Contact your place of purchase if you have

questions or require advice about ancillary equipment.

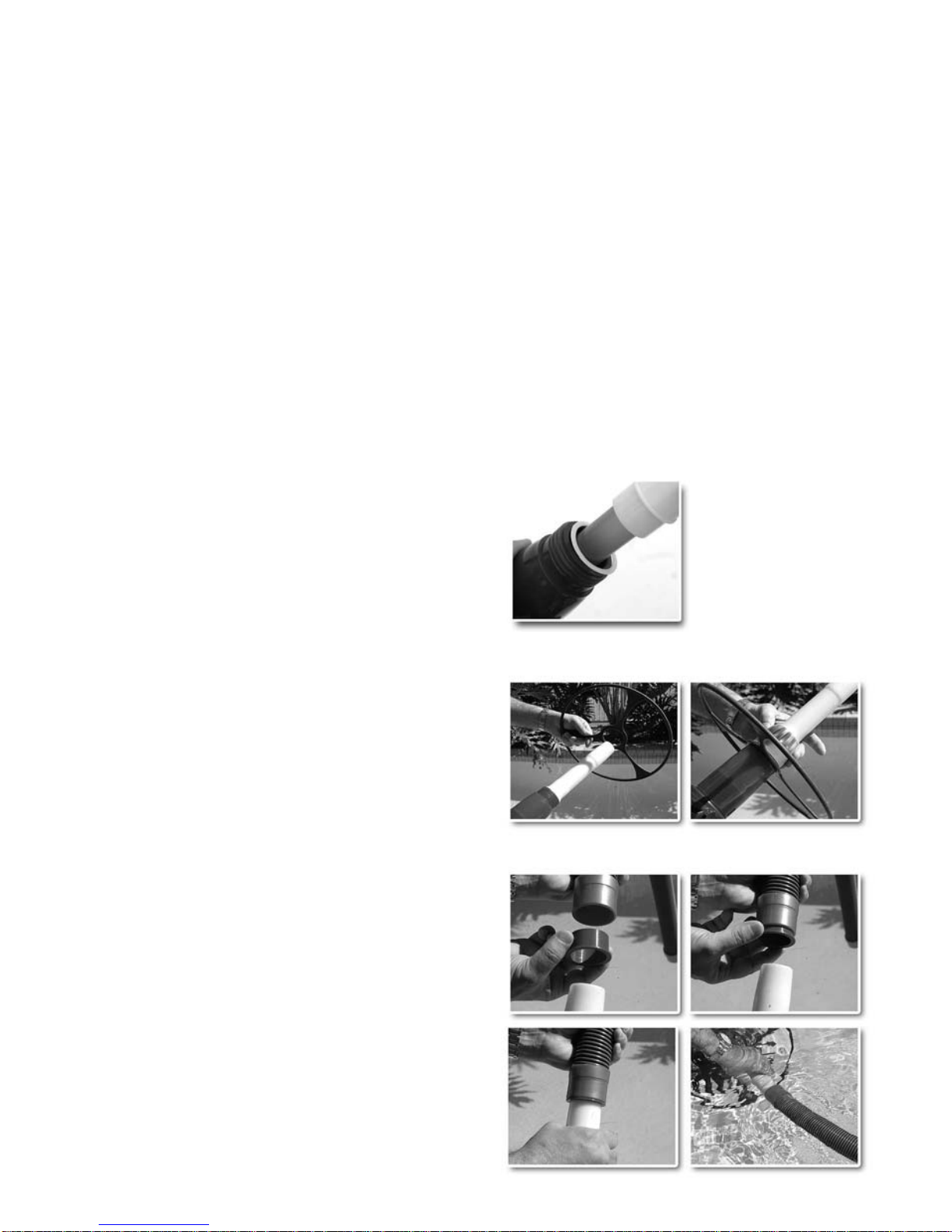

Step 3. Unpack your Avenger®near the skimmer box of the pool.

Step 4.Check the Teflon slip ring is placed

between the top of the Upper Body

and the Outer Extension Pipe.

Step 5.Place the Deflector Wheel onto the

main body of the Avenger Head

Assembly and screw the hand nut

tight to hold in place.

Step 6.Push the Leader Hose Adaptor into

the end of one of the hose lengths

and attach to the Avenger®Head.

Join together and attach the

remaining hose needed from the

skimmer to the furthest point plus

one additional hose length.

Step 7. Attach the Hose Weight on the

second hose from cleaner head about

midway. The Hose Weight can be

adjusted up or down the hose to

achieve the correct balance. The disc

and foot should be flat/horizontal to

the bottom of the pool when resting.

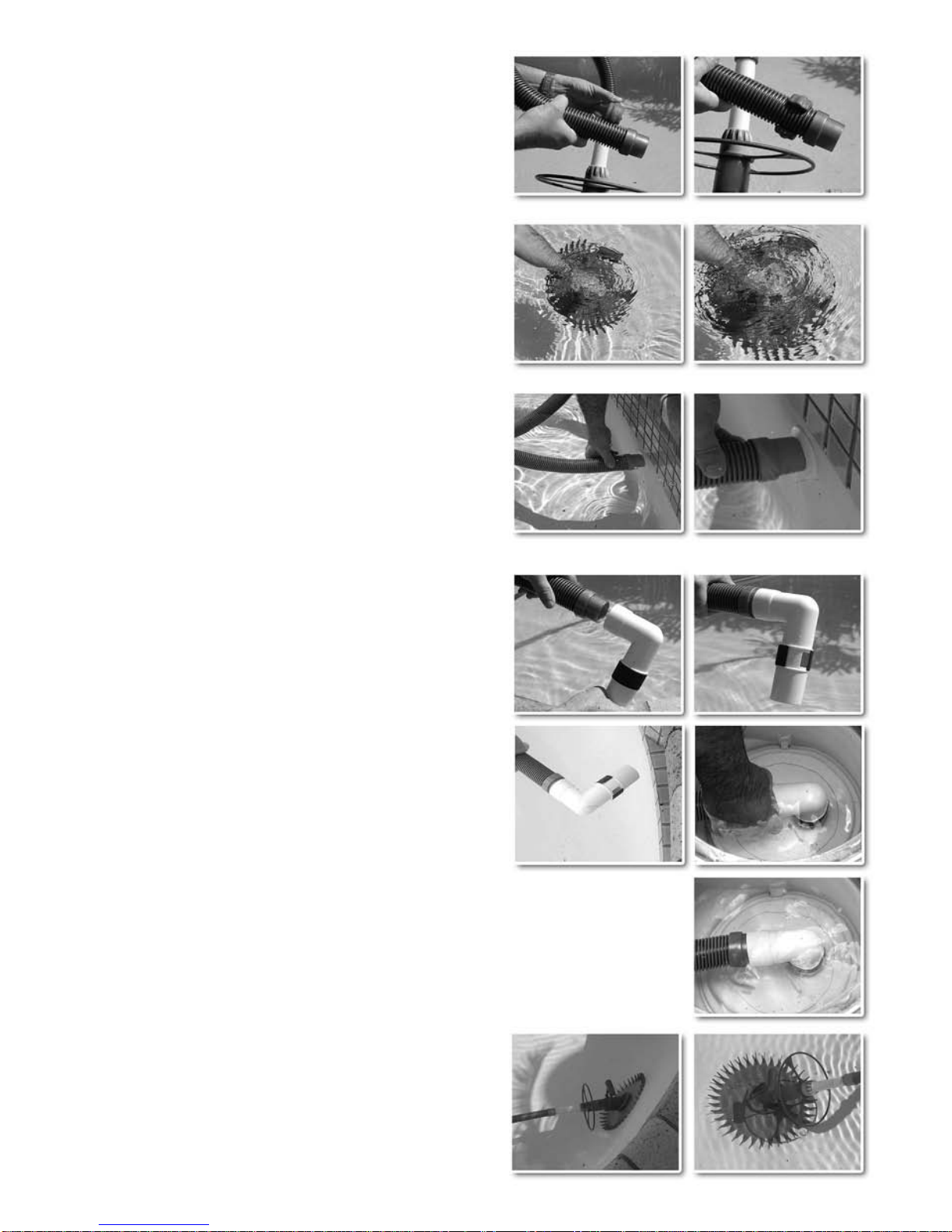

Step 8. Submerge the cleaner head and first

hose length in the water - make sure

that there are no air bubbles inside.

Step 9. Ensure there is no trapped air

anywhere in the hose. An easy way

to do this once the required hose is

tightly joined is to hold the end of the

final hose length over the pool return,

allowing the flowing water to push

the air through the hose and out of

the cleaner.

Step 10.Attach the Speed Control/Weir Cuff

to the final hose length. Ensure that

the vacuum plate in your skimmer

box is properly fitted, and push the

Speed Control/Weir Cuff into the hole.

Remember the main drain opening

in the skimmer must be plugged

(vacuum position)and, if applicable,

secondary skimmers are closed.

Your Avenger®requires good suction

to work correctly.

Step 11.Switch the pump on and your

Avenger®should start cleaning.

Adjust the Speed Controller to the

optimal setting. If you experience

difficulties check for good suction where

the Avenger®attaches to the hose

using the suction tester gauge supplied.

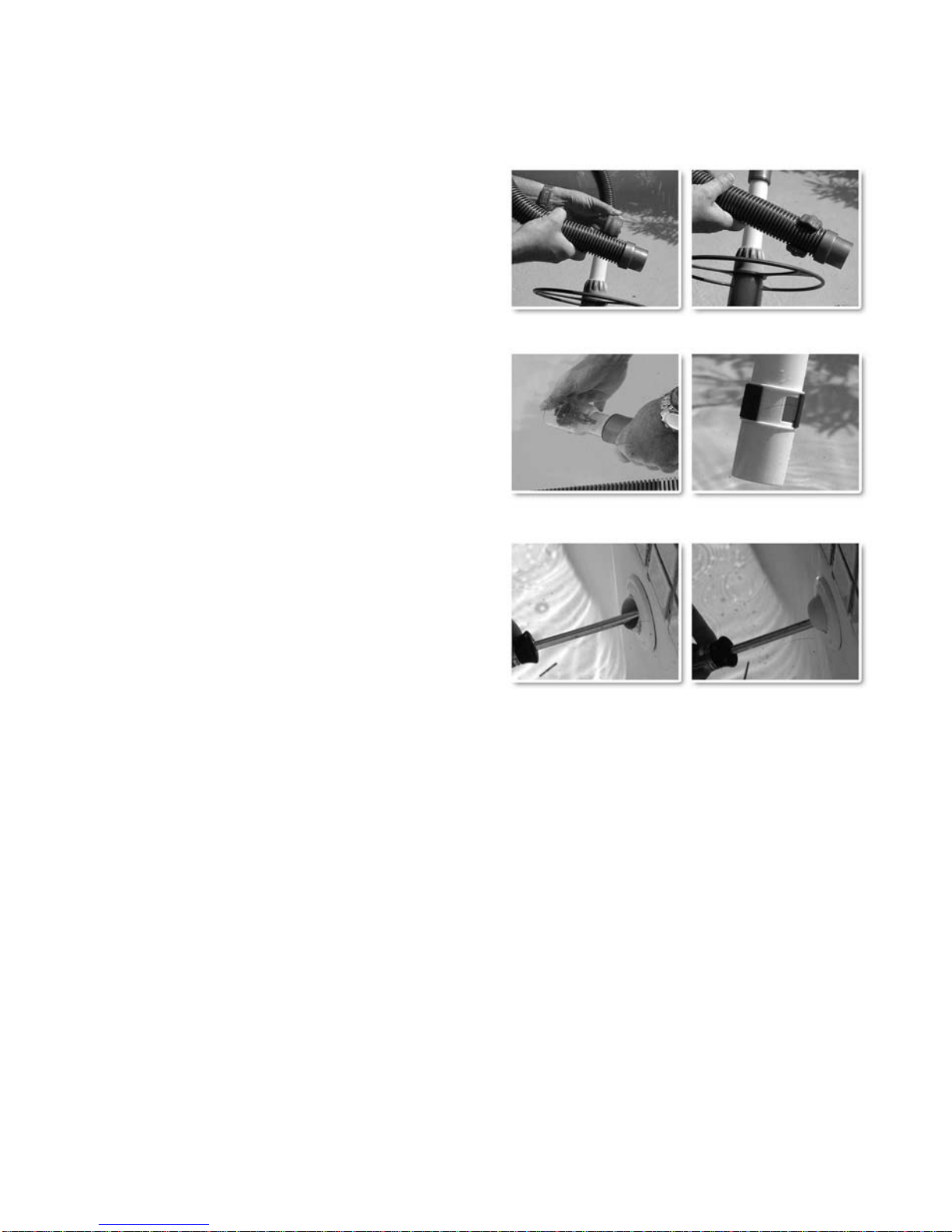

4. IMPORTANT ADJUSTMENTS

Here are some points to ensure your Avenger®operates at maximum performance.

• Ensure that the Avenger®is

properly balanced. The cleaner

at rest should sit flat on the floor of

the pool. You can adjust the balance

by moving the hose weight up or

down the hose. You may also

find the best balance without the

Hose Weight attached.

•Ensure that the Avenger®has the

correct amount of suction.

Adjusting the speed controller varies

the suction to the head of the

cleaner, and thus alters its speed.

Use the Suction Tester on the end

of the hose (instead of the cleaner)

to gauge the suction level and adjust the speed controller accordingly.

•Ensure that the Avenger®covers

all of the pool. Suction cleaners

have no programmed route, and

their movement depends largely on

the flow of water throughout the

pool. Making adjustments to the

eyeball returns of the pool can

help the cleaner cover dead spots, or prevent the cleaner from sticking in

corners.

If you encounter any problems with the Avenger®automatic pool cleaner refer

to the troubleshooting guide prior to contacting your place of purchase.

5. CARING FOR YOUR AVENGER®

Here are some tips for looking after your Avenger®, to ensure that it provides many

years of faithful service.

•Don’t leave your Avenger®out of the pool in the sun for prolonged

periods. If you take it out of the pool, store it in the shade. Prolonged

summer sun can be detrimental to your Avenger®.

•Store the hose lengths straight. If the cleaner is out of the pool, ensure

that the hose is dismantled and the lengths stored straight. Curling the

lengths up can often impress a curled memory into the hose causing it

to tangle in the pool and affect your Avenger®operation.

•Take the Avenger®out in unusual circumstances. If your pool is green

and cloudy or if you are going to add any large doses of chemicals or

superchlorinating, it’s best to take the cleaner out of the pool until it returns

to normal. Unusual chemical balance can severely damage and deteriorate

your Avenger®.

•Remove any sharp objects from the pool by hand. Sharp twigs, nuts,

small pool toys, stones and bottle caps can damage the soft diaphragm

inside. It’s best to remove these type of objects before your Avenger®gets

there first.

Children and pets are responsible for most damage caused to pool cleaners. Please

ensure your Avenger®is never used as a toy and it will give you years of dependable

service.

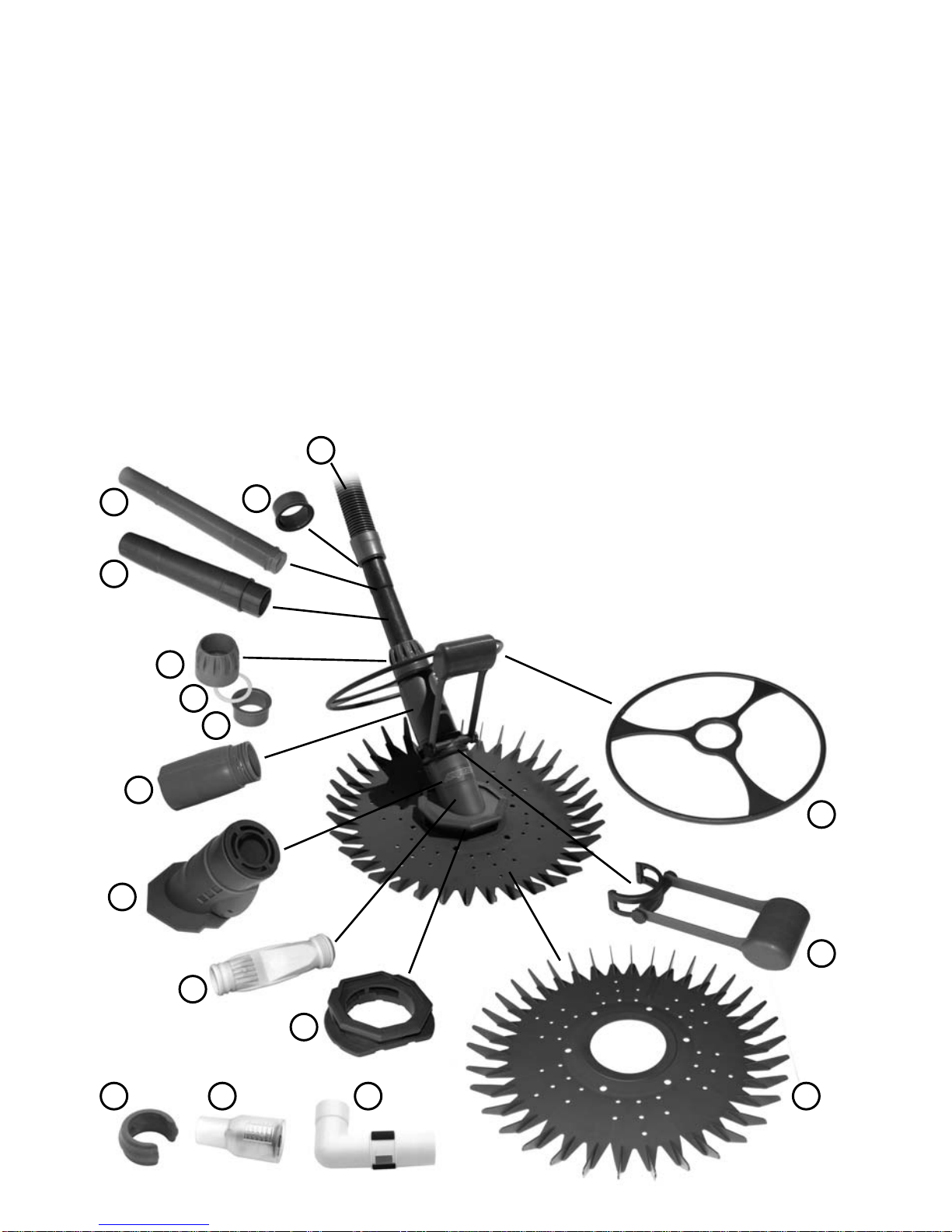

6. AVENGER®SPARE PARTS

171615

1. Hose Sections

2. Hose Adaptor

3. Inner tube

4. Outer tube

5. Hand Nut

6. Slip Washer

7. Bushing

8. Upper Body

9. Lower Body

10. Diaphragm

11a.Blue Foot - Concrete, etc.

11b.Yellow Foot - Smooth Surface

12. Skirt

13. AutoPilot®Assembly

14. Deflector Wheel

15. Hose Weight

16. Suction Test Gauge

17. Speed Control Elbow

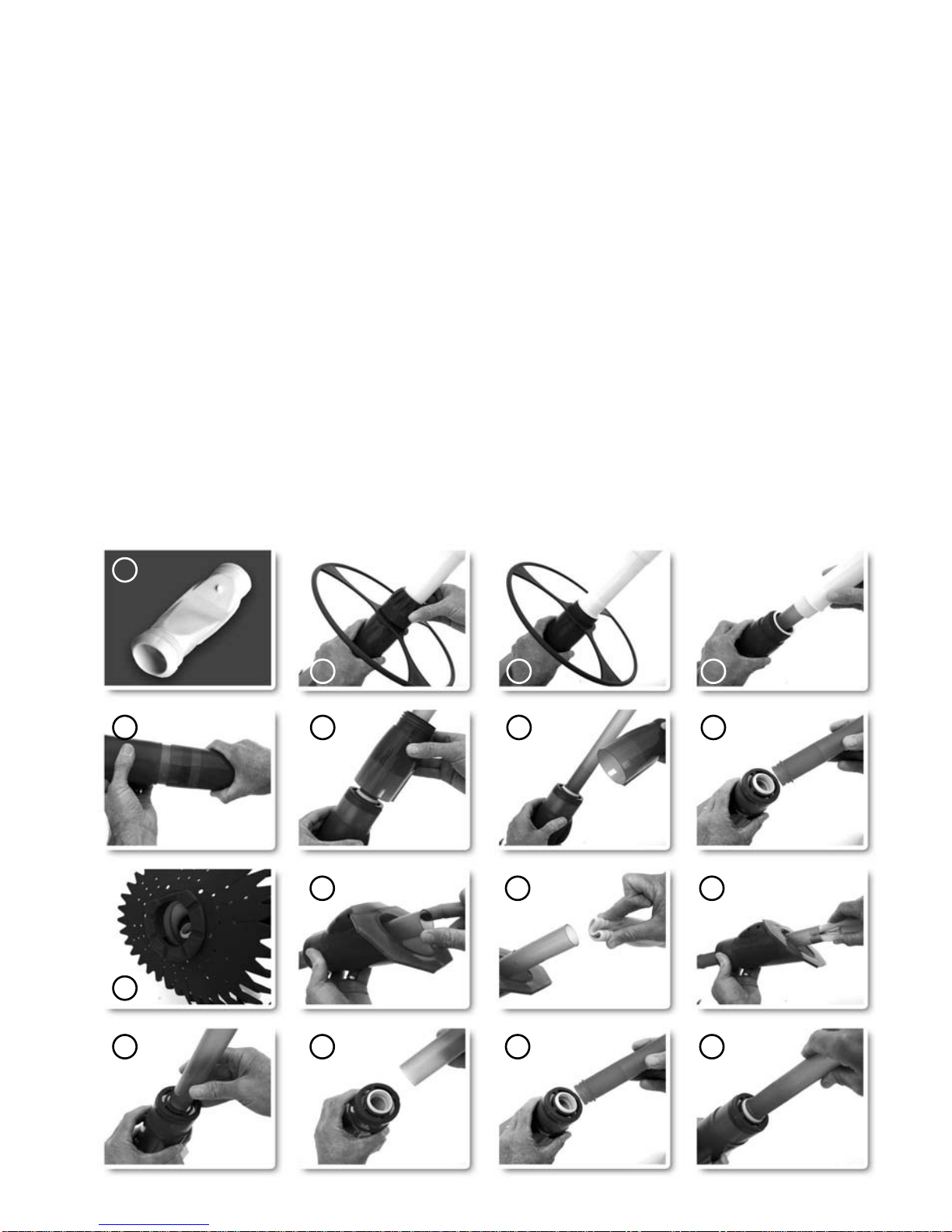

7. REPLACING THE DIAPHRAGM

A.Purchase a new Avenger®diaphragm - Picture 1

B.Disassemble Avenger®head assembly - Pictures 2-8

C.Remove the diaphragm from underneath the cleaner - Picture 9

D.Feed the small end of the innertube through the cleaner - Picture 10

E.Fold the new diaphragm in half and place inside the inner-tube - Pictures 11 & 12

F. Pull the innertube through machine aligning the diaphragm in body - Pictures 13 & 14

G.Push the innertube into end of diaphragm and reverse previous steps to

reassemble the cleaner - Pictures 15 & 16

Note: If you have any difficulties in replacing the diaphragm in the cleaner take it back

to your place of purchase for their assistance.

10 12

2 3 4

6 7 85

14 16

1513

8. TROUBLESHOOTING GUIDE

If you encounter any problems with the Avenger®automatic pool cleaner check the

following troubleshooting guide prior to seeking assistance from your place of purchase.

PROBLEM POSSIBLE SOLUTIONS

Avenger®stops and starts, • Check that the filter is clean and the pump is switched on.

or won’t move at all. • Disengage the safety suction, ensure main drain is plugged.

• Ensure that the vacuum plate is properly installed.

• Check the cleaner and hose are free of trapped air.

• Check the diaphragm for any damage or blockages.

Avenger®is missing spots • Ensure that the correct amount of hose is installed.

in the pool. Try adding or taking away one or two hose lengths.

• Ensure that all the returns are directing water flow towards

the floor of the pool, adjusting the eyeballs, or using water

diverters available at your local pool shop.

• Ensure that hose is straight and untangled.

Avenger®doesn’t climb • Increase the suction using the speed controller.

• Ensure the pool water is properly balanced. For example,

High pH and/or lack of chlorine, makes the walls very slippery.

• Check float arm is in the correct position.

Note: In pools with a sharp 90 degree wall-to-floor it is

unreasonable to expect the cleaner to climb the walls.

Avenger®spends too much • Decrease the suction using the speed controller.

time on the walls, and/or •Adjust the hose weight provided towards the cleaner head..

climbs out of the water. •Attach the AutoPilot®float assembly to another position.

Avenger®sticks in corners, • Ensure that the correct amount of hose is installed.

under ladders, on lights Try adding or taking away one or two hose lengths.

or on pool steps. • Ensure that all the returns are directing water flow towards

the floor of the pool, adjust the eyeballs, or use water diverters

available at your local pool shop. Excess water movement on

the water surface will hold or push the hose.

• Add optional hose motors and / or replace wheel deflector

with larger size available from your local pool shop.

That’s it! From all of us at Pool Systems, we wish you all the best for summer after

summer of hassle free pool cleaning with the Avenger®!

The AutoPilot®floatation chamber is factory set in the

middle position.

If your Avenger®is staying on walls or staying on the

floor simply try adjusting the float up or down as well as

adjusting the hose weight and suction at the speed

control valve.

123

10.

AVENGER®High Performance Pool Cleaner

TWO-YEAR WARRANTY

This Avenger®Automatic Pool Cleaner was carefully inspected before shipment from our warehouse. Upon

unpacking, if any parts are missing or found to be defective, please notify your dealer immediately. Please

consult owner's manual for complete instructions on the installation and operation of your Avenger®.

POOL SYSTEMS PTY LTD WARRANTS THE AVENGER®AUTOMATIC POOL CLEANER TO BE FREE

FROM DEFECTS IN MATERIALS AND WORKMANSHIP TO THE ORIGINAL PURCHASER FOR A

PERIOD OF TWO (2) YEARS FROM DATE OF PURCHASE. THE AVENGER®AUTOMATIC POOL

CLEANER HOSE IS WARRANTED FOR TWO (2) YEARS AGAINST MANUFACTURING DEFECTS.

THIS LIMITED WARRANTY EXCLUDES THE FOLLOWING:

1. Discolouration of the Avenger®automatic pool cleaner caused by reaction to chemicals used in the pool

water. Discolouration does not affect the operating ability of the Avenger®automatic pool cleaner.

Therefore, this limited warranty does not cover the replacement of discoloured parts.

2. Damage to or malfunction of the unit resulting from excess chlorination or improper water chemistry balance.

3. Replacement of parts which fail or become defective as a result of improper installation, negligence,

misuse, abuse or tampering by unauthorised repair personnel.

4. Age, pool water imbalance, and improper installation can cause pool liners to become brittle or unduly

wrinkled. Corrosion of the supporting walls and/or irregularities in the pool base may also cause liner

failure. The use of this product in such an environment is at the pool owner's risk. Therefore, the pool

owner hereby releases the manufacturer from any and all claims for damage where these conditions exist.

5. Abrasion to the hose or damage caused by misuse or improper installation.

No claim will be recognised without proof of purchase. Only the original purchaser may submit a

claim under this limited warranty. Purchaser's claims against POOL SYSTEMS Pty. Ltd. shall be limited

to those claims which may be asserted under the limited warranty relating to any manufacturing defect.

To obtain warranty replacement or repair, the unit should be returned, freight prepaid, to the place of

purchase or directly to: POOL SYSTEMS PTY. LTD. P.O. Box 5225, Brendale, Queensland 4500. When

submitting a claim, always supply serial number, evidence of purchase date, retailer and a brief description

of the problems/defects encountered. POOL SYSTEMS PTY. LTD. reserves the right to repair or replace

all defective or worn parts covered by this limited warranty and return same to purchaser, freight collect.

POOL SYSTEMS Pty. Ltd. assumes no responsibility for any warranties or representations made by other

Individuals or businesses beyond the express terms contained in this limited warranty .

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state. This warranty remains the property of POOL SYSTEMS PTY. LTD.

www.avengerpoolcleaner.com

Pool Systems Pty Ltd

ABN 68 074 166 975

79 Kremzow Road, Brendale, QLD. 4500

www.poolsystems.com.au

Avenger®and AutoPilot®are registered trademarks

Indice

Altri manuali Pool Systems Aspirapolvere per piscina

Pool Systems

Pool Systems Vektro XL EV90 Manuale utente

Manuali Aspirapolvere per piscina popolari di altre marche

POOLGOODS

POOLGOODS PoolGobbler Pro Manuale utente

AREBOS

AREBOS AR-HE-BSR Scheda informativa del prodotto

Maytronics

Maytronics Dolphin POOL UP Manuale utente

iRobot

iRobot Verro 600 Manuale utente

Kokido

Kokido SKOOBA K535CBX/18/EU Manuale utente

Dolphin

Dolphin 2x2 Gyro Manuale utente

SmartPool

SmartPool Robo-Kleen PLUS Manuale utente

Brilix

Brilix BARACUDA Manuale utente

Aiper

Aiper Orca 1200 Pro Manuale utente

Hayward

Hayward Navigator Pro Manuale utente

Polaris

Polaris Vac-Sweep 380 Manuale utente

Pentair

Pentair Prowler 710 Manuale utente

BWT

BWT D500 Manuale utente

Kokido

Kokido xtrovac 70 Manuale utente

Pentair

Pentair RACER Manuale utente

Pentair

Pentair REBEL 2 Manuale utente

Zodiac

Zodiac VX55 4WD Manuale utente

SmartPool

SmartPool Robo Kleen Plus Manuale utente
