Porsche 1D6 Manuale

Technical Information Tequipment

27/07 ENU 6690 6

Trailer Hitch (I-no. 1D6)

Vehicle Type: Cayenne/Cayenne S/Cayenne Turbo/Cayenne Turbo S

Model Year: As of 2003 up to 2006

Filing: This Technical Information bulletin replaces bulletin Group 6, #6/04, dated 6-23-06

Situation: Retroﬁtting

Concerns: ONLY for vehicles with "trailer hitch" preparation [up to MY ’04: I-no. 1D8, the preparation comes as

standard as of MY ’04].

Information: The Cayenne can be retrofitted with a trailer hitch. Note the following special features:

• Permissible hitch tongue weight of 308 lbs (140 kg)

• Totally versatile fording depth

• Standard 7–pin socket (USA version)

• Payload following installation, restricted by higher vehicle curb weight!

• Gross vehicle weight rating and axle load must not be exceeded!

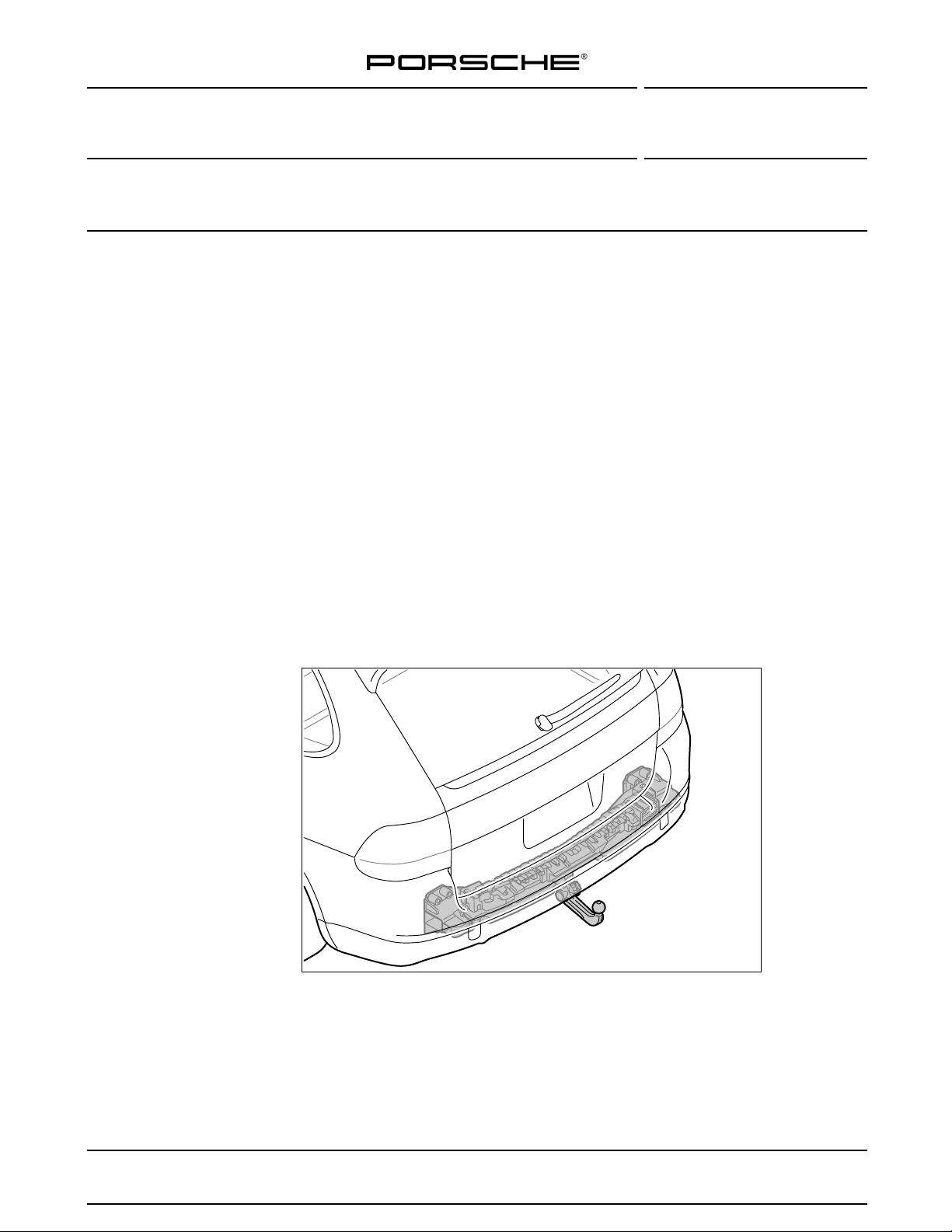

Figure 1

Parts Info: 955.044.002.74 ⇒Trailer hitch, mechanical – USA

The following parts must be ordered separately for pre-MY ’06 vehicles:

2007© Porsche Cars North America, Inc. Tequipment Aug 15, 2007

Page 1 of 12

Tequipment

66690 ENU 27/07 Technical Information

N 909.892.01 8x ⇒Hexagon-head bolt M14 x 1.5 x 100 (for securing trailer hitch

to body)

Parts List:

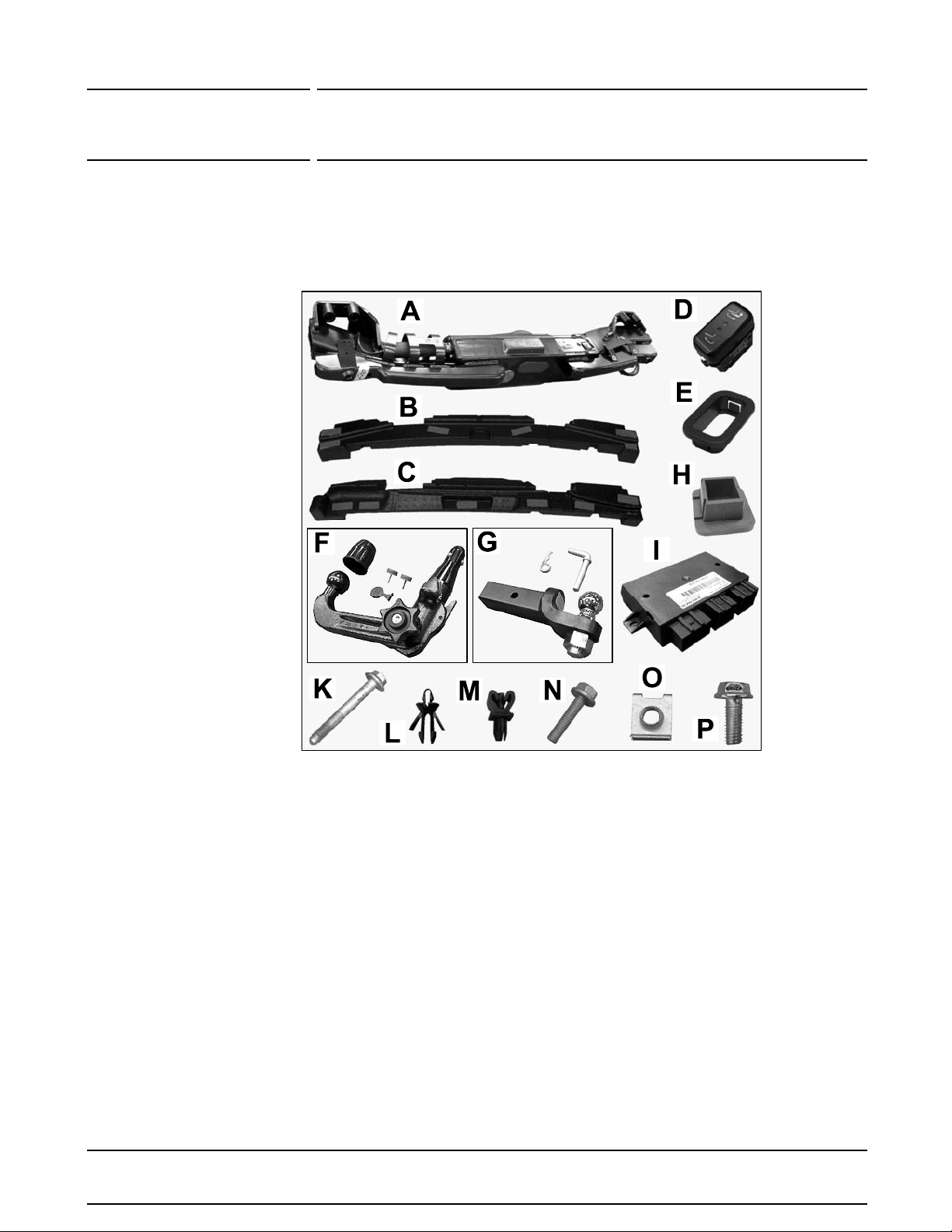

Figure 2

Some items shown in Figure 2 are not available for the North American market.

955.722.004.01 1x Trailer hitch – complete (not shown)

955.613.164.00.6N3 1x Control switch

⇒

Figure 2 -D-

955.613.166.00.01C 1x Control switch installation frame

⇒

Figure 2 -E-

955.044.000.28 1x Ball bar, removable – complete

⇒

Figure 2 -G-

955.722.030.00 1x Plug, USA/Canada variant

⇒

Figure 2 -H-

––– 1x Trailer hitch control unit

⇒

Figure 2 -I-

N 910.292.03 8 x Hexagon-head bolt, M12 x 1.5 x 100 (vehicles as of MY ’06)

⇒

Figure 2 -K-

955.647.153.00 2 x Clip for KESSY

⇒

Figure 2 -L-

N 909.975.01 1x Hose holder

⇒

Figure 2 -M-

N 102.856.01 4x Screw, M6 x 25

⇒

Figure 2 -N-

N 904.759.02 1x Sheetmetal press nut

⇒

Figure 2 -O-

Aug 15, 2007

Page 2 of 12 Tequipment 2007© Porsche Cars North America, Inc.

Technical Information Tequipment

27/07 ENU 6690 6

N 103.383.01 1x Screw, M5 x 12

⇒

Figure 2 -P-

N 910.260.01 1x Internal serration screw, M10 x 20

⇒

Figure 2 -R-

––– 10 x Tie-wrap, 150 mm (not shown)

––– 1x 10 A fuse (not shown)

––– 3 x 15 A fuse (not shown)

––– 1x 25 A fuse (not shown)

––– 1x 30 A fuse (not shown)

––– 1x “No tail light” sticker – marking for USA only (not shown)

Spare Parts: 955.612.506.00 1 x Electric wire harness

955.618.040.02 1x Control unit, trailer hitch

955.044.000.28 1x Ballbar

955.722.030.00 1x Plug

955.612.520.00 1 x Wire sleeve

Materials: ––– –– Double-sided adhesive tape and/or adhesive (commercially

available)

––– –– Silicon remover (commercially available)

Tools: Torque angle torque wrench Nr.88 Disassembly tool Nr.21

Socket-wrench insert, Torx T20/25/27/30 Screwdriver, hexagon socket a/f 5

Open-ended/ring wrench, a/f 8, 10 Socket-wrench insert a/f 17, 19, 21

Screwdriver Saw or electric knife

Ratchet Steel drill bit, Ø up to 8.0 mm

Side cutters Tap, M12 x 1.5 or M14 x 1.5

Drill Round/flat file

Plastic wedge Scraper

Knife Electric torch

Notes: For further information on using and maintaining the trailer hitch, see CayenneOwner’s Manual; topics:

“Trailer hitch”; “Trailer load”; “Trailer”; etc.

ATTENTION

Saws or knives can damage adjacent

• components.

⇒Mask the cutting area.

2007© Porsche Cars North America, Inc. Tequipment Aug 15, 2007

Page 3 of 12

Tequipment

66690 ENU 27/07 Technical Information

⇒Be very careful when working (sawing) in this area.

Work Procedure: 1 Preparatory work.

1.1 Switch off ignition and remove ignition key.

WARNING

Working on the vehicle electrical system

• Risk of short circuit and ﬁre.

⇒Disconnect and cover the battery.

⇒Route electric wires without tension so that no chaﬁng occurs.

⇒Secure electric wires to existing wires/components using tie-wraps and/or wrapping tape.

1.2 Disconnect and cover the battery, then connect the power supply while the vehicle is in the

workshop

⇒

Technical Information ’270600 Battery: Battery care and maintenance/power

supply’.

1.3 Remove rear bumper

⇒

Workshop Manual ’635019 Removing and installing rear bumper -

section on "Removing"’.

1.4 Removesidetrimpanelforrearrightluggagecompartment

⇒

Workshop Manual ’700319

Removing and installing side trim panel for rear luggage compartment - section on

"Removing"’.

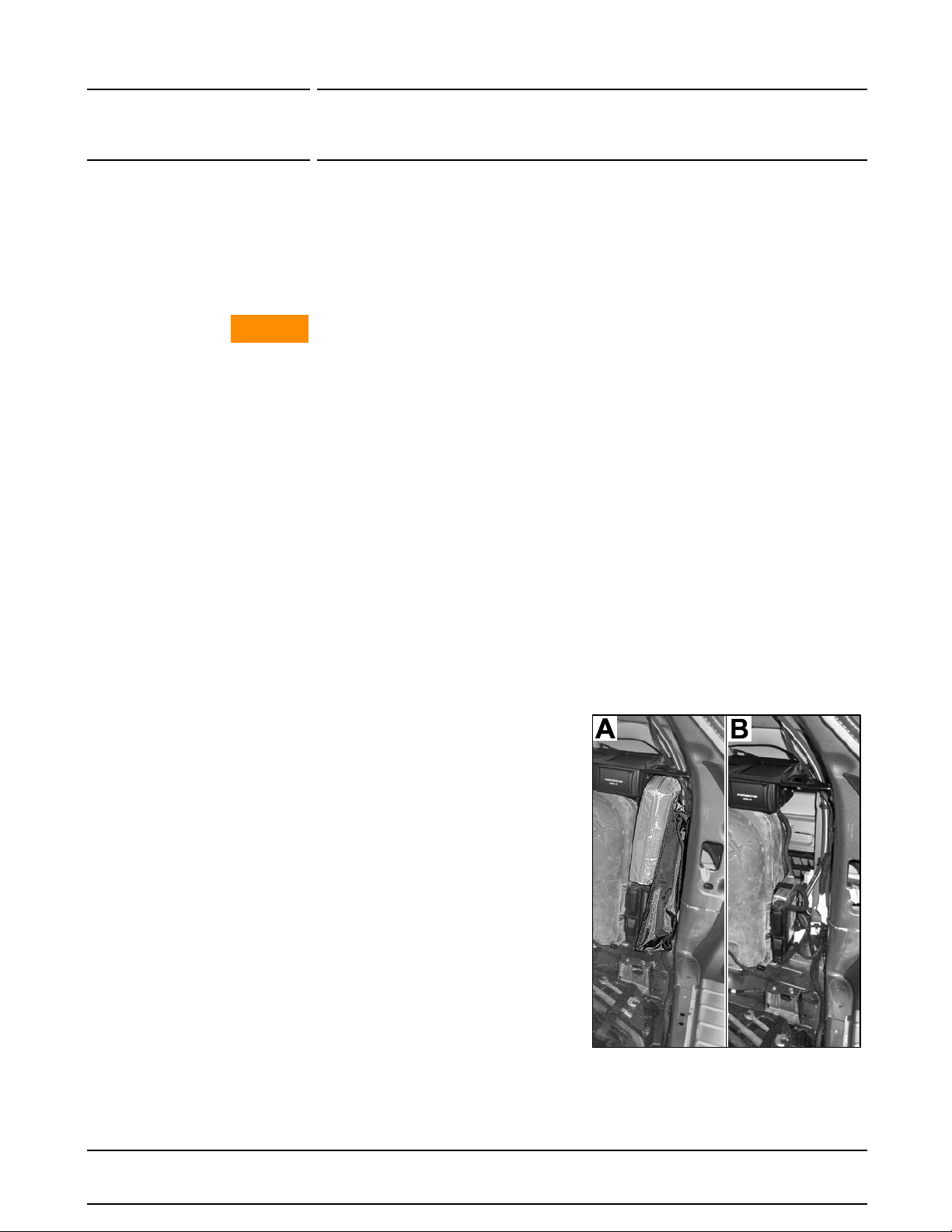

Figure 3

1.5 Remove warning triangle and first-aid kit in the

rear right wheel arch area

⇒

Figure 3 -B-.

Aug 15, 2007

Page 4 of 12 Tequipment 2007© Porsche Cars North America, Inc.

Technical Information Tequipment

27/07 ENU 6690 6

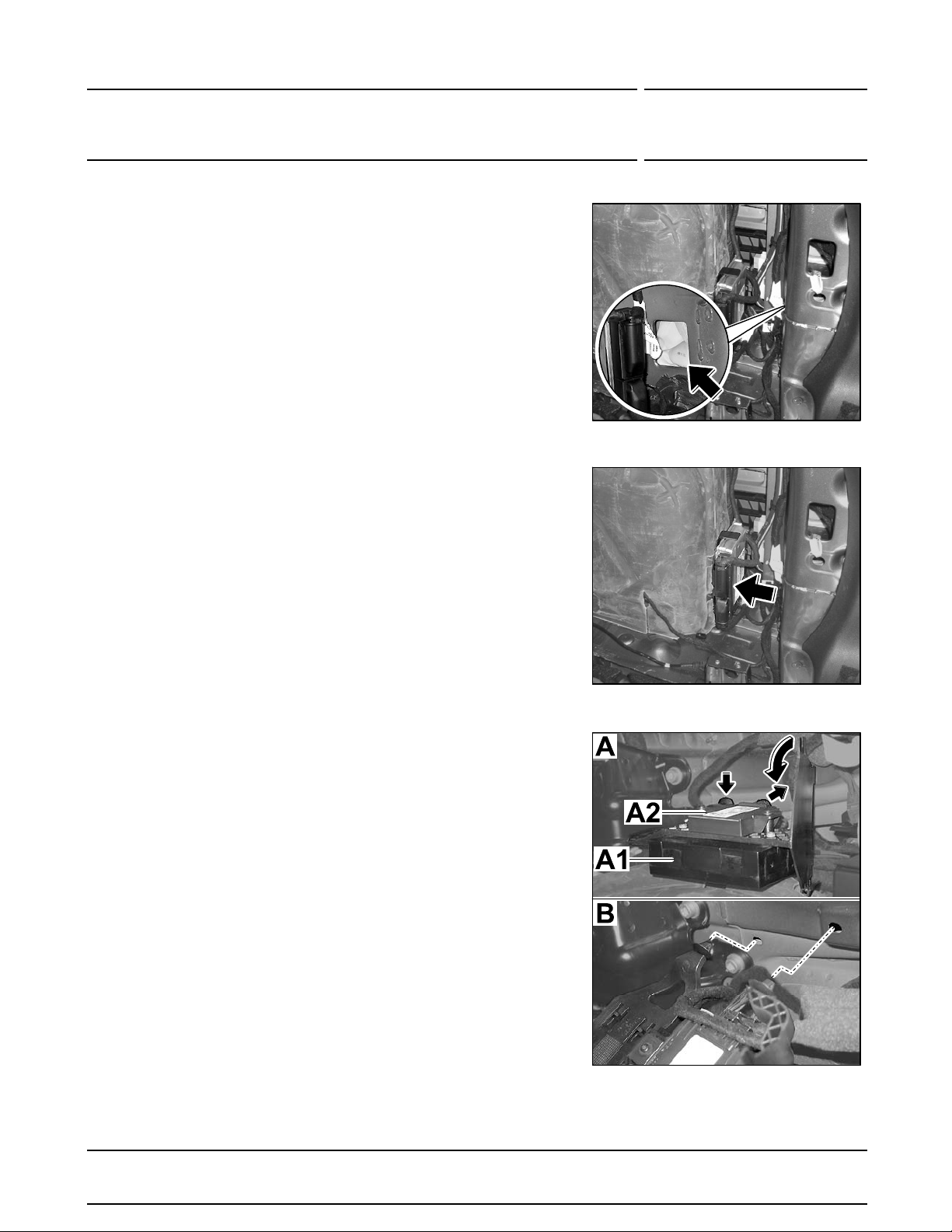

Figure 4

1.6 Remove foam insert from the inner side panel

⇒

Figure 4 -inset-.

Figure 5

1.7 ONLY for vehicles with level adjustment

control unit:

Pull up clamps on level adjustment control

unit support

⇒

Figure 5 -arrow- (if fitted) and

swivel control unit out of the bracket.

Figure 6

1.8 Loosen the two clips

⇒

Figure 6 -A,

arrows- on the support for the rear-end

control unit

⇒

Figure 6 -A1- together with

the tilt sensor control unit (

⇒

Figure 6 -A2- if

installed

⇒

Workshop Manual ’966319

Removing and installing control unit for tilt

sensor - section on "Removing"’)andlay

support aside

⇒

Figure 6 -B-.

2007© Porsche Cars North America, Inc. Tequipment Aug 15, 2007

Page 5 of 12

Tequipment

66690 ENU 27/07 Technical Information

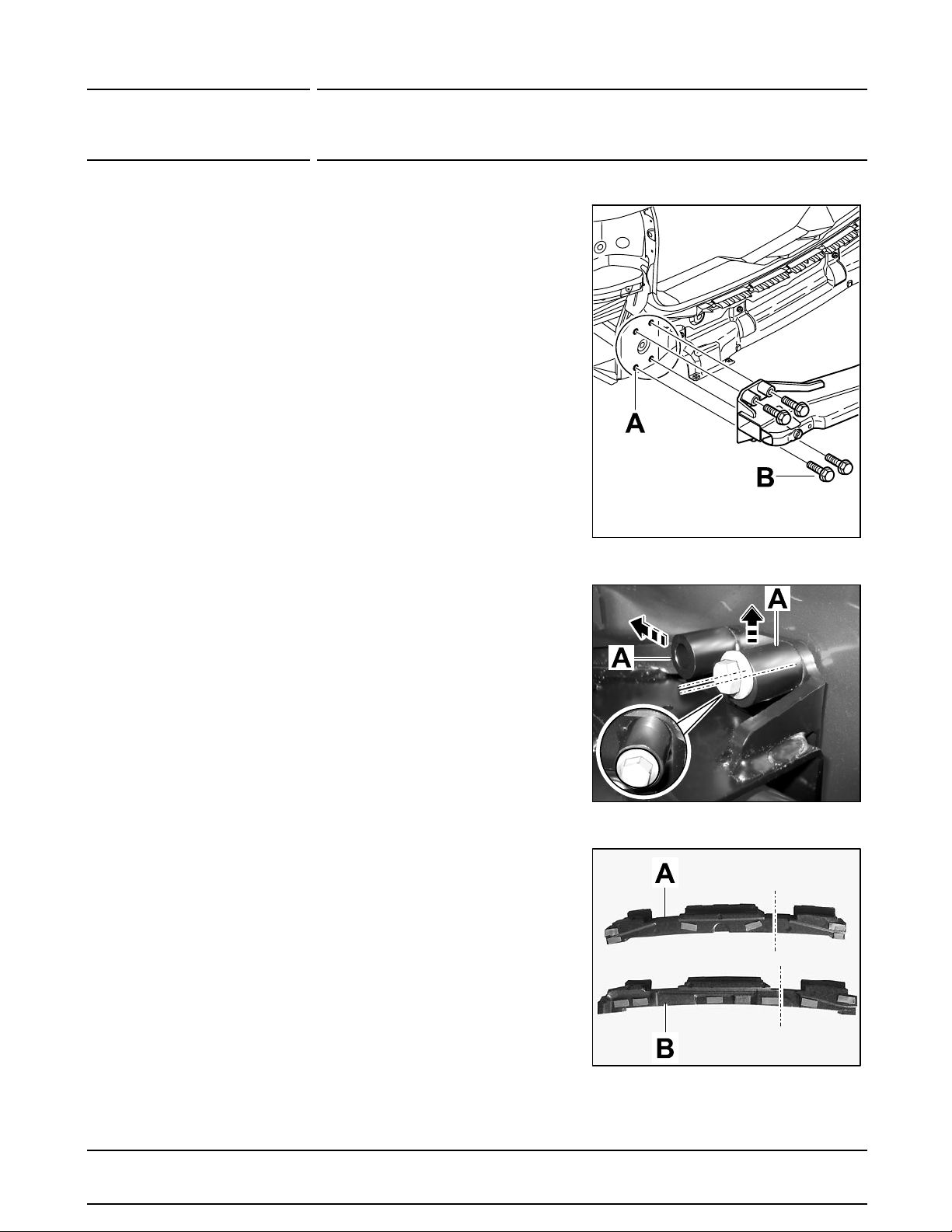

Figure 7

2 Fit the trailer hitch and foam parts

⇒

Workshop

Manual ’669019 Removing and installing trailer hitch

- section on "Installing"’.

2.1 Check that the screw threads and contact

surfaces (

⇒

Figure 7 -A-) for fitting the trailer

hitch are not dirty. Clean them and re-cut the

threads using an M12 x 1.5 tap, or using an

M14 x 1.5 tap on older vehicles, if necessary.

2.2 Fit the trailer hitch and tighten hand-tight at

theleftandrightusingeightnewscrews(M12

x 1.5 x 100, or M14 x 1.5 x 100 on older

vehicles)

⇒

Figure 7 -B-.

Figure 8

2.3 Align screw guides for the trailer hitch

⇒

Figure 8 -A- symmetrically with respect to

the eight screw heads

⇒

Figure 8 .

2.4 Tighten trailer hitch fully.

Tightening torque 100 Nm (74 ftlb.) +90°

Figure 9

2.5 Fit foam part on trailer hitch

A– Foam part for mechanical trailer

hitch

B– Foampart—NotForUSA

2.5.1 ONLY for vehicles with spare wheel

carrier:

Select foam part for the relevant

model year and cut it according to

the marking

⇒

Figure 9 .

Aug 15, 2007

Page 6 of 12 Tequipment 2007© Porsche Cars North America, Inc.

Technical Information Tequipment

27/07 ENU 6690 6

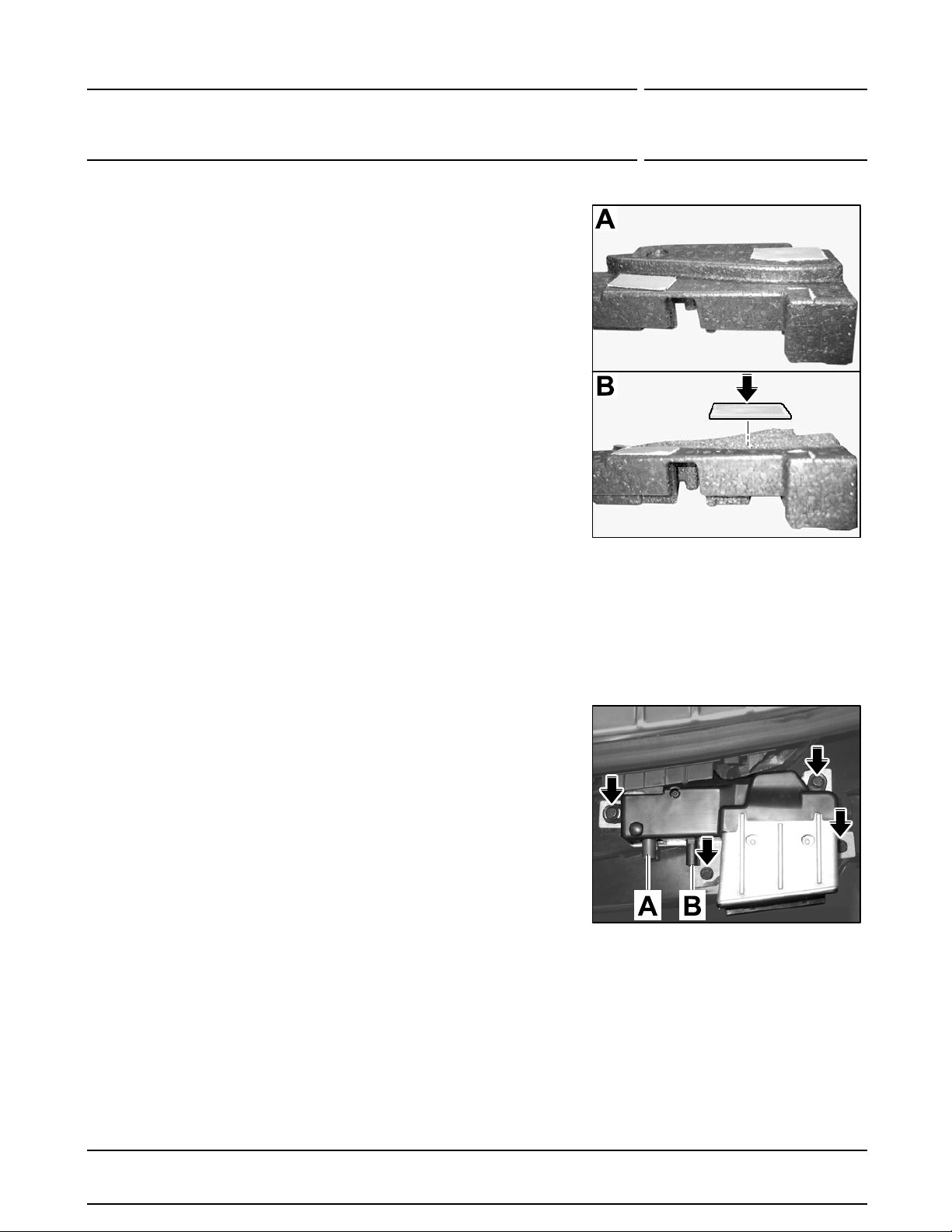

Figure 10

2.5.2 Select foam part

⇒

Figure

10 -A- corresponding to the trailer

hitch version and adapt it to suit the

trailer hitch at the underside, close

to the mounting point for the spare

wheel carrier lock using a knife

⇒

Figure 10 -B-.

2.5.3 Remove double-sided adhesive tape

from the section you cut off and

stick it on the cut surface

⇒

Figure

10 -B, arrow-.

2.5.4 Pull strips of film off the adhesive

pads on the underside of the foam

part and stick adapted foam part to

the trailer hitch.

Use more double-sided adhesive

tape if necessary (commercially

available).

2.5.5 ONLY for vehicles with spare wheel carrier:

Screw off holder for spare wheel mount lock from the standard carrier and screw

it to the trailer hitch using the four screws

⇒

Figure 11 -arrows-.

⇒

Workshop

Manual ’446019 Removing and installing holder for spare wheel mount lock’.

Tightening torque 10.5 Nm (8.0 ftlb.) +/-1 Nm (+/-0.5 ftlb.)

Figure 11

Position electric lines for lock

in foam part and connect plug

connections

⇒

Figure 11 -A and

B- to lock.

2007© Porsche Cars North America, Inc. Tequipment Aug 15, 2007

Page 7 of 12

Tequipment

66690 ENU 27/07 Technical Information

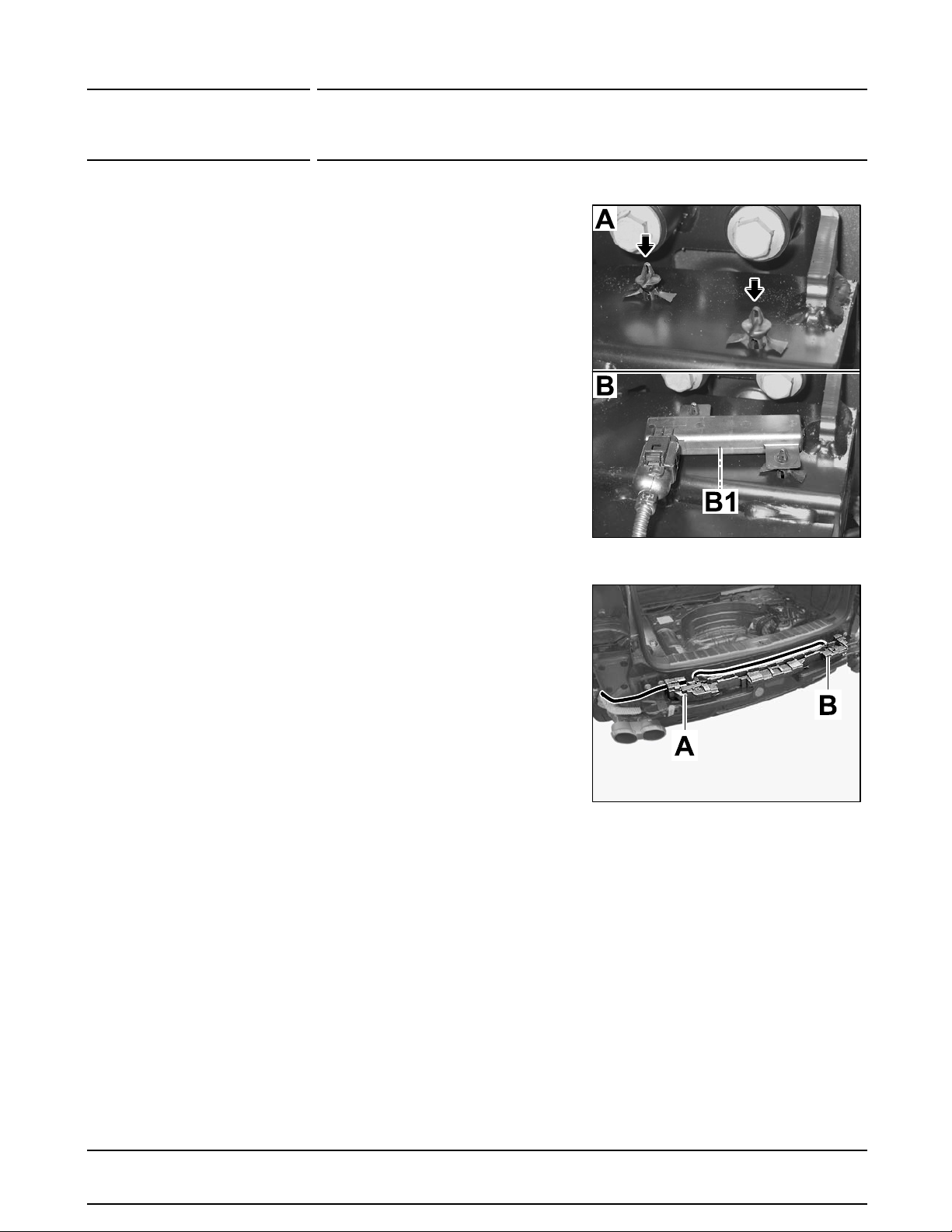

Figure 12

2.5.6 ONLY for vehicles with spare wheel

carrier and KESSY system:

Secure right KESSY antenna

⇒

Figure 12 -B1- to the trailer hitch

support using two clips

⇒

Figure

12 -A, arrows-.

Figure 13

2.5.7 ONLY for vehicles with KESSY

system:

Insert antennas and wire harness

into the foam part

⇒

Workshop

Manual ’966719 Removing and

installing antenna for KESSY/PAS -

section on "Installing"’.

Aug 15, 2007

Page 8 of 12 Tequipment 2007© Porsche Cars North America, Inc.

Technical Information Tequipment

27/07 ENU 6690 6

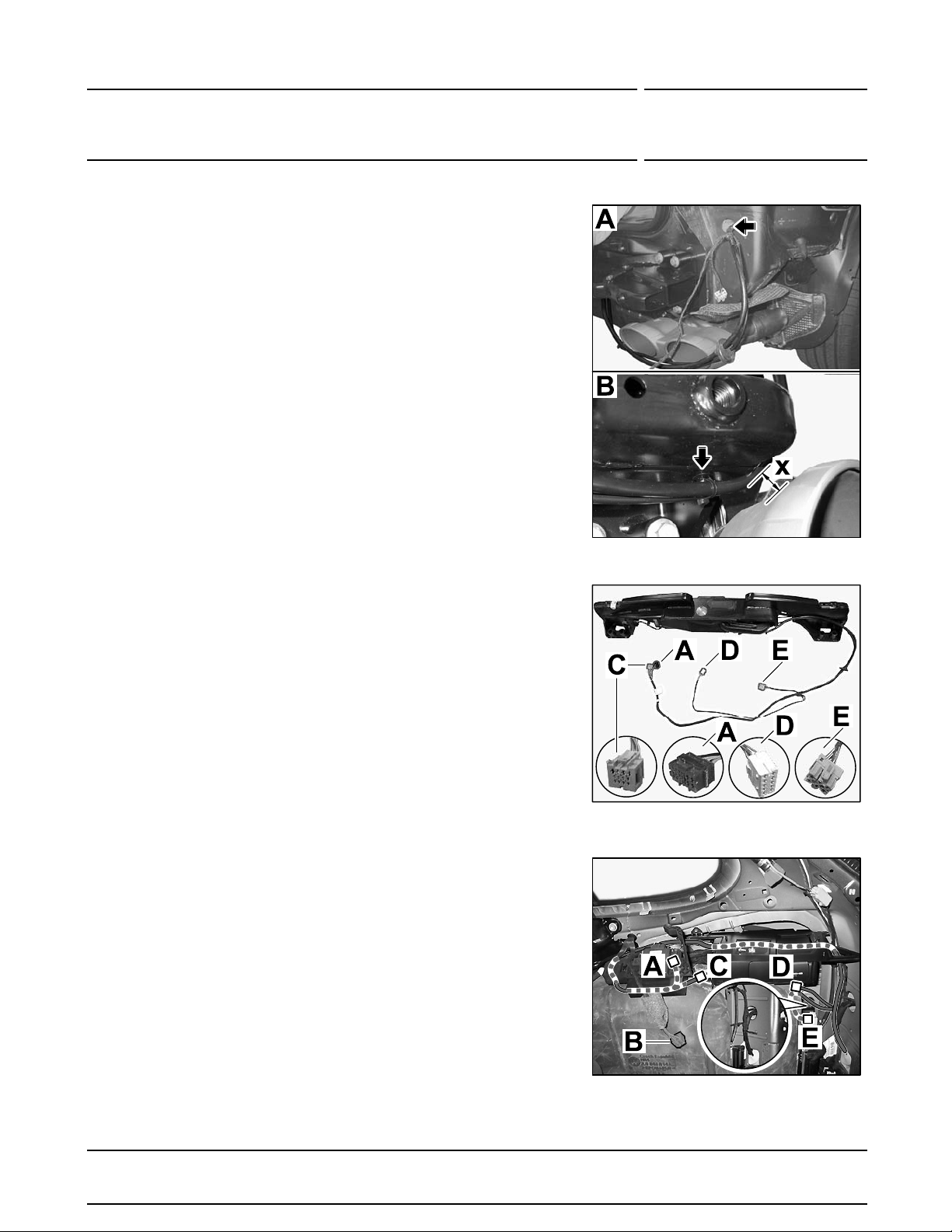

Figure 14

3 Route and connect electric wire harness.

3.1 Remove rubber sleeve from side panel and

guide all electric wire harness connectors

through the bore

⇒

Figure 14 -A, arrow- and

into the passenger compartment.

Insert pre-fitted rubber sleeve into the bore on

the body.

3.2 Guidethewireharnessintothevehicleasfar

as necessary to ensure a sufficient distance

from the trailer hitch (clip on underside

⇒

Figure 14 -B, arrow-) and from the

exhaust system

⇒

Figure 14 -B, X-.

Figure 15

3.3 Trailer hitch connection diagram

A– 16-pin connector (black) →trailer

hitch control unit, connector A

C– 12-pin connector (blue) →trailer

hitch control unit, connector C

D– 10-pin connector (white) →switch

(not for USA)

E– 6-pin connector (green) →4DR

connection point (trailer hitch prepa-

ration)

Figure 16

3.4 Route electric wire harness as follows:

Connector E (green) →connector strip for

existing wiring for trailer hitch

⇒

Figure 16

-E-;

Route wire harness from inner side panel

behind the CD autochanger and amplifier to

the control unit installation position and fix in

place.

2007© Porsche Cars North America, Inc. Tequipment Aug 15, 2007

Page 9 of 12

Tequipment

66690 ENU 27/07 Technical Information

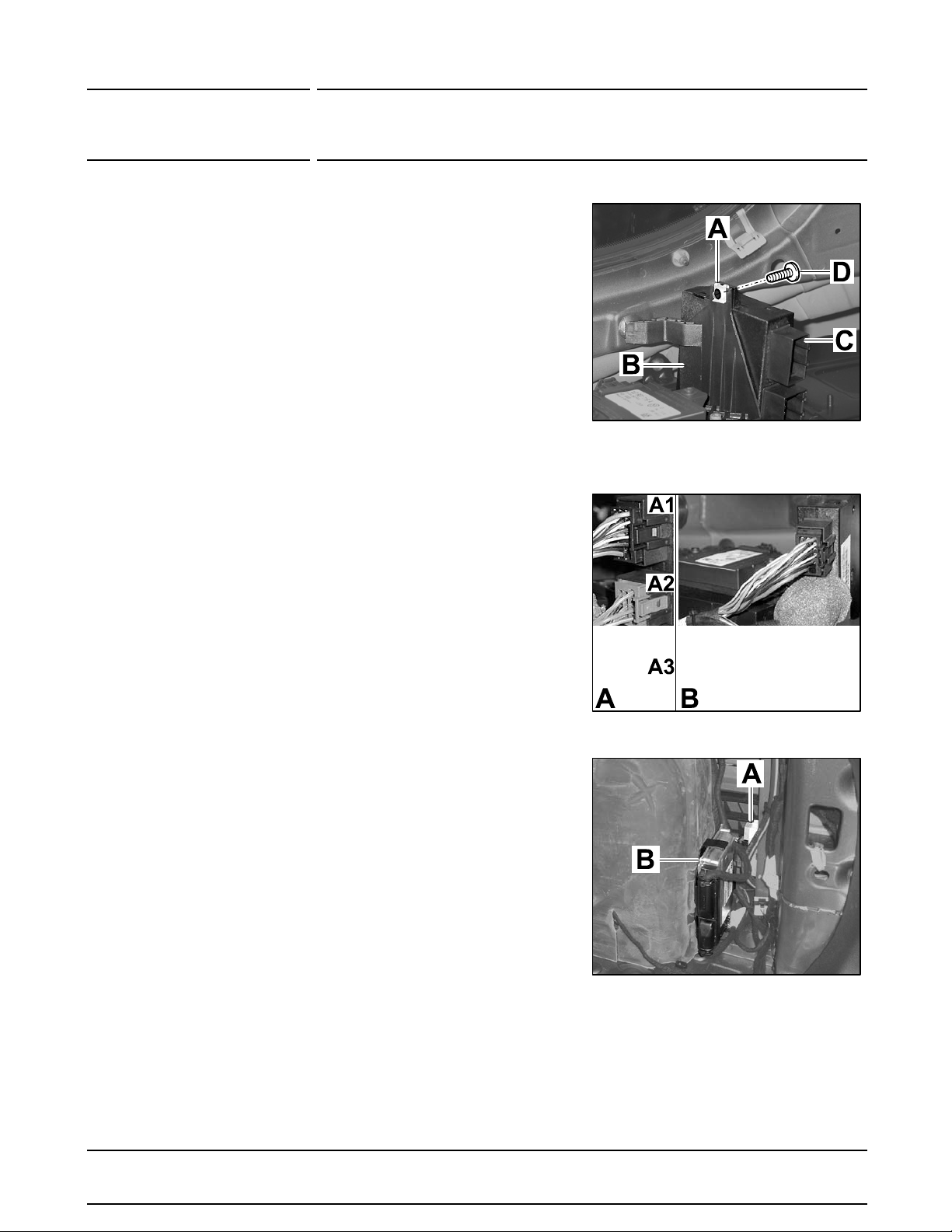

Figure 17

3.5 Install trailer hitch control unit

⇒

Workshop

Manual ’669619 Removing and installing

trailer hitch control unit - section on

"Installing"’.

3.5.1 Fit M5 sheetmetal press nut

⇒

Figure 17 -A- to the control unit

support

⇒

Figure 17 -B-.

3.5.2 Fit trailer hitch control unit

⇒

Figure

17 -C- on the control unit support

and secure with the M5 x 12 screw

⇒

Figure 17 -D-.

Tightening torque 3.5 Nm

(2.5 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)

Figure 18

3.6 Plug in connector A (black

⇒

Figure

18 -A1-)/connector B (red

⇒

Figure

18 -A2-)/connector C (blue

⇒

Figure

18 -A3-) from top to bottom on the trailer

hitch control unit.

Position foam sleeve (prevents rattles and

chafing) back over connector B

⇒

Figure

18 -B-.

Figure 19

3.7 Plug in connector E (green,

⇒

Figure 19 -A-)

on connector strip for 4DR connection point

at the top.

3.8 ONLY for vehicles with level adjustment

control unit:

Fit level adjustment control unit

⇒

Figure

19 -B-) into bracket and press clamp into

control unit support.

Aug 15, 2007

Altri manuali Porsche Accessori per automobili

Porsche

Porsche Mobile Charger Manuale utente

Porsche

Porsche Mobile Charger Plus Manuale utente

Porsche

Porsche Mobile Charger Connect Manuale utente

Porsche

Porsche Mobile Charger Plus Nota di rilascio

Porsche

Porsche Mobile Charger Connect Manuale utente

Porsche

Porsche 9Y0.915.686.A Manuale utente

Porsche

Porsche Mobile Charger Connect Manuale utente

Porsche

Porsche 997.044.901.77 Manuale utente

Porsche

Porsche Mobile Charger Manuale utente

Porsche

Porsche 7PP.971.675.AA Manuale utente

Porsche

Porsche Mobile Charger Connect Manuale utente

Porsche

Porsche Porsche Junior Seat i-Size Guida utente

Porsche

Porsche WAP0800010LWCP Istruzioni per l'installazione

Porsche

Porsche 992.044.885 Manuale utente

Porsche

Porsche Mobile Charger Connect Nota di rilascio

Porsche

Porsche 7PP.971.675.J Manuale utente

Porsche

Porsche CDR 210 Manuale utente

Porsche

Porsche USB-CDR30 Manuale utente

Porsche

Porsche Home Energy Manager Manuale utente

Porsche

Porsche 01-B Guida utente

Porsche

Porsche Connect Manuale utente

Porsche

Porsche Mobile Charger Connect Nota di rilascio

Porsche

Porsche Home Energy Manager Manuale utente

Porsche

Porsche 7PP.971.675.J Manuale utente

Manuali Accessori per automobili popolari di altre marche

James Baroud

James Baroud Odyssey Manuale utente

Motorola

Motorola i50sx Manuale utente

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuale utente

Feniex

Feniex T3 Manuale utente

Renault

Renault 77 11 423 180 Manuale utente

Kia

Kia E8300-4D000 Manuale utente

Brink

Brink 756843 Manuale utente

Whispbar

Whispbar K085W Manuale utente

v.link

v.link CI-VL2-PC-HSD Manuale utente

Viking

Viking Stack-Rack Guida rapida alla configurazione

Aries

Aries 203015 Manuale utente

Choetech

Choetech AT0005 Manuale utente

ZZ2

ZZ2 ZZAIR-PRO Manuale utente

Holman

Holman 4A80L Manuale utente

Thule

Thule 2075 Manuale utente

Motorola

Motorola T325 Manuale utente

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guida all'installazione

DV8

DV8 FBJL-02 Manuale utente
