Porter-Cable CFFC350C Manuale utente

Pancake Compressor

Instruction

manual

The Model and Serial No. plate is located on the main

housing of the tool. Record these numbers in the

spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. ______________________________________

IMPORTANT

Please make certain that the person who

is to use this equipment carefully reads

and understands these instructions before

starting operations.

Part No. A09770-051-0

ESPAÑOL: PÁGINA 23

FRANÇAISE : PAGE 45

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

MODEL

CFFC350C

CFFR350C

PROFESSIONAL POWER TOOLS

2 - ENG

A09770

SAFETY GUIDELINES - DEFINITIONS

Indicates an imminent-

ly hazardous situation

which, if not avoided, will result in death

or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, could result in

death or serious injury.

Indicates a potentially

hazardous situation

which, if not avoided, may result in minor

or moderate injury.

Used without the

safety alert symbol

indicates a potentially hazardous situation

which, if not avoided, may result in

property damage.

This manual contains information that is important for you to know and under-

stand. This information relates to protecting YOUR SAFETY and PREVENTING

EQUIPMENT PROBLEMS. To help you recognize this information, we use the

symbols below. Please read the manual and pay attention to these symbols.

IMPORTANT SAFETY INSTRUCTIONS

Some dust created by power sanding, sawing, grinding,

drilling, and other construction activities contains chemi-

cals known (to the State of California) to cause cancer, birth defects or

other reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you do

this type of work. To reduce your exposure to these chemicals: work in

a well ventilated area, and work with approved safety equipment, always

wear MSHA/NIOSH approved, properly fitting face mask or respirator when

using such tools.

When using air tools, basic safety precautions should always be followed

to reduce the risk of of personal injury.

3 - ENG A09770

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions

Improper operation or maintenance of this product could result in serious injury and

property damage. Read and understand all warnings and operation instructions before

using this equipment.

HAZARD

WARNING: Risk of explosion or fire

How To Prevent It

What Could Happen

It is normal for electrical contacts within

the motor and pressure switch to spark.

If electrical sparks from compressor

come into contact with flammable

vapors, they may ignite, causing fire or

explosion.

Restricting any of the compressor

ventilation openings will cause serious

overheating and could cause fire.

Unattended operation of this product

could result in personal injury or

property damage. To reduce the risk

of fire, do not allow the compressor to

operate unattended.

Always operate the compressor in a

well ventilated area free of combustible

materials, gasoline, or solvent vapors.

If spraying flammable materials, locate

compressor at least 20 feet away from

spray area. An additional length of hose

may be required.

Store flammable materials in a secure

location away from compressor.

Never place objects against or on top of

compressor. Operate compressor in an

open area at least 12 inches away from

any wall or obstruction that would restrict

the flow of fresh air to the ventilation

openings.

Operate compressor in a clean, dry well

ventilated area. Do not operate unit

indoors or in any confined area.

Always remain in attendance with the

product when it is operating.

Always disconnect electrical power by

moving pressure switch lever to the Off

position and drain tank daily or after

each use.

4 - ENG

A09770

WARNING: Risk of Bursting

Air Tank: The following conditions could lead to a weakening of the tank, and result

in a violent tank explosion and could cause property damage or serious injury.

How To Prevent It

What Could Happen

WARNING: Risk from Flying Objects

The compressed air stream can cause

soft tissue damage to exposed skin

and can propel dirt, chips, loose

particles, and small objects at high

speed, resulting in property damage or

personal injury.

Always wear ANSI Z87.1 approved safety

glasses with side shields when using the

compressor.

Never point any nozzle or sprayer toward

any part of the body or at other people or

animals.

Always turn the compressor Off and

bleed pressure from the air hose and tank

before attempting maintenance, attaching

tools or accessories.

HAZARD

Drain tank daily or after each use. If tank

develops a leak, replace it immediately

with a new tank or replace the entire

compressor.

Failure to properly drain condensed

water from tank, causing rust and

thinning of the steel tank.

Modifications or attempted repairs to

the tank.

Unauthorized modifications to the

unloader valve, safety valve, or any

other components which control tank

pressure.

Never drill into, weld, or make any

modifications to the tank or its

attachments.

Excessive vibration can weaken the

air tank and cause rupture or

explosion

The tank is designed to withstand specific

operating pressures. Never make

adjustments or parts substitutions

to alter the factory set operating

pressures.

For essential control of air pressure,

you must install a pressure regulator

and pressure gauge to the air outlet

(if not equipped) of your compressor.

Follow the equipment manufacturers

recommendation and never exceed the

maximum allowable pressure rating of

attachments. Never use compressor

to inflate small low pressure objects

such as children’s toys, footballs,

basketballs, etc.

ATTACHMENTS & ACCESSORIES:

Exceeding the pressure rating of

air tools, spray guns, air operated

accessories, tires, and other inflatables

can cause them to explode or fly apart,

and could result in serious injury.

How To Prevent It

What Could Happen

5 - ENG A09770

WARNING: Risk to Breathing

WARNING: Risk of Electrical Shock

HAZARD

Your air compressor is powered by

electricity. Like any other electrically

powered device, If it is not used

properly it may cause electric shock.

Repairs attempted by unqualified

personnel can result in serious injury or

death by electrocution.

Electrical Grounding: Failure to provide

adequate grounding to this product

could result in serious injury or death

from electrocution.

See grounding instructions.

Never operate the compressor outdoors

when it is raining or in wet conditions.

Never operate compressor with

protective covers removed or damaged.

Any electrical wiring or repairs required

on this product should be performed by

authorized service center personnel

in accordance with national and local

electrical codes.

Make certain that the electrical circuit

to which the compressor is connected

provides proper electrical grounding,

correct voltage and adequate fuse

protection.

The compressed air directly from your

compressor is not safe for breathing.

The air stream may contain carbon

monoxide, toxic vapors, or solid

particles from the tank. Breathing these

contaminants can cause serious injury

or death.

Sprayed materials such as paint, paint

solvents, paint remover, insecticides,

weed killers, may contain harmful

vapors and poisons.

Air obtained directly from the compressor

should never be used to supply air

for human consumption. In order to

use air produced by this compressor for

breathing, suitable filters and in-line safety

equipment must be properly installed. In-

line filters and safety equipment used in

conjunction with the compressor must be

capable of treating air to all applicable

local and federal codes prior to human

consumption.

Work in an area with good cross

ventilation. Read and follow the safety

instructions provided on the label or

safety data sheets for the materials

you are spraying. Use a NIOSH/ MSHA

approved respirator designed for use with

your specific application.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

6 - ENG

A09770

WARNING: Risk of Burns

Touching exposed metal such as the

compressor head or outlet tubes, can

result in serious burns.

Never touch any exposed metal parts

on compressor during or immediately

after operation. Compressor will remain

hot for several minutes after operation.

Do not reach around protective shrouds

or attempt maintenance until unit has

been allowed to cool.

WARNING: Risk from Moving Parts

Never operate the compressor with

guards or covers which are damaged or

removed.

Moving parts such as the pulley, flywheel,

and belt can cause serious injury if

they come into contact with you or your

clothing.

WARNING: Risk of Falling

A portable compressor can fall from

a table, workbench, or roof causing

damage to the compressor and could

result in serious injury or death to the

operator.

Always operate compressor in a stable

secure position to prevent accidental

movement of the unit. Never operate

compressor on a roof or other elevated

position. Use additional air hose to

reach high locations.

HAZARD

Any repairs required on this product

should be performed by authorized

service center personnel.

Attempting to operate compressor with

damaged or missing parts or attempting

to repair compressor with protective

shrouds removed can expose you to

moving parts and can result in serious

injury.

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

7 - ENG A09770

Review and understand all instructions

and warnings in this manual.

Become familiar with the operation and

controls of the air compressor.

Keep operating area clear of all persons,

pets, and obstacles.

Keep children away from the air

compressor at all times.

Do not operate the product when fatigued

or under the influence of alcohol or

drugs. Stay alert at all times.

Never defeat the safety features of this

product.

Equip area of operation with a fire

extinguisher.

Do not operate machine with missing,

broken, or unauthorized parts.

WARNING: Risk of Unsafe Operation

Unsafe operation of your air compressor

could lead to serious injury or death to

you or others.

HAZARD

WARNING: Risk of Serious Injury or Property Damage When

Transporting Compressor

Oil can leak or spill and could result

in fire or breathing hazard; serious

injury or death can result. oil leaks will

damage carpet, paint or other surfaces

in vehicles or trailers.

Always place COMPRESSOR on a

protective mat when transporting to

protect against damage to vehicle from

leaks. Remove COMPRESSOR from

vehicle immediately upon arrival at your

destination.

(Fire, Inhalation, Damage to Vehicle Surfaces)

HAZARD

SAVE THESE INSTRUCTIONS

How To Prevent It

What Could Happen

How To Prevent It

What Could Happen

8 - ENG

A09770

GLOSSARY

DUTY CYCLE

Accessories for this unit are available at the store the unit was purchased.

ACCESSORIES

Become familiar with these terms

before operating the unit.

CFM: Cubic feet per minute.

SCFM: Standard cubic feet per

minute; a unit of measure of air

delivery.

PSIG: Pounds per square inch

gauge; a unit of measure of pressure.

Code Certification: Products that

bear one or more of the following

marks: UL, CUL, ETL, CETL, have

been evaluated by OSHA certified

independent safety laboratories and

meet the applicable Underwriters

Laboratories Standards for Safety.

Cut-In Pressure: While the motor

is Off, air tank pressure drops as

you continue to use your accessory.

When the tank pressure drops to a

certain low level the motor will restart

automatically. The low pressure at

which the motor automatically restarts

is called "cut-in" pressure.

Cut-Out Pressure: When an air

compressor is turned on and begins

to run, air pressure in the air tank

begins to build. It builds to a certain

high pressure before the motor

automatically shuts Off - protecting

your air tank from pressure higher

than its capacity. The high pressure

at which the motor shuts Off is called

"cut-out" pressure.

Branch Circuit: Circuit carrying

electricity from electrical panel to

outlet.

This air compressor pump is capable

of running continuously. However, to

prolong the life of your air compressor,

it is recommended that a 50%-75%

average duty cycle be maintained; that

is, the air compressor pump should

not run more than 30-45 minutes in

any given hour.

SPECIFICATIONS

Model No. CFFC350C / CFFR350C

Running Horsepower 1.6

Bore 2.375"

Stroke 1.35"

Voltage-Single Phase 120/60/1

Minimum Branch Circuit Requirement 15 amps

Fuse Type Time Delay

Air Tank Capacity (Gallon) 4

Approximate Cut-in Pressure 110 PSIG

Approximate Cut-out Pressure 135 PSIG

SCFM @ 40 PSIG 7.7

SCFM @ 90 PSIG 5.3

9 - ENG A09770

ASSEMBLY

Unpacking

1. Remove unit from carton and discard all packaging.

IMPORTANT: The outlet being used

must be installed and grounded in

accordance with all local codes and

ordinances.

2. Make sure the outlet being used

has the same configuration as

the grounded plug. DO NOT USE

AN ADAPTER. See illustration.

3. Inspect the plug and cord before

each use. Do not use if there are

signs of damage.

4. If these grounding instructions

are not completely understood,

or if in doubt as to whether the

compressor is properly grounded,

have the installation checked by

a qualified electrician.

Risk of Electrical

Shock. IMPROPER

GROUNDING CAN RESULT IN

ELECTRICAL SHOCK.

Do not modify the plug provided. If

it does not fit the available outlet,

a correct outlet should be installed

by a qualified electrician.

Repairs to the cord set or plug

MUST be made by a qualified

electrician.

GROUNDING INSTRUCTIONS

Risk of Electrical

Shock. In the event

of a short circuit, grounding reduces

the risk of shock by providing an

escape wire for the electric current.

This air compressor must be

properly grounded.

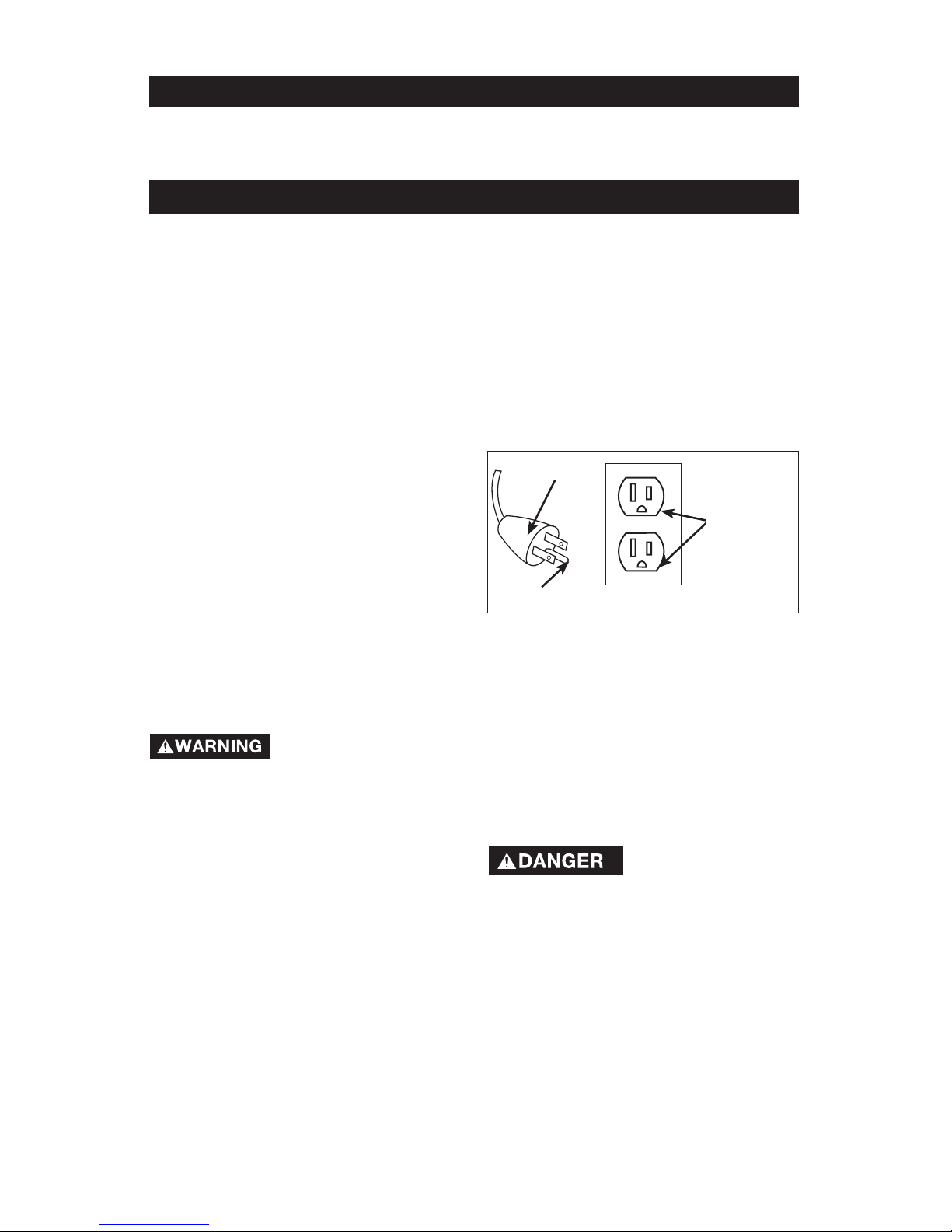

The portable air compressor is

equipped with a cord having a

grounding wire with an appropriate

grounding plug (see following

illustrations).

1. The cord set and plug with this

unit contains a grounding pin.

This plug MUST be used with a

grounded outlet.

INSTALLATION

HOW TO SET UP YOUR UNIT

Grounding Pin

Grounded

Outlets

Plug

Location of the Air Compressor

• Locate the air compressor in a

clean, dry and well ventilated

area.

• The air compressor should be

located at least 12" away from

the wall or other obstructions that

will interfere with the flow of air.

• The air compressor pump and

shroud are designed to allow for

proper cooling. The ventilation

openings on the compressor are

necessary to maintain proper

operating temperature. Do not

place rags or other containers on

or near these openings.

Lubrication and Oil

This unit needs no lubrication or oiling.

10 - ENG

A09770

Extension Cords

Using extension cords is not

recommended. The use of extension

cords will cause voltage to drop

resulting in power loss to the motor

and overheating.

Instead of using an extension cord,

increase the working reach of the

air hose by attaching another length

of hose to its end. Attach additional

lengths of hose as needed.

If an extension cord must be used, be

sure it is:

• a 3-wire extension cord that has

a 3-blade grounding plug, and a

3-slot receptacle that will accept

the plug on the product

• in good condition

• no longer than 50 feet

• 12 gauge (AWG) or larger. (Wire

size increases as gauge number

decreases. 10 AWG and 8 AWG

may also be used. DO NOT USE

14 OR 16 AWG.)

Voltage and Circuit Protection

Refer to the specification chart for the

voltage and minimum branch circuit

requirements.

Certain air

compressors can

be operated on a 15 amp circuit if

the following conditions are met.

1. Voltage supply to circuit must

comply with the National

Electrical Code.

2. Circuit is not used to supply any

other electrical needs.

3. Extension cords comply with

specifications.

4. Circuit is equipped with a 15 amp

circuit breaker or 15 amp time

delay fuse. NOTE: If compressor

is connected to a circuit

protected by fuses, use only time

delay fuses. Time delay fuses

should be marked "D" in Canada

and "T" in the US.

If any of the above conditions

cannot be met, or if operation of

the compressor repeatedly causes

interruption of the power, it may be

necessary to operate it from a 20 amp

circuit. It is not necessary to change

the cord set.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Porter-Cable compressore d'aria

Porter-Cable

Porter-Cable CPFC2TV3525VP Manuale utente

Porter-Cable

Porter-Cable C2002 Manuale utente

Porter-Cable

Porter-Cable CFFN250N Manuale utente

Porter-Cable

Porter-Cable CPFAC2040P Manuale utente

Porter-Cable

Porter-Cable 888970-799 Manuale utente

Porter-Cable

Porter-Cable 1000003754 Manuale utente

Porter-Cable

Porter-Cable J0B BOSS C3151 Manuale utente

Porter-Cable

Porter-Cable PXCM201 Manuale utente

Porter-Cable

Porter-Cable C2002 Manuale utente

Porter-Cable

Porter-Cable CPLDC2541S Manuale utente

Porter-Cable

Porter-Cable PXCMF226VW Manuale utente

Porter-Cable

Porter-Cable CLFRP350 Manuale utente

Porter-Cable

Porter-Cable CPLC7060V Manuale utente

Porter-Cable

Porter-Cable CPLMC7580V2C Manuale utente

Porter-Cable

Porter-Cable C2555 Manuale utente

Porter-Cable

Porter-Cable 1000001703 Manuale utente

Porter-Cable

Porter-Cable C5101 Manuale utente

Porter-Cable

Porter-Cable C2550 Manuale utente

Porter-Cable

Porter-Cable CPLDC2541S Manuale utente

Porter-Cable

Porter-Cable PXCMF220VW Manuale utente

Porter-Cable

Porter-Cable C7550 Manuale utente

Porter-Cable

Porter-Cable C2002 Manuale utente

Porter-Cable

Porter-Cable C2150 Manuale utente

Porter-Cable

Porter-Cable C2002 Manuale utente

Manuali compressore d'aria popolari di altre marche

Sparmax

Sparmax DC-25XR Manuale utente

KAESER

KAESER M122 Manuale utente

GMC

GMC GAC1500 Manuale utente

Briggs & Stratton

Briggs & Stratton Air Compressor Manuale utente

Fini

Fini F3GST2TK Manuale utente

Industrial Air

Industrial Air CP1580325 Manuale di programmazione

Campbell Hausfeld

Campbell Hausfeld RP3300 Guida rapida

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuale utente

Hitachi

Hitachi EC99S Manuale dell'operatore

Parkside

Parkside PKO 270 A1 Manuale utente

Sullair

Sullair 185 Manuale utente

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuale utente

Ferm

Ferm CRM1046 Manuale utente

BE AC153 Manuale utente

RIDGID

RIDGID OF25150A Manuale utente

Johnson Controls

Johnson Controls QUANTUM LX Manuale

Sears

Sears Craftsman 919.167463 Manuale utente

Ring Automotive

Ring Automotive RAC700 Manuale utente
