Porter-Cable RN175 Manuale utente

ROOFING COIL

NAILER

Instruction

manual

The Model and Serial No. plate is located on the main

housing of the tool. Record these numbers in the

spaces below and retain for future reference.

Model No. ______________________________________

Type ___________________________________________

Serial No. _______________________________________

IMPORTANT

Please make certain that the person who is

to use this equipment carefully reads and

understands these instructions before

starting operations.

Part No. 904461 - 09-04-02

ESPAÑOL: PÁGINA 13

FRANÇAISE : PAGE 25

To learn more about Porter-Cable

visit our website at:

http://www.porter-cable.com

MODEL RN175

904461 - 09-04-02.qxd 9/23/02 8:20 AM Page 1

Matthew G. Popik

Vice President of Engineering

PORTER

✦✦

CABLE

Porter-Cable Corporation

4825 Highway 45 North

Jackson, TN 38305

Date of Manufacture:___________________________

Fecha de fabricación:, Date de fabrication:

Serial No:______________________________________

Número de serie:, Nombre d'ordre

ENGLISH

EC-DECLARATION OF

CONFORMITY

We declare under our sole

responsibility that this product is in

conformity with the regulations

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

ESPANOL

DECLARACION DE

CONFORMIDAD ”CE”

Declaramos bajo nuestra sola

responsabilidad que est e producto está en

conformidad con las regulaciones

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

FRANÇAISE

DÉCLARATION DE CONFORMITÉ CE

Nous declarons sous notre propre

responsabilite que ce produit est conforme

aux reglementations

EN292-2: section 3 of 1992

EN292-1: section 5 of 1992

EN1050: 1993

EN792 13: 2000

904461 - 09-04-02.qxd 9/23/02 8:20 AM Page 2

GENERAL SAFETY RULES

DANGER: When using pneumatic tools, basic safety precautions

should always be followed to reduce the risk of personal injury, including

the following:

READ AND FOLLOW ALL INSTRUCTIONS.

There are certain applications for which this tool was designed. Porter-Cable

strongly recommends that this tool NOT be modified and/or used for any

application other than for which it was designed. If you have any questions

relative to its application DO NOT use the tool until you have written Porter-

Cable and we have advised you.

Technical Service Manager

Porter-Cable Corporation

4825 Highway 45 North

Jackson, TN 38305

Fig. 1

Fig. 2

Fig. 3

Fig. 4

1. Read and understand tool labels and

manual. Failure to follow warnings could

result in DEATH or SERIOUS INJURY. Fig. 1.

2.Operator and others in work area MUST

wear safety glasses with side shields.

These safety glasses must conform to ANSI

Z87.1 requirements (approved glasses have

“Z87” printed or stamped on them). Fig. 2.

3. Keep fingers AWAY from trigger when

not driving fasteners to avoid accidental

firing.

4. Choice of triggering method is

important. Check manual for selectable

triggering instructions. See Using the Tool

with Selectable Triggering Options section

of this manual.

5. Never point tool at yourself or others

in work area. Fig. 3

6. Never use oxygen or other bottled

gasses. Explosion may occur. Never use

combustible gases or any other reactive

gas as a power source for this tool:

explosion and serious personal injury could

result. Fig. 3 & Fig. 4.

904461 - 09-04-02.qxd 9/23/02 8:21 AM Page 3

7. Wear ear protection to safe-guard

against possible hearing loss. Fig. 5.

8. Use clean, dry, regulated, com-

pressed air at 70 to 120 PSI, (4.8 to 8.3

BAR). Fig. 6.

9. Do not connect tool to pressure which

potentially exceeds 200 PSI (13.7 BAR).

10. Only use air hose that is rated for a

maximum working pressure of at least 150

PSI (10.3 BAR) or 150% of the maximum

system pressure, which ever is greater.

11. Connect tool to air supply hose with a

coupling that automatically removes all

pressure from the tool when the coupling is

disconnected. Fig. 7.

12. Disconnect tool from air supply hose

before doing tool maintenance, clearing a

jammed fastener, leaving work area, moving

tool to another location, or handing the tool

to another person. Fig. 7.

13. Never use a tool that is leaking air, has

missing or damaged parts, or requires

repair. Make sure all screws and caps are

securely tightened. Fig. 8.

14. Never use tool if safety, trigger or

springs are inoperable, missing or

damaged. Do not alter or remove safety,

trigger, or springs. Make daily inspections

for free movement of trigger and safety

mechanism. Fig. 8.

15. Do not use tool without safety

warning label. If label is missing, damaged

or unreadable, contact your Porter-Cable

Service Center for a replacement. Fig. 9.

16. Only use parts, fasteners and

accessories approved by Porter-Cable.

17. Connect tool to air supply before

loading fasteners, to prevent a fastener

from being fired during connection. The tool

driving mechanism may cycle when tool is

connected to the air supply. Fig. 10.

18. Always assume the tool contains

fasteners. No horseplay. Respect the tool

as a working implement. Fig. 11.

19. Operator and bystanders wear hard hat

to safeguard against possible injuries. Fig.

12.

20. Do not load fasteners with trigger or

safety depressed, to prevent unintentional

firing of a fastener. Fig. 13

21. Remove finger from trigger when not

driving fasteners. Never carry tool with finger

on trigger. In “Contact Actuation Mode” tool

will fire a fastener if safety is bumped while

trigger is depressed. Fig. 14.

Fig. 8

Fig. 9

Fig. 10

Fig. 7

Fig. 6

Fig. 5

904461 - 09-04-02.qxd 9/23/02 8:21 AM Page 4

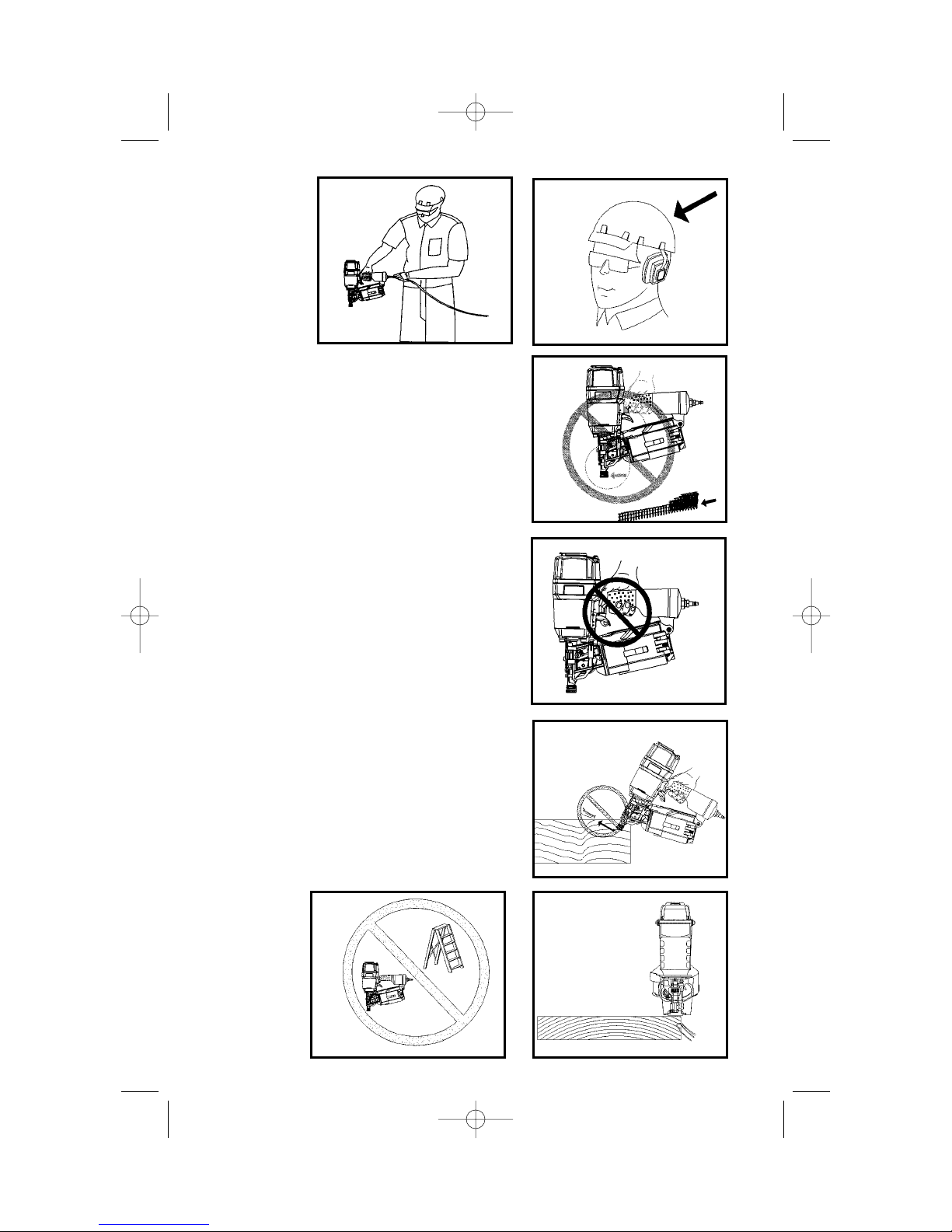

22. Do not overreach. Keep proper footing

and balance at all times when using or

handling the tool.

23. Fire fasteners into work surface only:

never into materials too hard to penetrate.

Fig. 15.

24. Grip tool firmly to maintain control

while allowing tool to recoil away from

work surface as fastener is driven. In

“Contact Actuation Mode” if safety element

is allowed to recontact work surface before

trigger is released an unwanted fastener will

be fired.

25. Do not drive fasteners on top of other

fasteners, or with the tool at too steep an

angle: the fasteners can ricochet causing

personal injury. Fig. 15.

26. Do not drive fasteners close to the

edge of the workpiece. The workpiece is

likely to split allowing the fastener to fly free

or ricochet causing personal injury. Fig. 16.

27. FOR CONTACT ACTUATION MODE

ONLY, Do not use on scaffoldings or

ladders or for tasks in which changing

location involves the use of scaffoldings,

stairs, ladders, and the like. Do not use for

specific tasks such as closing boxes or

crates or fitting transportation safety

systems on vehicles and wagons. Fig. 17.

Fig. 14

Fig. 15

Fig. 16

Fig. 17

Fig. 11

Fig. 13

Fig. 12

904461 - 09-04-02.qxd 9/23/02 8:23 AM Page 5

EMPLOYER’S RESPONSIBILITIES

DANGER: Employer must enforce compliance with the safety warnings

and all other instructions contained in this manual.

Keep this manual available for use by all people assigned to use this tool.

For personal safety and proper operation of this tool, read and understand

tool labels and manual. Failure to follow warnings could result in DEATH or

SERIOUS INJURY. Read and follow all of these instructions carefully.

FUNCTIONAL DESCRIPTION

FOREWORD

Porter-Cable Model RN175 is a heavy duty, coil fed, pneumatic roofing

nailer. It is designed to install .120" diameter, 15° wire collated roofing nails

of various lengths from 7/8" to 13/4" long.

WARNING: Use approved Porter-Cable fasteners only.

POWER SOURCE

This tool is designed to operate on clean, dry, compressed air at regulated

pressures between 70 and 120 PSI (Pounds per Square Inch)

(4.8 to 8.3 BAR)

The preferred system would include a filter, a pressure regulator, and an

automatic oiler located as close to the tool as possible, within 15 ft/4.6 m is

ideal.

All compressed air contains moisture and other contaminates that are

detrimental to internal components of the tool. An air line filter will remove

most of these contaminates and significantly prolong the life of the tool. If an

in-line oiler is not available: place five or six drops of Porter-Cable Air Tool Oil

into the tool’s air inlet at the beginning of each workday.

The tool is equipped with a

" male “quick connector”. A

" male “quick

connector” is available from Porter-Cable and may be used in situations where

" supply line is not available. A

" supply line (and fittings) are required for

maximum tool performance. The tool must always be connected to the air

supply with a coupling such that all pressure is removed from the tool when the

coupling is disconnected.

DANGER: All air line components (hoses, connectors, filters, regulators,

etc.) must have a minimum working pressure rating of at least 150 PSI

(10.3 BAR) or 150% of maximum system potential, whichever is

greater

Do not connect tool to pressure which potentially exceeds 200 PSI

(13.7 BAR).

Only connect tool to air supply hose with a coupling that

automatically removes all pressure from the tool when the coupling

is disconnected.

Disconnect tool from air supply before performing maintenance,

clearing a jammed fastener, leaving work area, moving tool to

another location, or handing the tool to another person.

TECHNICAL SPECIFICATIONS

Noise level . . . . . . . . . . . . . . . . . . Typical Mean

A - Weighted sound impulse . . . effective Acceleration . . . 2.54 m/s2

power level . . . . . . 95.9 dBA

P - Emission sound pressure

pressure level . . . . 89.9 dBA

904461 - 09-04-02.qxd 9/23/02 8:23 AM Page 6

Fig. 19

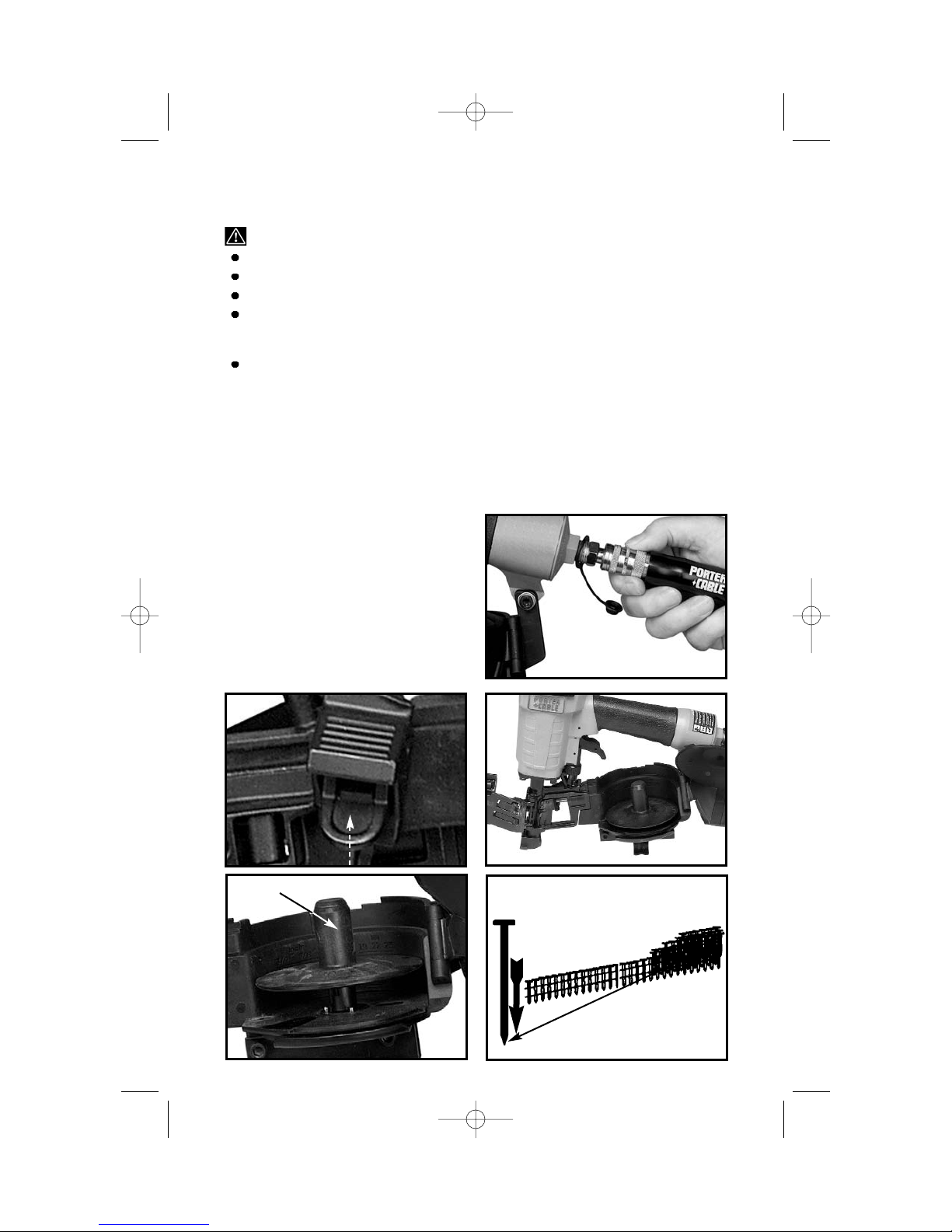

PREPARING THE TOOL

1. After reading and understanding this entire manual, connect tool to

air supply (Fig. 18).

DANGER: Never point tool at yourself or others in work area.

Always connect tool to air supply before loading fasteners (Fig. 18).

Do not load fasteners with trigger or safety depressed.

Only use approved Porter-Cable fasteners.

Operator and others in work area MUST wear safety glasses with side

shields. Always wear ANSI Z87.1 approved safety glasses, and hearing

protection when preparing or operating the tool.

Never use a tool that is leaking air, has missing or damaged parts, or

requires repair.

2. Lift latch (A) Fig. 19, open feeder cover and magazine cover (see Fig. 20).

3. Adjust nail support (B) Fig. 21, for desired nail length: the nail support

can be lifted and rotated to three different positions that provide support for

different length roofing nails. The lowest position is used for 13/4" nails, the

center position is used for 11/4" and 11/2" nails, and the upper position is used

for 7/8" and 1" nails. Note: 3/4"nails are not available for this tool.

4. Observe fastener icon (A) Fig. 21A.

Insert fasteners (B) with points down.

IMPORTANT: Fasteners must point

in the same direction as they will be

driven.

5. Remove retainer from a coil of

roofing nails, uncoil approximately 3"

of nails, and position coil onto nail

support with the second nail (A) Fig.

22 in the feed fingers.

Fig. 20

Fig. 18

Fig. 21

Fig. 21A

904461 - 09-04-02.qxd 9/23/02 8:23 AM Page 7

6. Close magazine cover, close and latch feeder cover (see Fig. 23).

7. Adjust directional exhaust deflector (A) Fig. 24, so that the exhaust air

blast will be directed away from the operator. The exhaust deflector provides

seven detented positions for directing the exhaust blast away from the

operator. Grasp the deflector and rotate it to the desired position for the

current application. Note: Non-skid pads (B) Fig. 24 help keep the tool from

sliding off the roof.

8. Adjust shingle guide (C) Fig. 25, by loosening the retaining screw (D) and

sliding the shingle guide to desired position. Tighten retaining screw firmly.

The shingle guide can be used as an aid in positioning the shingle to be

nailed a specific distance (D) Fig. 26 from the front edge of the previous row

of shingles (R) as shown.

Fig. 22

Fig. 24

Fig. 23

Fig. 25

Fig. 26

904461 - 09-04-02.qxd 9/23/02 8:24 AM Page 8

OPERATING INSTRUCTIONS

USING THE TOOL WITH SELECTABLE TRIGGERING OPTIONS

Complete all steps of PREPARING THE TOOL before using the tool.

This tool is shipped from the factory with a selectable trigger set in the

“SINGLE SEQUENTIAL ACTUATION” firing mode as described in number 1

below. The selectable trigger can be set for the “CONTACT ACTUATION”

firing mode as described in number 2 below;

1. To use the tool in the SINGLE SEQUENTIAL ACTUATION MODE

depress trigger lever pivot pin (A) Fig. 27, rotate arrow to position (B), and

release. Note: Trigger lever pivot pin is spring loaded and held in position by

locking tab (D) Fig. 27 to prevent movement during operation. To fire, grip

tool firmly to maintain control, position nose of tool onto work surface, push

tool firmly against work surface to depress safety, and then squeeze

trigger to fire a fastener, as shown at (S) Fig. 27A. This “single

sequential actuation” method provides the most accurate fastener

placement.

-OR-

2. To use the tool in the CONTACT ACTUATION MODE depress trigger

lever pivot pin (A) Fig. 27, rotate arrow to position (C), and release. Note:

Trigger lever pivot pin is spring loaded and held in position by locking tab (D)

Fig. 27 to prevent movement during operation. To fire, grip tool firmly to

maintain control, squeeze and hold trigger, push tool firmly against work

surface to depress contact safety and fire a fastener, as shown at (S)

Fig. 27A. Allow tool to recoil away from work surface as fastener is driven. If

safety element is allowed to recontact work surface before trigger is released

an unwanted fastener will be fired. The tool will fire a fastener each time the

contact safety is depressed. This method is known as “contact actuation”

and allows very fast repetitive fastener placement.

Fig. 27A

Fig. 27

IMPORTANT: A“single sequential actuation” trigger, which will limit the

tool to method number 1 only, is available free-of-charge by calling 1-800-

321-9443 in the United States and Canada or 001-731-660-9374 outside the

United States and Canada, and providing tool model number, type, serial

number, etc. For identification purposes: the single sequential actuation

trigger is red.

904461 - 09-04-02.qxd 9/23/02 8:24 AM Page 9

DANGER: Keep fingers AWAY from trigger when not driving

fasteners to avoid accidental firing. Never carry tool with finger on

trigger: tool will fire a fastener if safety is bumped.

Never point tool at yourself or others in work area.

Never attempt to drive a fastener into material that is too hard, or at

too steep an angle, or near the edge of the workpiece. The fastener

can ricochet causing personal injury.

WARNING: Disconnect tool from air supply before performing

maintenance, clearing a jammed fastener, leaving work area,

moving tool to another location, or handing the tool to another

person.

WARNING: Clean and inspect tool daily. Carefully check for proper

operation of trigger and safety mechanism. Do Not use the tool

unless both the trigger and the safety mechanism are functional, or

if the tool is leaking air or needs any other repair.

The depth to which a fastener is driven is controlled by the depth adjustment

knob (A) Fig. 28. The depth of drive is factory adjusted to a nominal setting.

Test fire a fastener and check depth. If a change is desired, rotate the knob

(A) Fig. 28 clockwise to increase the depth of drive, rotate the knob

counterclockwise to decrease the depth of drive. The adjustment knob has

detents every 1/4turn. Test fire another fastener and check depth. Repeat as

necessary to achieve desired results.

The amount of air pressure required

will vary depending on the size of the

fastener and the material being

fastened. Experiment with the air

pressure setting to determine the

lowest setting that will consistently

perform the job at hand. Air pressure

in excess of that required can cause

premature wear and/or damage to

the tool.

CLEARING A JAMMED FASTENER

1. WARNING: Disconnect tool from air supply.

2. Open feeder cover and magazine cover. Remove any remaining fasteners

from the nailer.

3. Use a slender, soft steel rod to move the driver blade to its uppermost

position. Use needle nose pliers to

remove the jammed fastener (see

Fig. 29).

4. Follow instructions in

PREPARING THE TOOL to reload

fasteners.

5. Close the feeder cover, and

magazine cover, and secure with the

latch (See Fig. 23).

Fig. 28

Fig. 29

904461 - 09-04-02.qxd 9/23/02 8:24 AM Page 10

Indice

Altri manuali Porter-Cable Utensili elettrici

Porter-Cable

Porter-Cable PC1500HGA Manuale utente

Porter-Cable

Porter-Cable 7403 Manuale utente

Porter-Cable

Porter-Cable PCCE720 Manuale utente

Porter-Cable

Porter-Cable 17-925 Manuale utente

Porter-Cable

Porter-Cable 290 Manuale utente

Porter-Cable

Porter-Cable 513 Manuale utente

Porter-Cable

Porter-Cable PTH1 Manuale utente

Porter-Cable

Porter-Cable PCE345-CA Manuale utente

Porter-Cable

Porter-Cable 1700 Manuale utente

Porter-Cable

Porter-Cable PCC510 Manuale utente

Porter-Cable

Porter-Cable PXCM024-0270 Manuale utente

Porter-Cable

Porter-Cable 7403 Manuale utente

Porter-Cable

Porter-Cable 7518 Manuale utente

Porter-Cable

Porter-Cable 557 Manuale utente

Porter-Cable

Porter-Cable PCCF920 Manuale utente

Porter-Cable

Porter-Cable COIL250 Manuale utente

Porter-Cable

Porter-Cable NS100A Manuale utente

Porter-Cable

Porter-Cable PCCF930 Manuale utente

Porter-Cable

Porter-Cable 697839-8810 Manuale utente

Porter-Cable

Porter-Cable 6603 Manuale utente

Porter-Cable

Porter-Cable 450 Manuale utente

Porter-Cable

Porter-Cable PCE6430 Manuale utente

Porter-Cable

Porter-Cable 890 Series Manuale utente

Porter-Cable

Porter-Cable PCC650 Manuale utente

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
