1. WINCH/PULLEY LOCATION. Placements of the winch and hoist pulley are critical to ensure the proper and safe folding

operation of the backstop. Refer to the backstop installation drawing(s) provided with this project for all dimensional data

parameters.

A. When the unit is in the "UP" (stored) position, the cable tie-off at the mast must be directly below the pulley sheave. Failure

to do so will place additional lateral loads on the superstructure. See Illustration 1.

B. The pulley is to be located on the

exact centerline of the backstop

mast as indicated on the backstop

installation drawings. Refer to

Pages 26 and 27 in the Basketball

Backstop Installation Manual for

complete cable tie-off details.

C. To avoid excessive wear on the

pulley sheave and chafing of the

cable against previous wraps on

the drum, the sheave is ideally

located on the centerline of the

drum. HOWEVER, if the cable

does not wind evenly on the drum,

the winch may be offset slightly

from the sheave centerline to

obtain an even wrap on the drum.

See Illustration 2.

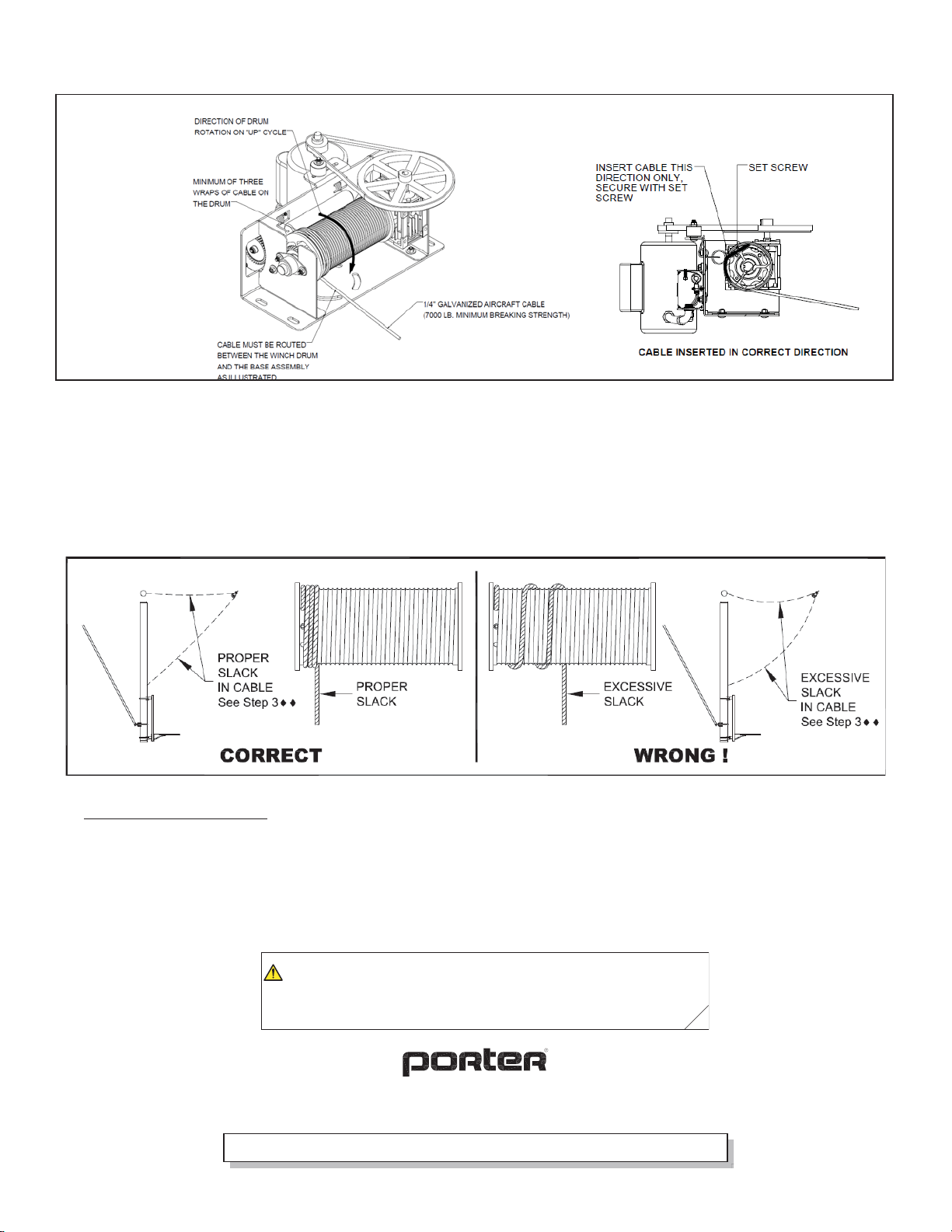

2. SECURING CABLE TO THE WINCH DRUM. Route plain end of cable through hole in the

winch drum and secure with set screw. Note that cable must be taped before cutting to prevent the

cable end from fraying. Be sure to route cable in the UNDERWIND direction as detailed in

Illustration 3. THERE MUST BE A MINIMUM OF THREE (3) WRAPS OF CABLE ON

THE DRUM WITH THE BACKSTOP IN THE "DOWN" POSITION.

CORRECT

Illustration 1

WRONG ! WRONG !

INST 00226 230HT

Illustration 3

3. LIMIT SWITCH SETTINGS. Refer to the limit switch adjustment instructions provided with the winch. It is critical that both

the upper and lower limits be set carefully. The upper limit will prevent the unit from contacting the overhead structure. The

lower limit is as critical, and must be set to prevent excessive slack in the cable. By allowing too much slack, the cable can

"uncoil" around the drum, thereby rewinding with uneven wraps and "exceeding" the upper limit by having additional wraps on

the drum. See Illustration 4.

iiASLIGHT amount of slack in the hoist cable is mandatory when the backstop is in the down position. However, an excessive

amount of slack will allow the cable to wrap incorrectly on the drum. To properly set cable slack, allow approximately one

second of delay after the backstop fully seats in the playing position, before the down limit switch shuts the down cycle off. See

Illustration 4.

4. The use of Porter winches on products other than basketball backstops, overhead volleyball systems, and divider curtains is

EXPRESSLY PROHIBITED.

5. Substitution of the Porter key switch with anything besides Porter Powr-Touch systems will void all warranties, and will render

the operation of the backstops/curtains unsafe.

6. The key switch or controller must be mounted in a location so that the equipment it is controlling is in full view of the operator.

601 Mercury Drive, Champaign, IL U.S.A. 61822

www.porterathletic.com

(888) 277-7778

THIS WARNING IS GIVEN IN COMPLIANCE

WITH CALIFORNIA’S PROPOSITION 65:

WARNING

This product contains chemicals known to the

State of California to cause cancer, birth defects

or other reproductive harm.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

Illustration 4

WARNING: This product can expose you to Titanium Dioxide,

which is known to the State of California to cause cancer.

For more information go to www.p65warnings.ca.gov.

INST 00226 230HT

TAB ON LOCK

GUIDE PLATE

MUST BE SEATED

IN A NOTCH ON

BOTH TRAVELING

NUTS

Detail "B"

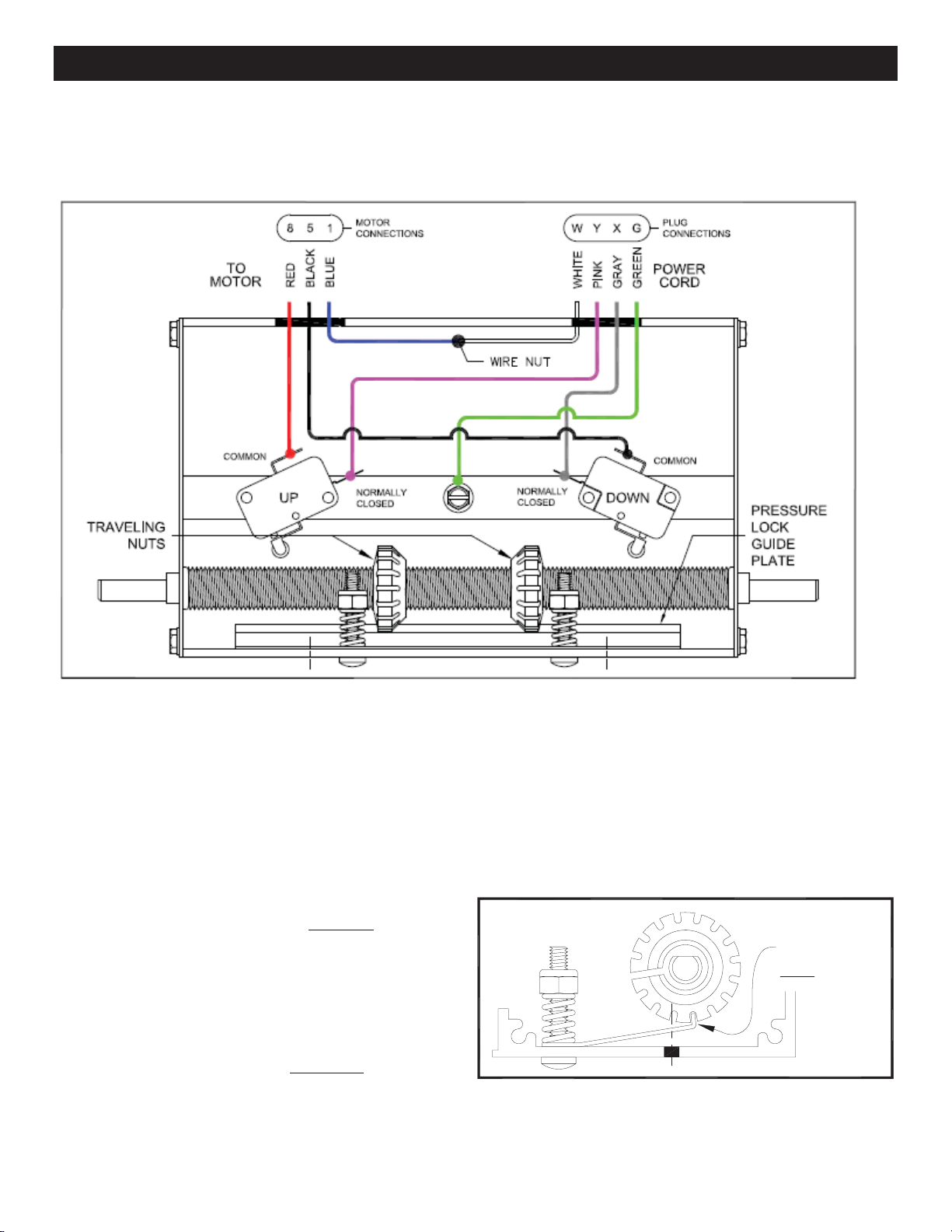

ADJUSTMENT INSTRUCTIONS

OTARY

OUNTING

IMIT

WITCH

For 713220HT Backstop Winches

1. Check to ensure that cable is wrapped on winch drum in proper direction per the winch instructions. See Page 2 of the Electric

Winch Installation instructions.

2. Check to ensure there are a minimum of three wraps of cable on the winch drum.

3. Check to ensure that cable length is allowed for optional cable retractor reel or flex-cord as used on forward-fold units, such as

model numbers 517, 617, 917 and 1417 backstops.

4. Check to ensure that the hardware that secures the micro switches in the box is fully tightened. IT WILL NOT BE POSSIBLE

TO MOVE THESE SWITCHES – all adjustments will be made by moving the traveling nuts left or right, as in Steps No. 5 and 7.

5. Depress the pressure lock guide plate down (use fingers

only – use no tools) and turn the right-hand traveling nut

until the "DOWN" limit switch engages (listen for the click)

– See Detail "A". Check to ensure that the tab on the

pressure lock guide plate engages a notch in the traveling

nut – See Detail "B".

6. Using the "UP" key in the key switch (or using a field test

cord), raise the backstop to the desired storage position.

IMPORTANT NOTE – Allow a MINIMUM of 8" clearance

to any overhead structure, ceiling, lights, or other

equipment.

INST 00226 230HT

TAB ON LOCK

GUIDE PLATE

MUST BE SEATED

IN A NOTCH ON

BOTH TRAVELING

NUTS

SELF-TAPPING SCREWS AND

LOCKWASHERS - TWO PLACES

- SEE STEPS No. 10 and 11

Detail "C"

7. Depress the pressure lock guide plate once again (use fingers only – use no tools) and turn the left-hand traveling nut until the

"UP" limit switch engages (listen for the click) – See Detail "A". Check to ensure that a notch in both traveling nuts is seated

firmly on the tab on the pressure lock guide plate – See Detail "B".

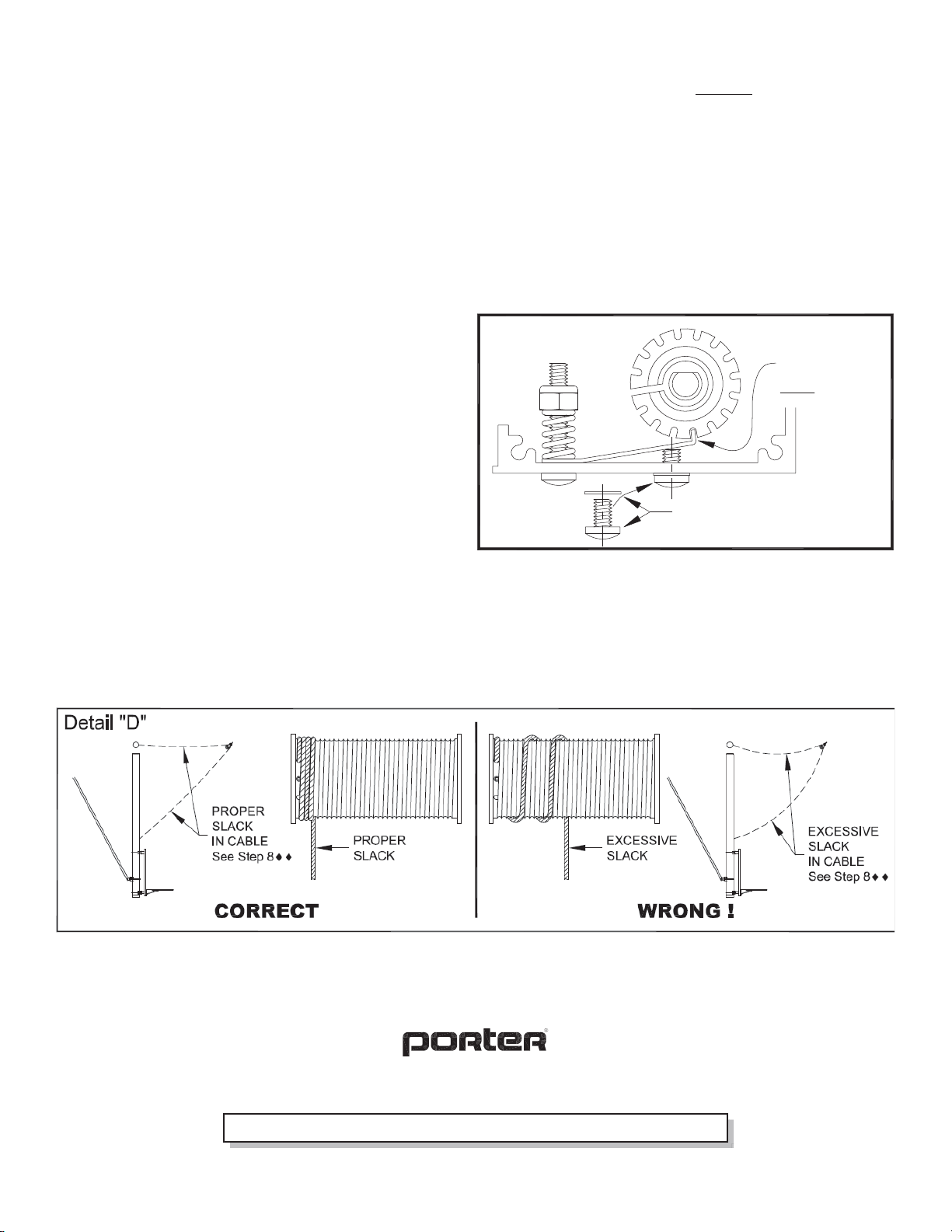

8. Operate the unit up and down several times, to adjust and fine-tune both the up and down limits, until the limits are set correctly.

ii See Detail "D". A SLIGHT amount of slack in the hoist cable is mandatory when the backstop is in the down position. However,

an excessive amount of slack will allow the cable to wrap incorrectly on the drum. To properly set cable slack, allow a one-

second delay after the backstop fully seats in the playing position, before the down limit switch shuts the down cycle off.

9. After all adjustments are made, once again check to ensure that both traveling nuts are seated properly on the tab of the pressure

lock guide plate – See Detail "B".

10. Install two #8 x 1/4" lg. self-tapping screws and lock

washers into two holes in bottom of limit switch box. These

will prevent any future movement of the pressure lock guide

plate, prohibiting it from disengaging from the traveling

nuts. See Detail "C". Operate unit through one complete

up-down cycle to double-check setting.

11. IMPORTANT NOTE – If future adjustments are required,

loosen the two #8 x 1/4" lg. self-tapping screws installed in

step No. 10 above, to allow the pressure lock guide plate to

be depressed. Be sure to re-tighten both screws securely

after all adjustments are made. See Detail "C".

12. It is critical that both the upper and lower limits be set

carefully. The upper limit will prevent the unit from contacting the overhead structure. The lower limit is as critical, and must be

set to allow proper slack in the cable ii. By allowing too much slack, the cable can "uncoil" around the drum, thereby

rewinding with uneven wraps and "exceeding" the upper limit by having additional wraps on the drum. See Detail "D".

13. Operate each backstop through THREE COMPLETE UP-DOWN CYCLES, to ensure the cable has seated properly on the winch

drum. Afterwards, make additional adjustments to the limit switches as required, according to the instructions in Step No. 11

above.

Demonstrate the operation of this unit to an individual at the site who is responsible for the safe operation and maintenance of this

equipment. Hand this instruction sheet to that individual, to keep for future reference. Point out the safety concerns and the necessity

of using a Porter key switch in the event that same has not been installed.

601 Mercury Drive, Champaign, IL U.S.A. 61822

www.porterathletic.com

(888) 277-7778

SAVE THESE INSTRUCTIONS FOR FUTURE USE

LastRevision12Ͳ23Ͳ2014



TROUBLESHOOTINGGUIDE



ElectricWinches–712,713



SYMPTOMPOSSIBLESOLUTION

WinchwillnotrunConfirmthetwistlockplugisengagedandlocked.

WinchwillnotrunCheckpowertobreakersandkeyswitchorcontroller.

WinchwillnotrunCheckthewireconnectionsatthelimitswitches.Makesure

terminalsareconnectedtotheswitchesandwiresareproperly

seatedintheterminals.Thewinchshouldbeunpluggedduringthis

check.

WinchwillnotrunCheckthelimitsettings.Makesurethelimitnutsarenotdepressing

theswitchleversuntiltheappropriateequipmentpositionisreached.

Motorisrunning,butwinchis

notliftingtheequipmentatall

Checkthebelttension.Ifthebeltisworn,replacethebelt.Ifthebelt

isnotworn,butisloose,adjustthebelttensionertotightenthebelt.

Winchisliftingtheequipment

onlypartially

Checkthelimitsettings.Makesurethelimitnutsarenotdepressing

theswitchleversuntiltheequipmentisinthedesiredposition.

Winchisliftingtheequipment

onlypartially

Checkthebelttension.Ifthebeltisloose,adjustthebelttensioner

totightenthebelt.Ifthebeltisespeciallyworn,replacethebelt.

Motorisrunning,butwinchis

notliftingtheequipmentatall

Checkthepulleys.Makesurethereisakeyinboththepulleyatthe

motorandatthegearbox.Makesurethesetscrewsarefully

tightened,themotorengagesthesmallpulley,thebeltengagesthe

largerpulley,andthelargerpulleyengagesthegearboxshaft.

Motorisrunning,butwinchis

notliftingtheequipmentatall

Checkthedrum.Makesurerotatingthelargepulleycausesthedrum

torotate.Checkthatdrumandgearboxareengagingkeys.Note:

Substantialdisassemblyofwinchmayberequiredtorepairthiserror.

Limitsetlocationseemsto

move

Verifythelimitnutsaresecured“snapped”inplacewiththespring

plate.Installincludedscrewstomaintainpositionofspringplate.

Limitsetlocationseemsto

move

Checkthelimitdriveassembly(gears).Verifythatnogearsare

damaged.Verifythatallthreegearsareengagingwhenthedrumis

rotating.

Limitsetlocationseemsto

move

Checkthelimitrod.Makesuretherodisintactandsnugbetween

theendsofthelimitbox.

WinchisnoisyCheckbeltandpulleyalignment.Loosensetscrewsandusea

straightedgetoalignpulleys.Ifeitherpulleyiswarped,replace

damagedpulley(s).Tightensetscrews.

WinchisnoisyChecklidoflimitbox.Tightenscrewsonlid.Replacescrewswith

largerselfͲtappingscrewsifnecessary.Thismayoccurwhenthelimit

boxlidhasbeenremovedandreplacedmanytimes.

WinchisnoisyCheckallattachmenthardware.Ensureallhardwareistightenedto

14Ͳ18ftͲlbs(168Ͳ216inͲlbs)oftorque.

WinchisnoisyCheckforforeignobjectsthatmayhavedroppedintothemotor

housing.Removeforeignobjectifpossible.

WinchisrunningbackwardsCheckwiringofmotortolimitswitches.



LastRevision12Ͳ23Ͳ2014



FIELDEVALUATIONCHECKLIST



ForanyWarrantyClaimorProductBeingReturnedtotheFactory

IfthisproductisbeingreturnedtoPorterAthletic,Inc.FORANYREASONallFieldEvaluationtasksMUSTbeperformed.

Everytaskistobeinitialedtoverifycompletion.Theformmustbesignedanddatedandthenplacedinthecartonwith

thereturnedproduct.



ElectricWinches–712,713



FieldEvaluationResultInitial

Waspowerconfirmed?

(Keyswitch,PowrͲTouch,orSportsonicareoperationalandfullyfunctioning)



Wasthetwistlockplugcompletelypushedintothereceptacleandtwistedtight? 

Weretheconnectionsinthelimitboxconfirmed?

Wasitconfirmedthatthelocationsofthelimitnutsdidnotimpedethewinch

operation?



Werethelimitnutslockedinproperly?

Didthelimitdriverodhaveexcessiveplay?

Isthelimitdriverodcrackedorbroken?

Wasthebelttensionchecked?

Hasthebeltandpulleyalignmentbeencheckedandadjustedifnecessary? 

Wasthepulleycheckedforbreaksorbends?

Wereallsetscrewsinthepulleystightened?

Werealltheattachmentandassemblyboltschecked?

Wasthereanyforeignobjectinthemotorhousing?



RETURNWITHPRODUCT



________________________________________________________________________

PRINTEDNAMEOFFIELDTESTER ORGANIZATION  TITLE



______________________________________________________

SIGNATUREDATE



Indice

Altri manuali Porter Verricello

Porter

Porter 00700-000 Manuale di istruzioni

Manuali Verricello popolari di altre marche

WARRIOR

WARRIOR Trojan 40PUS12 Guida di riferimento rapido

SVERO

SVERO 16 Manuale utente

Warrior Winches

Warrior Winches C10000NH Manuale utente

Badland Winches

Badland Winches 68146 Manuale utente

Bush

Bush II Series Manuale utente

Badland

Badland APEX 5500 Manuale utente

Quadratec

Quadratec Q9000 Synthetic Manuale

C-Max

C-Max VIGO Manuale utente

Comeup

Comeup DV-9 Manuale utente

Orvea

Orvea Italwinch 805 Manuale utente

Prowinch

Prowinch PWJTHF300 Manuale utente

Clas Ohlson

Clas Ohlson LD2000-A Manuale utente

Topex

Topex 97X080 Manuale utente

Eastbound

Eastbound MotoWinch 1707001 Manuale utente

Runva

Runva EWD8000 Guida di riferimento rapido

Ingersoll-Rand

Ingersoll-Rand LIFTSTAR FG 1500/CN Series Guida all'installazione

Granit

Granit 11157675 Manuale utente

TREX

TREX TB75 Manuale utente
