Portfolio E3A Manuale utente

1



ATTACH YOUR RECEIPT HERE



SerialNumber PurchaseDate



Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m.

- 5 p.m., EST, Friday.

EB15166

ITEM #0646942

LANTERN POST

MODEL #E3A

Français p. 8

Espaňol p. 15

2

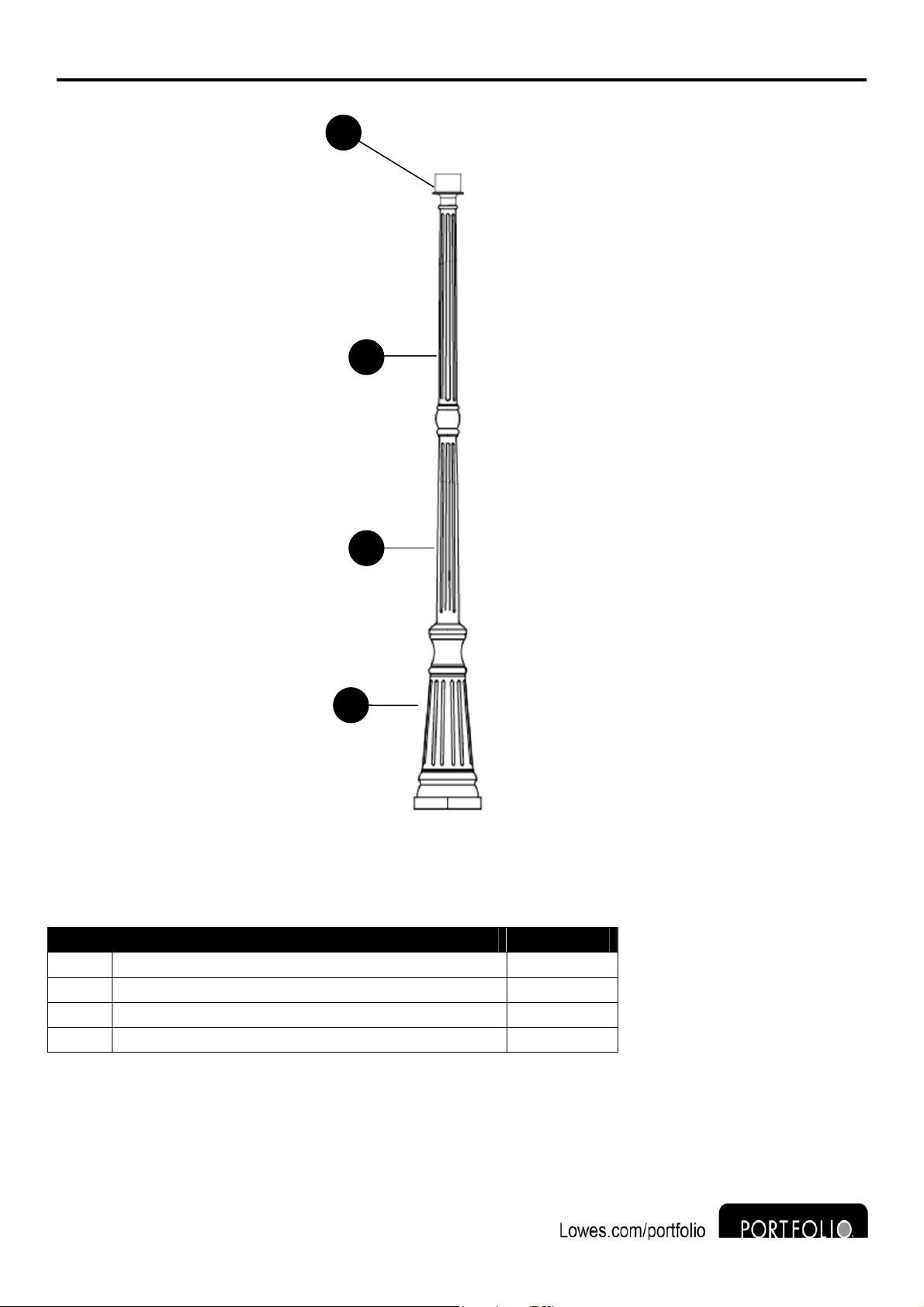

PACKAGE CONTENTS



PART DESCRIPTION QUANTITY

A Adapter 1

B Middle Pole 1

C Bottom Pole 1

D Base 1



3

HARDWARE CONTENTS (not shown actual size)



SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install

the product.

●Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by

removing fuse (or switching off circuit breaker).

●Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not

permit wires to contact any surface having a sharp edge. To do so may damage or cut the wire

insulation, which could cause serious injury or death from electric shock.

CAUTION:

●All electrical connections must be in agreement with local codes, ordinances or the National

Electric Code (NEC). Contact your municipal building department to learn about your local codes,

permits and/or inspections.

●Risk of fire —most dwellings built before 1985 have supply wire rated for 140ºF. Consult a

qualified electrician before installation.

●Do not connect this fixture to an electrical system that does not provide a means for equipment

grounding. Never use a fixture in a two-wire system that is not grounded. If you are not sure your

lighting system has a grounding means, do not attempt to install this fixture. Contact a qualified,

licensed electrician for information with regards to proper grounding methods as required by the

local electrical code in your area.

●If a dimmer control switch is used with this fixture, obtain professional advice to determine the

correct type and electrical rating required.

AA BB CC

Mounting Bracket

Qty. 1



Anchor Bolt

Qty. 3



Cap Nut

Qty. 3



EE FF

Washer

Qty. 3



Wire Nut

Qty. 3



Wrench

Qty. 1



WARNING:

4

PREPARATION

Before beginning to assemble or install lighting fixture, make sure all parts are present. Compare

parts with package contents list and hardware contents list. If any part is missing or damaged, do

not attempt to assemble, install or operate the product.

Estimated Assembly Time: 30 minutes

Tools Required for Assembly (not included): Concrete, Phillips Screwdriver, Pliers, 1/2 in. Wrench,

1/2 in. Ring Spanner.

Helpful Items: Flathead Screwdriver, Wire Cutters, Ladder, Wire Stripper, Electrical Tape.

ASSEMBLY INSTRUCTIONS

1. Excavate an area in the ground deep enough to enclose the

height of the anchor bolts (BB) and wide enough for the

mounting bracket (AA). Route the electrical wires from the

power supply underground and out through the middle of

the installation area. Screw the anchor bolts (BB) into the

mounting bracket (AA) to the end. Fill hole with concrete

(not included) and insert the assembly before the concrete

dries.



Note: The mounting bracket (AA) should be at ground level,

with the anchor bolts (BB) 1.9 in. above the ground. The

approximate length of supply wires that should be out of the

concrete 6-8 inches.

2. Remove the preassembled screws from the base (D) with

a Phillips screwdriver (not included). Save for later use.

Attach adapter (A) to middle pole (B) by twisting it on

clockwise.

Hardware Used

Mounting Bracket x 1



AnchorBolt x 3



5



3. To install fixture head (sold separately) to adapter (A), use

fixture screws provided with fixture head and secure tightly.

4. Secure the

bottom pole (C) to the base (D) with the

previously removed screws. Tighten with a Phillips

screwdriver.

5. Remove the preassembled set screw from the middle pole

(B) and secure the middle pole (B) onto the bottom pole (C).

Screw middle pole (B) clockwise, then secure with set screw.

Tighten with wrench (FF).



Quincaillerie utilisée

Clé x1



6. Connect bare ground wire from the base (D) to the ground

wire coming from the concrete by twisting a wire nut (EE)

onto bare ends of the wires. Connect white wire from the

base (D) to the white wire coming from the concrete by

twisting a wire nut (EE) onto bare ends of the wires. Connect

the black wire from the base (D) to the black wire

coming

from

the concrete by twisting a wire nut (EE) onto the bare

ends of the wires. Secure the wire nuts (EE) with electrical

tape (not included).

CAUTION:

Allow the concrete to dry before installing the

pole assembly.

With the help of another person, align the holes on base (D)

with the anchor bolts (BB) and carefully place the pole

assembly over the mounting bracket (AA). Secure assembly

with washers (DD) and cap nuts (CC), tightening with a 1/2

in. wrench (not included).

CARE AND MAINTENANCE

To clean, unplug lamp and wipe with a damp, non-abrasive cloth.



TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

The fixture shakes in high

winds.

1. The mounting bracket may be

assembled incorrectly.

2. The screws and cap nuts may

be secured incorrectly.

1. Make sure the mounting

bracket was installed at

ground level.

2. Make sure the screws and

cap nuts were secured tightly.

Hardware Used

Capnut x 3

Washer x 3

WireNut x 3



3-YEAR LIMITED WARRANTY

If this product fails due to a defect in materials or workmanship within three (3) years from the date

of purchase, return it along with proof of date of purchase and it will be replaced with the same or

comparable model free of charge.

This warranty is void if damage or defect has resulted from accident, abuse, misuse or faulty repair.

This warranty gives you specific legal rights and you may have other rights that vary from state to

state.

IN NO EVENT WILL LIABILITY EXTEND TO ANY CONSEQUENTIAL, SPECIAL, INCIDENTAL

OR INDIRECT DAMAGES OF ANY KIND ARISING OUT OF THE USE OR MISUSE OF THIS

PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSION OR LIMITATION

MAY NOT APPLY TO YOU.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m.,

EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.



Printed in China

Portfolio® is a registered trademark

PART

DESCRIPTION

PART#

AA Mounting Bracket 646942-hdwe

BB Anchor Bolt 646942-hdwe

CC Cap Nut 646942-hdwe

DD Washer 646942-hdwe

EE Wire Nut 646942-hdwe

FF Wrench 646942-hdwe

AA BB CC DD EE FF



JOIGNEZ VOTRE REÇU ICI



Numérodesérie Dated’achat



Des questions, des problèmes, des pièces manquantes?

Avant de retourner l’article

au détaillant, appelez notre service à la clientèle au 1 800 643-0067, entre 8 h et

18 h (HNE) du lundi au jeudi, ou entre 8 h et 17 h (HNE) le vendredi.

ARTICLE #0646942

POTEAU D’



ÉCLAIRAGE

MODÈLE #E3A



CONTENU DE L’EMBALLAGE



PIÈCE DESCRIPTION QUANTITÉ

A Adaptateur 1

B Tige centrale 1

C Tige inférieure 1

D Pied 1



QUINCAILLERIE INCLUSE

(non illustrée à la grandeur réelle)



CONSIGNES DE SÉCURITÉ

Assurez-vous de lire et de comprendre l’intégralité du présent manuel avant de tenter d’assembler,

d’utiliser ou d’installer l’article

.

●Avant l’installation, coupez l’alimentation électrique du panneau central en enlevant le fusible (ou

en plaçant le disjoncteur en position hors tension).

●Prenez soin de ne pas endommager ni couper la gaine protectrice (revêtement) des fils pendant

l’installation du luminaire. Ne laissez pas les fils entrer en contact avec une surface ayant un rebord

tranchant. Vous risqueriez d’endommager ou de couper la gaine protectrice des fils, ce qui

entraînerait des risques de blessure grave ou de mort par choc électrique.

ATTENTION :

●Tous les branchements électriques doivent être conformes aux codes du bâtiment locaux, aux

règlements locaux ou au Code national de l’électricité. Communiquez avec le service des

bâtiments et de l’entretien de votre municipalité pour connaître les mesures d’inspection, les codes

et les permis en vigueur.

●Risque d’incendie : la température nominale du fil d’alimentation électrique de la plupart des

habitations construites avant 1985 est de 60 °C. Demandez conseil à un électricien qualifié avant

d’installer le luminaire.

●Ne branchez pas ce lampadaire sur un système électrique sans mise à la terre. N’utilisez jamais

un lampadaire avec un branchement à deux fils sans mise à la terre. Si vous ne savez pas si votre

système d’éclairage est mis à la terre, ne tentez pas d’installer ce lampadaire. Communiquez avec

un électricien qualifié pour connaître les méthodes de mise à la terre nécessaires selon le code de

l’électricité en vigueur dans votre municipalité.

●Si vous voulez utiliser un gradateur avec ce lampadaire, faites appel à un professionnel pour qu’il

vous aide à déterminer le type de gradateur à utiliser et les caractéristiques électriques

nécessaires.

AA BB CC

Support de

fixation

Qté : 1



Boulon

d’ancrage

Qté : 3



Écrou à

chapeau

Qté : 3



EE FF

Rondelle

Qté : 3



Capuchon de

connexion

Qté : 3



Clé

Qté : 1



AVERTISSEMENT
