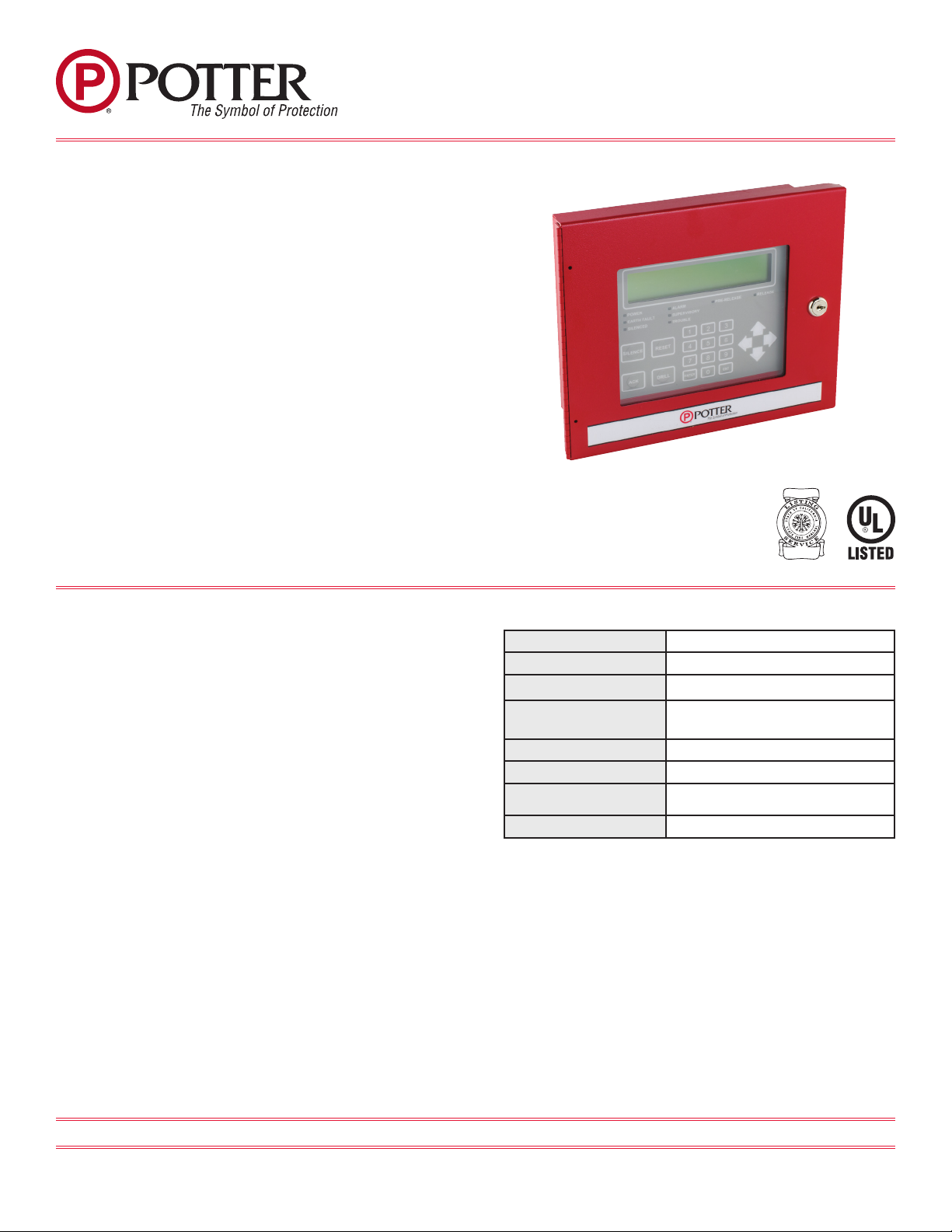

Potter RA-6500R Manuale utente

RA-6500R

LCD Annunciator

8830114 - REV A • 04/16 PAGE 1 OF 3

Potter Electric Signal Company, LLC • St. Louis, MO • Phone: 800-325-3936 • www.pottersignal.com

Description

The RA-6500R is a LCD remote annunciator for the PFC-6000 series

re control panels. The RA-6500R communicates using a RS-485

connection to the main panel providing common indication of Alarms,

Supervisory, Trouble and other system status and control functions.

The RA-6500R features a 4x40 LCD display with LED’s for Power,

Alarm, Supervisory, Trouble, and Silenced conditions. It can be

mounted on a single gang electrical box or a four square electrical box.

The annunciator is enclosed in a sheet metal enclosure and has a Potter

lock securing the keypad.

Technical Specications

Standby Current 20 mA

Alarm Current 25 mA

Operating Temperature 0°C-49°C (32°F-120°F)

Operating Humidity Range 10%-93% @ 30°C (86°F) non

condensing humidity

Maximum Wire Length 6500 ft.

Maximum Annunciators 31

Size (WxHxD) 10” x 7-7/8” x 1-5/8”

Wire Gauge 14 AWG-22 AWG

Features

• Industry leading 4 line by 40 Character LCD

• Common buttons for navigation

• Common LEDs for status indication

• 31 annunciator per panel

• Maximum wire length of 6,500 feet

• Available in 4 colors

• Product includes a 5 year warranty

8830114 - REV A • 04/16 PAGE 2 OF 3

Potter Electric Signal Company, LLC • St. Louis, MO • Phone: 800-325-3936 • www.pottersignal.com

RA-6500R

LCD Annunciator

The RA-6500R is connected to the PFC-6000 series re control panels using a four wire RS-485 connection. The connection is power limited and

supervised. Up to thirty-one (31) RA-6500R LCD annunciators can be connected using Class B or Class A wiring. Class A wiring requires an optional

Class A Expander.

The RA-6500R address is set by dip switch S1 located on the back of the RA-6500R. The address must be set in the range of 1 to 31 to be recognized

by the control panel.

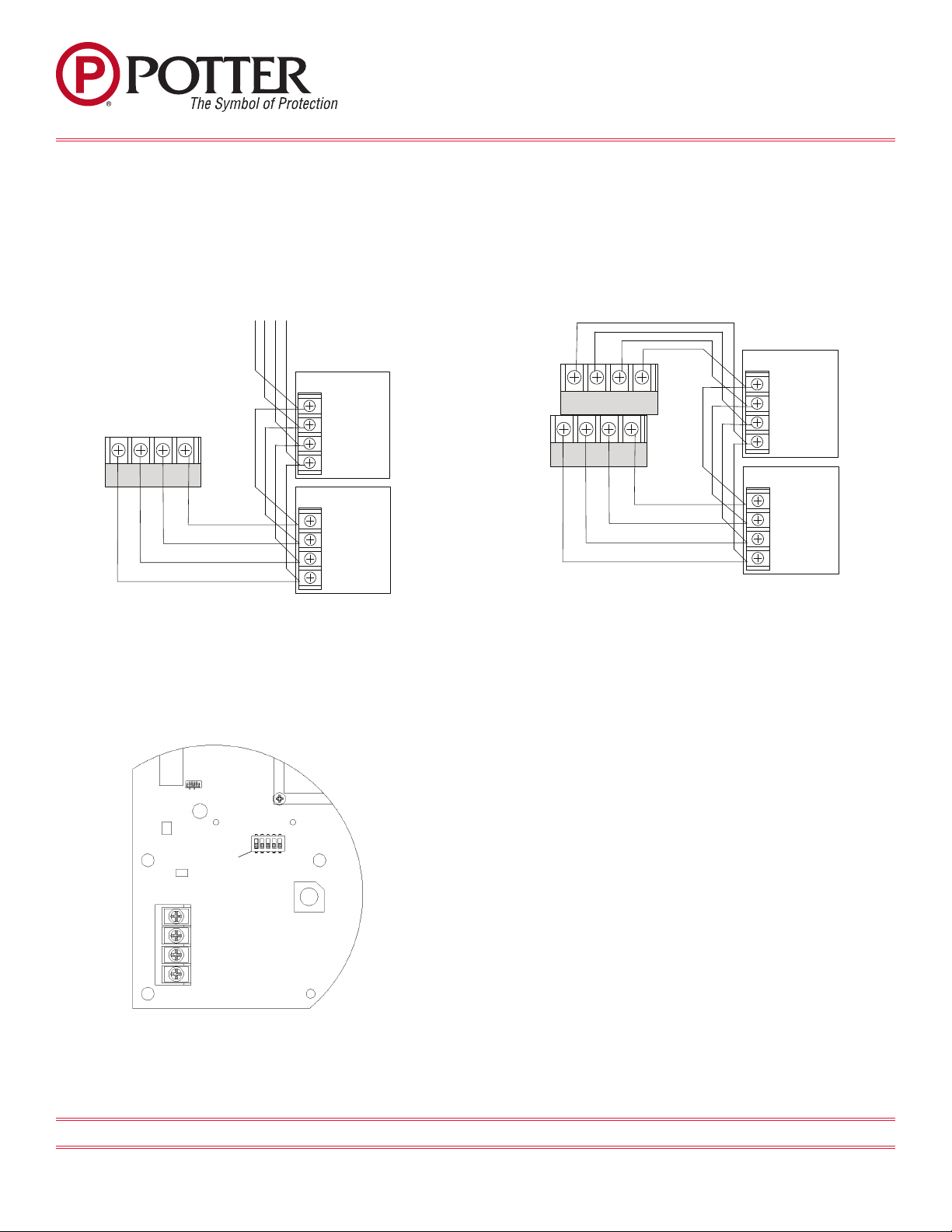

Installation

Address Settings

RA-6500R Class B Wiring Example

RA-6500R Remote (Panel View)

RA-6500R Class A Wiring Example

Fig 2Fig 1

Fig 3

To the next device

- + A B

Expansion

Device

- + A B

P-LINK

- + A B

Panel

Connection

Expansion

Device

- + A B

Expansion

Device

- + A B

P-LINK

- + A B

P-LINK

- + A B

Panel

Connection

Class A

Expander

Connection

Expansion

Device

DIP SWITCH

DWG. #6077-2

8830114 - REV A • 04/16 PAGE 3 OF 3

Potter Electric Signal Company, LLC • St. Louis, MO • Phone: 800-325-3936 • www.pottersignal.com

RA-6500R

LCD Annunciator

Refer to the table below for dip switch settings per Annunciator Address.

Dip Switch Settings

Model Description Stock No.

RA-6500R LCD Annunciator - RED 3992661

RA-6500R LCD Annunciator - BLACK 3992747

RA-6500R LCD Annunciator Flush - GRAY 3992748

RA-6500R LCD Annunciator Flush - LIGHT GRAY 3992749

Ordering Information

Annunciator

Address

Dip Switch Settings

SW-1 SW-2 SW-3 SW-4 SW-5

1On Off Off Off Off

2Off On Off Off Off

3On On Off Off Off

4Off Off On Off Off

5On Off On Off Off

6Off On On Off Off

7On On On Off Off

8Off Off Off On Off

9On Off Off On Off

10 Off On Off On Off

11 On On Off On Off

12 Off Off On On Off

13 On Off On On Off

14 Off On On On Off

15 On On On On Off

16 Off Off Off Off On

Annunciator

Address

Dip Switch Settings

SW-1 SW-2 SW-3 SW-4 SW-5

17 On Off Off Off On

18 Off On Off Off On

19 On On Off Off On

20 Off Off On Off On

21 On Off On Off On

22 Off On On Off On

23 On On On Off On

24 Off Off Off On On

25 On Off Off On On

26 Off On Off On On

27 On On Off On On

28 Off Off On On On

29 On Off On On On

30 Off On On On On

31 On On On On On
