Potterton Cold HE A Manuale utente

User Guide and

Important Warranty Information

Please keep these instructions in a safe place.

If you move house, please hand them over to

the next occupier.

Gold HE A

Range

Condensing

Combination Boiler

You can rely on

2© Baxi Heating UK Ltd 2009

be reproduced or transmitted in any form or by any means, or stored in any

retrieval system of any nature (including in any database), in each case whether

electronic, mechanical, recording or otherwise, without the prior written

permission of the copyright owner, except for permitted fair dealing under

Copyrights, Designs and Patents Act 1988.

Applications for the copyright owner’s permission to reproduce or make other

use of any part of this publication should be made, giving details of the proposed

use, to the following address:

The Company Secretary, Baxi Heating UK Ltd, The Wyvern Business Park,

Stanier Way, Derby, DE21 6BF.

Full acknowledgement of author and source must be given.

WARNING: Any person who does any unauthorised act in relation to a

1.0 Quick Reference Guide 3

2.0 Troubleshooting 4

3.0 Repressurising System 6

4.0 Clearances 7

5.0 Care of the Boiler 8

6.0 Legislation 9

7.0 Setting the Timer 10

8.0 Emergency 11

9.0 Warranty & Service 12

Section Page

Contents

Boiler Controls - see opposite page

for Operating Quick Reference Guide

Natural Gas

Potterton Gold Combi 24 HE A

G.C.No47 393 18

Potterton Gold Combi 28 HE A

G.C.No47 393 19

Potterton Gold Combi 33 HE A

G.C.No47 393 20

This product has an energy rating (A) on a scale of A to G.

For more information see www.boilers.org.uk. This is a certification mark.

0086

ISO 9001

FM 00866

The Benchmark Scheme

Baxi Heating UK Ltd is a licensed member of the Benchmark Scheme which aims

to improve the standards of installation and commissioning of domestic heating

and hot water systems in the UK and to encourage regular servicing to optimise

safety, efficiency and performance.

Benchmark is managed and promoted by the Heating and Hotwater Industry

Council. For more information visit www.centralheating.co.uk

1.0 Quick Reference Guide

Reset

bar

Reset

bar

ON/OFF/Reset

Selector Switch

Display Central Heating

Temperature Control

Domestic Hot Water

Temperature Control

System Pressure Gauge

OFF Position

The boiler will not operate.

Central Heating Temperature Control

Turn the knob clockwise to increase or anticlockwise to decrease the temperature.

Range 25 - 80° C.

Domestic Hot Water Temperature Control

Turn the knob clockwise to increase or anticlockwise to decrease the temperature.

Range 35 - 60° C.

Central Heating Indicator - The indicator will illuminate when the boiler is in the central

heating mode.

Domestic Hot Water Indicator - The indicator will illuminate when hot water is being

supplied to a tap or shower.

Burner On Indicator - The indicator will illuminate when the burner has fired and is heating

your central heating or domestic hot water.

Boiler Output Temperature - In either the central heating or domestic hot water position

the display will illuminate showing the current boiler temperature in degrees centigrade.

Central Heating System Pressure - The normal operating water pressure is shown when the

needle is in the GREEN section of the gauge, between 1 and 2.5 bar. If the pressure exceeds 3

bar (needle in the RED section) the safety pressure valve will operate and a fault is indicated.

Contact your Installer.

Reset

Central Heating & Hot Water

Both Heating & Hot Water will operate.

Reset

Hold for approx 5 seconds and release.

Display

Integral Timer

Reset

Domestic Hot Water

Hot Water will operate.

2.0 Troubleshooting

4© Baxi Heating UK Ltd 2009

START

Make sure the gas supply is

turned ON and check if other

gas appliances are operating

(e.g. fire, cooker).

If no gas, consult your

supplier.

Is the ON/OFF/Reset

Select Switch in the

( ) position and

the display lit ?

Is the ( ) or ( ) light on

and the ( ) on ?

Check electricity to the

boiler is switched on.

Reset

Display

Central Heating

Indicator Domestic Hot

Water Indicator

Burner On

Indicator

Boiler operating satisfactorily.

bar

Is the Central Heating System

Pressure needle in the GREEN

section, between 1 and 2.5 bar ?

If the reading falls below 1 bar

repressurise the system as

described in section 3.1.

Does the display show an error

code e.g. E133, E110 ?

Boiler not working

YES YES

YES

Turn the ON/OFF/Reset

Selector Switch to Reset.

Reset

Error Code E119 showing low

pressure.

YES

If boiler does not

Reset

2.0 Troubleshooting

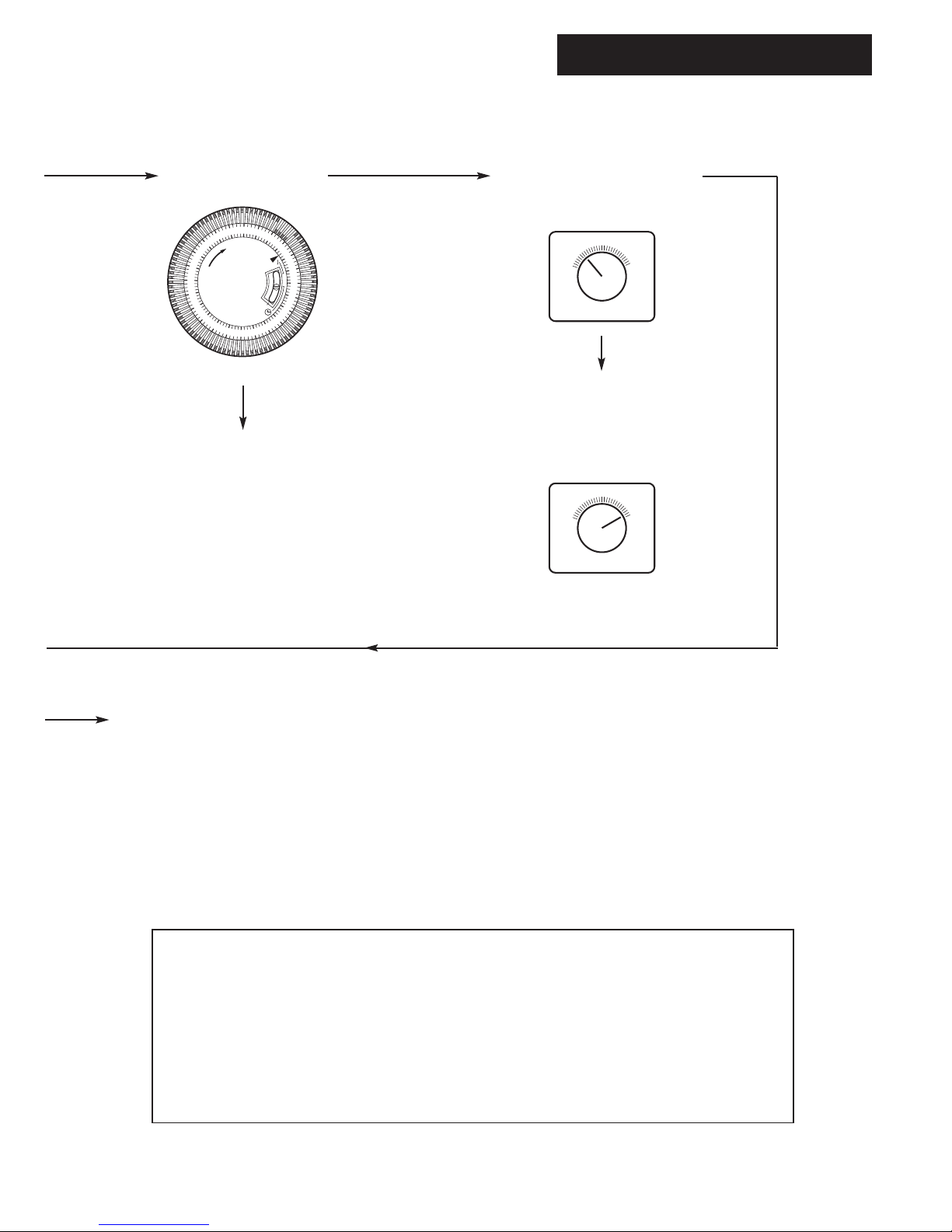

Is the Integral Timer ON

and calling for heat ?

Ensure timer is set for Central

Heating ON (see Section 7.0 of

the instructions - ‘Setting the

Timer’)

Is the Room Thermostat (if

fitted) set high enough ?

Turn Room Thermostat to

maximum setting (typical

example shown).

If you don’t know what you need to do to

get the boiler to light, or need help with

the system and controls, contact your

installer as soon as possible.

YES

CONTACT YOUR

INSTALLER OR

SERVICE ENGINEER.

YES

3.0 Repressurising the System

6© Baxi Heating UK Ltd 2009

bar

Fig. 1

Fig. 2

Normal Pressure

Requires

Repressurising

Tap Tap

Caps

Opening the

Taps

Boiler Taps &

Connections, as

viewed from

underneath

3.1 Central Heating System Pressure

1. The water pressure in the central heating system is indicated

by the pressure gauge.

2. With the system cold and the boiler not operating the

pressure should be at least 0.5 bar. During operation the

pressure should not exceed 2.5 bar, and will normally be

between 1.0 and 2.0 (Fig. 1).

3. A pressure of 3 or greater indicates a fault. The safety

pressure relief valve will operate, at a pressure of 3 (Fig. 3). It is

important that your Installer or Service Engineer is contacted

as soon as possible.

4. The minimum pressure for correct operation is 0.5. If the

pressure falls below 0.5, this may indicate a leak on the central

heating system (Fig. 2). Error Code E119 will be shown on the

display.

3.2 To Re-Pressurise the System

1. Look at the boiler from underneath. There will be two taps

connected to the cold inlet tap and central heating return tap.

Do not operate these taps yet !

2. Your installer will have left a short copper pipe with wing

nuts (the ‘filling loop’) with you for safe keeping.

3. To re-pressurise this loop MUST be connected to the taps.

Remove the blanking caps and set aside.

4. Ensure that the two seals are fitted, and connect the loop to

the taps with the wing nuts. These should be hand tightened.

5. Carefully open both taps and check the boiler pressure

gauge. Once the needle on the gauge is above the 0.5 mark

both taps can be closed.

6. Undo the two wing nuts, remove the loop and refit the

blanking caps. Put the loop in a safe place for future use, and

ensure that the seals remain in place

bar

Fault

Fig. 3

Seal

Loop Connected

Caps removed

4.0 Clearances

Fig. 4

200mm Min

780mm

450mm

200mm Min

(300mm Min if

using 80/125mm

flueing system)

5mm Min

450mm Min

For Servicing

Purposes

In Operation

5mm Min 4.1 For your Safety

1. This appliance must have been installed in accordance

with the manufacturer’s instructions and the regulations

in force.

2. Any modification that may interfere with the normal

operation of the appliance without express written

permission from the manufacturer or his agent could

invalidate the appliance warranty. In GB this could also

infringe the Gas Safety (Installation and Use) Regulations.

3. Your boiler must not be operated without the casing

correctly fitted.

4. Do not interfere with any sealed components on this

boiler.

5. Take note of any warning labels on your boiler.

6. Your boiler should have the following minimum

clearances for Safety and Maintenance

(Fig. 4):-

Top - 200mm

Bottom - 200mm

Left side - 5mm

Right Side - 5mm

Front - 5mm (In Operation)

- 450mm (For Servicing)

7. If your boiler is installed in a compartment, do not use

it for storage purposes. Do not obstruct any purpose

provided ventilation openings.

8. Flammable materials must not be stored in close

proximity to your boiler.

9. Avoid skin contact when your boiler is in operation, as

some surfaces may get hot e.g. pipework.

10. Ensure that the flue terminal, outside the house,

does not become damaged or obstructed, particularly

by foliage.

11. It is important that the condensate drain system is

not blocked, modified or damaged in any way as this

would affect the operation of your boiler. Your installer

should have insulated any exposed pipework.

GB - Heating Industry definition meaning England, Scotland,

Wales, Northern Ireland, Isle of Man and the Channel Isles

5.0 Care of the Boiler

8© Baxi Heating UK Ltd 2009

5.1 Cleaning the Outer case

The painted panels should be wiped with a damp cloth and

then dried completely. DO NOT USE ABRASIVE

CLEANING AGENTS.

5.2 Protection & Precaution

1. The boiler incorporates an integral frost protection feature

that will operate in both modes. If the boiler temperature falls

below 5° C, then the boiler will operate until the water

temperature has been raised.

2. If a system frost thermostat has been fitted (your installer

will be able to advise you), then to operate correctly and

protect your system, the gas and electricity must be left on and

the appliance set in the central heating mode.

3. The boiler incorporates an integral pump protection feature

which continually monitors the time since the pump last

operated. To prevent seizure, the pump will operate for

approximately 1 minute if it has not run in the last 24 hours.

5.3 Fault Indication

1. If a fault occurs on the boiler an error code may be shown

on the facia display (Fig. 5).

2. The codes are either two or three digit, preceded by the

letter 'E'. For example, code E133 will be displayed by 'E1'

alternating with '33'. E50 is shown as 'E' then '50'.

3. E20, E28, E50, E125 & E160 indicate faulty components.

You should make a note of the displayed error code and

contact your installer or service engineer.

4. If E110 or E130 is displayed overheat of the primary water

or flue system has occurred. Turn the selector switch to the

reset position and hold for at least 5 seconds. If the boiler

does not relight, or the code is displayed regularly contact your

installer or service engineer.

5. E119 is displayed when the primary water pressure is less

than 0.5 bar. After repressurising the system the boiler should

operate. Your installer will be able to advise you about the

method of repressurising. See page 6 for further details.

6. E133 indicates that the gas supply has been interrupted,

ignition has failed or the flame has not been detected. Ensure

that the gas supply has not been turned off, and turn the

selector switch to the reset position and hold for at least 5

seconds. If the boiler does not relight, or the code is displayed

regularly contact your installer or service engineer.

Central Heating NTC Fault

Flue NTC Fault

Hot Water NTC Fault

Safety Thermostat Operated

Water Pressure Switch Not Operated

Circulation Fault (Primary Circuit)

Flue NTC Operated

Interruption Of Gas Supply or Flame Failure

Fan or Fan Wiring Fault

E20

E28

E50

E110

E119

E125

E130

E133

E160

Table of Error Codes

Reset

bar

Display

Then

Fig. 5

6.0 Legislation

6.1 Installation, Commissioning, Service & Repair

1. This appliance must be install in accordance with the

manufacturer’s instructions and the regulations in force. Read

the instructions fully before installing or using the appliance.

2. In GB, this must be carried out by a competent person as

stated in the Gas Safety (Installation & Use) Regulations.

3. Definition of competence: A person who works for a Gas

Safe registered company and holding current certificates in the

relevant ACS modules, is deemed competent.

4. In IE (Eire), this must be carried out by a competent person

as stated in I.S. 813 “Domestic Gas Installations”.

All Gas Safe registered engineers carry an ID card with their

licence number and a photograph. You can check your

engineer is registered by telephoning 0800 408 5500 or online

at www.GasSafeRegister.co.uk

The boiler meets the requirements of Statutory Instrument

“The Boiler (Efficiency) Regulations 1993 No 3083” and is

deemed to meet the requirements of Directive 92/42/EEC on

the energy efficiency requirements for new hot water boilers

fired with liquid or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0085.

Product/Production certified by:

Notified Bodies 0086.

For GB/IE only.

6.2 Benchmark Commissioning Checklist

Please ensure that the installer has fully completed the

Benchmark Checklist on the inside back pages of the

installation instructions supplied with the product and that you

have signed it to say that you have received a full and clear

explanation of its operation. The installer is legally required to

complete a commissioning checklist as a means of complying

with the appropriate Building Regulations (England and Wales).

All installations must be notified to Local Area Building Control

either directly or through a Competent Persons Scheme. A

Building Regulations Compliance Certificate will then be issued

to the customer who should, on receipt, write the Notification

Number on the Benchmark Checklist.

This product should be serviced regularly to optimise its safety,

efficiency and performance. The service engineer should

complete the relevant Service Record on the Benchmark

Checklist after each service.

The Benchmark Checklist may be required in the event of any

warranty work and as supporting documentation relating to

home improvements in the optional documents section of the

Home Information Pack.

7.0 Setting the Timer

10 © Baxi Heating UK Ltd 2009

7.1 Setting the Timer

The Electro-Mechanical Timer allows the central heating

system to be set every 15 minutes.

Using the three position switch the timer will allow either

constant operation, timed operation or central heating off.

Move the switch button by sliding to the desired position.

Three position switch (Fig. 6)

Constant (Top position): The heating will

be on constantly irrespective of the position

of the tappets.The heating will be controlled

by the main thermostat on the appliance

and/or any external controls.

Timed (Central position): The heating will

operate according to the position of the

tappets and be controlled as above.

0Off (Bottom position): No central heating.

Domestic hot water will operate on demand.

To set the time of day

Turn the timer outer bezel clockwise, to align the pointer

with the correct time to the nearest 15 minutes ensuring

that A.M./P.M. is considered. Do not at any time attempt to

turn the bezel anti-clockwise.

To set the timed heating program

Decide which times of the day the central heating is

required.

The heating will operate when the white tappets are set to

the outer edge of the bezel.

To ensure the heating stays OFF set the required tappets

inwards towards the centre of the bezel.

Each tappet represents 15 minutes.

For example: If the heating is not required between

10 A.M. and 11 A.M. the four tappets anticlockwise from the

10 A.M. will be set inwards (Fig. 7).

Constant

Time Pointer

Timed

Off

Rotate to adjust time

Off Position

On Position

Time Pointer

Fig. 6

Fig. 7

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Potterton Caldaia

Potterton

Potterton Sirius two WH 90 Guida

Potterton

Potterton Gold HE A Range Istruzioni di installazione e manutenzione

Potterton

Potterton Assure System Series Manuale

Potterton

Potterton Performa 28i Guida utente

Potterton

Potterton Performa 30 HE Istruzioni di installazione e manutenzione

Potterton

Potterton Paramount 40 Manuale di istruzioni

Potterton

Potterton Performa 28 Manuale utente

Potterton

Potterton Gas condensing boiler Manuale utente

Potterton

Potterton Gold H Range Istruzioni di installazione e manutenzione

Potterton

Potterton HE Plus Istruzioni di installazione e manutenzione

Potterton

Potterton Sirius Three WH-130 Manuale utente

Potterton

Potterton Promax FSB 30 HE Istruzioni di installazione e manutenzione

Potterton

Potterton Derwent Prestige plus Manuale di istruzioni

Potterton

Potterton Performa System 12e Guida utente

Potterton

Potterton Promax System HE Istruzioni operative

Potterton

Potterton Promax HE Store Nota di rilascio

Potterton

Potterton Kingfisher Mf 40 Istruzioni di installazione e manutenzione

Potterton

Potterton Housewarmer 45 Istruzioni di installazione e manutenzione

Potterton

Potterton Apollo Istruzioni di installazione e manutenzione

Potterton

Potterton SIRIUS FS 50-70 Manuale utente

Potterton

Potterton Promax System HE Plus LPG Istruzioni di installazione e manutenzione

Potterton

Potterton Lynx Electronic Manuale utente

Potterton

Potterton Performa 24 Eco HE Manuale utente

Potterton

Potterton Promax System HE Guida utente

Manuali Caldaia popolari di altre marche

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuale utente

Radijator

Radijator BIO max 23.1 Manuale utente

Brunner

Brunner BSV 20 Manuale utente

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuale utente

UTICA BOILERS

UTICA BOILERS TriFire Manuale utente

Joannes

Joannes LADY Series Manuale

ECR International

ECR International UB90-125 Manuale di istruzioni

Froling

Froling FHG Turbo 3000 Manuale utente

Froling

Froling P4 Pellet 8 - 105 Manuale utente

U.S. Boiler Company

U.S. Boiler Company K2 Manuale utente

Henrad

Henrad C95 FF Manuale utente

NeOvo

NeOvo EcoNox EF 36 Manuale utente

Eco Hometec

Eco Hometec EC 25 COMPACT Manuale utente

Viessmann

Viessmann VITODENS 200 Guida

Baxi

Baxi Prime 1.24 Manuale utente

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuale utente

Radiant

Radiant R2K 55 Manuale

Worcester

Worcester Greenstar 36LXi Manuale utente
