Potterton Performa 9 SL HE Manuale di istruzioni

User Guide and

Important Warranty Information

Please keep these instructions in a safe place.

If you move house, please hand them over to the next occupier

Performa SL

HE Range

Condensing

Central Heating

Boiler

You can rely on

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

2© Baxi Heating UK Ltd 2008

Natural Gas

Potterton Performa 9 SL HE

G.C.No41 592 05

Potterton Performa 12 SL HE

G.C.No41 592 06

Potterton Performa 15 SL HE

G.C.No41 592 07

Potterton Performa 18 SL HE

G.C.No41 592 08

Potterton Performa 21 SL HE

G.C.No41 592 09

Potterton Performa 24 SL HE

G.C.No41 592 10

be reproduced or transmitted in any form or by any means, or stored in any

retrieval system of any nature (including in any database), in each case whether

electronic, mechanical, recording or otherwise, without the prior written

permission of the copyright owner, except for permitted fair dealing under

Copyrights, Designs and Patents Act 1988.

Applications for the copyright owner’s permission to reproduce or make other

use of any part of this publication should be made, giving details of the proposed

use, to the following address:

The Company Secretary, Baxi Heating UK Ltd, The Wyvern Business Park,

Stanier Way, Derby, DE21 6BF.

Full acknowledgement of author and source must be given.

WARNING: Any person who does any unauthorised act in relation to a

Baxi Heating UK Ltd is a

BS-EN ISO 9001 Accredited Company

The code of practice for the installation,

commissioning & servicing of central

heating systems.

“Potterton” supports

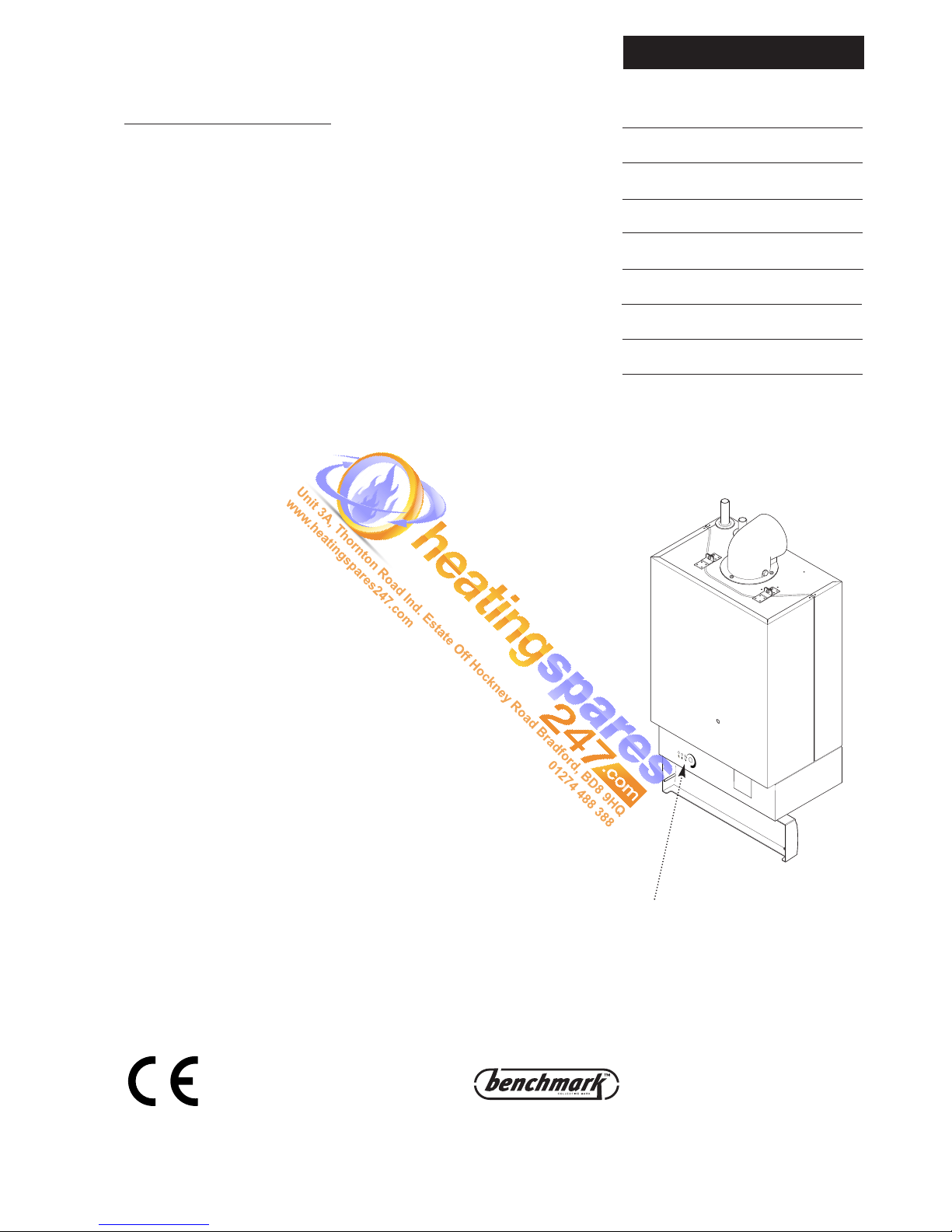

1.0 Quick Reference Guide 3

2.0 Troubleshooting 4

3.0 Clearances 6

4.0 Care of the Boiler 7

5.0 Legislation 8

6.0 Notes 9

7.0 Emergency 11

8.0 Warranty & Service 12

Section Page

Contents

Boiler Controls - see opposite page

for Operating Quick Reference Guide

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

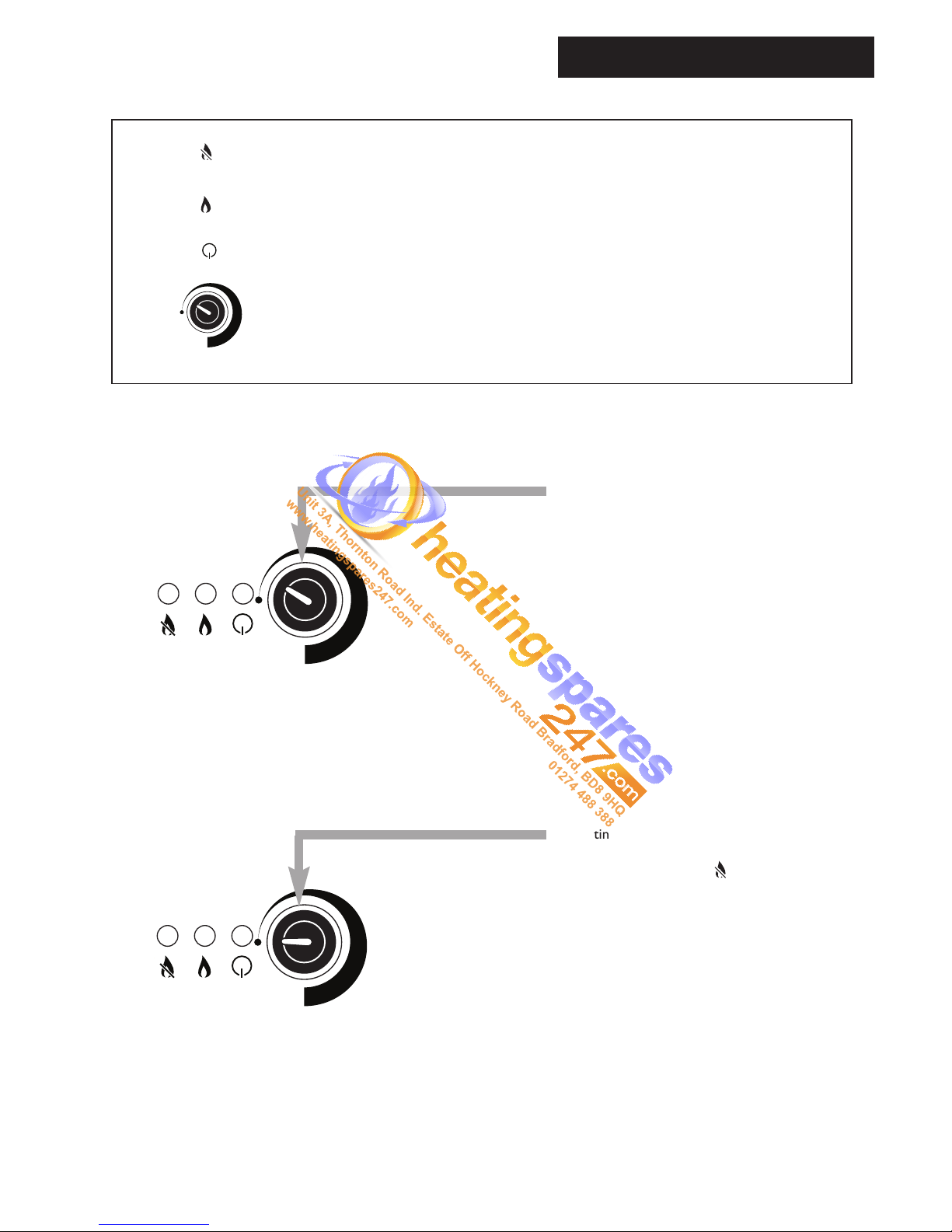

1.0 Quick Reference Guide

Lockout

(Red Light)

Burner On

(Green Light)

Mains On

(Green Light)

Boiler Temperature

Control Knob

If Lockout Light is ON or flashing the boiler will need resetting. If

Lockout occurs persistently consult your Installer or Service Engineer.

This indicates that the Burner has fired up and is heating

your system.

This indicates that there is electricity to the Boiler.

Turn the Boiler Temperature Control Knob clockwise to

increase or anticlockwise to decrease the temperature.

Boiler Temperature Control

Turn the Boiler Temperature Control Knob

clockwise to increase or anticlockwise to

decrease the temperature.

Resetting the Boiler

If the Red Lockout Light ( ) is ON or

FLASHING, turn the temperature control

knob to the off (•) position and when the

lockout light goes off, turn control knob back

to required setting, the boiler will fire up and

return to normal operation. If lockout occurs

frequently a fault is indicated and you should

contact your installer.

Key to Controls

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

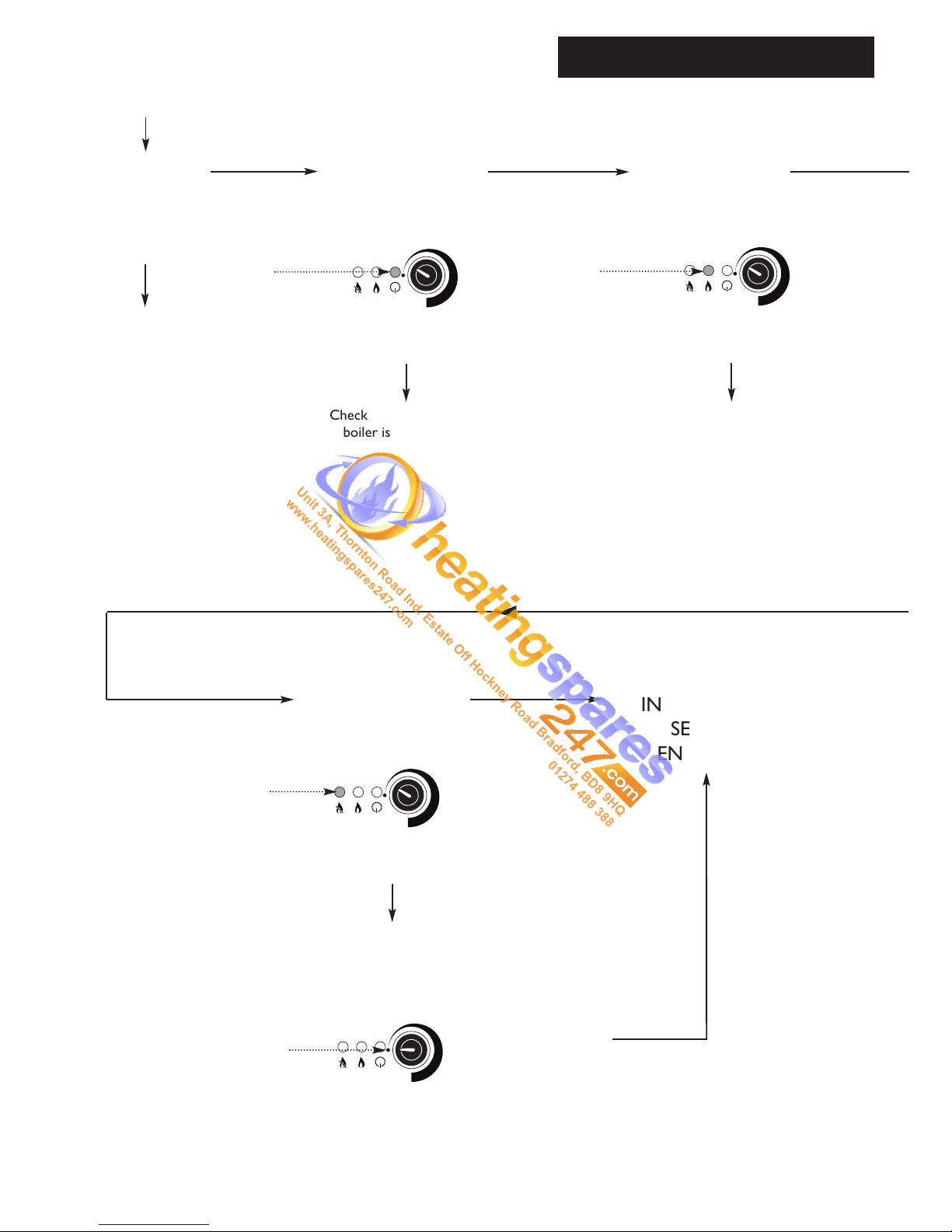

2.0 Troubleshooting

4© Baxi Heating UK Ltd 2008

Boiler not working

START

Make sure the gas

supply is turned ON

and check if other

gas appliances are

operating (e.g. fire,

cooker).

If no gas, consult

your supplier.

Is there electricity to the

boiler ? (Green Mains ON

Light lit).

Mains ON Light

(Green)

Check electrical supply to

boiler is switched on.

YES Is the Green Burner ON

Light lit).

Burner ON Light

(Green)

Boiler operating

satisfactorily.

YES

YES Is the Red Lockout Light

illuminated or flashing ?

YES

Turn the Temperature Control

Knob to the off (•) position and

when the red light goes off.

Turn control knob back to

required setting.

Lockout

(Red)

Temperature

Control Knob

If the light

does not go

out or keeps

coming on.

CONTACT YOUR

INSTALLER OR

SERVICE

ENGINEER.

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

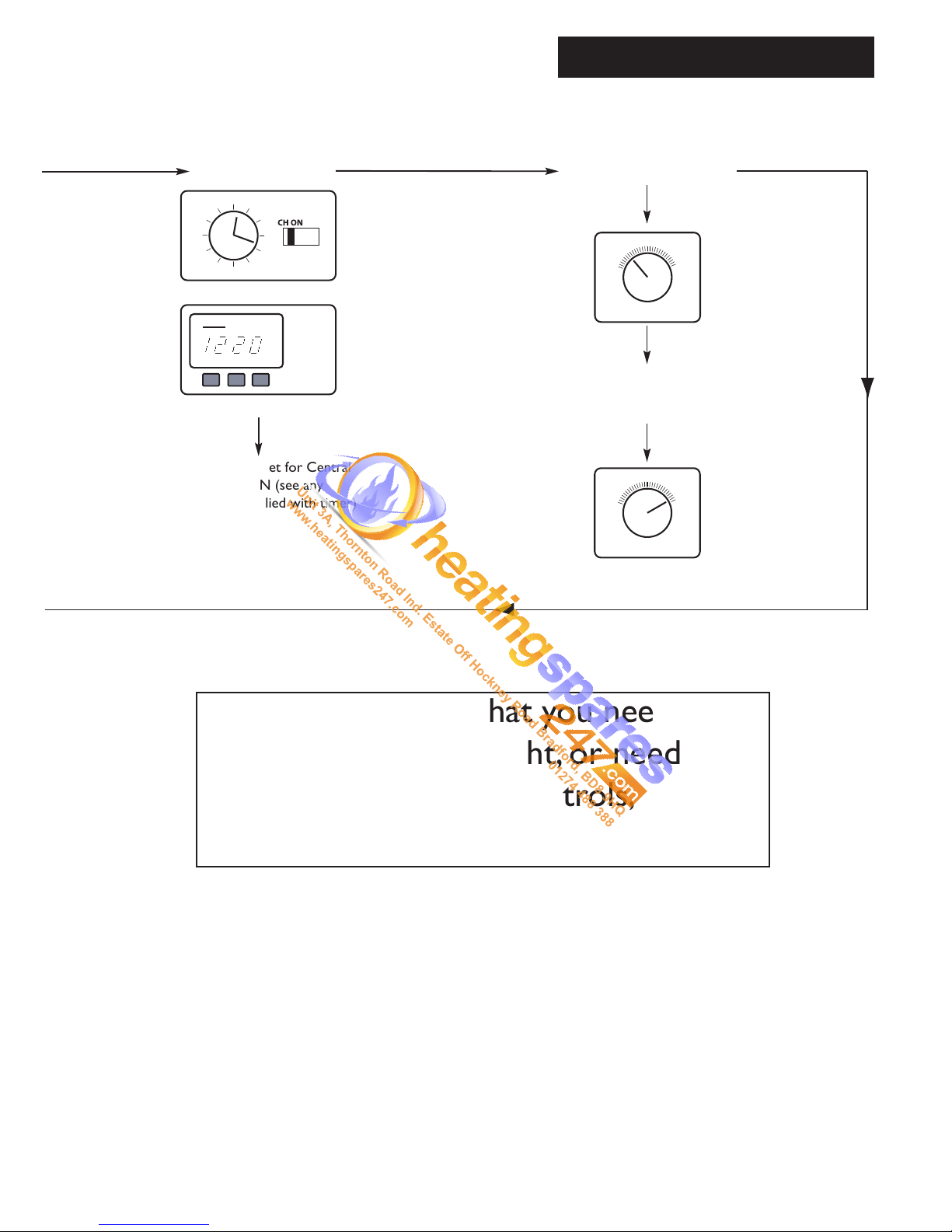

2.0 Troubleshooting

Is the Timer ON and

calling for heat ?

Is the Room Thermostat (if

fitted) set high enough ?

Typical

examples of

external timer

Ensure timer is set for Central

Heating ON (see any

instructions supplied with timer)

YES YES

Turn Room Thermostat

to maximum setting

(typical example shown)

If you don’t know what you need to do

to get the boiler to light, or need help

with the system and controls, contact

your installer as soon as possible

CH ON CH OFF

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

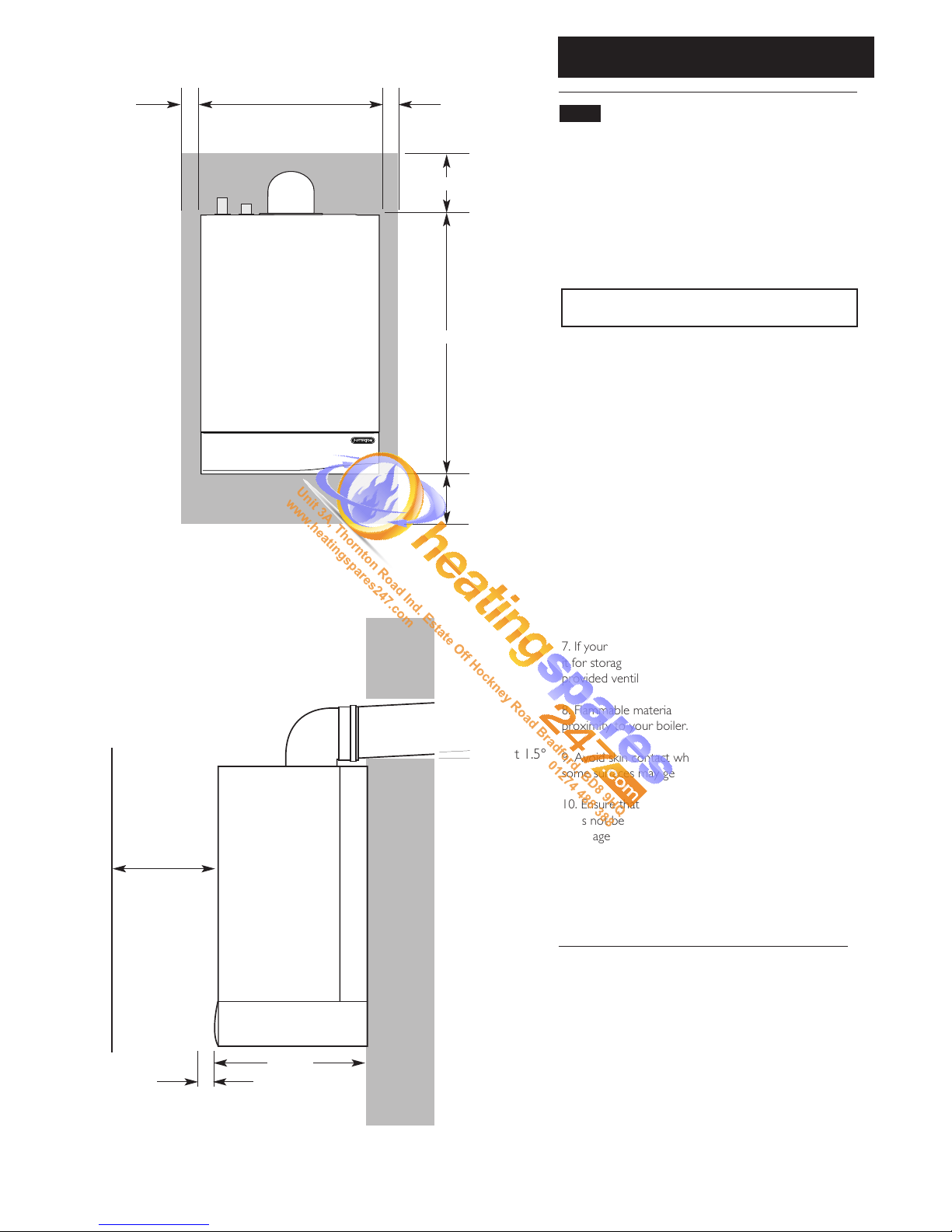

3.0 Clearances

6© Baxi Heating UK Ltd 2008

130mm

595mm

400mm

125mm

5mm Min

15mm

610mm

For Servicing

Purposes

Fig. 1

Fig. 2 In Operation

At Least 1.5°

260mm

3.1 For your Safety

1. This appliance must have been installed in accordance

with the manufacturer’s instructions and the regulations

in force.

2. Any modification that may interfere with the normal

operation of the appliance without express written

permission from the manufacturer or his agent could

invalidate the appliance warranty. In GB this could also

infringe the Gas Safety (Installation and Use) Regulations.

3. Your boiler must not be operated without the casing

correctly fitted.

4. Do not interfere with any sealed components on this

boiler.

5. Take note of any warning labels on your boiler.

6. Your boiler should have the following minimum

clearances for Safety and Maintenance

(Figs. 1 & 2):-

Top - 125mm

Bottom - 130mm

Left side - 5mm

Right Side - 5mm

Front - 15mm (In Operation)

- 610mm (For Servicing)

7. If your boiler is installed in a compartment, do not use

it for storage purposes. Do not obstruct any purpose

provided ventilation openings.

8. Flammable materials must not be stored in close

proximity to your boiler.

9. Avoid skin contact when your boiler is in operation, as

some surfaces may get hot e.g. pipework.

10. Ensure that the flue terminal, outside the house,

does not become damaged or obstructed, particularly

by foliage.

11. It is important that the condensate drain system is

not blocked, modified or damaged in any way as this

would affect the operation of your boiler. Your installer

should have insulated any exposed pipework.

GB - Heating Industry definition meaning England, Scotland,

Wales, Northern Ireland, Isle of Man and the Channel Isles

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

4.0 Care of the Boiler

4.1 Cleaning the Outercase

The painted panels should be wiped with a damp cloth

and then dried completely. DO NOT USE ABRASIVE

CLEANING AGENTS.

4.2 Boiler Protection

The protection systems listed below will always be

working whilst the gas and electricity supplies to the

boiler are on.

1. To ensure the boiler is protected during very cold

conditions a frost protection feature is built in to the

boiler. If the boiler temperature falls below 4°C the

boiler will fire until a temperature of 15°C is reached.

2. The boiler incorporates a built in pump protection

feature which continually monitors the time since the

pump last operated. The pump will run for around 2

minutes if it has not run in the last 24 hours. This may

occur during the night when your heating controls are

set to off.

3. The boiler is fitted with a safety thermostat to

protect against overheating of the water. If this

thermostat operates the boiler will lockout and the

‘Lockout’ (Red) light will flash once a second. The

boiler will require resetting before it will re-light.

4. A frost thermostat may have been fitted to your

system. Your installer will have advised you of this.

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

5.0 Legislation

8© Baxi Heating UK Ltd 2008

5.1 Installation, Commissioning, Service & Repair

1. This appliance must be install in accordance with the

manufacturer’s instructions and the regulations in force.

Read the instructions fully before installing or using the

appliance.

2. In GB, this must be carried out by a competent person

as stated in the Gas Safety (Installation & Use)

Regulations.

3. Definition of competence: A person who works for a

CORGI registered company and holding current

certificates in the relevant ACS modules, is deemed

competent.

4. IN IE (Eire), this must be carried out by a competent

person as stated in I.S. 813 “Domestic Gas Installations”.

Lifting - This product should be lifted and handled by two

people. Stooping should be avoided and protective

equipment worn where necessary. Carrying & lifting

equipment should be used as required, e.g. when installing

in a loft space.

All CORGI registered installers carry a CORGI

identification card (see Fig. 3) and have a registration

number. You can check your installer is registered by

telephoning 0870 4012300 or writing to:-

1 Elmwood,

Chineham Business Park,

Crockford Lane,

Basingstoke. RG24 8WG.

or check online at www.corgi-gas-safety.com

The boiler meets the requirements of Statutory

Instrument “The Boiler (Efficiency) Regulations 1993 No

3083” and is deemed to meet the requirements of

Directive 92/42/EEC on the energy efficiency

requirements for new hot water boilers fired with liquid

or gaseous fuels:-

Type test for purpose of Regulation 5 certified by:

Notified Body 0087.

Product/Production certified by:

Notified Body 0086.

For GB/IE only.

5.2 Benchmark Commissioning Checklist

1. Please ensure that your installer hands you the boiler

Installation & Service Instructions with the “Benchmark

Commissioning Checklist sections completed. The

details in the Checklist will be required in the event of

any warranty work. Keep the instructions in a safe place

and ensure that the Service Interval Record at the back

is completed at each service visit.

Registered

Gas Installer

CARD SERIAL NO. 999999999

NAME:

A.N.Installer

COMPANY:

Newtown Heating

EXPIRES: 31 DECEMBER 2010

PHOTOGRAPH

To confirm validity of this card please contact

CORGI on 0870 401 2300

www.corgi-group.com

CORGI

00000

Fig. 3 CORGI Registration Card

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

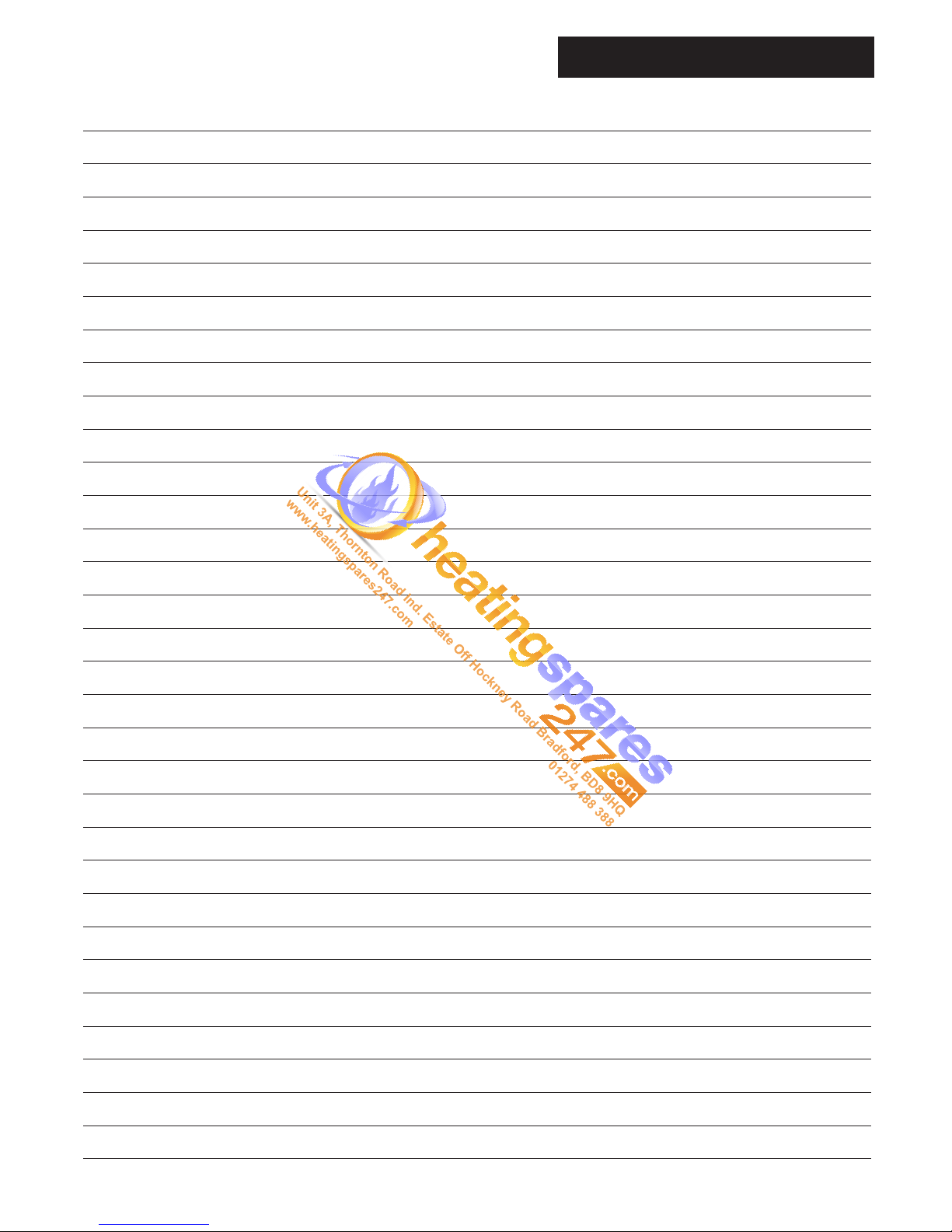

6.0 Notes

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

6.0 Notes

Unit 3A, Thornton Road Ind. Estate Off Hockney Road Bradford, BD8 9HQ

01274 488 388

www.heatingspares247.com

Altri manuali per Performa 9 SL HE

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Potterton Caldaia

Potterton

Potterton Sirius two WH Manuale

Potterton

Potterton Prima 30F Guida utente

Potterton

Potterton Performa 24 Eco HE Istruzioni di installazione e manutenzione

Potterton

Potterton Boiler Manuale utente

Potterton

Potterton envoy 30 Istruzioni di installazione e manutenzione

Potterton

Potterton Performa 9 SL HE Manuale utente

Potterton

Potterton Prorile Prima 30e Guida utente

Potterton

Potterton Suprima 80 HE Manuale di istruzioni

Potterton

Potterton Gold 4 kW Guida utente

Potterton

Potterton LPG 50e Manuale utente

Potterton

Potterton Promax SL Range Istruzioni di installazione e manutenzione

Potterton

Potterton Kingfisher Mf Manuale utente

Potterton

Potterton Performa 28i Istruzioni operative

Potterton

Potterton Promax Combi 24 HE Plus LPG Istruzioni di installazione e manutenzione

Potterton

Potterton Suprima 70 HE Istruzioni di installazione e manutenzione

Potterton

Potterton Avon Two Specifiche tecniche

Potterton

Potterton Prorile Prima 30e Guida utente

Potterton

Potterton PROMAX SL 12 Manuale utente

Potterton

Potterton PROMAX 12 Manuale utente

Potterton

Potterton Performa System 28e Istruzioni operative

Potterton

Potterton Promax 24 Combi ErP Manuale

Potterton

Potterton Promax 24 Combi ErP Manuale

Potterton

Potterton Kingfisher Mf CFL40 - 100 Istruzioni di installazione e manutenzione

Potterton

Potterton Assure Heat 13 Manuale

Manuali Caldaia popolari di altre marche

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuale utente

Radijator

Radijator BIO max 23.1 Manuale utente

Brunner

Brunner BSV 20 Manuale utente

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuale utente

UTICA BOILERS

UTICA BOILERS TriFire Manuale utente

Joannes

Joannes LADY Series Manuale

ECR International

ECR International UB90-125 Manuale di istruzioni

Froling

Froling FHG Turbo 3000 Manuale utente

Froling

Froling P4 Pellet 8 - 105 Manuale utente

U.S. Boiler Company

U.S. Boiler Company K2 Manuale utente

Henrad

Henrad C95 FF Manuale utente

NeOvo

NeOvo EcoNox EF 36 Manuale utente

Eco Hometec

Eco Hometec EC 25 COMPACT Manuale utente

Viessmann

Viessmann VITODENS 200 Guida

Baxi

Baxi Prime 1.24 Manuale utente

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuale utente

Radiant

Radiant R2K 55 Manuale

Worcester

Worcester Greenstar 36LXi Manuale utente
