POTTERTON Netaheat Profile

Model Numbers: 30e, 40e, 50e, 60e, & 80e (model 50e is found in two-bed flats)

USER'S INSTRUCTIONS

IT IS IMPORTANT THAT THE CASE OF THIS APPLIANCE IS NOT REMOVED FOR ANY REASON

OTHER THAN FOR SERVICING BY A QUALIFIED SERVICE ENGINEER. THE APPLIANCE MUST NOT

BE OPERATED WITHOUT THE CASING CORRECTL Y FITTED AND FORMING AN ADEQUATE SEAL.

THIS APPLIANCE IS FOR USE ON NATURAL GAS ONLY

IT MUST BE INSTALLED BY A COMPETENT PERSON AS STATED IN THE GAS SAFETY

(INSTALLATION AND USE) REGULATIONS 1984.

IF THE APPLIANCE IS INSTALLED IN A COMPART MENT, DO NOT USE FOR STORAGE PURPOSES

AND DO NOT OBSTRUCT ANY PURPOSE PROVIDED VENTILATION OPENINGS.

IF A GAS LEAK OR FAULT IS SUSPECTED, TURN OFF THE APPLIANCE AND CONSULT YOUR LOCAL

GAS REGION OR SERVICE ENGINEER.

INTRODUCTION

The information given on this card will help you to obtain the maximum comfort from your boiler with the

minimum trouble and cost. Your boiler is fully automatic in operation and requires very little attention apart from

setting the thermostat.

Regular skilled servicing is required to maintain the safe and efficient operation of your boiler throughout its long

working life. Further information on this subject is given at a later stage .

ELECTRICITY SUPPLY

WARNING: THIS APPLIANCE MUST BE EARTHED

Connection shall be made to a 240V~50 Hz supply. The appliance must be protected by a 3 amp fuse if a 13 amp

(BS 1363) plug is used or if any other type of plug is used by a 5 amp fuse in the circuit.

TO CONNECT A PLUG

As the colour of the wires in the mains lead of the appliance may not correspond with the coloured markings

identifying the terminals in your plug, proceed as follows:-

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with

the letter E or by the earth symbol or coloured green or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured

black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured

red.

THE BOILER THERMOSTAT

The boiler thermostat enables you to control the temperature of the water as it leaves the boiler and is also used for

turning the boiler on and off. The thermostat knob can be set to O (OFF}, 1, 2, 3, 4, 5 or Max. The graduations 1 to

Max. correspond approximately to a temperature range of 55°C to 82°C (130°F -180°F).

During the summer months, when the boiler is only being used to supply stored domestic hot water and there is no

independent hot water temperature control, the thermostat can be set to position 1 or 2 which will probably be hot

enough for bathing or washing up requirements. For washing clothes, a higher setting may be necessary,

In winter weather, when central heating is required, the thermostat knob can be turned up higher but it must be

remembered that unless the temperature of the water in the domestic hot water cylinder is independently con-

trolled, the stored hot water could be at a temperature that could scald, i.e. about 82°C (180ºF).

OTHER CONTROLS

A Potterton Electronic Programmer or other type of clock may have been fitted in your system, together with room

and/or cylinder thermostats. Full instructions on the use of these contro1s should be supplied with them.

TO LIGHT

1. Ensure that the boiler thermostat knob is at '0' (fully anti-clockwise) .

2. Switch 'ON' the main electricity supply.

3. Ensure the electronic programmer or other time contrql, if fitted, is in an 'ON' period (refer to time control

literature).

4. Ensure that any room and/or cylinder thermostats are at a high temperature setting.

Proceed as follows: -

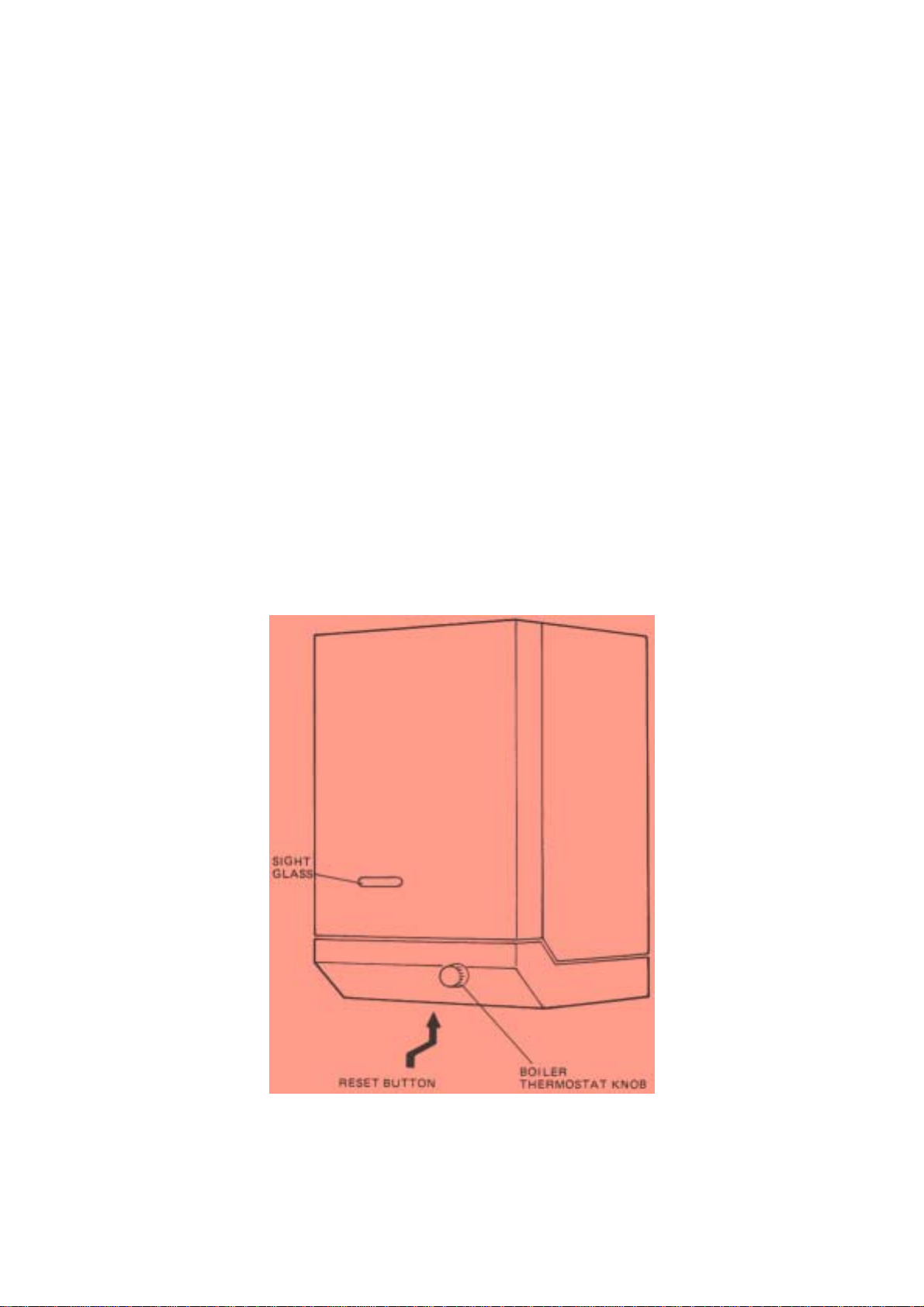

Turn the boiler thermostat on and to the required setting. After a short period, the boiler will light: the main burner

can be seen through the sight glass on the front of the boiler. Set the time control and any thermostats, where fitted,

to their desired settings.

TO SHUT THE BOILER OFF

Turn the boiler thermostat knob to '0' , or switch the external programmer to the 'OFF' position. To relight the

boiler, simply turn the boiler thermostat 'ON' or switch the programmer to the 'ON' position.

FOR LONGER SHUT DOWN PERIODS

Turn the boiler thermostat to '0', isolate the electrical supply at the isolating switch, or pull the plug out of its socket.

NOTE:

If the system is fitted with a low limit thermostat and protection of the system is required during cold weather all

that is required, is for the programmer to be turned to the ‘OFF’ position. This will allow the boiler to cycle if the

temperature within the house becomes too low.

IMPORTANT

Gas and electricity are required to operate your boiler. Its performance will not be affected by normal variation in

gas or electricity supply, but a gas or electricity failure will put the boiler out of operation. It will automatically re-

start when the supply is restored, provided that the time clock and/or thermostats are in an 'ON' position.

In the event of your boiler not working, there are several checks you should carry out before calling in a service

engineer, as this could save you unnecessary expense.

1. Check that the gas, electricity and water are all turned on at the main supply.

2. Check that the time control, if fitted, is in an 'ON' period.

3. Check that all thermostats in the system are not on low settings.

4. Overheat Limit Thermostat

The boiler is fitted with a safety thermostat to protect against overheating of the water. Should the boiler fail

to light, allow it to cool and press the reset button. Access to the button is through a hole in the underside of

the controls cover, see illustration on front page. If the problem persists, turn off the boiler and consult your

local Gas Region or Service Engineer.

Note: Interruption of the electrical supply to the boiler may also cause the overheat limit thermostat to

operate.

Having checked these points, run through the lighting procedure once more and if the boiler still fails to light, call in

your local service engineer.

CARE OF YOUR BOI LER AND SYSTEM

Regular skilled servicing is required to keep your boiler operating safely and efficiently throughout its long working

life.

It is also advisable to have the whole heating system checked over annually, so that excessive costs are not incurred

by such things as air temperature thermostats or radiator valves getting out of adjustment. Servicing should be

carried out by a trained service engineer, and it is suggested that an annual contract be arranged. Contact your local

Potterton regional service office, or return the post card attached to these instructions for further information.

The outside of the boiler casing can be wiped when necessary using a damp cloth to remove finger marks etc. Do

not use an abrasive material.

FROST PRECAUTIONS

If your boiler has to be shut down for several hours or more during very cold weather, it may be in danger of

freezing, due to its position, i.e. it may be in an outhouse or part of the pipework may be vulnerable to frost. To

avoid freezing, various methods of protection can be used:-

1. Insulation of the boiler and pipework, taking care not to impede any ventilation air supply.

2. Completely draining the water system if not in use for long periods. On a sealed system, draining and refilling

must be carried out by a competent person, e.g. your Service Engineer.

NOTE:

Although the system can be emptied by using the drain-off taps installed in the pipework around the system,

to empty the boiler, it is necessary to remove the drain cap situated within the boiler case. This operation is

best left to your Service Engineer.

3. Having a low thermostat fitted. Seek advice from your installer.

NOTE:

If a low limit thermostat has been fitted, it cannot operate if the boiler is completely shut down and the

electricity supply turned off. In this instance, the system will have no protection and one of the other methods

must be used.

4. Where no frost protection is provided it may be necessary to run the boiler at low thermostat settings at times

when it would normally be shut off.

Potterton International Limited, Portobello Works, Emscote Road, Warwick.

Northern/Scottish Regional Service Office 8 The Gills, Otley , Leeds LS21 2AH 0943-465666

South Western/Midland Regional Service Office Brooks House, Coventry Road, Warwick CV34 4LL 0926-

496896/7

South Regional Service Office 10 Hardwicks Way, London SW18 4AJ 01-870 4131

Parts Department Brooks House, Coventry Road, Warwick CV34 4LL 0926 493471

Group of companies

INTERNATIONAL LIMITED

Registered in England No. 439502. Registered Office, Portobello Works, Emscote Road, Warwick CV34 5QU.

Publication No. 559228/0688

This Potterton appliance is fully automatic in operation, requiring no attention from you apart from setting the

controls. Your Installer will assist you by explaining their adjustment and this instruction card provides a permanent

reminder for the future. Regular skilled servicing is essential for safe and efficient running. By arranging for

maintenance now you will avoid the inconvenience and unnecessary expense of failures.

Service would be most conveniently carried out by a Potterton Service Engineer or one of our Approved Service

Contractors. These engineers are fully conversant with the design and installation of all central heating equipment.

By completing and posting the attached card, you will be sent full details of the recommended service requirements.
