PART'S MANUAL
MODEL NUMBER:
P14530ES
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
580 92 59-27 Rev. 1
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
20
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
11
11
11
11
1
2 (EXPLODED)
2
3
4
5
6
7
9
99
8
12
12
13
14
15
16
17
18 19
20
21
21
22
22
23
23 24
25
26
27
28
29
30
3131
32
33
34
35
36
37
37
01.07.026-F
21
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 532 18 41-05 IMPELLER
2 532 42 71-48 GEARBOX ASSEMBLY
3 532 18 89-09 BEARING
4 532 42 71-46 IMPELLER PULLEY
5 532 44 24-38 DISCHARGE BASE
6 532 18 40-95 CORNER BRACKET
7 532 19 21-99 CLEAN OUT TOOL
8 532 40 54-00 TOOL CLIP
9 873 80 04-00 NUT 1/4-20
10 874 78 04-26 SCREW 1/4-20 X .625
11 532 42 79-42 NUT 5/16-18
12 532 16 31-83 SCREW 5/16-18 X .625
13 532 42 71-45 IMPELLER HUB
14 532 42 71-54 IMPELLER SLEEVE
15 532 14 52-12 FLANGE NUT 3/8-16
16 532 18 03-55 CARRIAGE BOLT
17 532 19 41-89 SCREW 13-16 X .625
18 532 40 77-60 PLUG
19 532 42 73-02 GEARBOX COVER RH
20 532 42 73-45 GASKET
21 532 40 77-70 SEAL
22 532 40 77-62 BEARING
23 532 17 46-97 THRUST WASHER 1.00
24 532 40 77-63 WORM GEAR
25 532 40 77-64 AUGER SHAFT
26 532 18 92-82 SQUARE KEY
27 532 40 77-58 BEARING
28 532 17 46-83 THRUST WASHER
29 532 42 71-47 IMPELLER SHAFT
30 532 18 42-05 ROLL PIN
31 532 17 46-81 THRUST WASHER
32 532 17 46-84 THRUST BEARING
33 532 40 77-69 BEARING
34 532 40 77-68 O-RING
35 532 40 77-67 SCREW 5/16-18 X .750
36 532 42 73-17 GEARBOX COVER LH
37 532 19 20-90 SHEAR BOLT
22
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
01.07.019-A
1 532 42 11-24 AUGER ASSEMBLY 30 LH
2 532 42 11-25 AUGER ASSEMBLY 30 RH
1
2
3 (5x)
4 (5x)
01.07.003-A
1 532 41 52-91 AUGER HOUSING
2 532 40 76-45 SCRAPPER BAR
3 872 27 05-05 CARRIAGEBOLT5/16−18X.625
4 532 15 53-77 NUT 5/16−18
23
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

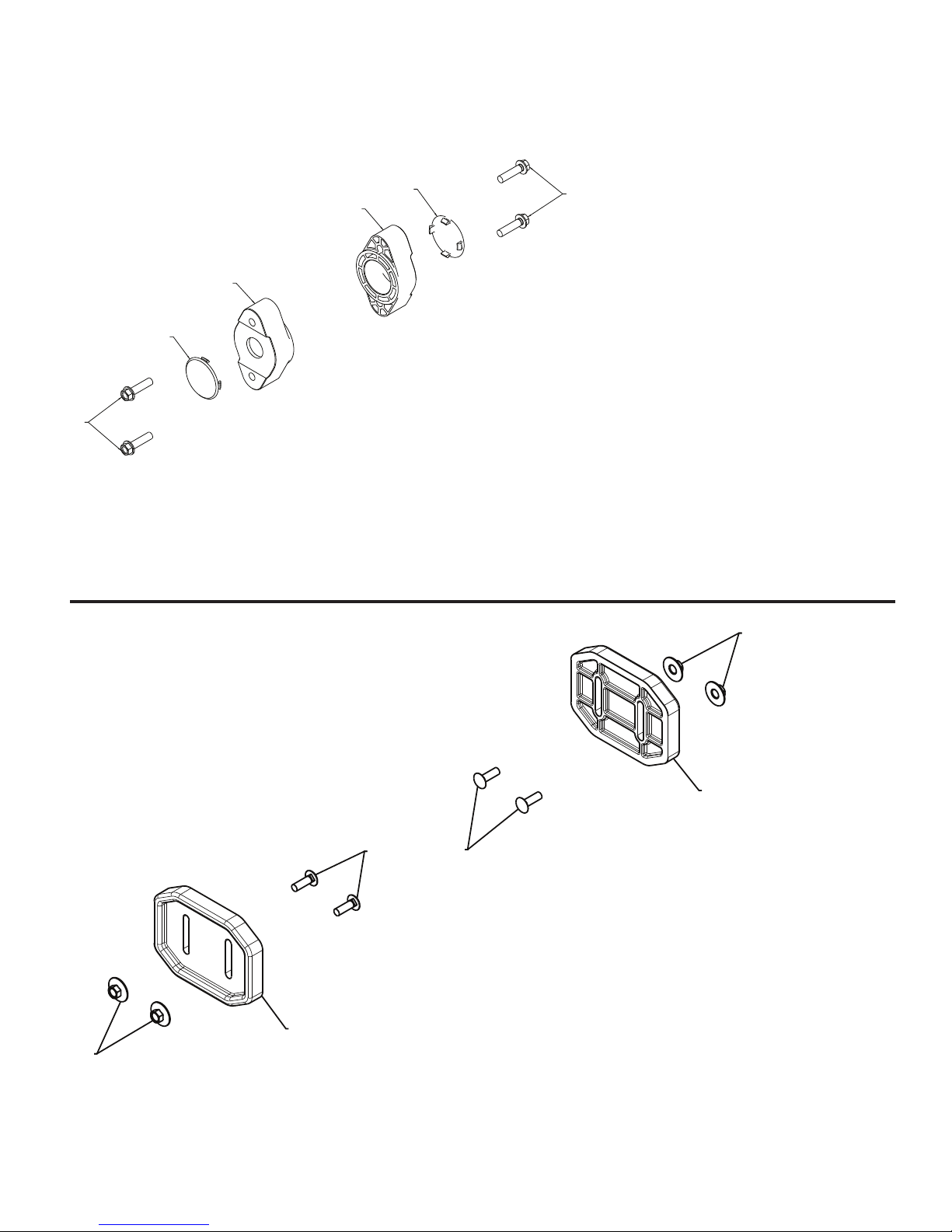

1
1
2
3
23
01.07.024-B
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 42 04-78 AUGER BEARING
2 532 41 19-39 BEARING PLUG
3 532 17 95-82 SCREW 5/16−18 X 1.00
1
1
2
2
33
01.11.003-B
1 532 43 59-51 PLATE SKID PLASTIC HDPE
2 532 42 65-89 NUT 5/16-18 LARGE HEX
FLANGE BLK
3 872 11 05-10 CARRIAGE BOLT 5/16-18 X 1.25
24
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
11
11
11
1
2
3
4
5
6
6
6
7
9
8
12
13
01.09.005-E
1 532 44 36-24 CHUTE WELDMENT
2 532 18 45-11 DEFLECTOR WELDMENT
3 532 42 03-25 DEFLECTOR SEAL
4 532 18 41-14 STRAP
5 532 19 19-38 KNOB BLACK
6 532 12 84-15 POP RIVET
7 532 18 56-00 SHOULDER BOLT 1/4−20 X .704
8 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
9 532 19 17-30 NUT 1/4−20
10 532 15 54-15 WASHER
11 532 17 92-46 PLASTIC WASHER
12 532 43 03-24 CHUTE SNOW SHIELD
13 532 42 17-28 SHIELD RETAINER STRAP
25
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3
*4 *5
*6
*7
01.09.010-C
1 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY
2 817 54 10-08 SCREW 10-24 X .625
*3 532 42 06-78 ROTATOR HEAD
*4 532 40 59-32 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 82-73 CABLE ASSEMBLY ADJUSTABLE
*7 532 42 83-10 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
26
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
4
4
5
5
01.05.013-D
1 585 23 81-02 LOWER HANDLE
2 532 44 36-17 PIVOT SUPPORT WELDMENT
3 817 00 05-10 SCREW 5/16−18 X .750
4 817 00 06-16 SCREW 3/8−16 X 1.00
5 817 00 06-12 SCREW 3/8-16 X .750
10
1
2
3
4
5
5
6
6
7
7
9
9
8
8
8
01.08.003-B
1 532 42 10-69 PLOW HANDLE LH
2 532 42 10-70 PLOW HANDLE RH
3 532 42 91-48 PANEL BRACKET LH
4 532 42 91-49 PANEL BRACKET RH
5 532 19 95-13 HANDLE GRIP
6 874 78 05-12 SCREW 5/16−18 X .750
7 874 78 05-24 SCREW 5/16−18 X 1.50
8 532 75 11-53 NUT 5/16−18
9 532 15 54-15 WASHER
10 532 05 38-47 WASHER
27
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
1
2
3
4
5
5
6
7
9
8
01.12.013-B
1 584 80 87-01 IMPELLER ROD ASSEMBLY
2 584 80 88-01 TRACTION ROD ASSEMBLY
3 532 18 04-45 SHIFTER ROD TOP
4 532 18 77-16 SHIFTER ROD BOTTOM
5 532 18 04-47 SPRING SLEEVE
6 580 79 62-01 SPRING CONTROL ROD
7 580 80 21-01 SPRING TRACTION ROD
8 872 27 05-05 CARRIAGE BOLT 5/16-18 X .750
9 532 15 53-77 NUT 5/16-18
10 532 16 96-75 RETAINER
28
REPAIR PARTS SNOW THROWER - MODEL P14530ES (96198004502)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
11
11
11
11
1
2
3
45 6
7
9
8
12
12
12
12
13
13
13
13
14
01.08.021-A
1 585 19 88-02 CONTROL PANEL
2 581 77 98-01 LH CONTROL LEVER
3 581 77 97-01 RH CONTROL LEVER
4 584 80 90-01 INTERLOCK CONTROL ROD
5 585 00 47-01 INTERLOCK BRACKET
6 874 78 04-10 1/4-20 X .625 HEX HEAD SCREW
7 532 42 16-13 SPACER
8 532 08 83-49 1/4-20 FLANGE NUT (TOP LOCK)
9 532 41 42-81 KNOB RED
10 532 41 42-80 KNOB BLACK
11 532 17 88-99 HANDLE KNOB
12 819 13 13-16 3/8 WASHER
13 872 12 06-18 CARRIAGE BOLT 3/8-16 X 2.25
14 532 16 96-75 RETAINER
