Poulan Pro PR208 Manuale utente
OWNER'S MANUAL
MODEL NUMBER:
PR208
SNOW THROWER
Always Wear Eye Protection During Operation
IMPORTANT MANUAL Do Not Throw Away
WARNING:
Read the Owner's Manual and
follow all Warnings and Safety
Instructions. Failure to do so
can result in serious injury.
421888 08.26.08 TH
Printed in U.S.A.
20
2 (EXPLODED)
2
10
9
1
11
11
3
12
12
4
13
14
15
17
8
7
11
5
6
11
16
18
35
19
21 22 23 24
25
23 22 21 20
36
26
27
28
30
29
31
31
32
33
34
01.07.004-B
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
21
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 175321X479 IMPELLER
2 196710 GEARBOX ASSEMBLY
3 188909 BEARING
4 191079 IMPELLER PULLEY
5 175322 DISCHARGE BASE
6 178675X008 CORNER BRACKET
7 192199 CLEAN OUT TOOL
8 405400 TOOL CLIP
9 73800400 NUT 1/4−20
10 74780426 SCREW 1/4−20 X .625
11 155377 NUT 5/16−18
12 163183 SCREW 5/16−18 X .625
13 19111507 WASHER
14 10040500 LOCKWASHER 5/16
15 74940516 SCREW 5/16−18 X 1.00
16 180355 CARRIAGE BOLT
17 194189 SCREW 13−16 X .625
18 407760 PLUG
19 407761 GEARBOX COVER RH
20 407766 GASKET
21 407770 SEAL
22 407762 BEARING
23 174697 THRUST WASHER 1.00
24 407763 WORM GEAR
25 407764 AUGER SHAFT
26 189282 SQUARE KEY
27 407758 BEARING
28 174683 THRUST WASHER
29 407757 IMPELLER SHAFT
30 184205 ROLL PIN
31 174681 THRUST WASHER
32 174684 THRUST BEARING
33 407769 BEARING
34 407768 O−RING
35 407767 SCREW 5/16−18 X .750
36 407765 GEARBOX COVER LH
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
AUGER HOUSING / IMPELLER ASSEMBLY
22
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1
1
2
3
23
01.07.024-B
1 420478 AUGER BEARING
2 411939 BEARING PLUG
3 179582 SCREW 5/16−18 X 1.00
1
2
3 (5x)
4 (5x)
01.07.001-A
1 404928X428 AUGER HOUSING
2 404931X479 SCRAPPER BAR
3 72270505 CARRIAGEBOLT5/16−18X.625
4 155377 NUT 5/16−18
23
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
4
3
01.11.001-A
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

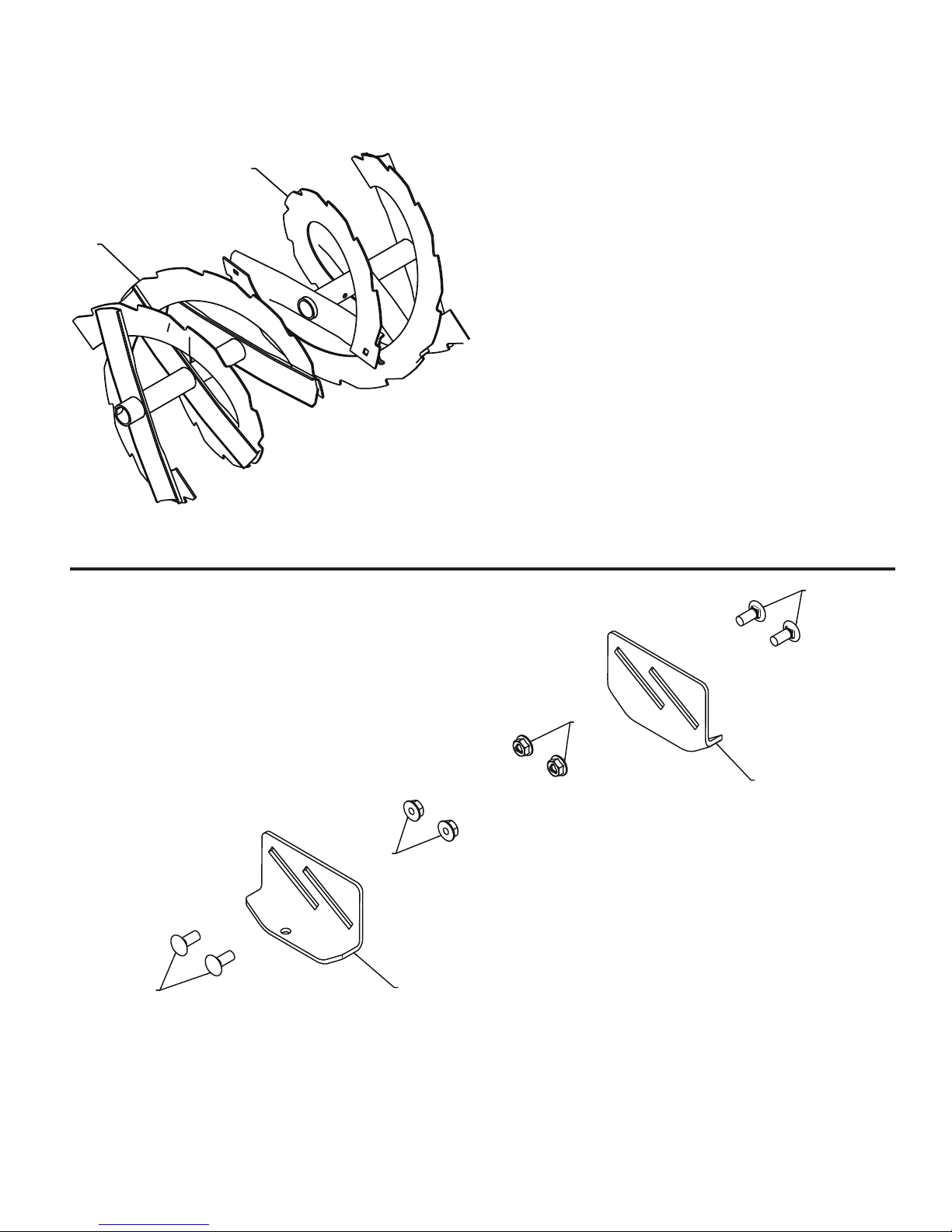

1 174762X479 SKID PLATE LH
2 178777X479 SKID PLATE RH
3 72270506 CARRIAGE BOLT 5/16−18 X .75
4 751153 NUT 5/16−18
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
AUGER HOUSING / IMPELLER ASSEMBLY
2
1
01.07.017-A
1 420493X479 AUGER ASSEMBLY LH 24
2 420494X479 AUGER ASSEMBLY RH 24
24
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
CONTROL PANEL / CHUTE
1
2
3
4
5
6
6
7
8
9
11
11
11
10
01.09.001-A
1 404770X428 CHUTE WELDMENT
2 178633X428 DEFLECTOR WELDMENT
3 420325 DEFLECTOR SEAL
4 179096X479 STRAP
5 189713X479 KNOB BLACK
6 128415 POP RIVET
7 185600 SHOULDER BOLT 1/4−20X.704
8 72270505 CARRIAGEBOLT5/16−18X.625
9 191730 NUT 1/4−20
10 155415 WASHER
11 179246 PLASTIC WASHER
25
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3 *6
*6
*4 *5
01.09.007-A
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
CONTROL PANEL / CHUTE
1 420337 LEVER/CABLE ROTATOR ASSEMBLY
2 17501010 SCREW 10−24 X .625
*3 420678 ROTATOR HEAD
*4 420677 ROTATOR PIVOT BRACKET
*5 420675 PULLEY PIVOT
*6 420674 CABLE ASSEMBLY
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
26
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
01.05.002-B
1
2
4
4
4
4
3
3
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
HANDLES
1 419797X479 LOWER HANDLE
2 405784X479 PIVOT SUPPORT WELDMENT
3 150078 SCREW 5/16−18 X .750
4 17000616 SCREW 3/8−16 X 1.00
1
2
3
4
5
5
6
67
7
8
8
8
9
9
01.08.003-A
1 419800X479 PLOW HANDLE LH
2 419801X479 PLOW HANDLE RH
3 196944 PANEL BRACKET LH
4 196943 PANEL BRACKET RH
5 199513 HANDLE GRIP
6 74780512 SCREW 5/16−18 X .750
7 74780524 SCREW 5/16−18 X 1.50
8 751153 NUT 5/16−18
9 155415 WASHER
27
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
01.08.002-E
1
4
5
6
7
7
8
10
11
14
14
12
13
13
12
2
3
9
9
8
1 412683X479 CONTROL PANEL
2 412681X479 CONTROL LEVER LH
3 412682X479 CONTROL LEVER RH
4 412679X008 TRACTION ROD ARM
5 420889X008 IMPELLER ROD ARM
6 412677 INTERLOCK ROD
7 412613 SPACER
8 169675 RETAINER
9 17060408 SCREW 1/4−20 X .50
10 414280 KNOB BLACK
11 414281 KNOB RED
12 178899 HANDLE KNOB
13 19131316 WASHER 3/8
14 72120618 CARRIAGE BOLT 3/8−16 X 2.25
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
HANDLES
28
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR208 (96192002101)
HANDLES
1
2
3
4
5
6
5
7
8
9
10
01.12.001-A
1 180480 IMPELLER ROD ASSEMBLY
2 405740 TRACTION ROD ASSEMBLY
3 180445 SHIFTER ROD TOP
4 187716 SHIFTER ROD BOTTOM
5 180447 SPRING SLEEVE
6 178669 IMPELLER SPRING
7 180926 TRACTION SPRING
8 72270506 CARRIAGE BOLT 5/16−18 X .75
9 155377 NUT 5/16−18
10 169675 RETAINER
