Power bass ASA 600.1x Manuale utente

ASA SERIES CLASS AB MONO BLOCK AMPLIFIER

Owners Manual

Please read through this manual to familiarize yourself with your new ampliﬁer. Should your PowerBass AutoSound mobile ampliﬁer

ever require service, you will need to have the original dated receipt.

ASA 400.1x

ASA 600.1x

Thank you and Congratulations

Thank you for your decision to purchase a PowerBass USA Autosound mobile ampliﬁer! Our Autosound

ampliﬁers are the result of extensive engineering, testing, and bullet proof construction. Their versatility

enables compatibility with optional signal and audio processors. These high quality MOSFET ampliﬁers

may be conﬁgured to allow maximum ﬂexibility in designing different subwoofer options.

CLASS AB Mono Block AMPLIFIERS

Unlike most Full Range ampliﬁers these models are equipped with a Low Pass Filter control (LPF) that

when engaged is intended only to power subwoofer(s). It is important that you closely follow the wiring

instructions contained in this Owners Manual so that you get the most from your PowerBass AutoSound

A/B Class Mono Block mobile ampliﬁer.

∆Caution ∆

High powered audio systems in a vehicle are capable of generating higher then “Live Concert” levels of sound pressure. Continued

exposure to excessively high volume sound levels will cause hearing loss or damage. Also, operation of a motor vehicle while listening

to audio equipment at thigh volume levels may impair your ability to hear external sounds suck as horns, warning signals, or emergency

vehicles—thus creating a potential trafﬁc hazard. In the interest of safety, PowerBass USA highly recommends listening at lower volume

levels when driving.

TECHNICAL FEATURES

• Mono Block Ampliﬁer for Full Range or Subwoofer Only Applications

• MOSFET Power Supplies for High Power Output and Unprecedented Stability into Low Impedance

Loads

• Soft Delay Remote Turn On/Off Circuit to Eliminating Pops and Clicks

• Built-in Fully Adjustable Electronic Low Pass (LPF) Crossover Network

• Built-in Fully Adjustable Bass Equalization

• Self Diagnostic Protection Circuit with LED Status Indicator for; Impedance Over-load, Speaker Short

Circuit, Thermal Overheating, and DC Output.

• 2-ohm Stable Operation

• Heavy-duty Brass CNC Machined Terminal Blocks

• Variable Gain Control

• Pass Thru Line Output Jacks

• Remote Bass Boost Control (Included)

INSTALLATION EXPERIENCE

Installation of PowerBass mobile ampliﬁers requires detailed knowledge of electronics wiring and proper

speaker impedance. We strongly recommend installation by an authorized PowerBass dealer. This Own-

ers Manual only provides general installation and operation instructions. If you have any reservations

about your installation skills, please contact your local PowerBass dealer for assistance.

IMPORTANT : This ampliﬁer is designed for operation in vehicles with 12-volt Negative ground

electrical systems only.

PREPARING FOR INSTALLATION

NOTE: The tools listed below may be required for basic installation

• An electric drill with bits

• Philips head and standard screwdrivers

• Wire strippers

• Crimping tool

• VOM (electronic volt ohm meter)

• Heat shrink tubing and heat gun

• Soldering iron

INSTALLATION PRECAUTIONS

NOTE: Proceed only if you are a qualiﬁed installer, otherwise; see your Authorized PowerBass Dealer to

professionally install this ampliﬁer. Always wear protective eyewear when using tools.

• Turn off all stereo and other electrical devices before you begin.

• Disconnect the negative (-) lead from your vehicles battery.

• Locate all fuel lines, brake lines, oil lines, and electrical cables when planning the install.

• Make sure there is at least 2-inches (5 cm) around the air vents on the ampliﬁer.

• When connecting ground points, make sure all paint is carefully scrapped away from the auto body

and contact is make with bare metal.

• Use a utility knife to trim away fabric from hole locations before drilling or cutting.

• When running power cables through sheet metal, be sure to use grommets to properly insulate the

metal edges from the wire insulation.

• If possible, use tubing through grommets.

Due to the high power output of our PowerBass Autosound ampliﬁers, considerable heat may be

produced when the unit is in operation. For this reason the ampliﬁer should be mounted in a location

which will allow air to circulate freely. A clearance of at least 2-inches (5 cm) to all sides of the ampliﬁer

is necessary not only for proper cooling, but also for gaining access to the inputs and other variable

controls. Be sure that the power and signal cable connections can enter and leave the ampliﬁer in a

straight line to avoid the risk of kinked wires causing malfunction.

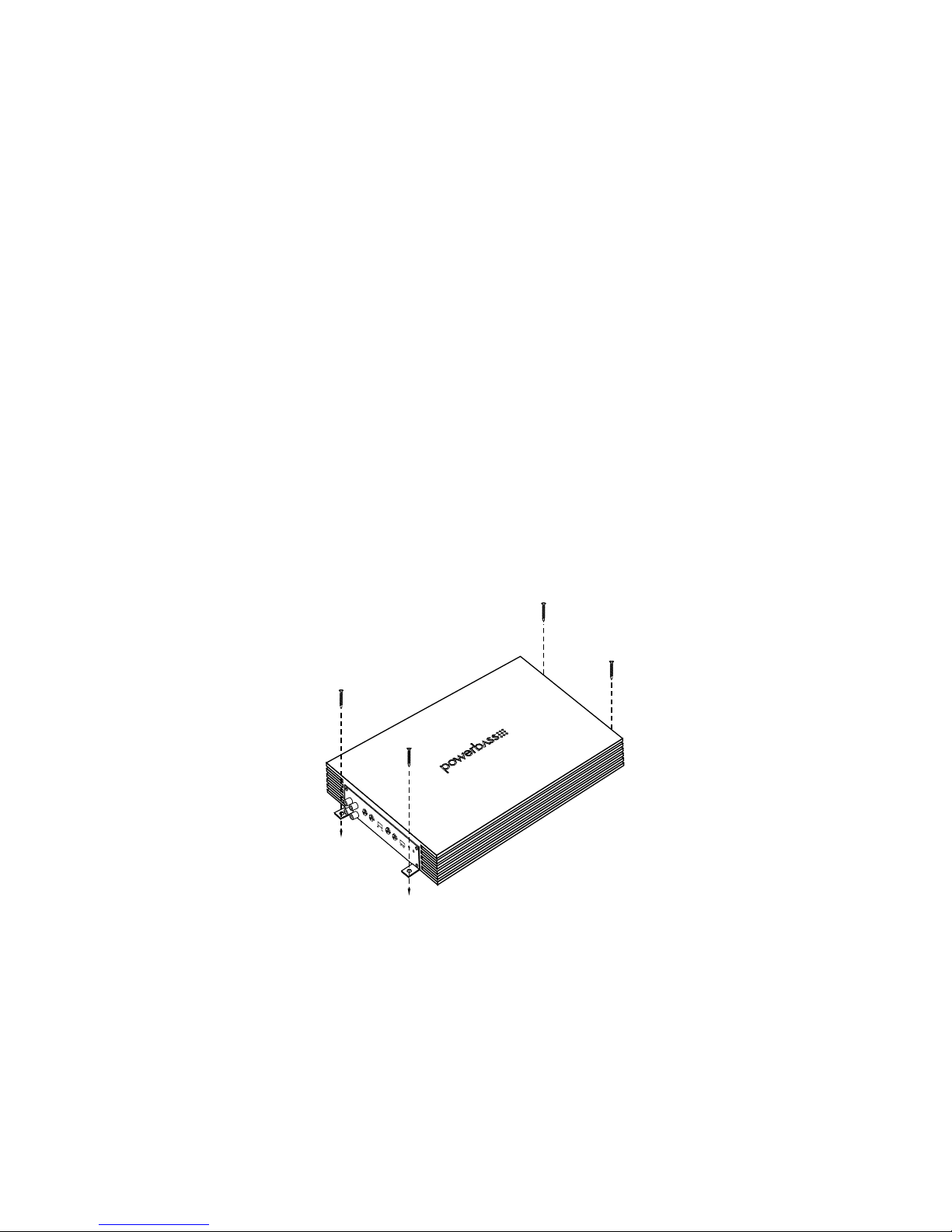

Fig.1 Mounting Ampliﬁer

MOUNTING THE AMPLIFIER

MOUNTING LOCATION

Find a clear and well ventilated area to mount your ampliﬁer that is unobstructed by any objects that will cause

harm or block ventilation. You may use the ampliﬁer as a template and mark the four screw locations with a

felt tip pen. Use caution to make sure there are no objects behind the installation surface that may become

damaged during drilling.

If mounting under a seat, make sure there is at least 1-inch (2.5 cm) of space above the ampliﬁer’s heatsink

to permit proper cooling.

The ampliﬁer should be protected from exposure to moisture and direct sunlight. The best places to mount

your ampliﬁer are: The ﬂoor of the trunk, under the driver’s seat, or on the back of the rear seat. For alternate

installation locations, please consult your authorized PowerBass Dealer.

*** WARNING ***

• Upside down mounting will compromise heat dissipation through the heatsink and

could engage the thermal protection circuit.

• Try to avoid mounting the ampliﬁer on a subwoofer enclosure, as extended exposure

to vibration may cause malfunction of the ampliﬁer.

• Don’t mount the ampliﬁer so that the wire connections are unprotected or are sub-

ject to pinching or damage from nearby objects.

• The DC power wire must be fused at the battery positive (+) terminal connection.

Before making or breaking power connections at the ampliﬁer power terminals,

disconnect the DC power wire at the battery end.

• The battery of the car audio system must be disconnected until the entire wiring and

installation is completed.

SPEAKER FUSE BATT+REMOTE GND

INPUTOUTPUT

GAIN

MIN MAX 0dB +18dB40Hz 250Hz

FULL LPF

LPF

BASS

MODE

REMOTE

POWER STATUS

CH1

CH2

CH1

CH2

CONTROL PANEL LAYOUT

1 2 3 4 5 6 78

10 11 12 13 14

1. Line OUTPUT (RCA) Jacks

RCA style pass through output jacks allow for a signal to be sent to other ampliﬁers in a daisy-chain conﬁgu-

ration. Only one Remote Bass Control can be used when multiple bass ampliﬁers are connected.

2. Line INPUT (RCA) Jacks

These RCA style input jacks are for use with source units that have RCA line level outputs. A source unit with

a minimum output of 500mV is required for proper operation. However, this input will accept levels up to

4Vrms.

3. GAIN Control

This control is used to match the input sensitivity of the ampliﬁer to the particular source unit that you are

using up to 4 volts.

Fig.2 Panel Layout

4. MODE Switch

When switched to LPF this control engages the units Low Pass electronic crossover circuitry. The LPF setting

should be selected with using this as a bass amp only for the subwoofer(s). The FULL position defeats the

crossover and allows the full range of frequencies present at the inputs to feed the ampliﬁer.

5. LPF (Low Pass Filter) Control

This ﬁlter allows low pass of frequency and is adjustable from 40Hz through 250Hz to eliminate unwanted

high frequencies.

6. BASS EQ Control

This equalization circuit is used to enhance the low frequency response of the vehicle’s interior. With up to

18dB of boost centered at 45Hz, the BASS EQ can be adjusted to meet your own personal taste.

7. REMOTE Gain (RJ45 Jack)

This is the connector port for the Remote Gain Control. Now the ampliﬁers secondary gain circuit can be

adjusted from the driver’s seat.

8. POWER Indicator

The GREEN L.E.D. lights up when the power is on.

9. STATUS Indicator

This L.E.D. turns RED constantly or ﬂashes when the built-in protection circuitry is activated. This indicates a

problem with the system in relation to the ampliﬁer (see Troubleshooting Tips).

10. SPEAKER Output Terminals

As shown in the wiring diagrams, be sure to observe speaker polarity through the system and speaker imped-

ance. This specially tooled terminal is designed to accommodate up to 10 gauge speaker wire.

11. FUSES

For convenience most PowerBass AutoSound ampliﬁers utilize common automotive ATC type fuses. For

continued protection in the event that a fuse blows, replace the fuse only with the same value.

CAUTION: These power fuses on the ampliﬁer chassis are for protecting the amp against

overdrive. To protect the vehicles electrical system, an additional fuse should be used within 18-

inches (45cm) of the battery on the 12V+ cable.

ASA 400.1 20A x 2

ASA-600.1 40A x 2

12. BATT+ (Power Input Connection)

This terminal is the main power input for the ampliﬁer and must be connected directly to the positive (+) ter-

minal of the car battery. 10-gauge is the minimum power wire size recommended for this ampliﬁer.

13. REM (Remote Input Connection)

All PowerBass AutoSound ampliﬁers can be turned on by applying 12 volts to this terminal. This can be

found on the rear of the source unit in the form of an electric antenna output, or a remote output. If this is

not available you can wire to the ACC position on the key. An 18 gauge wire is sufﬁcient to run the REMOTE.

14. GND (Ground Input Connection)

A good quality ground is required for your PowerBass AutoSound ampliﬁer to operate at peak performance.

A short length of cable, no longer then 36-inches (90cm) of the same gauge as your power cable should be

used to attach the ground terminal directly to the chassis of the vehicle. Make sure that all of the paint is

sanded or scraped away to ensure a quality ground connection.

*** WARNING ***

Disconnect the negative (-) battery terminal before you start any wiring work! The battery of your

car audio system must be disconnected until the entire wiring installation is completed.

Your PowerBass Autosound amp will draw large levels of current, so use the largest gauge power/ground

cable as possible. Using under sized power cable can result in unnecessary over-heating of the ampliﬁer,

distortion at high volume levels and might even cause the thermal protection circuitry to shut-off the ampli-

ﬁer.

• Use rubber grommets when running cables through any metal or sharp plastic, to prevent accidental

shorting or shearing. Make sure the cables do not interfere with normal operation of the vehicle.

• The audio signal cables (RCA interconnects) should be kept far away from any potential sources of

electrical interference such as electronic vehicle management systems (relays, engine computers wir-

ing harnesses, fuel pumps etc.)

POWER WIRING AND SIGNAL CONNECTIONS

This ampliﬁer is designed to work within a 10 to 16.0 volt DC range. Before any wires are connected, the

vehicles electrical system should be checked for correct voltage supply with the help of a voltmeter.

First, check the voltage at the battery with the ignition in the OFF position. The voltmeter should read no

less than 12V. If your vehicles electrical system is not up to these speciﬁcations, we recommend having it

checked by an auto electrician before any further installation. Once the vehicle is checked, make certain the

correct cable gauge is used. We recommend using as large a gauge cable as possible, use the Power Cable

Selection Chart to calculate the correct power wire size for your application.

POWER

This ampliﬁer should be wired directly to the vehicle battery using the appropriate size cable. Start at the

vehicle battery and run the power cable through to the ampliﬁer. Avoid running the power cable over engine

components and near heater cores. The use of an inline fuse or circuit breaker is a must; this will prevent

the risk of a potential ﬁre caused by a short in your power cable. Connect the fuse holder or circuit breaker

as close to the battery positive (+) terminal as possible (no farther then 18” from that battery). This fuse or

circuit breaker should be no greater then the sum of the fuses found on the chassis of your ampliﬁer (also

see speciﬁcations chart). You may now connect the cable to the battery, but remember to leave the fuse out

or circuit breaker “off” until all other cable connections are made.

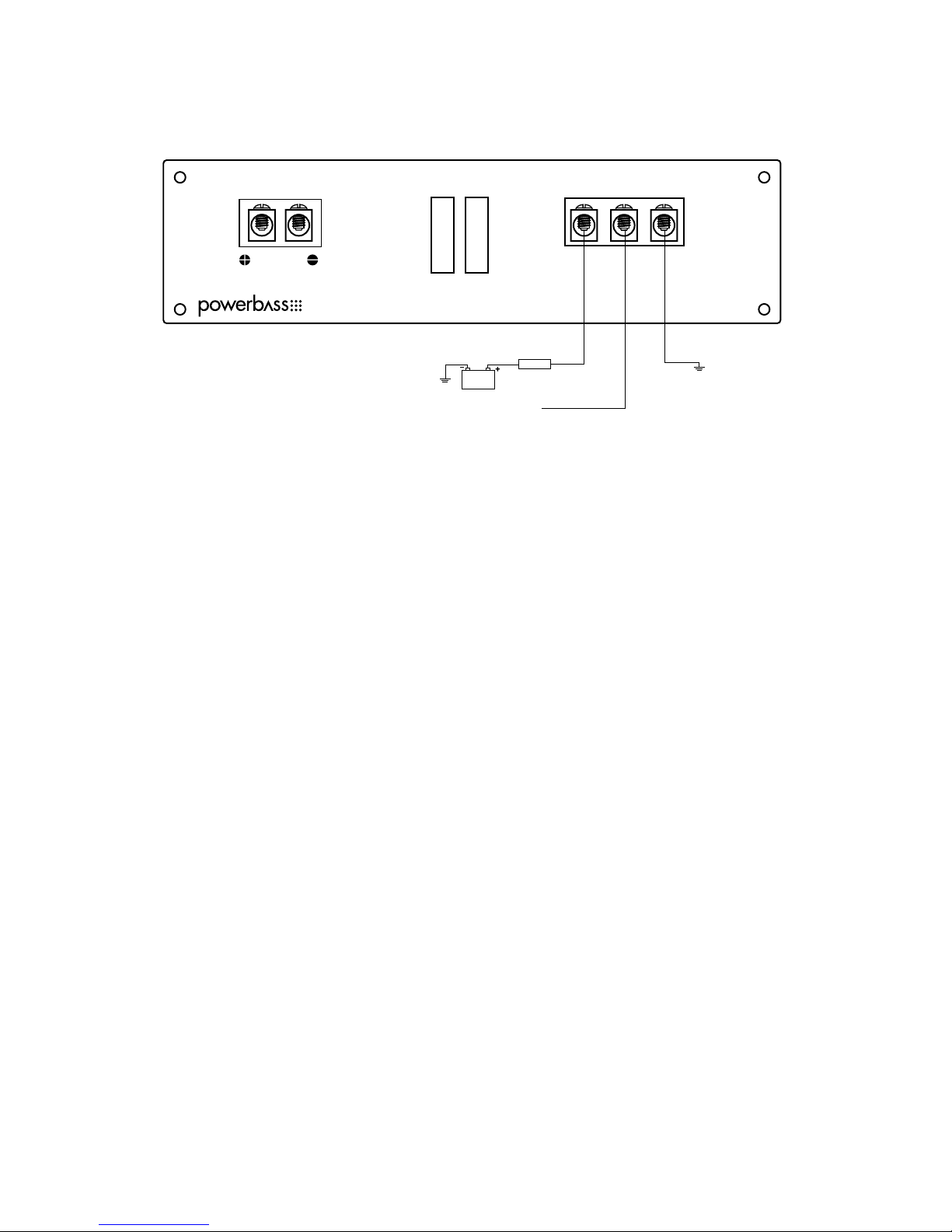

Fig.3 Power Input Connection

SPEAKER FUSE BATT+REMOTE GND

FUSE HOLDER

Battery Near

Battery

Remote Turn ON

To Power Antenna

Chassis

Ground

(–)

Ground

When grounding your ampliﬁer, locate a metal area close to the ampliﬁer that is good source of ground

(preferable the ﬂoor pan). Once again, investigate the area you wish to use for electrical wires, vacuum lines,

and brake or fuel lines. Use either a wire brush or sandpaper to eliminate unwanted paint for better contact

of the ground.

Secure the ground cable to the body using a bolt, star washer and nut. Spread silicon over the screw and

bare metal to prevent rust and possible water leaks.

Now it’s time to connect the power and ground cables to the ampliﬁer. Cut both cables to length.

Strip off 1/2 inch (12mm) of the insulation so that the bare wire ﬁts all the way in the terminal block on the

side panel of the ampliﬁer, seating it ﬁrmly so no bare wire is exposed. Use a Philips screwdriver to loosen

the BATT+ and the GND connections on the ampliﬁer. Insert the ground ﬁrst, and then the +12V and please

make sure that you place them into the correctly marked terminals. Then tighten the screws down securely.

Remote Trigger

This terminal must be connected to a switched +12V source. Typically, remote turn-on leads are provided

at the source unit that will turn on and off the ampliﬁer in correspondence with the source. If the source unit

does not have a remote turn-on lead, then a power antenna wire can be used. If neither of these leads is

available at the source unit, then a switched +12V supply must be used, like the ACC, +12V.

Run a minimum of 18 gauge wire from the ampliﬁer location to the source of the switched +12V lead. If pos-

sible, route this wire on the same side of the vehicle as your power cable. Connect the source remote output

to the wire. Go back to the ampliﬁer and cut the wire to length. Loosen the screw terminal marked REM on

the ampliﬁer. Insert the stripped (bare) portion of the wire into the terminal and tighten the screw securely.

Indice

Altri manuali Power bass Amplificatore

Power bass

Power bass ASA SERIES Manuale utente

Power bass

Power bass ASA3-200.2 Manuale utente

Power bass

Power bass XL-355DM Manuale utente

Power bass

Power bass ASA 1000.1Dx Manuale utente

Power bass

Power bass XTA 4000D Manuale utente

Power bass

Power bass ACA-500.1D Manuale utente

Power bass

Power bass XTA 2160 Manuale utente

Power bass

Power bass ASA 1200.2x Manuale utente

Power bass

Power bass ATM 330.2 Manuale utente

Power bass

Power bass ACS-2120 Manuale utente

Power bass

Power bass XAX 500D Manuale utente

Power bass

Power bass XL-2200M Manuale utente

Power bass

Power bass XMA-1205D Manuale utente

Power bass

Power bass ACS-500D Manuale utente

Power bass

Power bass XTA 1000D Manuale utente

Power bass

Power bass PS-AWB101T Guida utente

Power bass

Power bass ACA-250.1 Manuale utente

Power bass

Power bass XTA 4000D Manuale utente

Power bass

Power bass XMA MINI Manuale utente

Power bass

Power bass Autosound ASA-200.2x Manuale utente

Power bass

Power bass RTA-112 Guida utente

Power bass

Power bass ATM 900.1D Manuale utente

Power bass

Power bass ACA-240.2 Manuale utente

Power bass

Power bass XL-805DMX Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
