Automatic sewing machine Servo controller instructions

Preface

CAUTION:

Please read this manual carefully, also with

related manual for the machinery before use the

controller. For installing and operating the

controller properly and safely, qualified

personnel are required.

This product is designed for specified sewing machines and must

not be used for other purposes.

If you have any problem or any comment, please feel free to

Safety Instruction

（1） All the instruction marked with sign must be absolutely

observed or executed; otherwise, personal injuries or risk to the

machine might occur.

（2） This product should be installed and operated by persons

with appropriate training only.

（

）

Before connecting power supply cords to power sources, it’s

necessary to make sure that the power voltage is in the range indicated

on the product name plate.

（4） Make sure to move your feet away from the pedals while

power on.

（5） Turn off the power and remove plug prior to the following

operations:

■ Connecting or disconnecting any connectors on the control box；

■ Repairing or doing any mechanical adjustment；

■ Threading needle or raising the machine arm；

■ Machine is out of work.

（6） Make sure to fasten all the fasteners firmly in the control

boxes prior to the operation of the system.

（

）

Allow an interval of at least 30 seconds before repapering the system

after power off.

Page 2 of 16

Brown（AC220V）

Blue（Ineutral

wire）

Yellow green

（Ground wire）

Control Box cable

ControlBox Control box cable plug

Yellow green

Brown（AC220V）

Blue（Ineutral

wire）

Yellow green

（Ground wire）

（8） Repairs and maintenance work may be carried out by special

trained electronic technicians.

（9） All the replacement parts for repairing must be provided or

approved by the manufacturer.

（10） The controller must be firmly connected to a properly

grounded outlet.

（11） Ground wire installation (special attention).

CAUTION：

Be sure to connect the controller to a properly grounded

outlet. If the grounding connection is not secured, you

may run a high risk of receiving a serious electric shock,

and the controller may operate abnormally.

1. Basic parameters

2. Secure wiring and grounding

The system is powered and ready for use, you must ensure that the AC input is

securely grounded (Figure 2-1). System grounding wire is yellow and green lines, make

sure the ground wire securely connected to the machine head (such as connecting to the

head of the screw), in order to ensure the safe use, and prevent abnormal situation

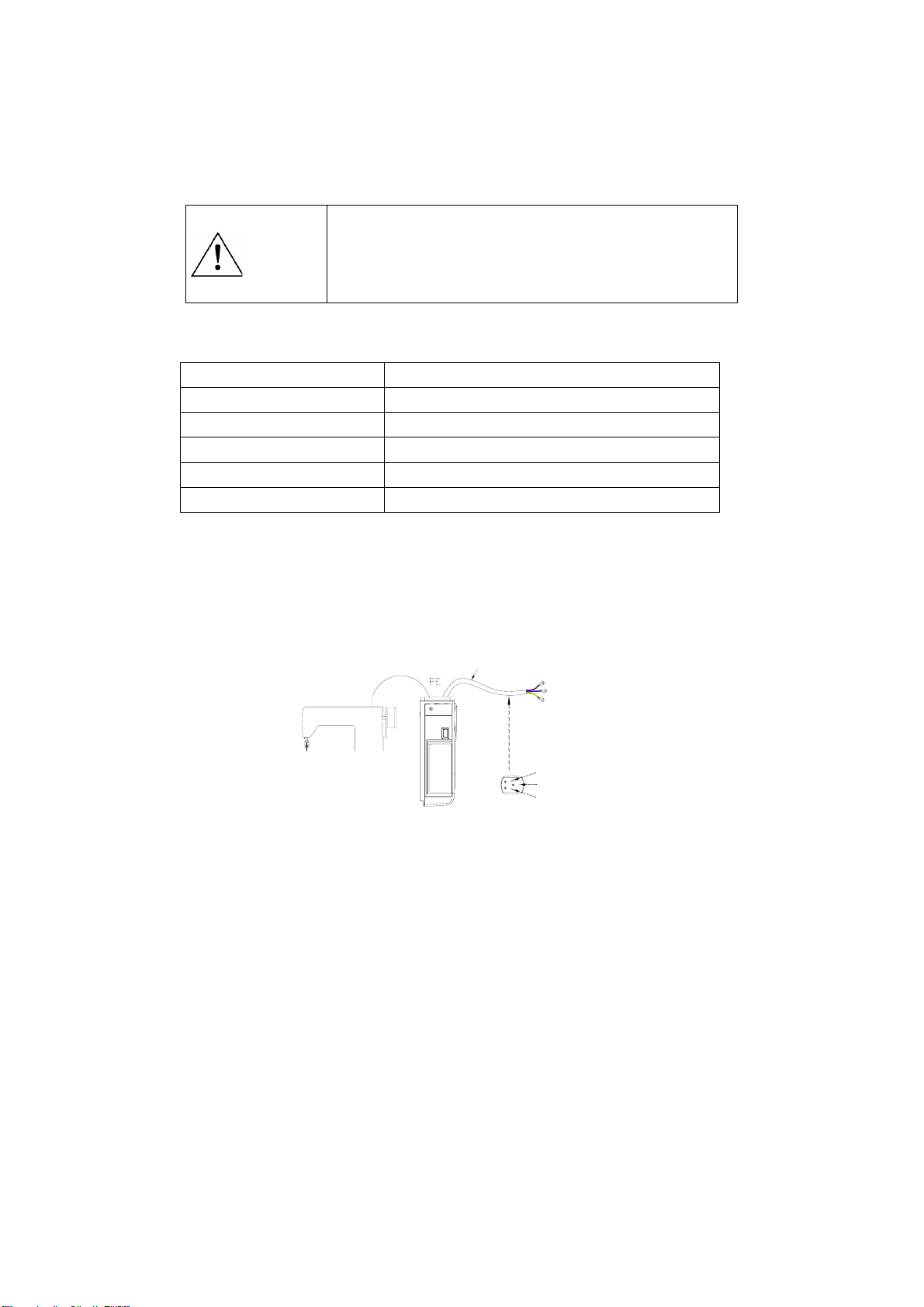

Fig.2 -1 Controller power wiring diagram

Controller Type AKD58-50

Max. Sewing Speed（r/min）7000

Voltage Range AC 220±20% V 50/60HZ

Output Power 550W

Max. Torque 3.5Nm

Environment 0℃～40℃

Page 3 of 16

传感器

Sensor

电机电源

Motor Power

脚踏板

Pedal

电机编码器

Encoder

操作面板

Operation Panel

灯

Lamp

翻抬开关

Safety SW

机头电磁铁

Machine Head

Sclenoid

抬压脚电磁铁

Foot Lifter

CAUTION

Ensure all power cord, signal wire and grounding wire not be

pressed by other matter or over-twisted ,and not be too close to

belt and belt wheel, keep 3cm-distance for safety.

A 1Ф/220V power from a 3Ф/380V Power source Connection (See Fig.2-2):

CAUTION

If the system have no Neutral point, then this servo motor is not

suitable for this connection.

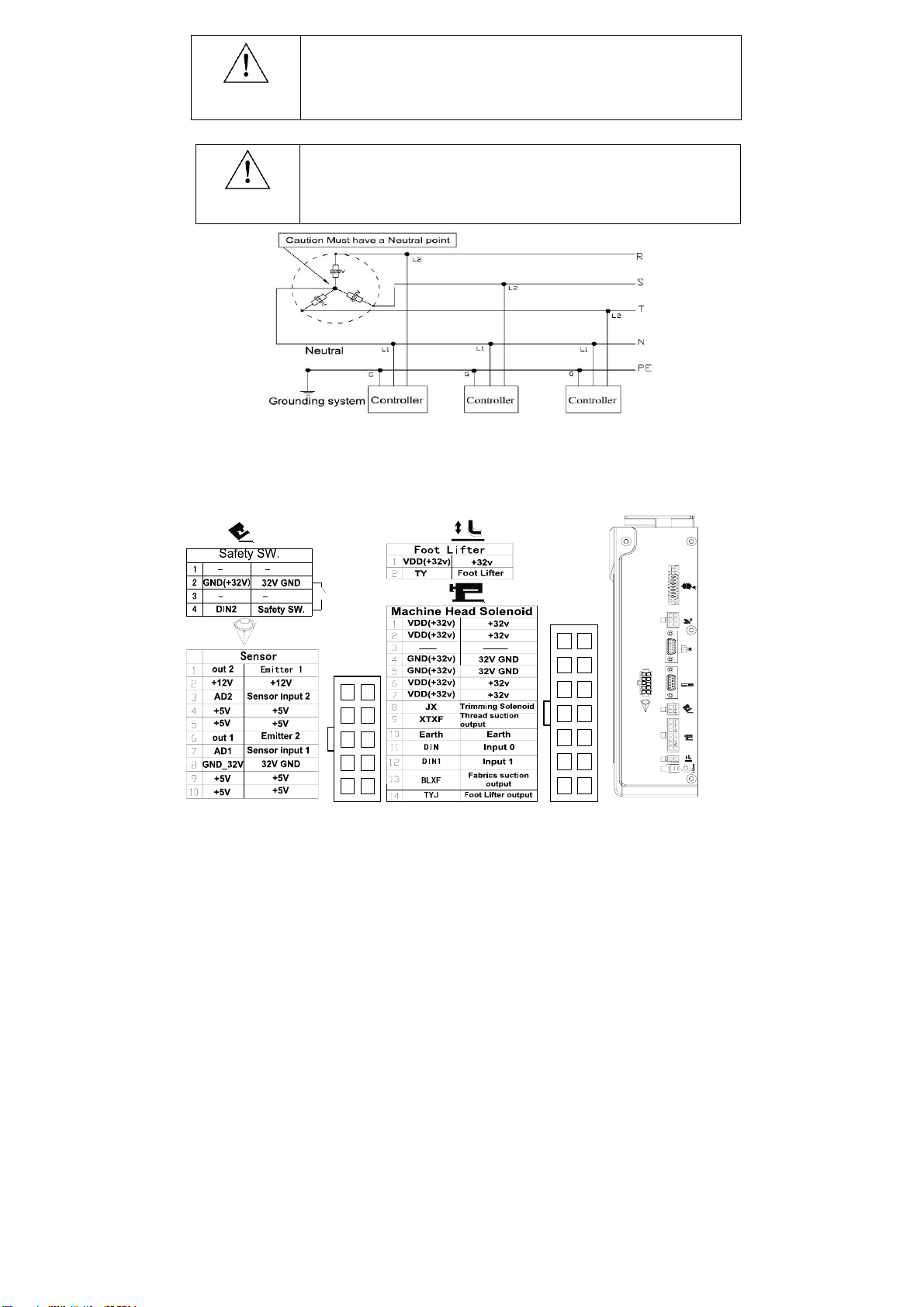

Fig. 2-2 Three-phase power wiring diagram

3. Definition of controller interface

Connections between control box and other accessories are illustrated in Fig.3-1.

Plug these connectors into the corresponding sockets in control box.

Fig.3-1 The controller of interface schematic diagram

Page 4 of 16

* The drive ability of the LED jack：

Which the rated current is100mA and the rated voltage is 5V, the output current is adjustable.

Recommendatory LED diode parameter as follows:

VF：Min. = 3.0V，Max. = 3.6V (test condition IF = 20mA);

Peak Forward Current：Max. = 80mA;

Continuous Forward Current ：Max. = 35mA

4. Operation Panel Instruction

4.1 Appearance and key

The front operation panel（See Fig4-1）is provided with a status indicator divided、

LCD display area and keys operation area.

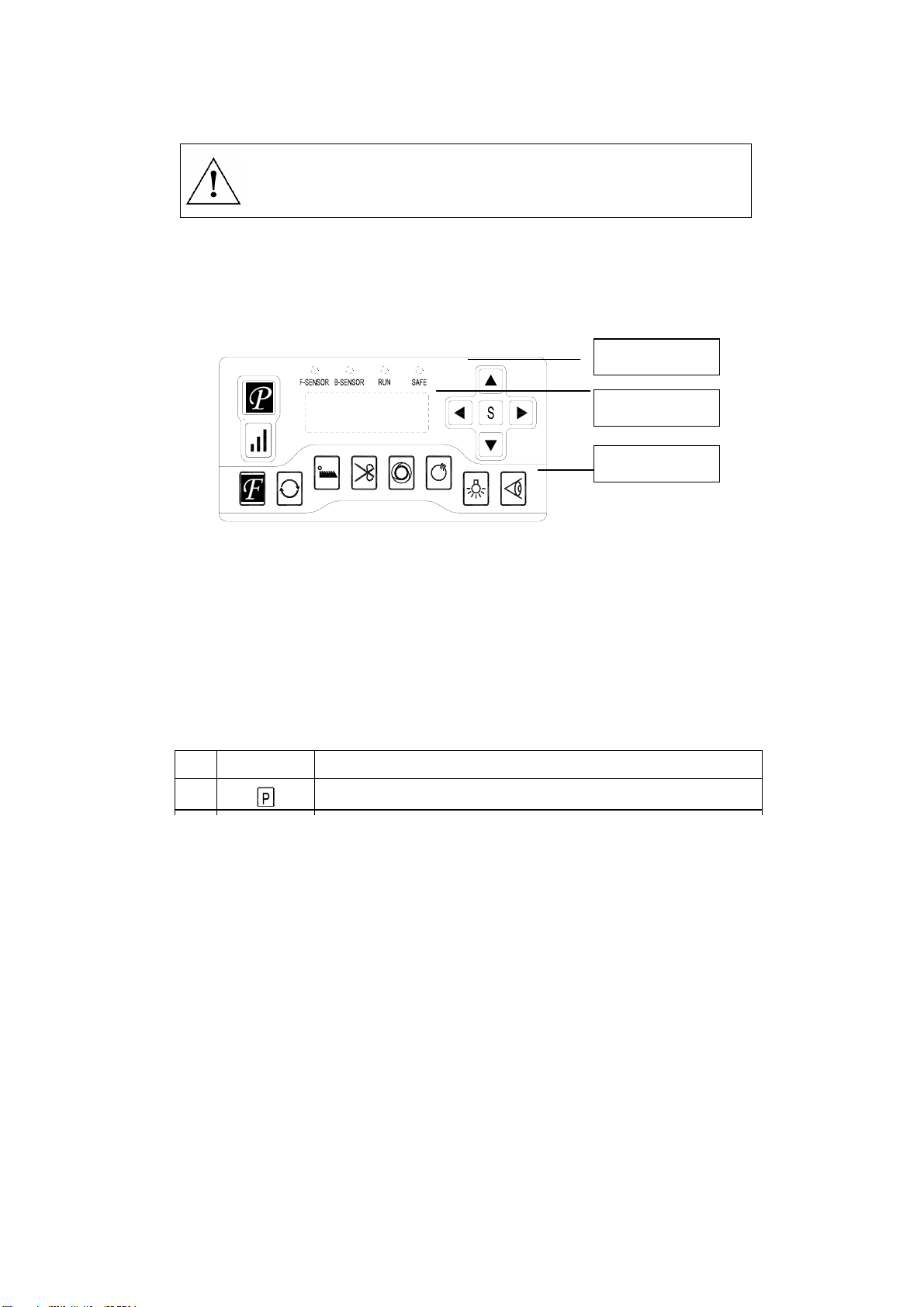

Fig.4-1 Automatic bag sewing Chinese panel display

There are13 keys in the key operation area that used to set the over lock sewing

machine kinds of operation control parameters. There are 4 display lights at the top of

the Panel that used to display real-time it operating status. F-SENSOR lights and

B-SENSOR lights indicate front edge sensor and back sensor to status, light is lit indicate

cloth cover sensor, light is not lit indicates that the sensor is not blocked; RUN light is lit

indicates the rotation of the motor running; SAFE light is lit indicates a safety switch open.

Table 2 shows function of each key.

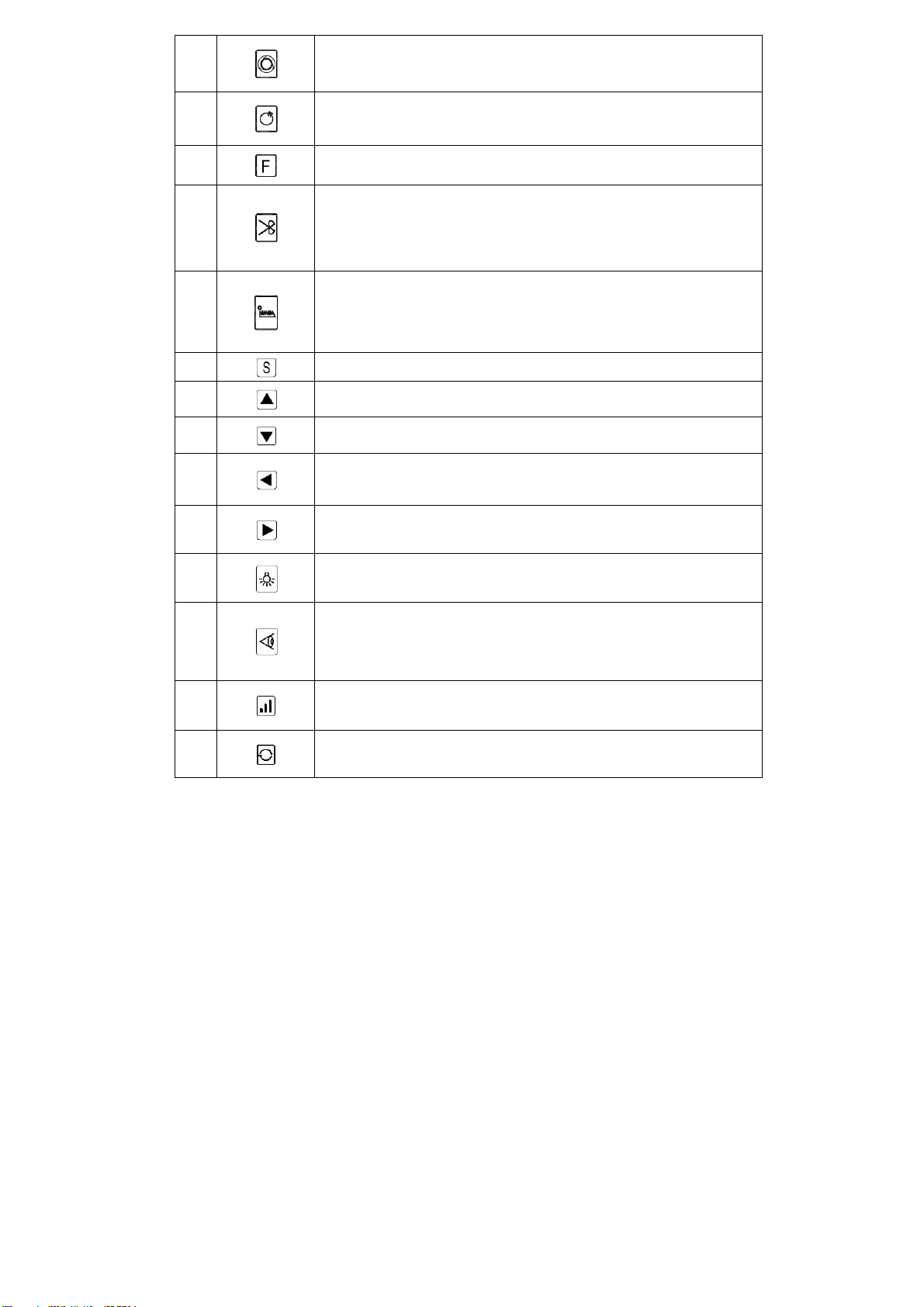

Table2: Following form is the instruction of each key：

No KEY Description

1 Main menu key：Return to the main interface, or work with other key.

Caution: Please check if all connectors match or not, pins

are found right definition or not.

Status Indicator

LCD Display Area

Key Operation Area

Page 5 of 16

Automatic mode selection keys: The sensor is open, pressed in succession followed by

optional automatic or semi-automatic mode.

Suck selection keys: When sewing is selected suction mode, continuous press are optional

before suction, back suction, before and after suction ,and suck the closure of four modes.

4 Speed selection key: To set the maximum sewing speed.

Trimming selection key: When sewing is selected trimming mode, continuous press are

optional front trimming, back trimming, front and back trimming ,and trimming the closure of four

modes

Edge mode selection key: When sewing is selected working mode of mop wheel, continuous

press are optional before mop wheel, rear mop wheel, before and rear mop wheel ,and the mop

wheel closure of four modes.

7 Save to determine key: To save the parameters set.

8 Up arrow keys: When setting parameters, increasing the value at the cursor.

9 Down arrow keys: When setting parameters, decreasing the value at the cursor.

Left arrow key: When setting parameters, move the cursor to the left; Front trimming length

shortcuts.

Right arrow key: When setting parameters, move the cursor right; Back trimming length

shortcuts.

Machine headlight key: To adjust machine headlight brightness, followed by optional 0-4

consecutive press.

Sensor selection key: To open or close the electric eye. Electric eye closure enters full manual

mode, the sensor does not work; to open electric eye sensor is working, and then enter the

semi-automatic mode or fully automatic mode.

14 Speed selection key: To set the maximum sewing speed.

15 Special function keys: User-defined extensions settings.

4.2 The main interface and function key setting

The control panel is correctly inserted corresponding interface electrical control box;

confirm security turn on the power. Boot for about 2 seconds, the LCD will display the

Page 6 of 16

main interface, shown in Figure4-2. If it is not a normal display and a fault alarm, please

refer to Chapter 3 false alarms table, deal with the corresponding failure or contact the

manufacturer.

Fig. 4-2 System main interfaces

In Fig. 1-2 system main interface, press the key, then displays the current

settings for automatic sewing machine working status, shown in Fig.4-3.

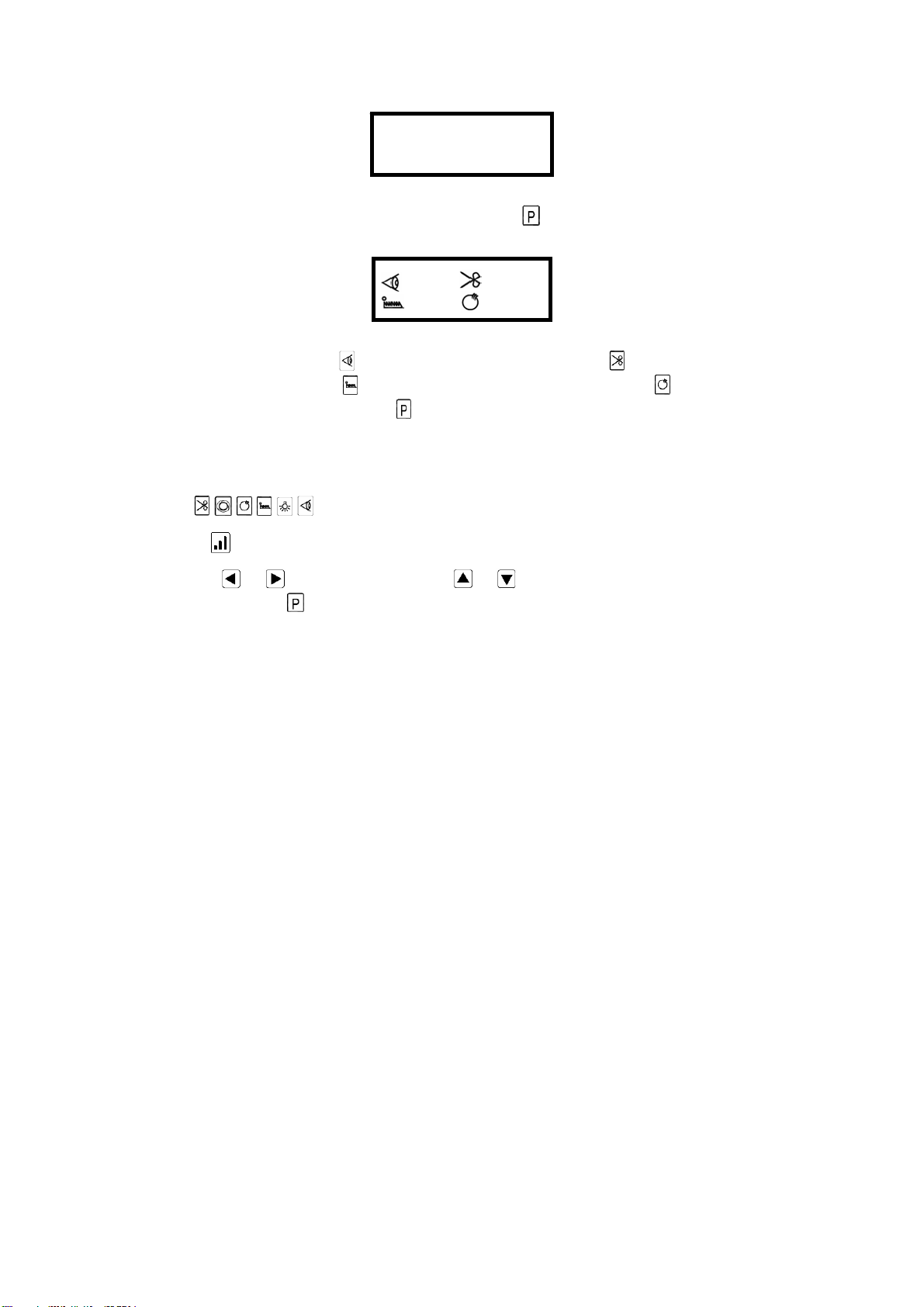

Fig. 4-3 the current operating mode

Wherein, the icon shows electric eye switch status, the icon shows the current

trimming mode, the icon shows the current mop wheel mode, the icon shows the

current suction mode. Press the key to return to the main interface. If you do not

operate for about 10 seconds, the system will automatically return to the main interface

mode.

In the main interface (show to fig.1-2), respectively press the function key

(, , , , , ), you can change corresponding to the operating mode. Press

the key; you can set the maximum operating speed of the sewing machine.

Pass and keys to move the cursor, and keys to change the number. After it

is set, press the key to exit and return to the main interface.

4.3 Work mode setting

Automatic sewing machine system according to need can work in manual mode,

semi-automatic mode, automatic electric control mode and automatic foot control mode.

Wherein the manual mode entirely by foot pedals to control the sewing machine

operation, this time electric eye closed, detection and automatic trimming function is

invalid; semi-automatic mode is defined by the sensors and pedal to control sewing

machine operation, this time electric eye open, pedals and trimming are valid; Automatic

power control mode is completely controlled by the electric eye sensor automatic sewing

machine presser foot, start, and stop trimming cycle operation; automatic mode through

POWERMAX AKD58

Auto -- EC

--ON F-ON

- OFF F-ON

Page 7 of 16

the foot control electric eye sensor control automatic presser foot, by the foot pedal

before starting sewing. During sewing foot pedal will be suspended after the sewing step

before proceeding to continue automatic sewing processes. Automatic mode is entirely

controlled by the electric eye sensor to sewing machine is running automatically, this

time electric eye open, pedals do not control the sewing machine, the timing of each

function only by the electric eye automatic detection and control.

Table3: overlock sewing pattern corresponding relationship

Sewing mode Electric eye on or off fully automatic mode selection

full manual mode off invalid

semi-automatic on semi-automatic

automatic electric control on automatic electric control

automatic foot control on automatic foot control

Example: If the current to full manual mode, the actual status at this time electric eye

switch is off, the main interface shown in Figure 4-4.

Fig. 4-4 full manual system main interface

Press the key, then displays the current state of electric eye switch, shown in Figure

4-5.

Fig.4-5 electric eye switch off Fig.4-6 electric eye switch on

Press the key again, electric eye switch immediately opens, displaying electric eye

switch is turned on, as shown in Figure 4-6, then press the key to confirm automatic

sewing mode, if the current mode is automatic sewing mode, shown in Figure 4-7; when

the current sewing mode is semi-automatic mode, shown in Figure 4-8.

Fig.4-7 full automatic mode Fig.4-8 semi-automatic mode

In the current electric eye switch remains open in the case, press the key, in fully

-- SEW MODE --

Semi-Auto

-- SEW MODE --

AUTO – FC

--SENSOR SW--

OFF

POWERMAX AKD58

Manual

Page 8 of 16

automatic and semi-automatic mode switching. After it is set, press the key to exit.

4.4 The maximum speed setting

Press the key, then the system will run set to the current maximum speed shown

in Figure 4-9.

Fig.4-9 system current maximum speed Fig. 4-10 set system maximum speed

Then you can use the keys to move the cursor, keys to change the number, the

maximum speed is displayed after the change shown in Figure 4-10. After setting, press

the key to exit.

4.5Front and back trimmings length shortcuts of adjustment

In the main interface, the 、key can be respectively front and back trimmings

length shortcuts adjustment, 、key to change the numbers, which will be effective

simultaneously. As shown in figure 4-11.

Fig. 4-11 Front and back trimmings length setup

4.6 Sensor sensitivity automatic detecting function

Before using this function, please make sure that the bed is no cloth and all sensor

surface with no dust and thread occlusion. Then in the main interface system (which is

valid only in the interface), long press the key interface will jump, release it to enter

the sensor sensitivity function of automatic detection, As shown in figure 4-12.

Fig. 4-12 The sensor sensitivity of automatic detection enter to interface

---- FTRIM LEN ----

0 9

Please put the fabric, Front

and back the sensor cover!

---- MAX SPEED ----

4 5 0 0

---- MAX SPEED ----

3 0 0 0

Page 9 of 16

Please follow the prompts the fabric placed on the bed, and completely covers front

and back sensor, system according to the fabric thickness shows the sensitivity of

maximum and minimum value, such as a fabric is shown below:

Fig. 4-13 The sensor sensitivity of maximum and minimum value

After successful completion, the system will prompt the user to remove cloth, can

work normally. The following:

Fig. 4-14 The sensitivity automatic of success

4.7 The fabric suction mode of quick adjustment

Press enter to suction mode setting, The fabric suction mode quick adjustment.

As shown in the figure below (in an air suction mode are available):

Fig. 4-13 The suction mode setting interface

At this time, press 、,key can enter to fabric suction of quick adjustment

interface wind patterns, such as the display:

Fig. 4-14 The fabric suction mode interface

After entering, through 、key to change the numerical suction mode of different

fabric selection, a total of three species, such as:

--Fabric suction mode--

Fabric long suction 2

-- suction set --

Front suction open

Automatic detection of

success , Remove the cloth!

Front: 0512 ~~ 0968

Back：0536 ~~ 1024

Page 10 of 16

Fig. 4-15 The fabric suction of three species

5. Advanced Features

5.1 Conversion between the Chinese and English

In the main interface, press key + key to complete the switch in English, as

shown in Figure 5-1 and 5-2, press key + key to switch back to the Chinese interface.

Fig.5-1 chinese interface Fig.5-2 english interface

5.2 Technicians parameter settings

In the main interface under, press key + key, to enter the technician parameter

setting's password interface, shown in Figure 5-3.

Fig.5-3 password interface

Technician’s parameter password can press and keys to move the cursor,

press and keys to change the number, the initial password is 0000. Enter the correct

password; press the key to enter the machine repair parameter settings shown in

Figure 5-4.

Fig. 5-4 the machine repair parameter settings

Figure 2-4 shows the current system parameter list. The before two digits of the

parameter number, the last four digits of the parameter value. Text below the parameter's

instructions. You can press and keys to move the cursor, press and keys to

change the number, select the number of different parameters and setting the

corresponding parameter values. If you need to save and exit, press key, otherwise

press key.

--Fabric suction mode--

Fabric long 2

--Fabric suction mode--

Run to full 0

--Fabric suction mode--

Fabric interval 1

0 0 0 0 0 3

Auto Foot Mode

PD: 0 0 0 0

Tech Paras Set

POWERMAX AKD58

Auto -- EC

POWERMAX AKD58

全自动-- --电控 +

Indice

Altri manuali Power Max Controllori

Power Max

Power Max ASE59 Manuale utente

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
