1. INTRODUCTION

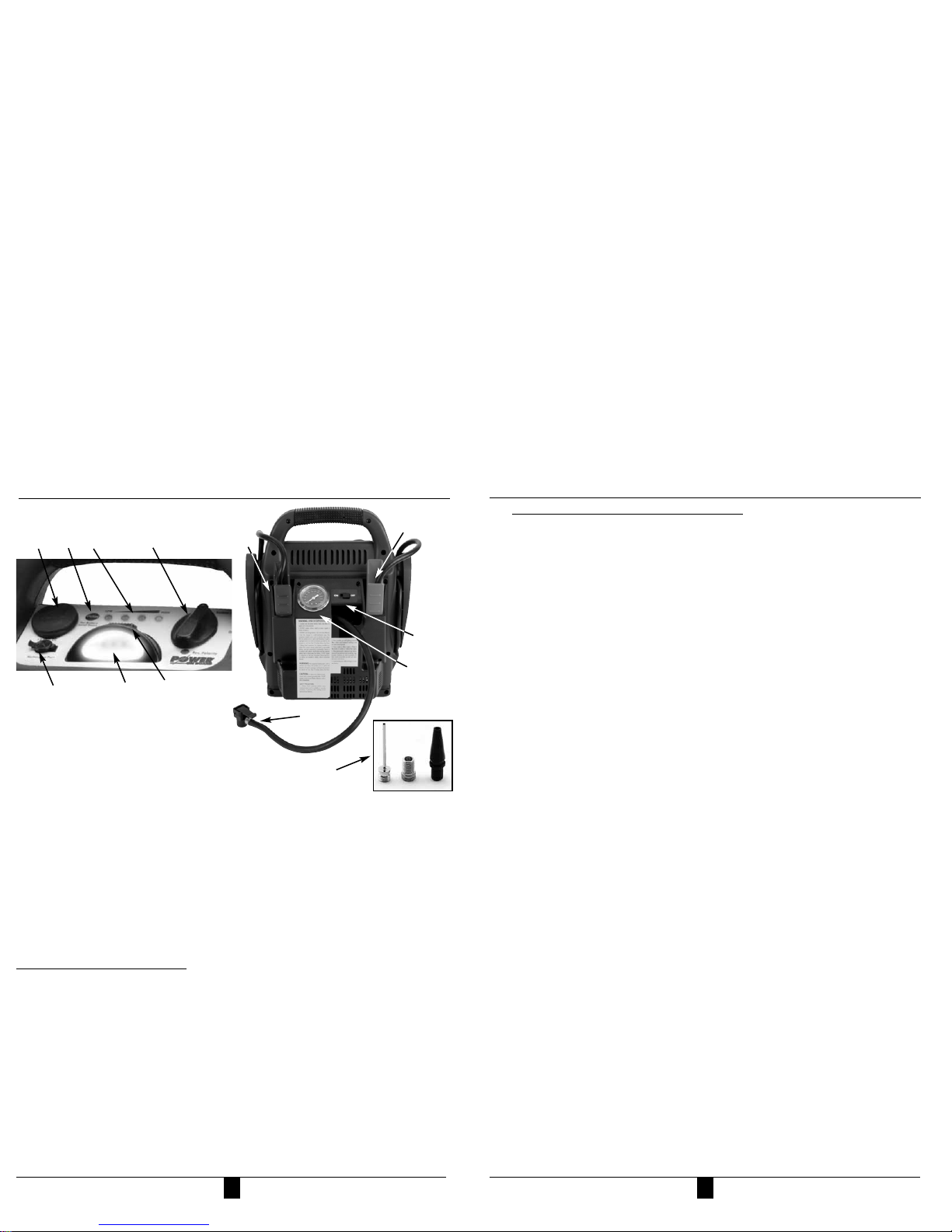

Congratulations on selecting the POWER ON BOARD JUMP-START SYSTEM, AIR
COMPRESSOR and 12 VOLT DC POWER SUPPLY. This compact jump-starter is
unique in the amount of energy it can supply for its size. The internal battery is a
high density sealed, lead-acid battery that stores and delivers energy comparable to
full sized ordinary jump-starters. Please read this guide carefully before use to ensure
optimum performance and avoid damage to the unit or items that you are using it
with.
A standard feature of this model is a high pressure, self-contained, tire compressor
with lighted gauge. This compressor allows quick inflation of vehicle tires to 260
PSI, and with supplied adapter nozzles, inflates beach balls, rafts, and virtually
any low-pressure inflatables. Three different sized nozzles allow for easy connection
to all popular inflatables.
The JUMP-START SYSTEM is a compact, durable, and portable jump-start system
for vehicles and boats that have a standard 12 volt battery system. This self-con-
tained, rechargeable system will start most vehicles and boats without the need
for a host vehicle or 120 volt AC power supply. It can also be used as a safe,
portable source of 12 volt DC electric power in remote locations and/or emer-
gency situations. It is ideal for use with Vector 12 volt DC cordless, portable,
rechargeable products and MAXXSST DC/AC Power Inverters (sold separately).
Use the JUMP-START SYSTEM to:
•Jump-start any engine system with a standard 12 volt DC battery: boat; truck; car;
airplane; RV; personal watercraft; snowmobile; garden tractor; gasoline engine
generator, etc.
•Operate: 12 volt DC fans, inflators, fluorescent worklights, cellular phones (can
quick-charge a cellular phone by using the phone’s 12 volt DC adapter cord),
spotlights, TVs, portable radios, cassette or CD players, and more.
•Operate: Certain 120 volt AC accessories require a 12 volt DC power inverter,
(sold separately).
•Inflate: Truck and auto tires, sports equipment, beach inflatables. Three different
adapter nozzles allows for inflation of items without a standard tire valve stem.
The easy-to-read lighted pressure gauge assures accurate inflation pressures day
or night.
The JUMP-START SYSTEM has an easy-to-read series of LED (Light Emitting Diode)
charge indicators that show when the unit is fully charged, or the level of charge
in the battery. Charge level can be viewed when the charge status pushbutton is
pressed. A 12 volt DC accessory outlet is provided for use with appliances that
can operate from a vehicle 12 volt DC accessory outlet. This allows maximum
portability and utility when the jump-start system is used in remote locations.
The jump-start system can be recharged from any standard 120 volt AC power
source using the supplied AC recharge adapter. The adapter barrel connector
attaches to the recharge port on the top panel of the jump-starter. A built-in
12 volt appliance outlet and the appropriate DC/DC charging/adapter cord is
used to recharge the battery from another 12 volt DC source. When pressed, the
charge status pushbutton will show the battery power level status on the battery
status display (from low to full). The green LED full indicator illuminates when the
unit is fully recharged and charging can be discontinued. An on/off switch
operates the built-in work/emergency light.
CAUTION:
Caution statements advise against certain conditions and practices that may
result in damage to vehicles, appliances and/or the jump-starter.
IMPORTANT:
Although this unit is delivered in a partially charged state, you must fully charge it
with the supplied 120 volt AC charger for a full 48 hours before using it for the first
time. You cannot overcharge the unit using the AC charger method.
1) Use only the supplied cords/adapters for recharging this unit. Do not recharge
for more than 3-4 hours maximum using 12 volt DC method. Recharge unit after
each use.
2) All ON/OFF switches should be in the OFF position when the unit is charging
or not in use. Make sure all switches are in the OFF position before connection
to a power source or load.
3) Never insert anything other than the supplied power/recharging cords or
recommended appliance power/recharging cords into the 12 volt DC charging/
power socket on this unit. Do not use any accessory that is not recommended
or provided by the manufacturer.
4) Do not use this unit to operate appliances that draw more than 20 amps from
output socket.
5) This system is designed to be used only on vehicles with 12 volt DC battery
systems. Do not connect to a 6 volt or 24 volt battery system.
6) This system is not designed to be used as a replacement for a vehicular battery.
7) Do not attempt to operate a vehicle that does not have a battery installed.
8) Vehicles that have on-board computerized systems may be damaged if vehicle
battery is jump-started. Before jump-starting, read the vehicle owner’s manual to
confirm that external-starting assistance is advised.
9) Excessive engine cranking can damage a vehicle’s starter motor. If the engine
fails to start after the recommended number of attempts, discontinue jump start
procedures and look for other problems that may need to be corrected.
10) Although this unit contains a non-spillable battery, it is recommended that unit be
kept upright during storage, use, and recharging. To avoid possible damage that
may shorten the unit’s working life, protect it from direct sunlight, direct heat,
and/or moisture.
11) Check unit periodically for wear and tear. Replace worn or defective parts
immediately. Contact Vector customer service department toll-free (866) 584-5504.
12) Do not attempt to jump-start a frozen battery.
13) Never submerge this unit in water.
14) DO NOT over-inflate tires or other inflatables.
