PowerAcoustik PTID-8001NT Manuale utente

8” wide Touch Screen

1-Din Oversized Fully Motorized TFT Monitor/DVD/AM/FM

Operating Manual

- 1 -

TABLE OF CONTENTS

Safety Information ….…………………………………………………………………….2

Features …………………………………………………………………………………...3

Accessories………………………………………………………………………………..4

Unit Installation………… ………………………………………………………………….5

Unit Removal …………… ………………………………………………………………….7

Wire Connection …………………………………………………………………………...8

Front Panel …………………………………………………………………………………10

Rear Panel ……………………………………………………………………………..11

Remote Control …………………………………………………………………………12

Touch Screen Operations. ….... ..............................................................................16

Touch Screen Calibrate ………………………………………………………………16

Main Menu ……………………………………………………………………………..17

Radio Operations ………………………………………………..……………............18

DVD Operations ………………………………………………………….……………21

USB Operations ………………………………………………….…………………….23

TV Operations …………………………………………………………………………24

iPod Operations ……………………………………………………….………………27

AV IN Operations …………………………………………………..………………….29

System Setup ………………………………………………………………………….31

DVD Setup Menu…………………………………………………………………....…...35

Trouble Shooting……………………………………………………………………..…...40

Specifications ………………………………………………………………….…......42

Disc Notes ………………………………………………………………………………..43

- 2 -

SAFETY INFORMATION

Please read the manual carefully before operating this unit and keep it for

future reference.

CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the

laser system, do not open the unit. The laser beam may hurt your eyes.

If the unit requires adjustments, contact an authorized service centre.

USE THIS PRODUCT SAFELY

Be sure you fully understand the following safety information:

When driving

Keep the unit at an appropriate sound level. Driving with the sound at a level

preventing you from hearing sounds outside and around the car may cause an

accident.

When cleaning

Do not expose the product to water or excessive moisture. This could cause short

circuit, fire or other severe damage.

When parked

Parking in direct sunlight can result in very high temperature levels inside your car.

Let the interior and unit cool down before switching the unit on.

NOTE:

Do not use and store the player in dusty, hot or humid environment.

FUSE REPLACEMENT – WARNING!

Never replace any fuse with one of a higher value than the fuse supplied

with your unit. Using a higher current rated fuse may cause damage to

your unit and/or electrical wiring.

- 3 -

FEATURES

- Fully Motorized 4 Position Drop Screen With LastAngle Memory

- (Optional) Navigation Black Box Module With Navteq Maps Of North America

- Electronic Touch Screen Functions Include DVD, Radio, USB, & MP-3/4

- DVD/DVD-RW/VCD/CD/CD-R/CD-RW/MP-3/MP-4/Divx

- All Functions Are Displayed On Screen Via OSD (Fourteen Languages)

- 30-Second Electronic Anti-shock Mechanism

- Accessory iPod Input Connection (Cable Not Included)

- USB Mini Input For MP-3 Music, Divx, Xvid & MP-4 Movies

- SD Card Adaptor For USB Input

- Front Panel A/V Input For Audio/Video MP-3/MP-4 Players

- IR Repeater Function For External Remote Eye

- Antenna Trigger Wire

- Amplifier Trigger Wire

- Brake Screen Safety Trigger

- AM/FM With 30 Pre-sets (18/FM – 12/AM)

- Auto Store Pre-set Scan

- 4-Channel High Power 50 x 4 Channels (Mosfet Power)

- Dual RCA Outputs (Front & Rear)

- Sub Woofer Selectable Frequency Outputs (80, 120, 160Hz)

- Variable Sub Woofer Volume Control

- 1-Auxiliary Video Input For Back-up Camera

- 1-RCA Video Output

- LO/DX And Stereo Mono Selector Switch

- Electronic (Bass, Treble, Volume, Balance, Fader)

- Pre-set EQ Functions (Rock, Pop, Classic Jazz, User)

- Digital Clock

- DVD, PAL/NTSC Selectable

- USA/Europe Frequency Stepping

- Resolution: 1440 x 234

- Panel Brightness: 350NIT

- ISO/DIN Mount

- Last Position DVD Memory

- Full Function Remote Control

- Improved Graphic User Interface

- Built-in TV Tuner

NOTE:

This user's manual is only for reference.

Modifying rights are reserved.

Specifications are subject to change without notice.

- 4 -

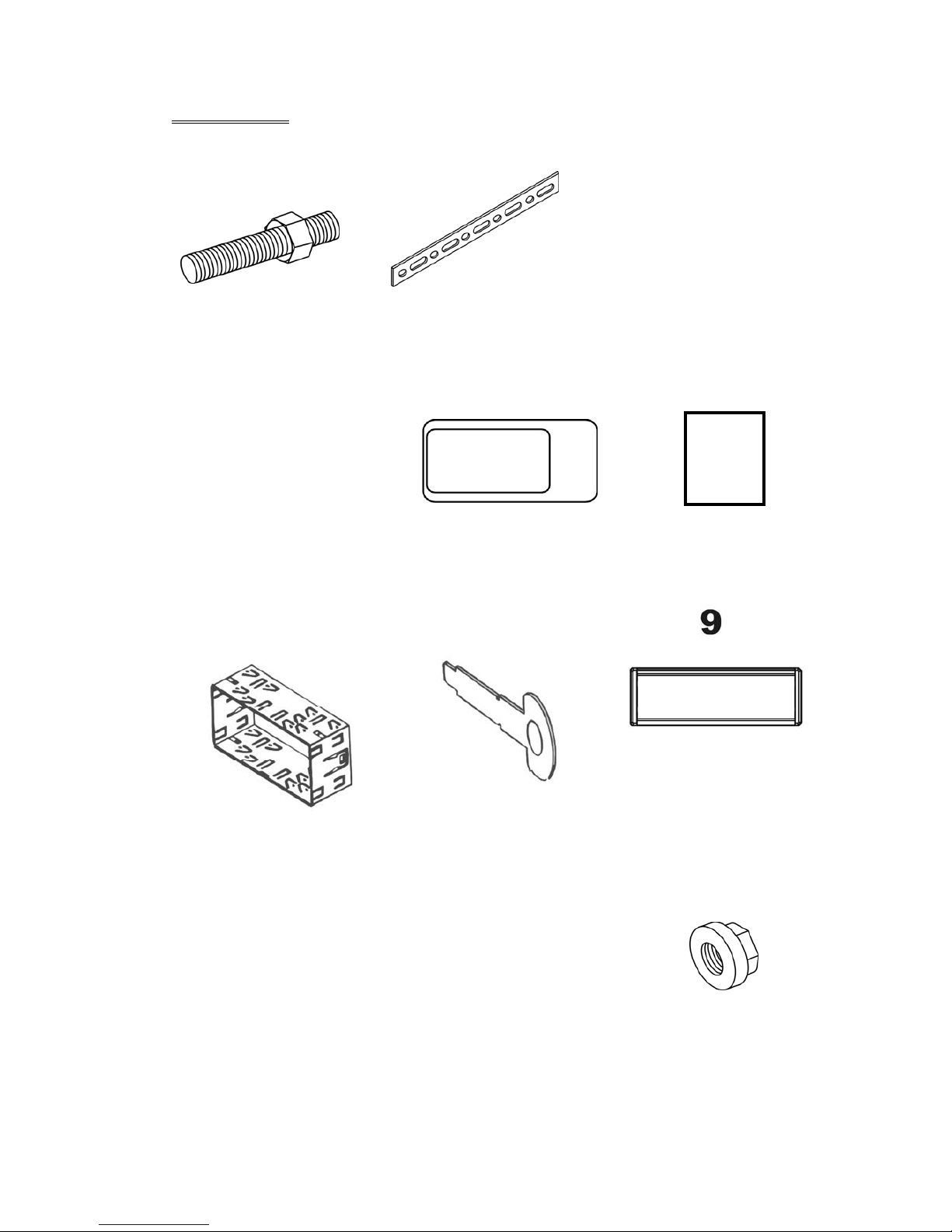

ACCESSORIES

Bolt Steel Bar x 1 M5X5 Screws x 4

Connecter Wire x 1 Remote Control x 1 Operational Manual x 1

Mounting Sleeve x 1 Keys x 2 Trim Bezel x 1

USB Cable x 1 SD Card Adaptor x 1 Nut M5 x 1

- 5 -

UNIT INSTALLATION

Install the Mounting sleeve into the dashboard.

Install the unit into the Mounting sleeve.

- 6 -

Install the trim bezel to the unit. (Before install the trim bezel, the panel should be

slipped down).

- 7 -

UNIT REMOVAL

Uninstall the trim bezel out from the unit. (Before uninstall the trim bezel, the panel

should be slipped down).

Insert the keys supplied with the unit on both sides (as illustrated) as this will

release the internal locks so you can slide the unit out.

- 8 -

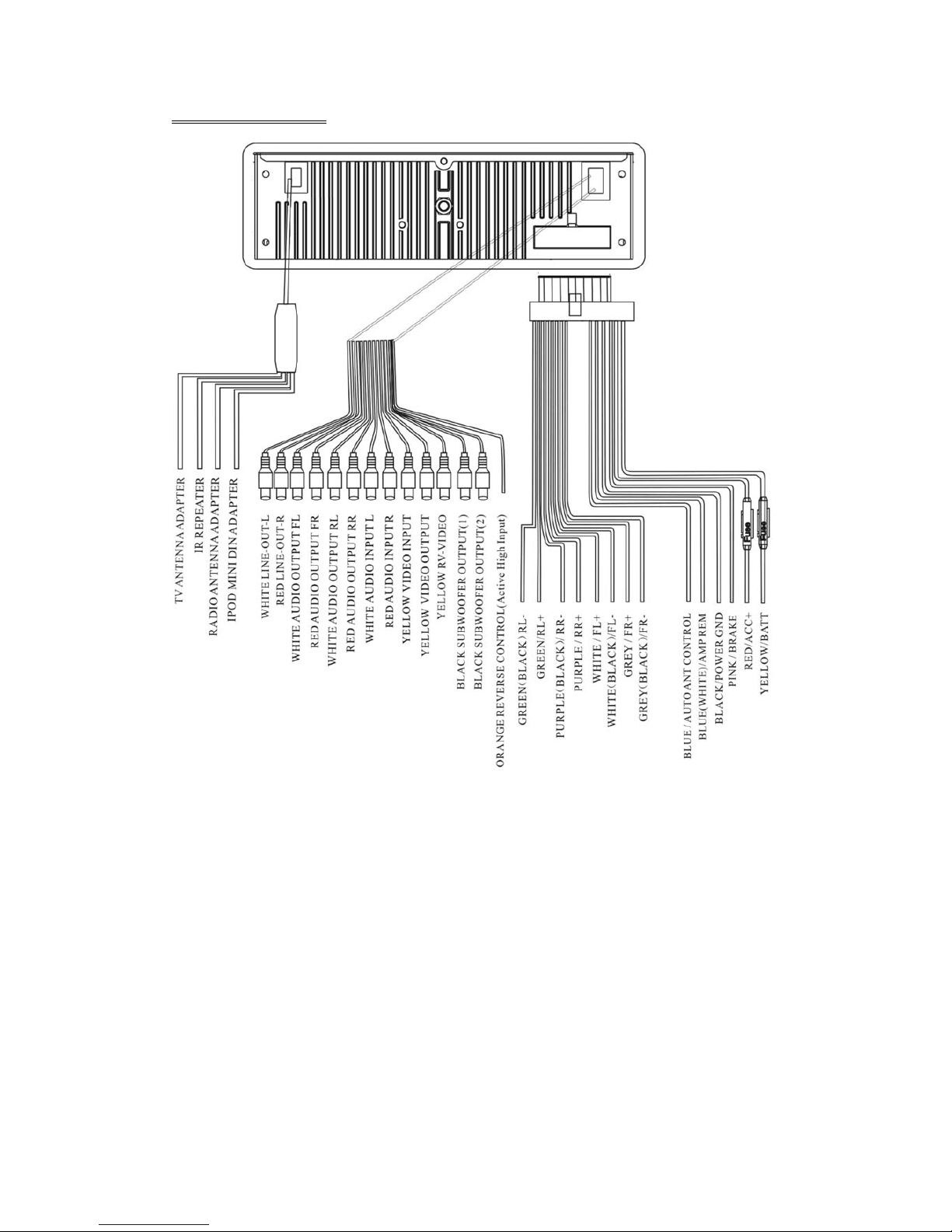

WIRE CONNECTION

- 9 -

Brake Control

It is necessary to connect the Brake Control wire to the Hand-brake switch of the car.

While driving, the TFT monitor will display the alarm picture (see as follows) in order

to ensure the safety.

Under the Rear View Mode, the Brake Control function is no effective.

Auto Antenna Control

Connect the auto antenna control wire AUTO_ANT (see Wiring Diagram); the

antenna will lift when the unit startup; it will descend when the unit turnoff.
