LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 1
Required Tools & Supplies:
Safety Glasses
Loctite Threadlocker Blue 242
Cordless Drill
with Battery
Phillips Screwdriver #2
Spring
-
loaded Punch
Sikaflex 252
Tape Measure
Caulk Gun
Permanent
Marker
#
25
Drill Bit (.
1495”
)
2 5/8” Hole Saw
Deburr Tool
¾” Hole Saw
External Caliper Gauge (digital)
12” Groove Lock Plier
3/16” Drill Bit
(countersink only)
Flat Blade Screwdriver
(countersink only)
Router (countersink only)
5/16” Rabbet
Router Bit (countersink only)
3 3/8” Hole Saw
(countersink only)
10
-
24 Tap
Cutting Oil
Installation Requirements:
1. Device must be installed on rear curbside door next to inner locking rod.
2. Overall door thickness must be ≤ 1.125”. Overall door thickness measurement must include any
interior and/or exterior sheathing in addition to the door core. Do not include any weather-
stripping around door edges in the thickness measurement.
a. Device will be installed by using Standard Installation procedure (pgs. 4-20) on doors with
thickness ≤ .75”.
b. Device will be installed by using Countersink Installation procedure (pgs. 21- 39) on doors
with thickness > .75” and ≤ 1.125”.
c. Doors with overall thickness > 1.125” cannot be installed.

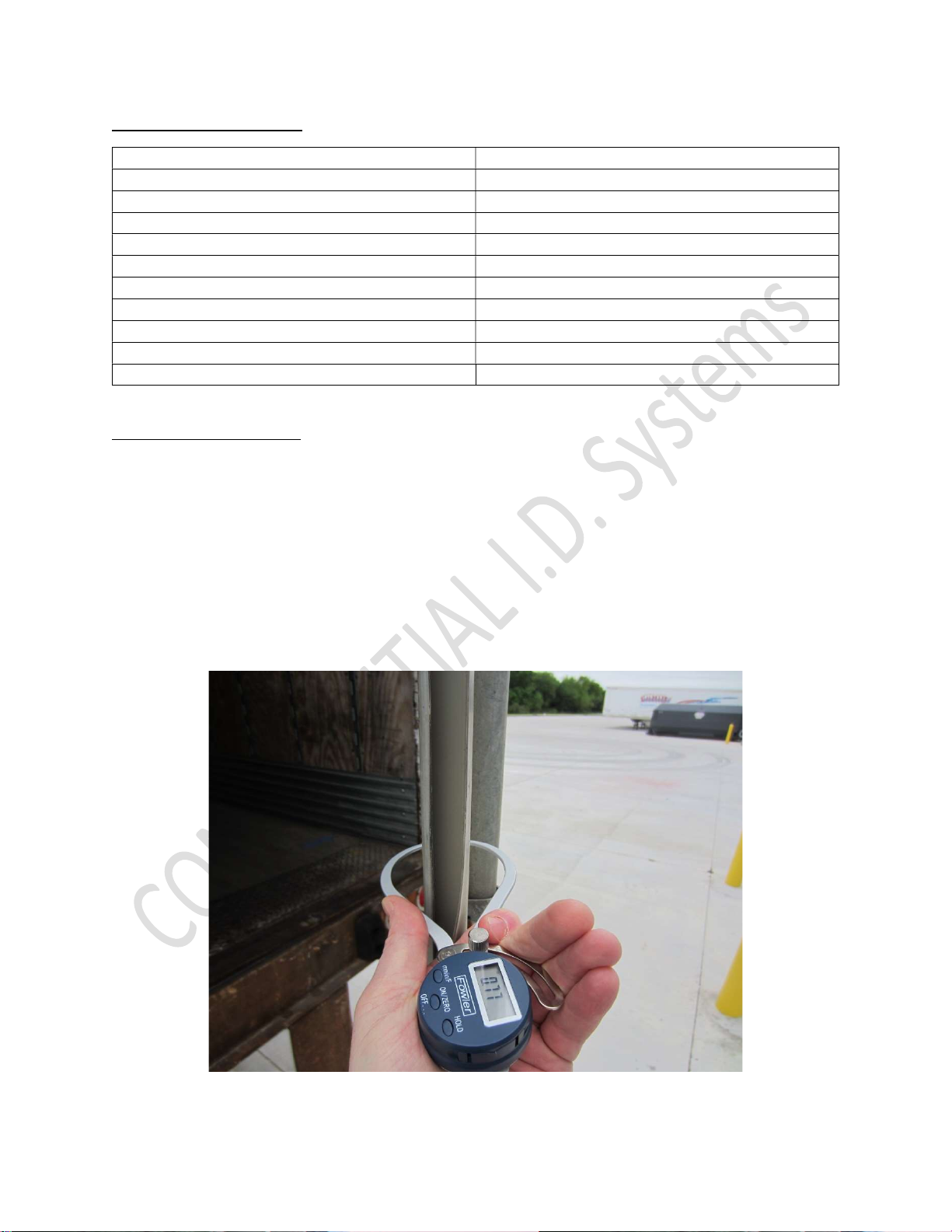

Measure overall door thickness with external caliper
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 2
Device Activation:
1. Record 12-character device MAC address. MAC address is printed on the device label.
2. Record the asset’s unique identification number and VIN
3. Remove the tape covering the device activation magnet. Note: Do not remove clear protective film
from lens at this time.
4. Remove the activation magnet from the device. Retain the magnet.
5. Observe that the LED on the device lens flashes red three times. This confirms activation.
Device Pairing:
1. Contact I.D. Systems Customer Support.
a. Phone: 888-855-0913
b. Email: aisupport@id-systems.com
2. Provide serial number from LV300 or LV500 tracking device that has been installed on trailer. (refer
to LV300 or LV500 for specific installation instructions)
3. Provide MAC address from LV710 device.
4. Request that LV710 device be paired with installed LV300 or LV500 device.

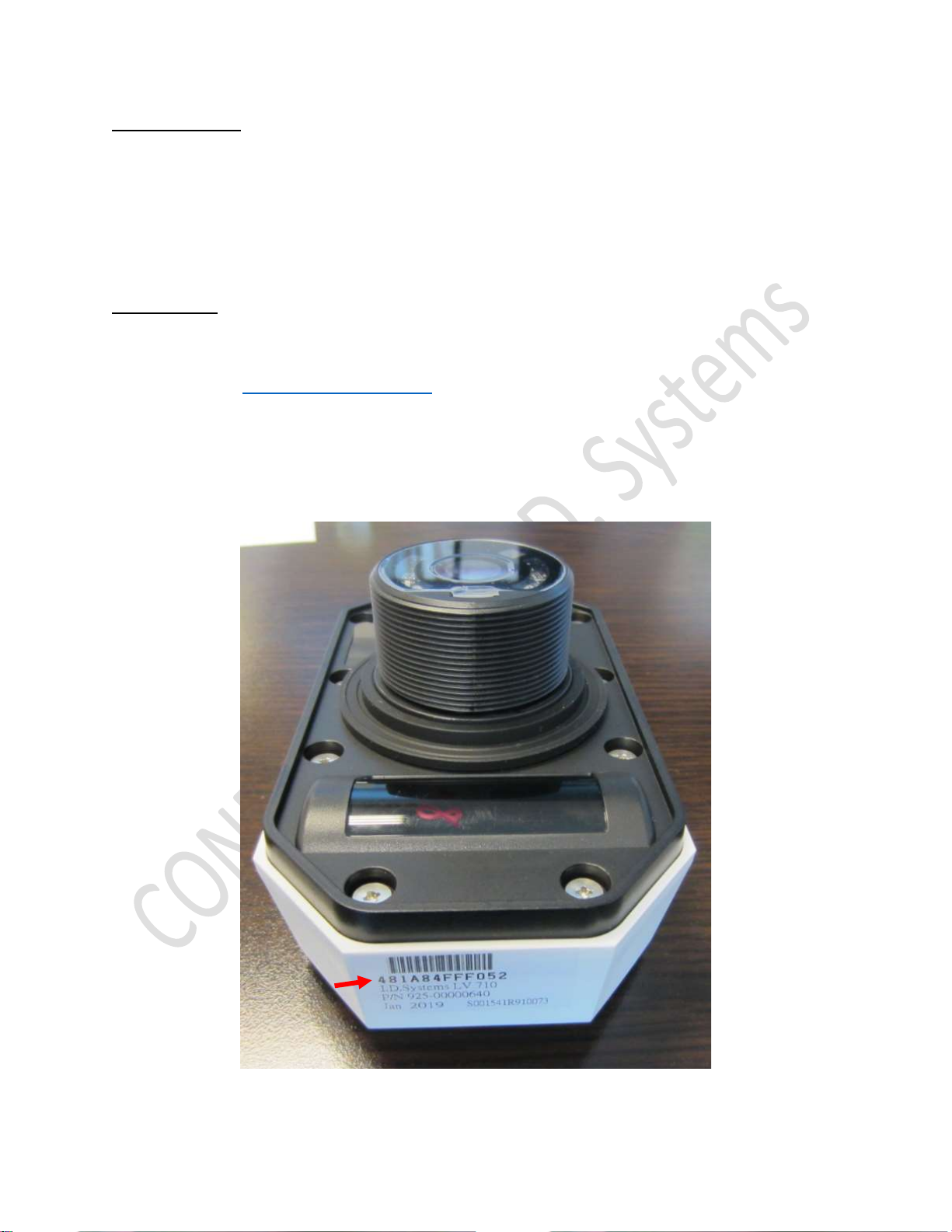

MAC Address
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 3

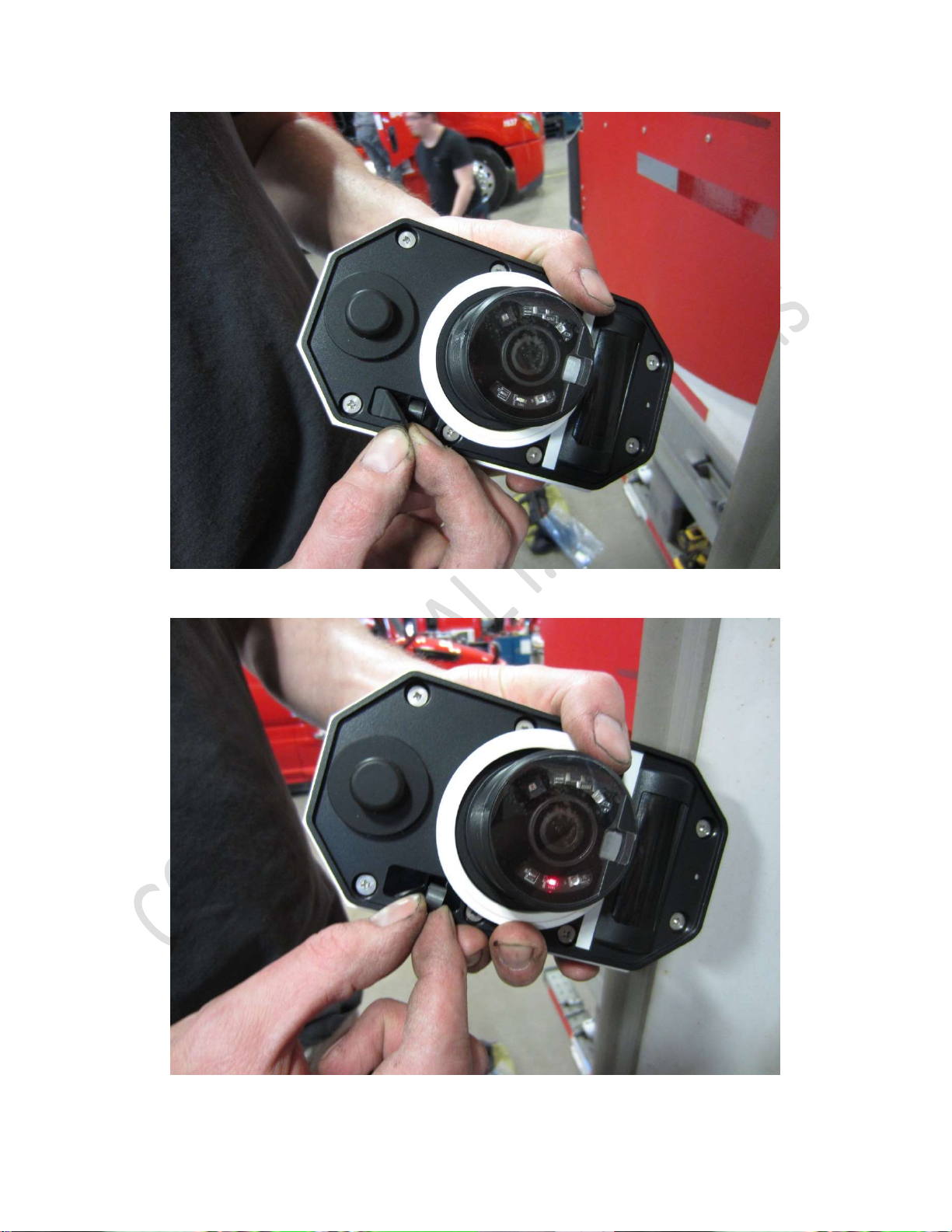

Removing tape over activation magnet
Activation magnet removal and LED flash
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 4
Standard Installation:
1. Confirm curbside door thickness is ≤ .75”.

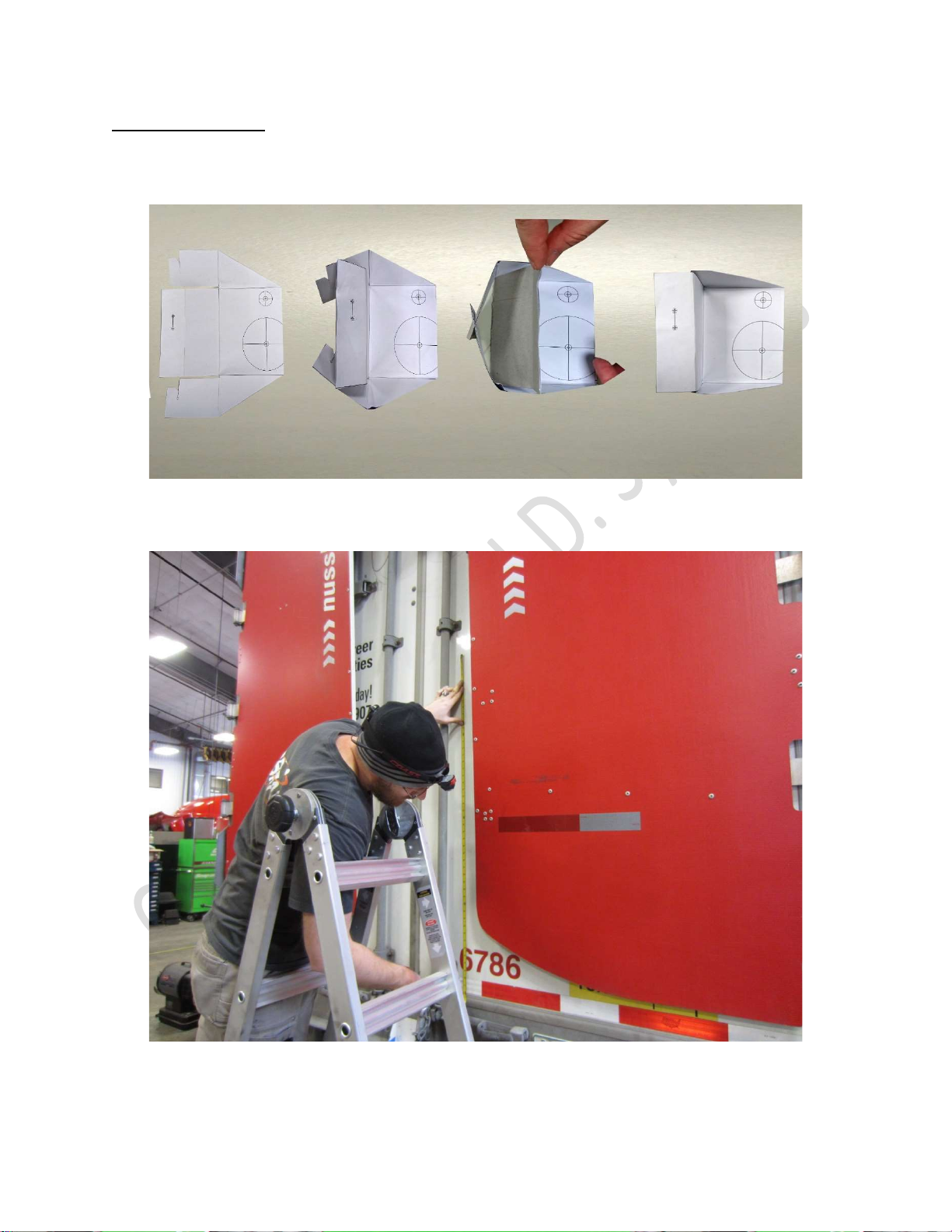

2. Assemble installation hole template.
3. On the exterior of the curbside door, next to inner locking rod, mark a location 50” up from the
trailer floor.
Measure and mark location 50” up from trailer floor
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 5

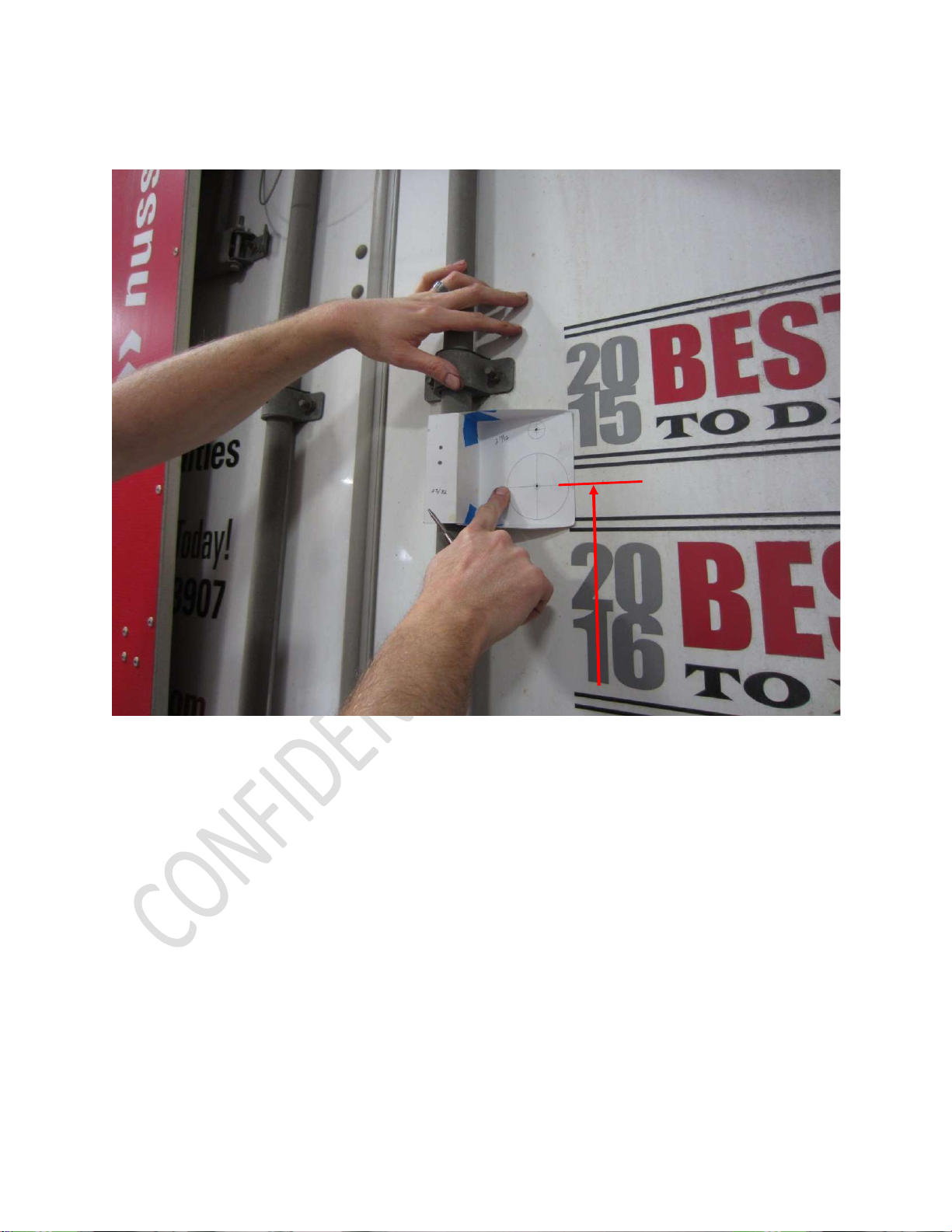

4. With curbside door closed and latched, align the center of lens hole on the template with the
marked location on the door. Press the vertical edge of the template against the inner locking rod.
Align template with locking rod and 50” mark
50” from floor
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 6

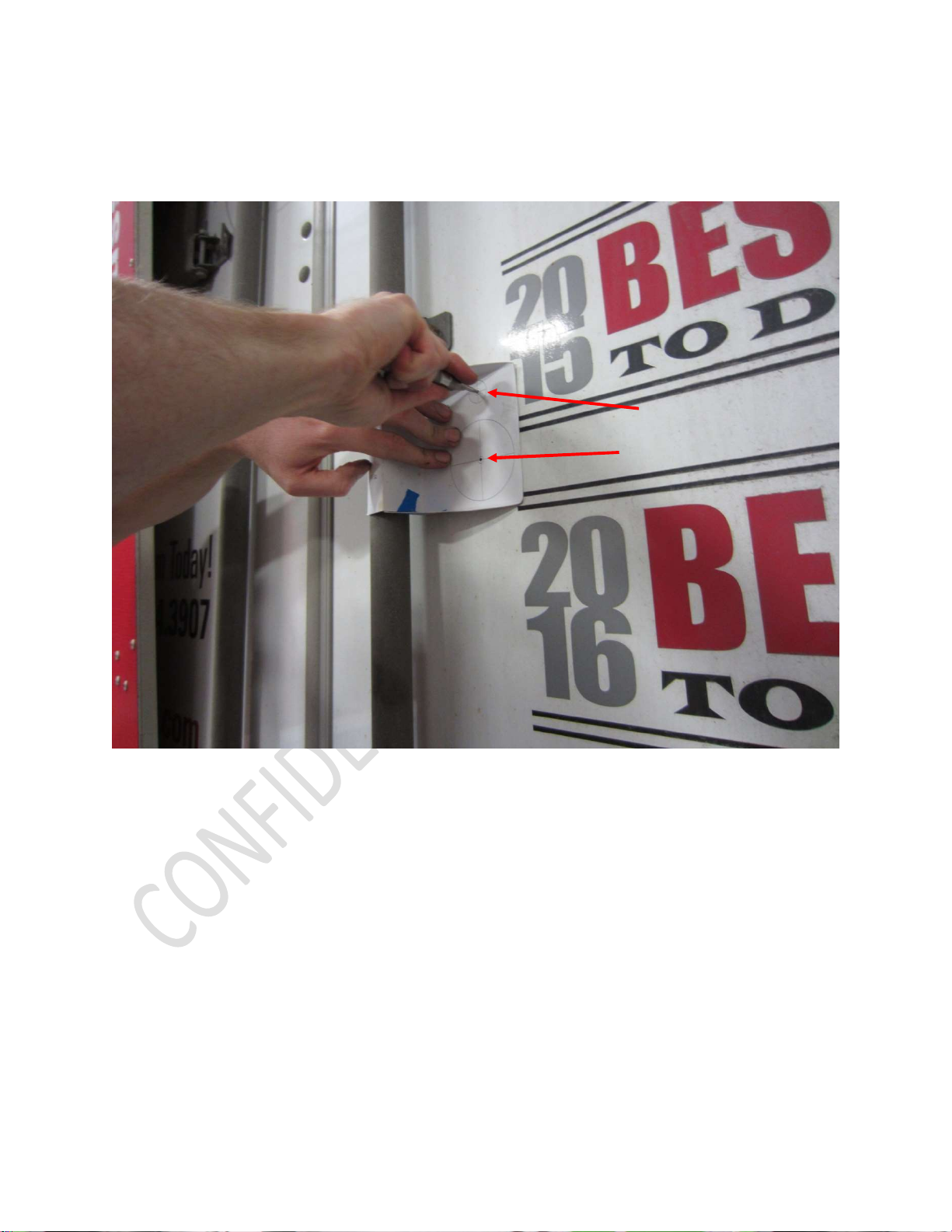

5. Using a spring-loaded punch and template, mark the location of 2 holes on the door.
a. Lens hole (1) - Door
b. Positioning dowel hole (1) – Door
Mark hole locations with spring-loaded punch
Lens
Positioning Dowel
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 7

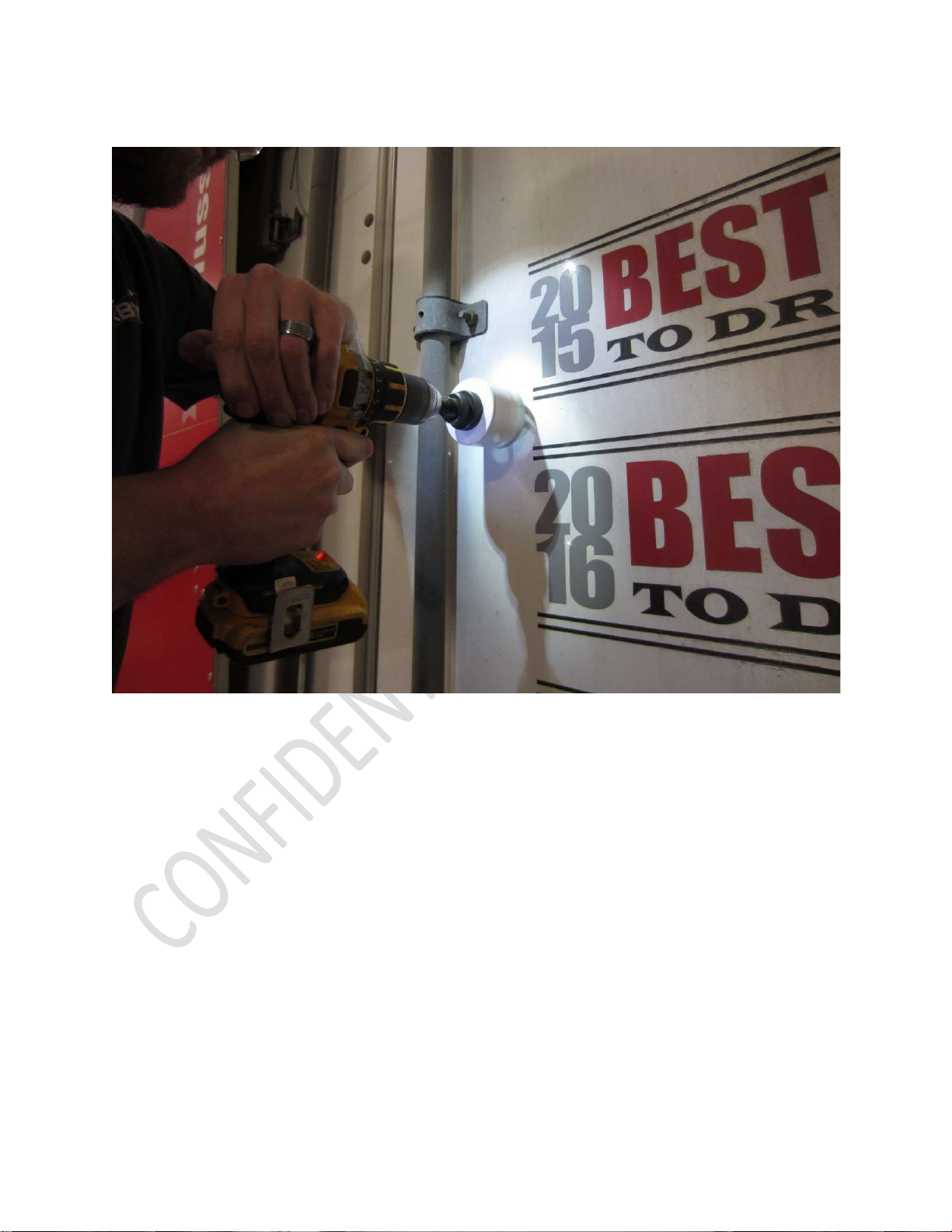

6. Drill 2 5/8” hole for lens at marked location on door.
2 5/8” lens hole
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 8

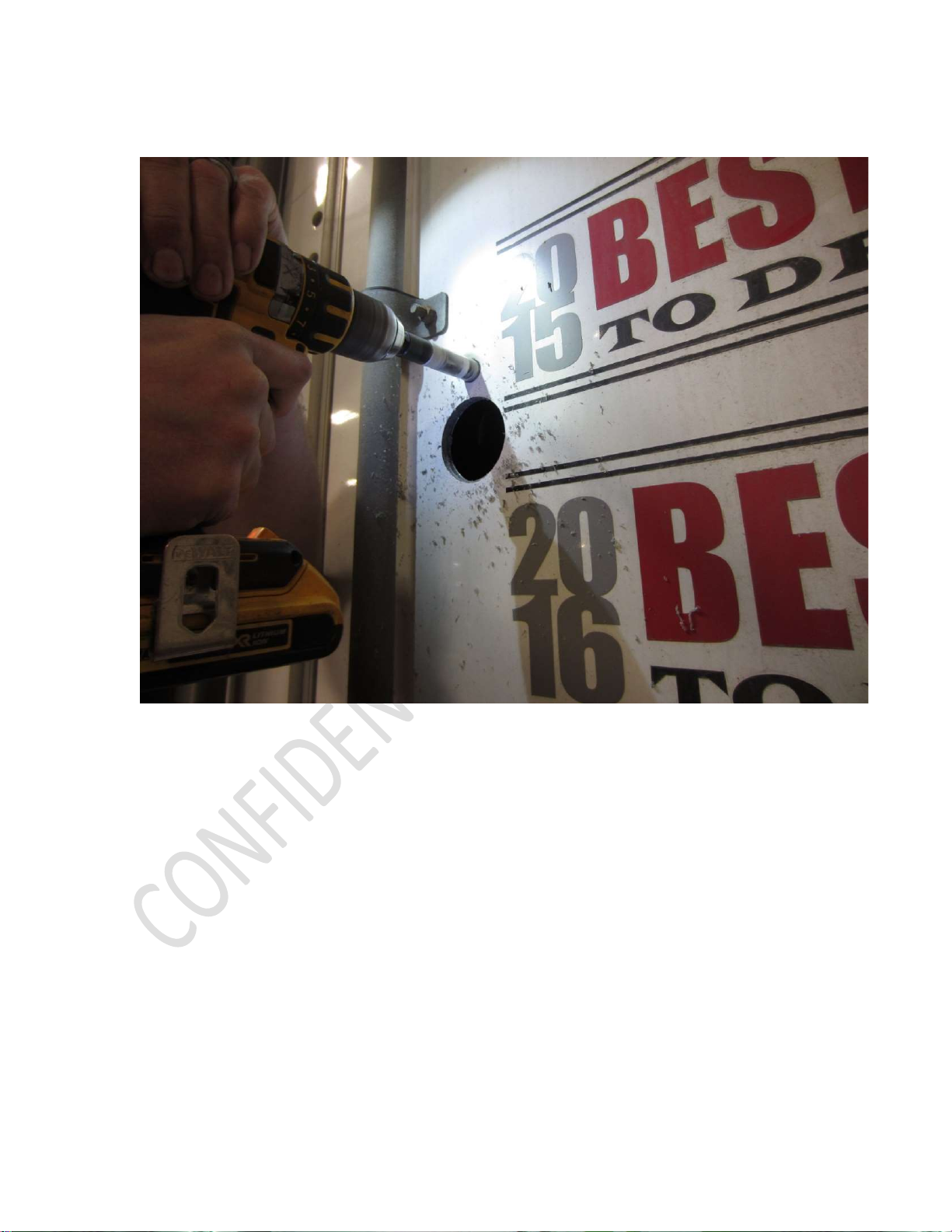

7. Drill ¾” hole for positioning dowel at marked location on door.
¾” hole for positioning dowel
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 9
8. Remove any drill shavings and debris from exterior and interior door surfaces.
9. Deburr any metal edges on exterior and interior door surfaces.

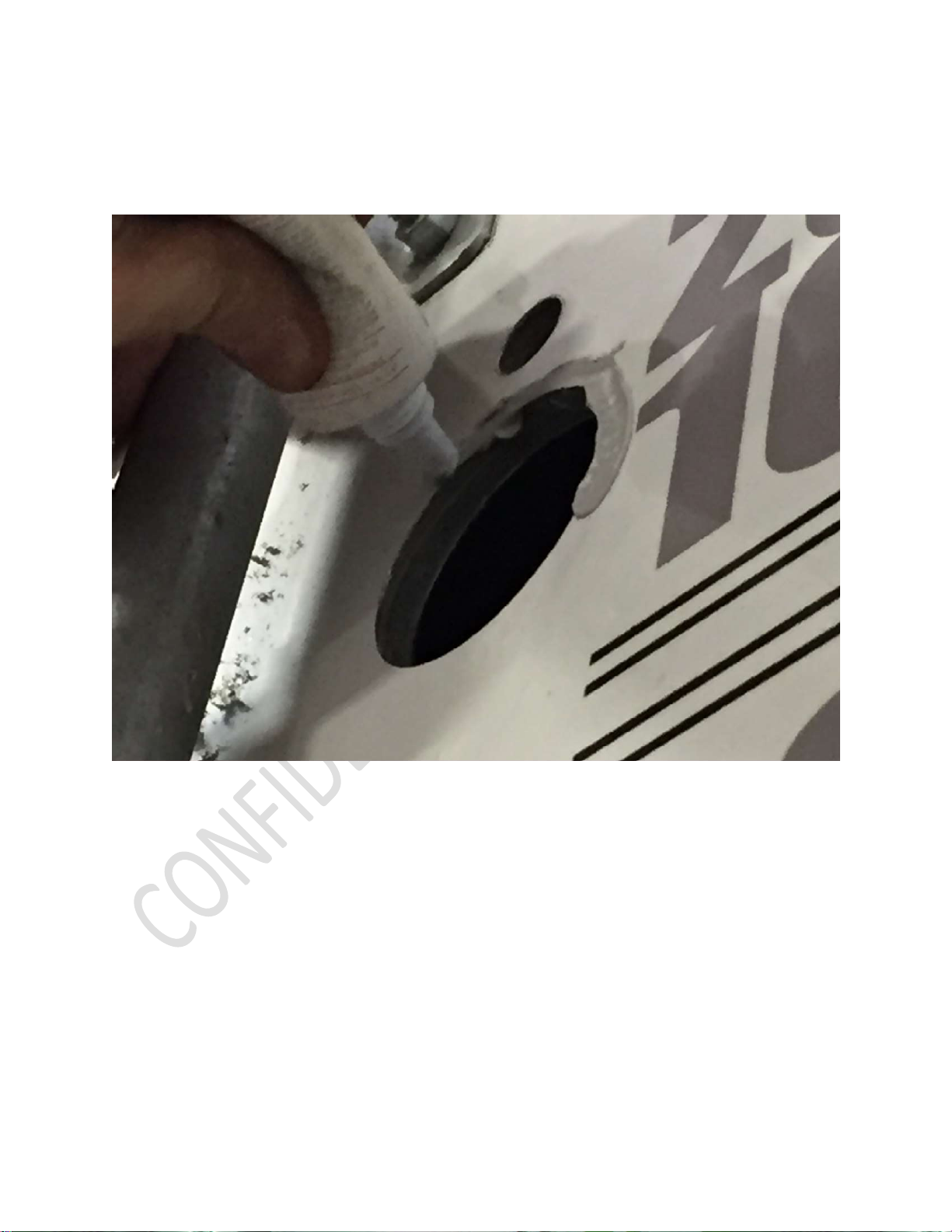

10. Apply a ¼” bead of Sikaflex 252 to exterior door surface around the lens and positioning dowel
holes.
Apply Sikaflex 252
LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 10

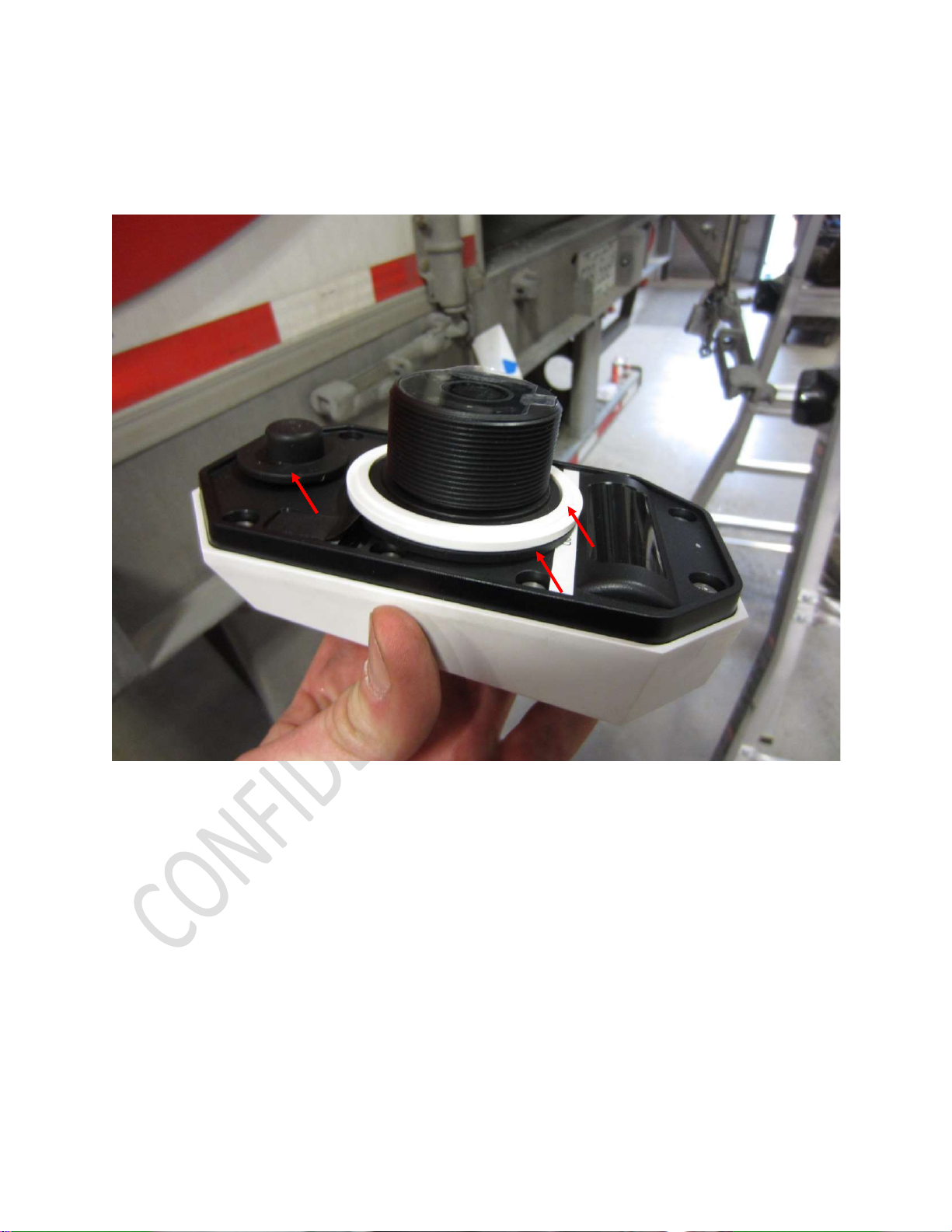

11. Install external shock mount hardware onto device.
a. Slide thick black rubber washer over lens assembly with flat side against device body.
b. Slide white plastic washer over lens assembly with flat side against thick black washer.
c. Place black rubber plug over positioning dowel.
External shock mount hardware
