Powerhorse 1661132 Manuale utente

Owner’s Manual

Instructions for Installation/Set-up, Operation, Servicing, & Storage

Portable, Outdoor Use-Only, Gasoline Generator

1661132 - 5500 Watt Continuous (7000 Watt Surge) Capacity

Can be used to power individual appliances plugged directly into the generator’s outlets, or as a

back-up connection to a building’s power supply (via a professionally installed UL-approved

transfer switch.

WARNING

READ and UNDERSTAND this manual completely before using the generator! Failure to properly set up,

operate, and maintain this generator could result in serious injury or death from carbon monoxide poisoning,

electric shock, fire/explosion, or burns. In particular, be aware of the following hazards:

CO Poisoning

Generators give off carbon monoxide, a poisonous gas that can kill you. You CANNOT smell it, see it, or taste it.

ONLY run generator OUTDOORS and AWAY from building air intakes. NEVER run generator inside any enclosed or

semi-enclosed spaces, including homes, basements, garages, sheds, boxes, RVs, boats or pick-up truck beds. These

spaces can trap poisonous gases, EVEN if you run a fan or open windows.

Install carbon monoxide alarms inside nearby structures/buildings (battery-operated, or plug-in with battery backup).

Electric shock / Electrocution

High voltage electricity from generator can kill. DO NOT operate in wet locations. Be sure generator is properly

grounded. Use only UL-listed, outdoor-rated grounded extension cords of proper size.

NEVER plug the generator directly into a wall outlet. ANY connection to a building’s electrical system MUST

ISOLATE THE GENERATOR FROM UTILITY POWER via a UL-approved transfer switch installed by a licensed

electrician. Otherwise, back feed from the generator into the power grid could kill utility workers.

Fire / Explosion

DO NOT overload generator (per rated capacity), and OPERATE ONLY in an area with adequate cooling ventilation so

engine does not overheat. Exhaust can be extremely hot. Keep muffler at least 7 feet from all combustible objects.

All fuels are flammable. Never fuel a running or hot engine. Never pump fuel directly into generator at gas station –use

approved container to transfer fuel. Ensure there are no fuel leaks, and keep sources of sparks and flames away.

ALWAYS keep a fire extinguisher rated “ABC” nearby.

STOP!

CHOOSE THE RIGHT GENERATOR FOR YOUR NEEDS. See the “Power load Planning & Management” section

of this manual to determine your power load requirements and then compare to the generator’s rated capacity.

INSPECT COMPONENTS: Closely inspect to make sure no components are missing or damaged. See the “Unpacking

& Delivery Inspection” section for instructions on whom to contact to report missing or damaged parts.

ARRANGE FOR PROFESSIONAL INSTALLATION of a transfer switch if you will be connecting the generator to

your building’s electrical system. See the “Installation/Initial Set-Up” section for more information about this

requirement.

Any Questions, Comments, Problems, or Parts Orders

Call Powerhorse Product Support 1-866-443-2576

M1661132B

ITEM NUMBER: 1661132

SERIAL NUMBER: _____________

Hazard Signal Word Definitions

Table of Contents

Hazard Signal Word Definitions ..................................................................................................2

About Your Generator ..................................................................................................................4

Specifications ..................................................................................................................................6

Safety Label Locations...................................................................................................................7

Machine Component Identification.............................................................................................10

Power Load Planning & Management.......................................................................................12

Installation / Initial Set-Up:

1. Unpacking & Delivery Inspection..........................................................................................14

2. Planning the Power Load........................................................................................................14

3. Set-up as a PORTABLE or BUILDING BACK-UP Power Source ......................................15

4. Selecting a Suitable Site.........................................................................................................18

5. Grounding the Generator........................................................................................................20

6. Battery Installation .................................................................................................................21

Operation:

1. General Safety Rules for Operation .......................................................................................22

2. Preparing for Operation..........................................................................................................25

3. Starting the Engine.................................................................................................................28

4. Checking Generator Output....................................................................................................29

5. Connecting Loads...................................................................................................................30

6. Stopping the Engine ...............................................................................................................30

7. Storage & Exercise.................................................................................................................31

Maintenance & Repair..................................................................................................................33

Troubleshooting.............................................................................................................................35

Summary of Important Safety Information for Operation.......................................................36

Engine Operation ..........................................................................................................................40

Engine Troubleshooting................................................................................................................46

Engine Specifications/Electrical Diagram...................................................................................47

Exploded Views .............................................................................................................................48

Wheel Kit Assembly......................................................................................................................54

Warranty Statement .....................................................................................................................55

About Your Generator

Thank you for purchasing your Powerhorse portable generator!

About Your Generator

This engine-driven, portable generator is designed to provide up to 7000Watts of

electrical power (5500 watts continuous, 7000 watts surge).

It can supply power:

1. As a portable power source. You can plug appliances directly into the generator’s

electrical outlets.

2. As a back-up, standby power source for a building. A licensed electrician can connect

the generator to your building’s electrical system via the installation of an UL-approved

transfer switch. (See the “Installation & Initial Set-up” section of this manual to learn

more about specific requirements and precautions relating to wiring the generator to your

building’s electrical system.)

You must select a generator adequately sized for your power needs. You need to

determine the power needs of all the appliances/tools you wish to power at the same time and

choose a generator rated to provide at least that power level. See the “Power Load Planning &

Management” section of this manual to determine your specific power load requirements and

then compare them to this generator’s rated capacity. You must not overload the generator.

Overloading will cause damage to the generator and attached electrical devices, and may also

result in fire.

Be sure to read about site selection and grounding requirements for running this

generator. More detailed information can be found in the “Installation & Initial Set-up, Steps

5 & 6” of this manual.

Contact Powerhorse Product Support at 1-866-443-2576 with questions about optional

accessories or to order.

Read this Manual

WARNING

Improper use or maintenance of this generator can result in serious injury or death from

carbon monoxide poisoning, electric shock/electrocution, fire/explosion, or burns.

Read this manual completely before using the generator and follow all instructions and

safety rules.

You must follow all instructions and safety precautions presented throughout this manual. A

summary of important safety information can be found at the end of the manual. Keep this

manual for reference and review.

About Your Generator (cont’d)

Proper preparation, operation, and maintenance will result in operator safety, as well as best

performance and long life of the generator. For detailed engine operation and maintenance

information, always refer to the engine Owner’s Manual furnished with the generator.

Powerhorse is constantly improving its products. The specifications outlined herein are

subject to change without prior notice or obligation. The purchaser and/or user shall assume

liability for any modification and/or alterations of this equipment from original design and

manufacture.

Before using, the user shall determine the suitability of this product for its intended use and

assumes liability therein.

Contact Powerhorse Product Support at 1-866-443-2576 for any questions about the

appropriate use of this generator.

Warranty Registration

Please fill in the warranty registration information and have it on hand when you call in on a

warranty claim or replacement parts.

ATTENTION:

All Rental Companies and Private Owners who loan this

equipment to others!

All persons to whom you rent/loan this generator must have access to and read this manual.

Keep this owner’s manual with the generator at all times and advise all persons who will

operate the machine to read it. You must also provide personal instruction on how to safely

operate the generator and remain available to answer any questions a renter/borrower might

have.

Specifications

Item Number

#1661132

Maximum Output

7000 Watts (W)

Continuous Output

5500 Watts (W)

Voltage

120/240 Volt (V)

Continuous Amperage

45.8/22.9 Amps (A)

Phase

Single phase (4-wire)

Frequency

56.5 - 63.3 Hertz (Hz)

Power Factor

1.0 p.f.

Total Harmonic Distortion

less than 5%

Engine

420cc

Engine Speed

3750 RPM

Fuel Type

Unleaded gasoline

Fuel Capacity

6.6 gallons (25 L)

Oil Capacity

1.05 US quarts (1.0 L)

Starting Method

Recoil/Electric Start

120/240 V Receptacles

4 - 20 Amp (A) duplex

(NEMA 5-20R)

1 –30 Amp 120/240V locking

(NEMA L14-30R)

Circuit Breakers

1-8 Amp (A) thermal, push to reset

4-20 Amp (A) thermal, push to reset

2-23 Amp (A) thermal, push to reset

Dimensions

Length

28”

Width

20”

Height

23”

Dry Weight

185 lbs.

Battery Specs

(Battery Not Included)

12 Volt DC

Sealed Lead Acid

180 CCA

10.5 Amp hours

Terminal Style –T2

5.94” x 2.52” x 4.84”

Northern Tool & Equipment Item # 33528

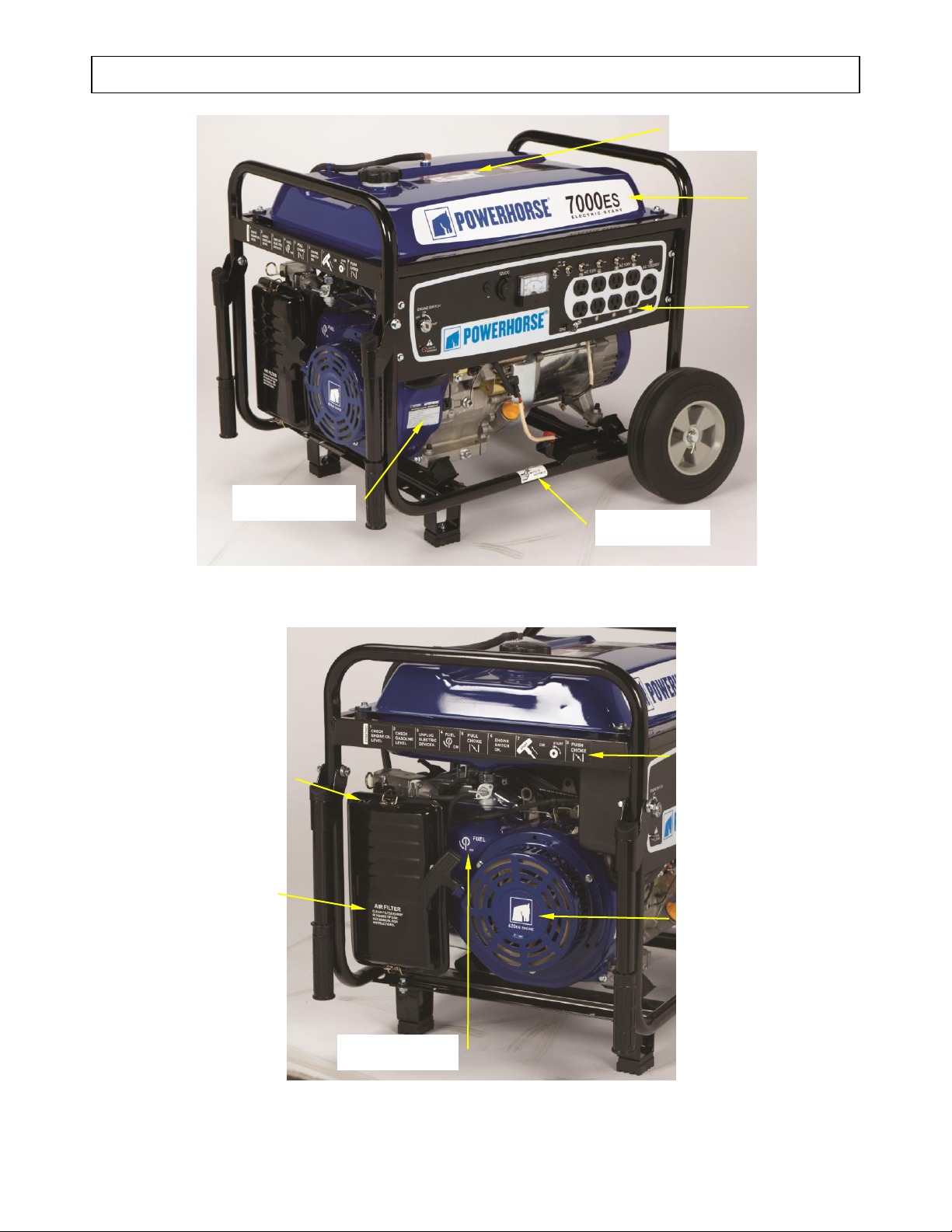

Safety Label Locations

Part # 790386

Part # 782554

Part # 782933

Part # 782629

Part # 790384

(1 of 2)

Part # 782927

Part # 782925

Part # 782929

Part # 782636

Part # 782628

Safety Labels Locations

Part # 782633

Part # 790385

Part # 782630

(1 of 2)

Part # 790384

(2 of 2)

Part # 782630

(2 of 2)

Safety Label Locations

Always make sure safety labels are in place and in good condition. If a safety label

is missing or not legible, order new labels or unsafe operation could result.

To order replacement safety labels, call Powerhorse Product Support at 1-866-443-2576.

Machine Component Identification

Ref.

Description

Ref.

Description

Vibration Isolation Mount

Engine Switch

Oil Drain Plug

8A Circuit Breaker

Recoil

12VDC Supply

Handle

Voltmeter

Air Cleaner

23A Circuit Breaker

Gas Cap

120V, 20A Duplex Receptacle

6.6 Gallon Gas Tank

20A Circuit Breaker

Generator Head

120/240V, 30A Locking Receptacle

Muffler

Grounding Post

Low Oil Warning

Fuel Shut Off
