PD210E

GASOLINE GENERATOR / WELDER

Owner’s Manual

This manual provides information regarding the operation and maintenance of these products. We

have made every effort to ensure the accuracy of the information in this manual. We reserve the right

to change this product at any time without prior notice.

Please keep this manual available to all users during the entire life of the generator/welder.

WARNING:

The engine exhaust from this product contains chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

WARNING:

The generator is a potential source of electrical shock if misused. Do not expose the generator

to moisture, rain or snow. Do not let the generator get wet, and do not operate it with wet hands.

Keep this owner's manual handy, so you can refer to it at any time. This. owner’s manual is

considered a permanent part of the generator and should remain with the generator if resold.

The information and specifications included in this publication were in effect at the time of approval

for printing. Our company reserves the right, however, to discontinue or change specifications or

design at any time without notice and without incurring any obligation whatever. No part of this

publication may be reproduced without written permission.

Congratulations on your selection of our generator/Welder. We are certain you will be pleased with

your purchase of one of the finest generators/Welders on the market.

We want to help you get the best results from your new generator/welder and to operate it safely.

This manual contains the information on how to do that, please read it carefully.

As you read this manual, you will find information preceded by a symbol. That information is

intended to help you avoid damage to your generator/welder, other property, or the environment.

We suggest you read the warranty policy to fully understand its coverage and your responsibilities

of ownership. The warranty policy is a separate document that should have been given to you by your

dealer.

When your generator/Welder needs scheduled maintenance, keep in mind that your our servicing

dealer is specially trained in servicing our generators/welders. Your authorized our servicing dealer is

dedicated to your satisfaction and will be pleased to answer your questions and concerns.

A FEW WORDS ABOUT SAFETY

Your safety and the safety of others is very important. And using this generator/Welder safely is an

important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and

other information on labels and in this manual. This information alerts you to potential hazards that

could hurt you or others.

Of course, it is not practical or possible to warn you about all the hazards associated with operating

or maintaining a generator/Welder. You must use your own good judgment.

You will find important safety information in a variety of forms, including;

gSafety Labels üon the generator/Welder.

gSafety Messages üPreceded by a safety alert symbol and one of three signal words, DANGER,

WARNING, or CAUTION.

These signal words mean:

DANGER: You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

WARNING: You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

CAUTION: You CAN be HURT if you don't follow instructions.

gSafety Headings üsuch as IMPORTANT SAFETY INFORMATION.

gSafety Section üsuch as GENERTOR/WELDER SAPETY.

gInstructions ühow to use this generator/Welder correctly and safely.

This entire book is filled with important safety information üplease read it carefully.

CONTENTS

SAFETY ........................ ………………………………………………………………………........ 1

Safety Label Locations ...................... ………………………………………………………..........1

Safety Information ............................ ……………………………………………………………....1

COMPONENT IDENTIFICATION ......................……………………………………………………3

CONTROLS ..................……………………………………………………………………………..4

Engine Switch ................…………………………………………………………………………..4

Recoil Starter …………………………………………………………....................... …….........…4

Fuel Valve Lever ……………………………………………………………………………………5

Choke Rod ..……………………………………………………………………………………..... 5

Circuit Breaker ...............…………………………………………………………………………..5

Oil Alert System ................... ………………………………………………………………..........6

DC Receptacle ..... …………………………………………………………………………………6

AC/DC (Weld) Selector Switch……………………………………………………………………6

Welding Cable Terminal ...............................………………………………………………………7

Welding Current Adjust System ..............................…………………………………………………7

GENERATOR/WELDER USE ................................…………………………………………………8

Connections to a Building Electrical System..........................………………………………………8

AC Operation ............................. ……………………………………………………………………8

Welding ................................ …………………………………………………………………………9

Selecting the Correct Welding Current.........................……………………………………………10

Welding Cable Selection ................................………………………………………………………10

Welding Duty Cycle...........................………………………………………………………………10

Polarity Selection.............. ...................................………………………………………….... …......10

High Altitude Operation ................................………………………………………………………11

PRE-OPERATION CHECK........................... ………………………………………………………12

Engine Oil ................................ ……………………………………………………………………12

Fuel Recommendation ................................ ………………………………………………………12

STARTING THE ENGINE/STOPPING THE ENGINE .............. ……………………….................15

MAINTENANCE ................................ ………………………………………………………………16

The Importance of Maintenance ................................ ………………………………………………16

Maintenance Safety ................................ …………………………………………………………16

Emission Control System Information ................................ ………………………………………17

Air Index ................................................................. ………………………………………...............18

Maintenance Schedule ................................ ………………………………………………………19

Engine Oil Change ................................ ……………………………………………………………19

Air Cleaner Service ................................……………………………………………………………20

Fuel Sediment Cup Cleaning ................................ …………………………………………………21

Spark Plug Service ................................ ……………………………………………………………21

TRANSPORTING/STORAGE............ ………………………………………………………………23

WIRING DIAGRAM ................................ ……………………………………………………………25

SPECIFICATIONS ................................………………………………………………………………26

WHEEL LIT ...........................................………………………………………………………………27

SAFETY

SAFETY LABEL LOCATIONS

These labels warn you of potential hazards that can cause serious injury. Read them carefully.

If a label comes off or becomes hard to read, contact your Generator dealer for a replacement.

SAFETY INFORMATION

Our generator/welders are designed to give safe and dependable service if operated according to

instructions. Reed and understand this owner's manual before operating your generator/welder. You

can held prevent accidents by being familiar with your generator/welder's controls, and by observing

safe operating procedures.

Operator Responsibility

gKnow how to stop the generator/welder quickly in case of emergency.

gUnderstand the use of all generator/welder controls, output receptacles, and connections.

gBe sure that anyone who operates the generator/welder receives proper instruction. Do not let

children operate the generator/welder without parental supervision.

Carbon Monoxide Hazards

gExhaust contains poisonous carbon monoxide, a colorless and odorless gas. Breathing exhaust can

cause loss of consciousness and may lead to death.

gIf you run the generator/welder in an area that is confined, or even partially enclosed, the air you

breathe could contain a dangerous amount of exhaust gas. To keep exhaust gas from building up,

provide adequate ventilation.

Electric Shock Hazards

gThe generator/welder produces enough electric power to cause a serious shock or electrocution if

misused.

gUsing a generator/welder or electrical appliance in wet conditions, such as rain or snow, or near a

pool or sprinkler system, or when your hands are wet, could result in electrocution. Keep the

generator/welder dry.

gIf the generator/welder is stored outdoors, unprotected from the weather, check all electrical

components on the control panel, before each use. Moisture or ice can cause a malfunction or short

circuit in electrical components which could result in electrocution.

gDo not connect to a building's electrical system unless an isol8tion switch has been installed by a

qualified electrician.

Fire and Burn Hazards

gThe exhaust system gets hot enough to ignite some materials.

üKeep the generator/welder at least 1 meter (3 feet) away from buildings and other equipment

during operation.

üDo not enclose the generator/welder in any structure.

üKeep flammable materials away from the generator/welder.

gThe muffler becomes very hot during operation and remains hot for a while after stopping the

engine. Be careful not to touch the muffler while it is hot. Let the engine cool before storing the

generator/welder indoors.

gGasoline is extremely flammable and is explosive under certain conditions. Do not smoke or allow

flames or sparks where the generator/welder is refueled or where gasoline is stored. Refuel in a

well-ventilated area with the engine stopped.

gFuel vapors are extremely flammable and may ignite after the engine has started. Make sure that any

spilled fuel has been wiped up before starting the generator/welder.

gUse adequate eye protection. Eye protection is of the utmost importance, not only for the operator,

but also for any other personnel in the vicinity while welding is being done. Eye hazards include arc

glare, reflected glare, stray flashes, sparks, and flying bits of molten metal.

gLooking at a welding arc with unprotected eyes may produce severe pain and even temporary

blindness.

gUse a helmet or hand-held shield with a #10 or darker filter lens. Filter lenses eliminate the harmful

effects of infrared and ultraviolet radiation from the arc and reduce the glare from the arc light as

well.

gWear protective clothing such as leather gloves, cap, sleeves, jacket, apron, and high-top safety

shoes. All outer clothing must be free of oil and grease.

OMPONENT IDENTIFICATION

gRecord the engine and frame serial numbers for your future reference. Refer to these serial numbers

when ordering parts, and when making technical or warranty inquiries.

CONTROLS

Engine Switch

To start and stop the engine.

Switch position:

OFF: To stop the engine.

ON: To run the engine.

Recoil Starter

To start the engine, pull the starter grip lightly until resistance is felt, then pull briskly.

NOTICE:

Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage

to the starter.

Fuel Valve Lever

The fuel valve is located between the fuel tank and carburetor. When the fuel valve lever is in the

ON position, fuel is allowed to flow from the fuel tank to the carburetor. Be sure to return the fuel

lever to the OFF position after stopping the engine.

Choke Rod

The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened

and closed by operating the choke rod manually. Pull the rod out toward CLOSED to enrich the

mixture for cold starting.

Circuit Breaker

The circuit breaker will automatically switch OFF if there is a short circuit or a significant overload

of the generator at the receptacle. If the circuit breaker is switched OFF automatically, check that the

appliance is working properly and does not exceed the rated load capacity of the circuit before

switching the circuit breaker ON again.

The circuit breaker may be used to switch the generator power ON or OFF.

Oil Alert System

The Oil Alert System is designed to prevent engine damage caused by an insufficient of oil in the

crankcase. Before the oil level in the crankcase can fall below a safe limit, the oil alert system will

automatically stop the engine (the engine switch will remain in the ON position). If the engine stops

and will not restart, check the engine oil level before troubleshooting in other areas.

DC Receptacle

The DC receptacle may ONLY be used for charging 12 volt automotive type batteries.

The battery must be connected to the generator DC receptacle with the proper polarity (battery

positive to generator positive (+) and battery negative to the generator negative (-)).

WARNING:

Do not start the vehicle while the battery charging cable is connected and the generator is running.

The vehicle or the generator may be damaged.

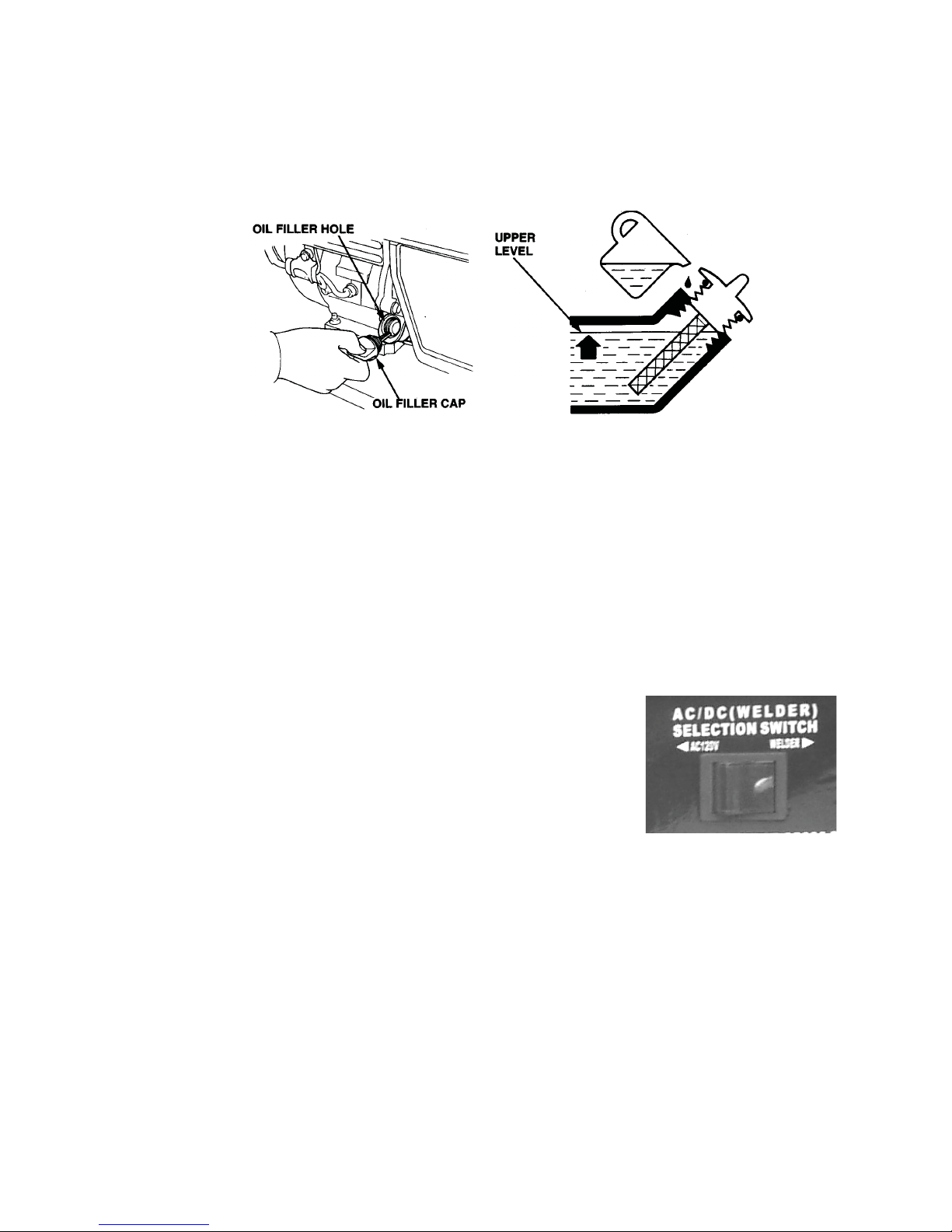

AC/DC (Weld) Selector Switch

The AC/DC (Weld) selector switch is located on the control panel.

gTo avoid accidental arcing, one cable end should be firmly attached

to the object to be welded, and the electrode holder at the end of the

other cable should be held in the operator's hand. DC voltage is

present at the welding terminals at all times, regardless of the

position of the AC/DC(WELD) selector.

gUnder no circumstances should any type of electrical appliance be

plugged into any of the AC receptacles when the selector is in the DC (WELD) position. AC voltage

is present at the AC receptacle at all times, regardless of the position of the AC/DC (WELD) selector.

However, when this selector is in the DC (WELD) position, the AC voltage is unregulated and

fluctuates considerably.

Indice

Altri manuali PowerLand Invertitore

PowerLand

PowerLand PD3G4400E Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
