PowerVision Tech Inc. would like to thank you for selecting and using the PowerDolphin
product, which will bring you a brand-new user experience.
Scan the QR code or go to your App store to download Vision+ 2.
Read the following documents carefully before use:
PowerDolphin Quick Start Guide
PowerDolphin User Manual
PowerDolphin Disclaimer and Safety Guidelines
PowerDolphin Smart Battery Safety Guidelines
Warning Tips
Download the Vision+ 2 App
Foreword
Welcome
Symbols
Supporting Documents
11
Introduction to the Product

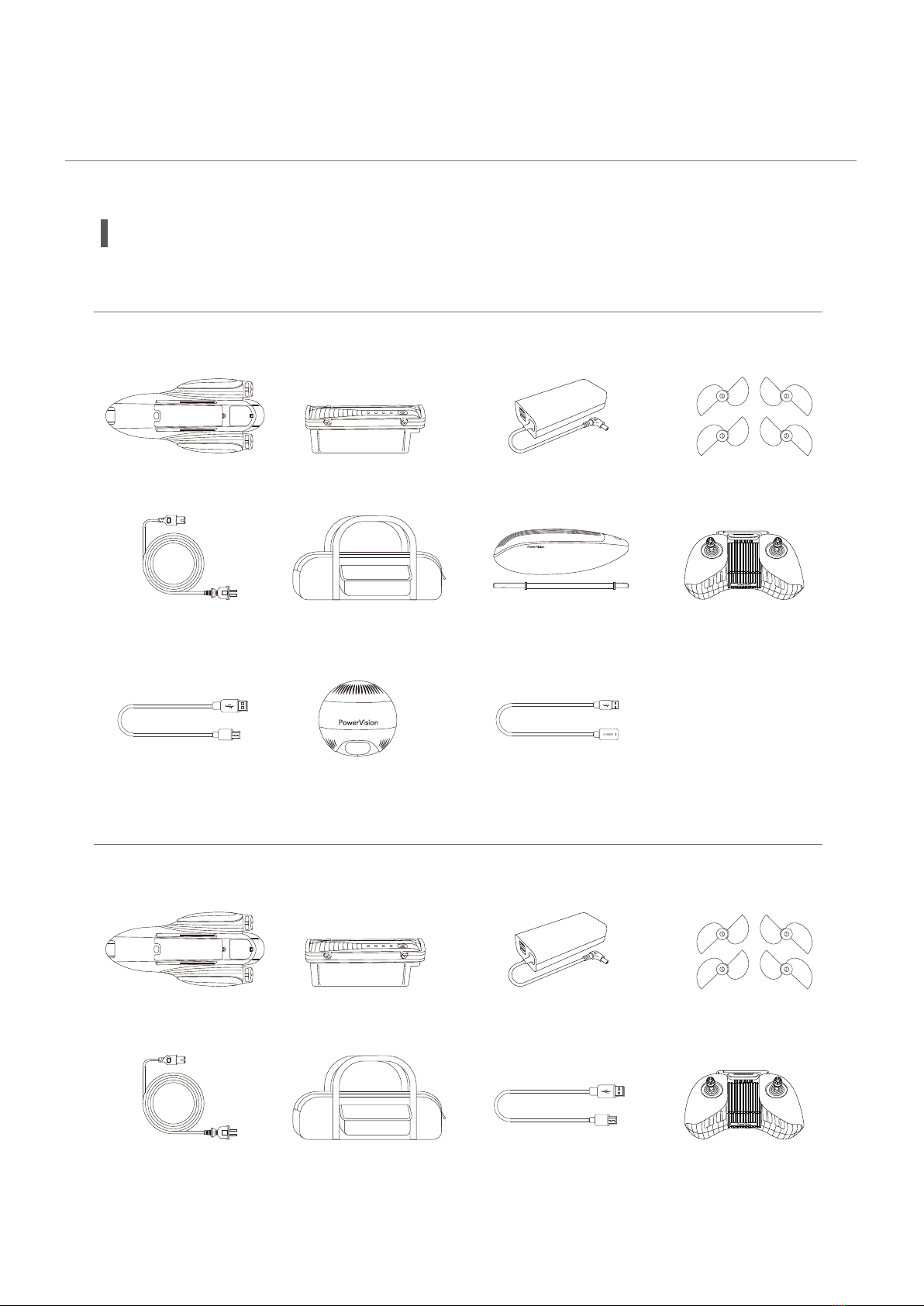

Item List
PowerDolphin
AC Cable
AC Adapter Blades x2 couplesIntelligent Battery
Storage Bag
Explorer
Remote ControllerMicro USB Cable
Remote Controller
PowerDolphin
AC Cable
AC Adapter Blades x2 couplesIntelligent Battery
Storage Bag
Wizard
Micro USB Cable PowerSeeker PowerSeeker Charging Cable
Fishing Bait container,
Link of Fishing Bait container
2
Get to Know PowerDolphin
PowerDolphin is a water-surface vehicle that can sail autonomously. Equipped with a
robotic camera arm the PowerDolphin can shoot 4k video and take 12 MP photos above
and below the water surface. In addition, you can attach the PowerSeeker sonar to the
bottom of the PowerDolphin, to locate fish, check water temps, and render terrains. You
can also attach our bait container or attach a fishing line to the payload feature on the back
of the PowerDolphin for precise bait drops. The remote controller and the Vision+ 2 App
provide real-time image transmission and many other features.
• Overview
PowerDolphin
AC Cable
AC Adapter Blades x2 couples
Intelligent Battery
Storage Bag Joystick
Standard
3
On/Off button
Radio antenna
Propeller
Payload system
Hook
Fitting pin
Camera electric joint
Camera manual joint
Battery cover
Rubber plug
MicroSD card slot
Reset button
Micro USB port
Intelligent battery
Fish finder port
• Lights
1.Headlight
PowerDolphin has a 220LM LED headlight. You can turn it on or off via the LED button in
the App.
2.Taillight
PowerDolphin provides taillights that indicate the device status.
Taillight
Headlight
• Smart Battery and Power On/Off
Device Status Taillight Status
Blue pulsing light
Blue light
Green light
Red blinking light
White light
Yellow light
No device connected
Device connected Locked
Unlocked
Warning for water damage to the device
Firmware upgrade
Not activated
4
Battery level button
Battery level LED light
Battery grip
Short press the battery level button once to check the battery level.
1. Components
2. Check the battery level
Charging port
Discharging port
Battery-sealing ring
5
Off On Blink
PowerDolphin is equipped with a smart battery containing a superior cell and an
advanced battery management system to ensure safe and reliable power supply for
sailings.
0-13%
13-25%
25-38%
38-50%
50-63%
63-75%
75-88%
88-100%
1.Connect your adapter to the charging port to charge the battery.
2.The battery level LED light blinks when the battery is being charged, and stops blinking
when the battery is fully charged.
3. Charging
1. Please use the PowerDolphin charger provided by PowerVision.
2. The battery temperature can be high after sailing. Please wait until the battery cools
down to room temperature before charging it.
3. The smart battery can be charged at a temperature ranging from 0℃to 40℃. We
recommend that you charge the battery at a temperature ranging from 20℃to 30℃to
prolong the battery life.
4. Installation
1. Place the battery into the compartment.
2. Secure the battery grip into place.
Make sure that the battery-sealing ring is intact before installing the battery. Damage to
the rubber seal may result in an unusable battery.
6
5. Power on/off
Press and hold the power button for 2 seconds to power on the device--the taillights on
both sides will turn on.
Press and hold the power button for 2 seconds to power off the device--the taillights on
both sides will turn off.
• Camera
1. Overview
The camera of PowerDolphin has a 132° ultra-wide-angle lens, which can take 12 MP
photos and shoot 4K videos with 30 frames per second. Working with the Vision+ 2 App,
it supports parameter adjusting, image preview, export, etc.
In addition, the camera has an electric joint and a manual joint, which offers access the
camera from both above and below the water surface. It has a field of view ranging from
-150° to +70° (the horizontal position is 0°, and when the camera rotates towards under-
water areas, the angle becomes negative), offering you a shooting angle spanning 220°
and a brand-new visual experience.
Electric joint
Manual joint
70°
150°
7
1. The electric joint can be locked automatically. Do not rotate it with force.
2. In stormy waves, due to the resistance of water, lifting the manual joint may affect Pow-
erDolphin's sailing stability. Therefore, we recommend that you use it in more stable
waters.
3. Camera SD card port
PowerDolphin comes with a 16G microSD card for you to store media files. You can get
and use the media files in the card by removing it from the camera or view and export
them from the media library in the App.
You can replace the microSD card in PowerDolphin. If you need to replace it, please use a
microSD card of Class 10, UHS-1, or higher specifications, to ensure that you can shoot
HD videos normally.
2. Camera joint control

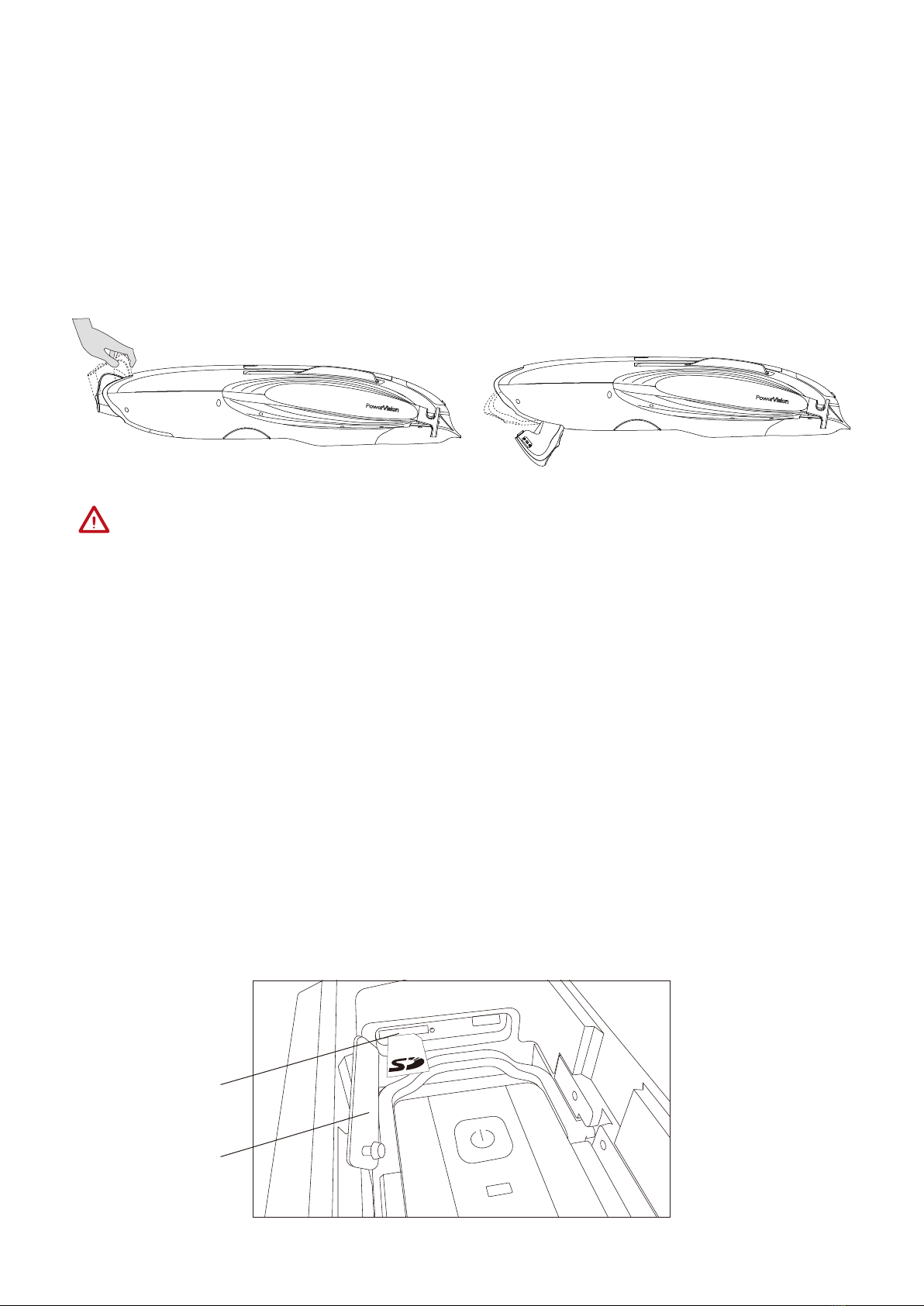

You can rotate the manual joint upwards to adjust its angle. In underwater mode, you can
adjust the angle of the electric joint by using the left control stick of the remote controller,
or touching and holding the blank space on the image preview screen in the App until it
vibrates, then use your finger to drag it up and down.
8
Rubber plug
MicroSD card slot
