Installation Instructions Visit the Premier Mounts website at http://www.mounts.com

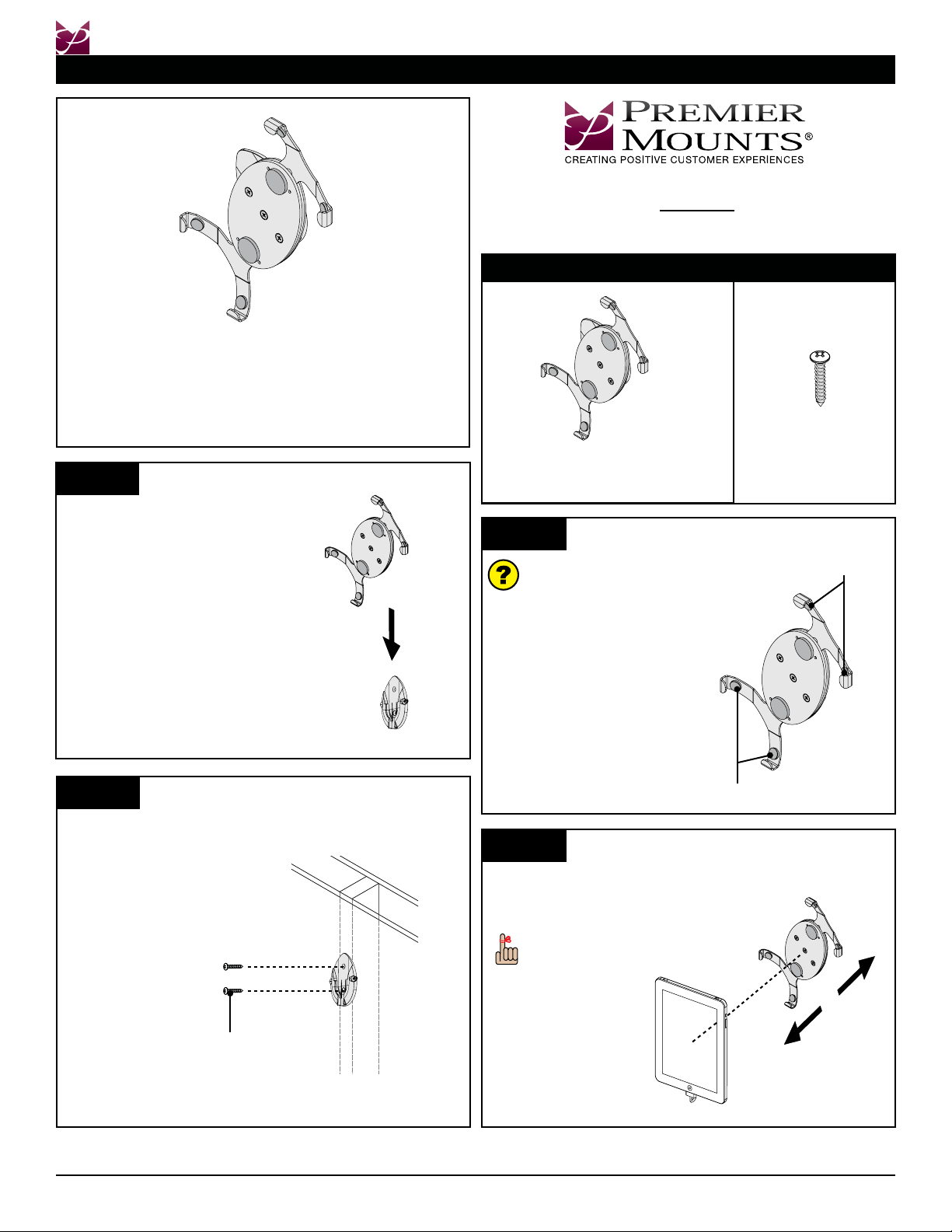

iPad™ IPM-500 Mounting Frame Installation Instructions

9531-056-041-00

Parts List

IPM-500

(Qty 1)

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada

Phone: 1.800.368.9700

Fax: 1.800.832.4888

Other Locations – Phone: (001).714.632.7100; Fax: (001).714.632.1044 ©Premier Mounts 2011

The IPM-500 open mounting frame securely holds the Apple iPad™ or

iPad2™ (not included) in place and gives access to all iPad™ controls

and connections. Its removeable wall mount plate may be installed on

any single stud surface, and provides 360° rotation for landscape or

portrait placement.

• All trademarks are the property of the respective trademark owners.

Step 3

Are you installing an original

iPad™ or iPad2™ to the

IPM-500?

If an original iPad™, remove

the corner felt pads on the

IPM-500. Then continue to

step 4 below.

If an iPad2™, continue to

step 4 below.

Step 4

➊Extend the arms of the IPM-500.

➋Insert the iPad™ in the IPM-500.

Each arm of the IPM-500 should

t over a corner of the iPad™.

Remove if using original iPad™

#8 x 1¼” Wood Screw

(Qty 2)

Step 1

Remove the wall plate from the

IPM-500.

Step 2

Use two (2) #8 x 1¼” wood screws

to attach the wall plate to a single

wood stud.

#8 x 1¼” Wood Screw

Page 2 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions

IPM-500

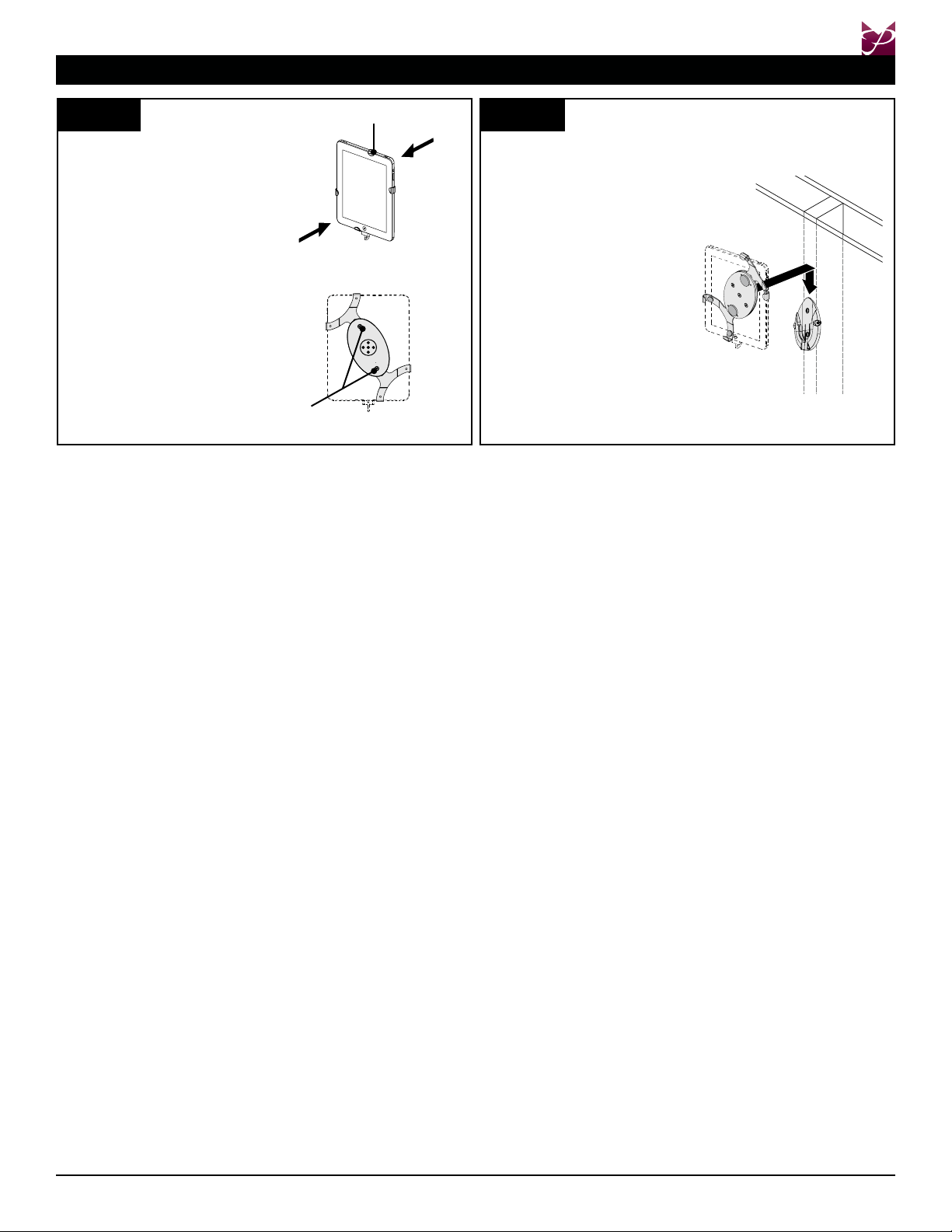

Step 5

➊Adjust the arms on the IPM-500

so that the iPad™ ts snuggly

inside the mount (Figure 1).

➋Tighten the two (2) pre-installed

Phillips screws on the back of

the IPM-500 to secure the arms

(Figure 2).

Step 6

➊Insert the IPM-500 into the wall

plate.

➋Rotate the mount to the desired

landscape or portrait position.

➌Tighten the two (2) pre-installed

M4 x 16mm pan combo screws

on the sides of the wall plate.

Mounting tab on IPM-500

Figure 1

Figure 2

Phillips screws

IPM-500 Installation Instructions (cont’d)
