Premier Mounts SOAD Manuale utente

Premier Mounts

3130 E. Miraloma Avenue

Anaheim, CA 92806

Phone: (800) 368-9700 Fax: (800) 832-4888

techsupport@mounts.com www.mounts.com

SOAD Swing Out Arm

Installation Instructions

SOAD

TABLE OF CONTENTS

Warning Statements 3

Parts List 4

Installation Tools 4

SOAD Swingout Arm 5

Tension Adjustments 7

Technical Specifications 8

Warranty 9

Contact Premier Mounts 9

Page 2 Installation Instructions

SOAD

Installation Instructions Page 3

Warning Statements

WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE (5) TIMES

THE WEIGHT OF THE DISPLAY. IF NOT, THE WALL MUST BE REINFORCED.

PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED

IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD

RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF

THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION

PROCEDURE TO PREVENT PERSONAL INJURY.

WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS

SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS

MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE

INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

Indicates that the power plug is to be disconnected from the power outlet.

Safety precautions must be taken at all times.

Warning and Caution statements.

A secure structure must support the weight, or load, of the display. When mounting to a wall that contains

wooden studs, dead center of the wooden stud must be confirmed prior to installation.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could

result in damage to the display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat energy.

Failure to do so may result in damage to the display and could increase the risk of fire.

At least two qualified people should perform the installation procedure. Injury and/or damage can result from

dropping or mishandling the display.

Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be installed on any

surface other than wooden studs, use suitable hardware (which is commercially available).

Contact Premier Mounts with any technical/ installation questions.

SOAD

Page 4 Installation Instructions

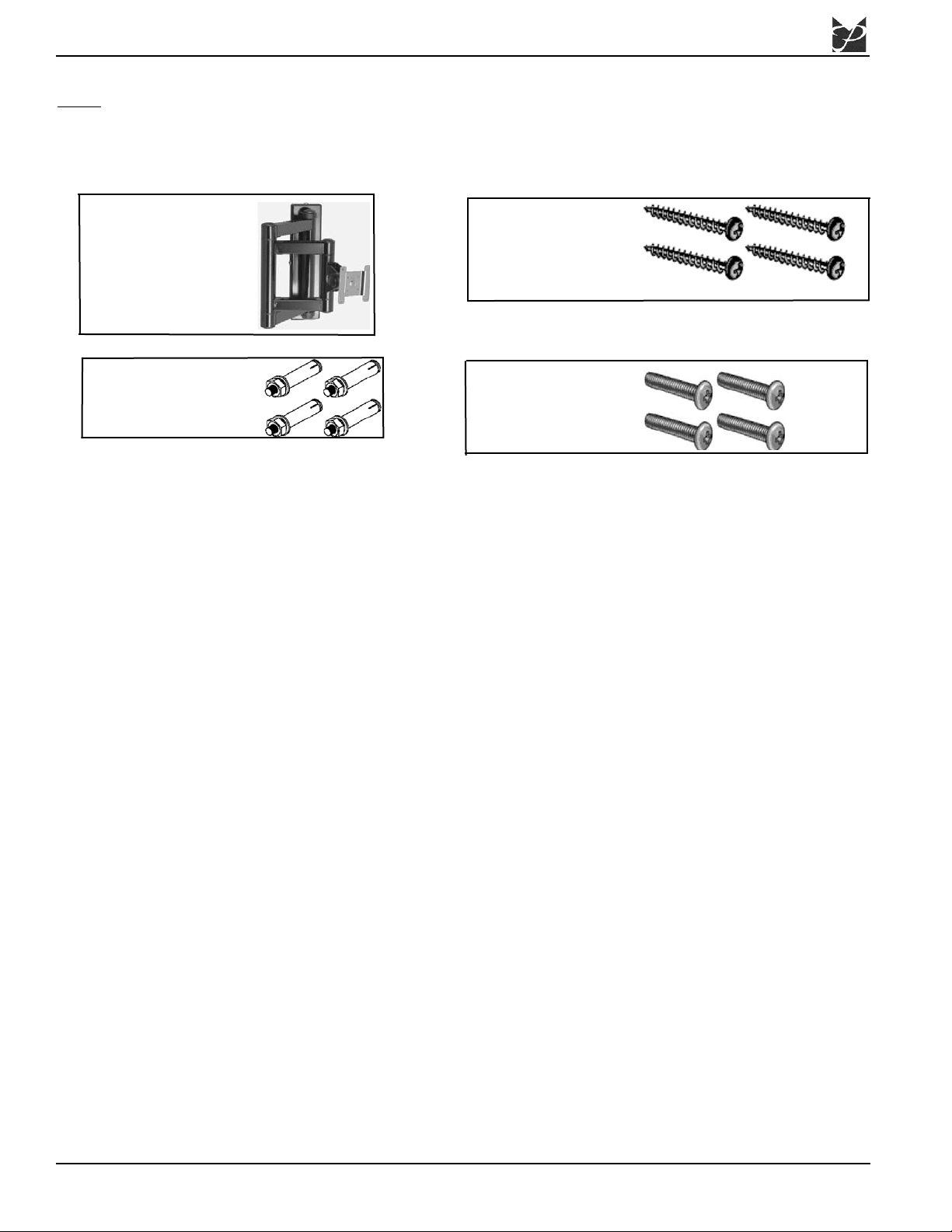

Parts List

NOTE: This mount is shipped with all intallation hardware and components. Make sure that none

of these parts are missing and/ or damaged before beginning installation. If there are parts

missing and/or damaged, please stop and contact Premier Mounts (800) 368-9700.

Installation Tools

Phillips Head Screw Driver Portable Drill

Soft Material/ Blanket Pencil

5/16” Drill Bit (for wedge anchors) Level

Tape Measure Ratchet with 9/16” Drive Socket

Stud Finder (Sold Separately)

Swingout Arm (1ea)

1/4” Wedge Anchors

(4ea). These are used only

for concrete applications.

#14 x 2”

Wood Screws (4ea)

M4 x 10mm Phillips

Head Screws (4ea)

SOAD

Installation Instructions Page 5

SOAD Swingout Arm

NOTE: Check that you have all the hardware listed on the front of the page. If any of the hardware

described is missing on your particular model do not continue, contact PREMIER MOUNTS shown

on the front cover.

1. Separate the swing out arm from the back plate by removing the four (4) M6 x 12 (mm) Phillip

screws form the mount. Choose the location for the monitor and follow any safety and precautions

from the monitor's manufacturer.

Single Studs

1. For single wood stud use the four (4) middle mounting points found on the back plate.

2. Locate the center of the wood stud behind the wall, mark the height and location desired.

3. Drill four (4) 1/8" pilot holes on the marked wall.

4. Secure the back plate to the center of the wood stud by using four the (4) #14 wood screws

(supplied).

5. All electrical wiring should be done at this time.

Solid Structure

1. Use the four (4) corner mounting points on the back plate.

2. Choose the wall where the monitor will be located.

3. Level and mark with a pencil the four (4) mounting points found on the back plate.

4. Use a 5/16" drill bit to drill the access holes for the wedge anchors.

5. Insert the wedge anchors through the back plate into the access holes drilled in the wall.

6. Tighten the nut in front of the wedge anchor (wedge anchor will expand when nut is tightened) to

secure the back plate.

7. Locate the mounting points on the back of the monitor to confirm that is VESA standard 75 or 100.

VESA 75: Use the front plate that comes with the mount.

VESA 100: Use the plate that comes in the box to make the mount a VESA 100. Attach the VESA

100 plate and secure it to the VESA 75 plate by using the four (4) M4 x 10 Phillip screws (supplied).

8. Invert the monitor and place it on a soft, flat surface.

9. Secure the arm (fully collapsed position) to the back of the monitor by using the four (4) M4 x 10

(mm) Phillip screws (supplied).

10. Raise the monitor with the arm attached and insert the SOAD plate to the secured back plate and

secure one (1) of the M6 x 12 (mm) Phillip screws to the top of the back plate, then secure the

remaining (3) M6 x 12 (mm) Phillip screws (supplied).

CAUTION: Do not over tighten the M4 screws to the monitor.

SOAD

Page 6 Installation Instructions

(4) M4 x 10 (mm)

phillip screws

monitor

SOAD

SWING OUT

ARM

(4) #14 X 2"

LAG BOLTS

FLAT

WASHERS

BACK PLATE

WALL STRUCTURE

WOOD STUD

(4) M6 x 12 (mm)

phillip screws

SOAD

SWING OUT

ARM

monitor

(4) M4 x 10 (mm)

phillip screws

(4) M6 x 12 (mm)

phillip screws

(4) 1/4" X 2"

ANCHOR BOLTS

BACK PLATE

Figure 1. Single Stud Installation

Figure 2. Solid Structure Installation

SOAD

Installation Instructions Page 7

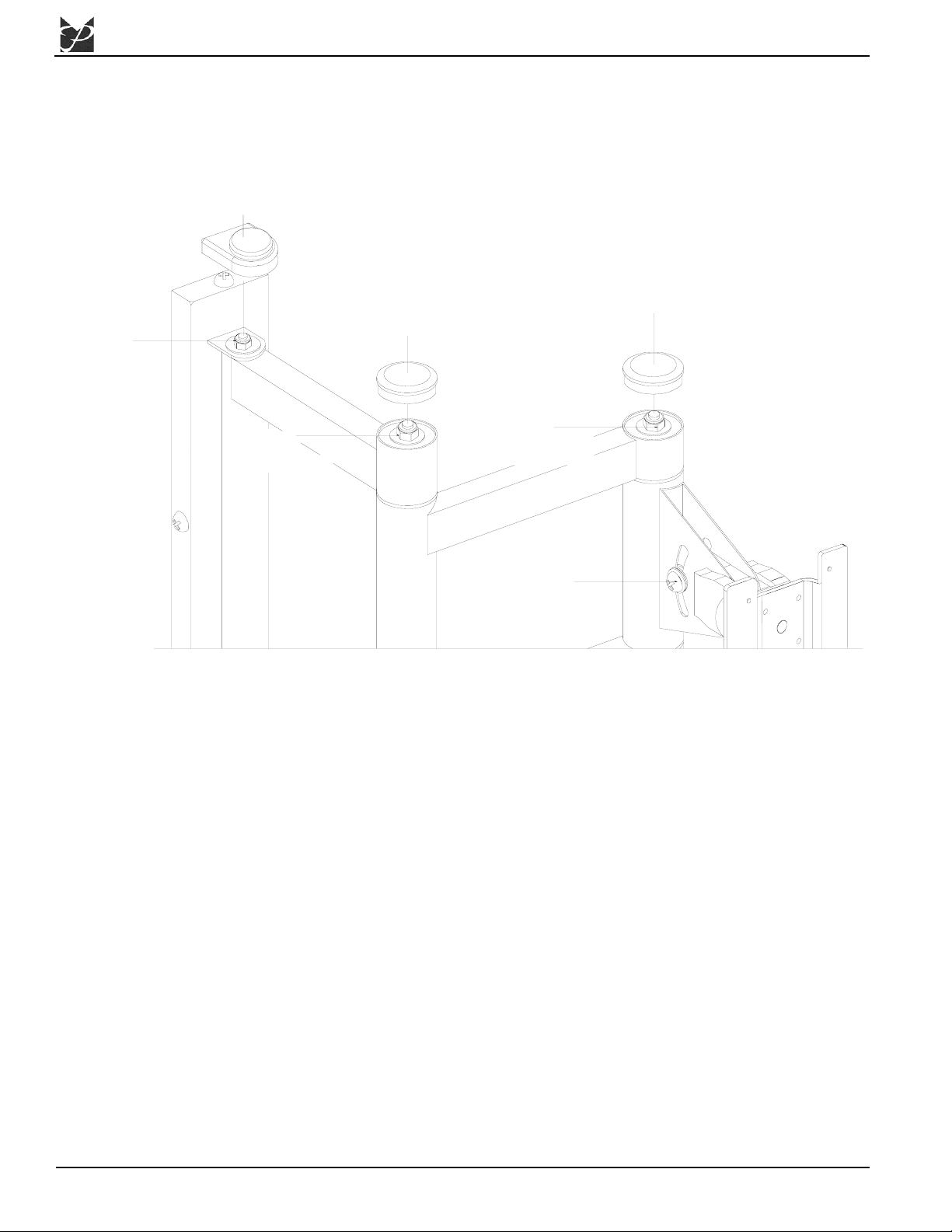

Tension Adjustments

1. For tension adjustments remove the top plastic covers of the mount and adjust to your needs by

using a 14 (mm) socket head wrench and a Phillips screwdriver. replace the plastic cover when you

are done.

Figure 3. Tension Adjustments

tension

adjustment

tension

adjustment

tension

adjustment

tension

adjustment

SOAD

Page 8 Installation Instructions

Technical Specifications

12.50

8.10

9.87 6.65

20.00

4.95

5.60

3.14

10.25

Figure 11. Technical Specifications

Arm Fully Extended

Arm Collapsed

SOAD

Installation Instructions Page 9

Warranty

Limited Lifetime Warranty

All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials

and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts,

adapters, display equipment or personal injury.

Contact Premier Mounts

In the event of missing and/or damage equipment, or technical questions, the following information can

help in the completion of the installation.

Customer Service - (800) 368-9700

Technical Support - tech[email protected]

NORTH AMERICA EUROPE ASIA

3130 East Miraloma Avenue Swallow House, Shilton Industrial Estate, Yabara 1916-15, Misato-machi,

Anaheim, CA 92806 USA Shilton, Coventry, England CV79JY Gunma-gun, Gunma-ken Japan

USA and Canada - Phone: +44 (0) 2476 614700 Phone: 81.27.371.6998

Phone: 800-368-9700 Fax: +44 (0) 2476 614710 Fax: 81.27.371.6308

Fax: 800-832-4888

Other Locations - Phone: 001.714.632.7100; Fax: 001.714.632.1044

©Premier Mounts 2004
