Premier Mounts CTM-MS2 Manuale utente

INSTALLATION MANUAL

CTM-MS2

Premier Mounts

3130 E. Miraloma Avenue

Anaheim, CA 92806

Phone: (800) 368-9700 Fax: (800) 832-4888

[email protected] www.mounts.com

IN-CTMMS2.R2

PBL-110 Projector Mount

Page - 2 - Installation Manual

CTM-MS2

Installation Manual Page - 3 -

Table of Contents

Warning Statements ........................................................................................................................................- 4 -

Parts List ...........................................................................................................................................................- 5 -

Installation Tools ..............................................................................................................................................- 5 -

Mounting Bracket Installation .......................................................................................................................- 9 -

CTM-MS2 Installation ..................................................................................................................................- 12 -

Installing the Flat Panel Display (CTM-MS2) ............................................................................................- 14 -

Technical Specifications ................................................................................................................................- 17 -

Warranty ........................................................................................................................................................- 18 -

Contact Premier Mounts ...............................................................................................................................- 18 -

Notes ................................................................................................................................................................- 19 -

CTM-MS2

Page - 4 - Installation Manual

Warning Statements

WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 160 LBS. IF NOT, THE WALL

STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED

SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE

ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN

DEATH.

WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF

THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION

PROCEDURE TO PREVENT PERSONAL INJURY.

WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS

SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS

MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE

INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

Indicates that the power plug is to be

disconnected from the power outlet.

Contact Premier Mounts with any

questions.

Safety precautions must be taken at all

times.

Warning and Caution statements.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to

do so could result in damage to the flat panel display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct

heat energy. Failure to do so may result in damage to the flat panel display and could increase the

risk of fire.

At least two qualified people should perform the installation procedure. Injury and/or damage can

result from dropping or mishandling the flat panel display.

CTM-MS2

Installation Manual Page - 5 -

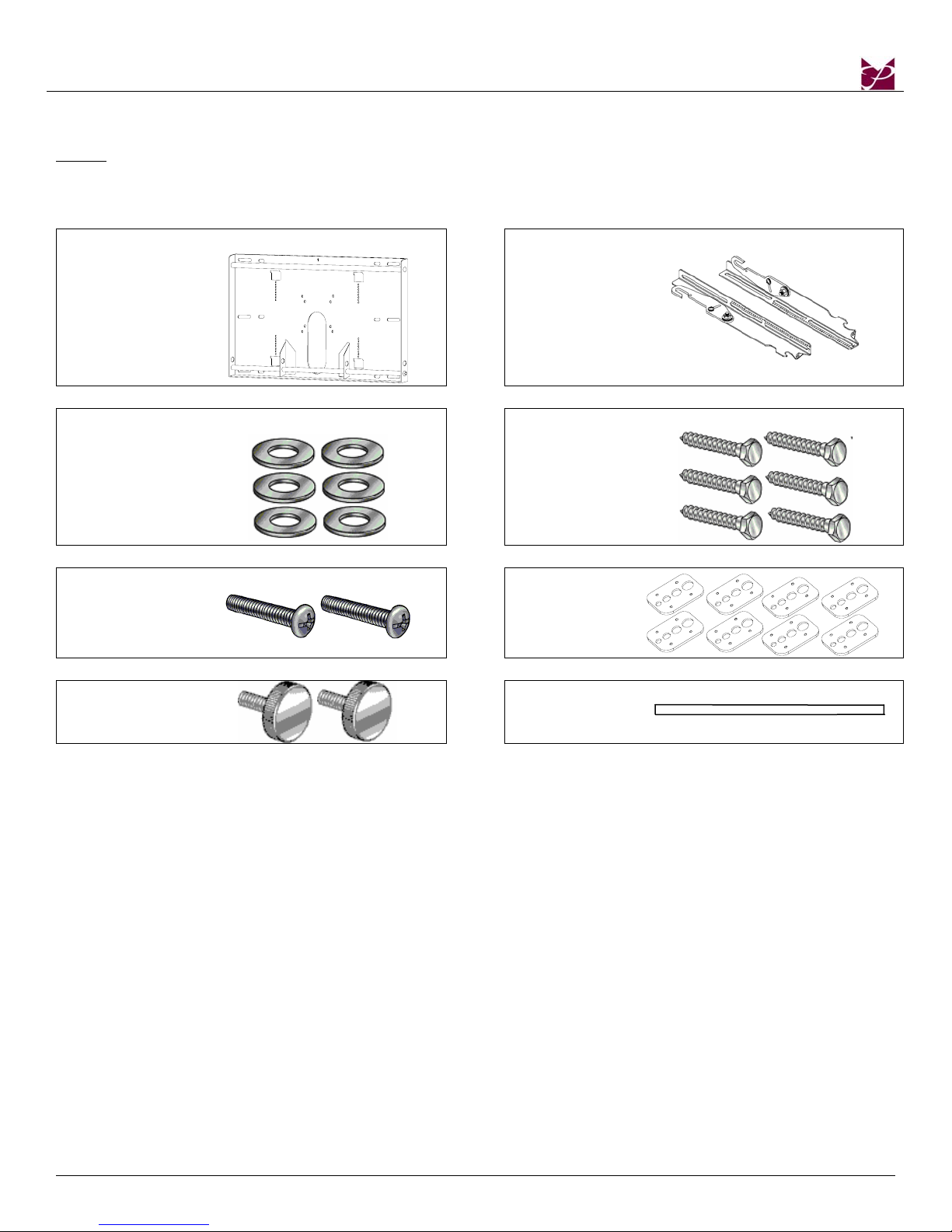

Parts List

NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that

none of these parts are missing and/or damaged before beginning installation. If there are parts

missing and/or damaged, please stop the installation and contact Premier Mounts

(800-368-9700).

WM4000 Wall

Plate (Qty 1)

Mounting

Brackets

(Qty 2)

5/16” Flat

Washers

(Qty 6)

5/16” x 3” Lag

Bolts (wooden

studs only) –

(Qty 6)

M6 x 30mm

Lateral Shift

Locking Screws

(Qty 2)

Griplates™

(Qty 8)

M6 x 12mm

Safety Knobs

(Qty 2)

Thread Depth

Indicator

Installation Tools

Phillips Head Screw Driver Soft Material/ Blanket 5/16” Socket and Wrench

Pencil Tape Measure Drill Gun

Level (Supplied)

CTM-MS2

Page - 6 - Installation Manual

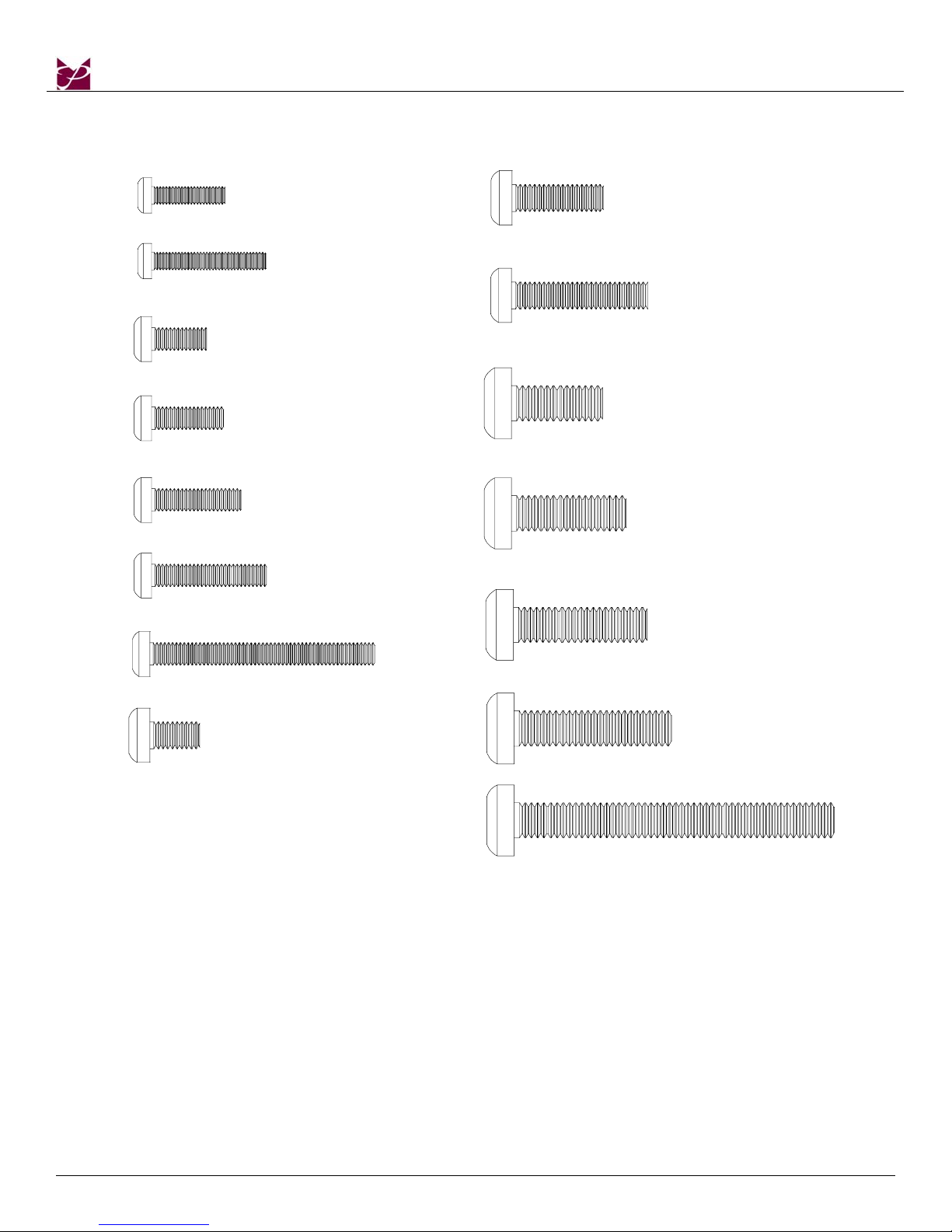

M4 x 25

M5 x 20

M5 x 50

M8 x 20

M6 x 30

(Qty 6)

(Qty 4)

(Qty 6)

(Qty 4)

(Qty 2)

M4 x 16 (Qty8)

(Qty 8)

M5 x 12

M5 x 16 (Qty 6)

M5 x 25 (Qty 4)

M6 x 12 (Qty8)

M8 x 25 (Qty6)

M8 x 30 (Qty 6)

M8 x 35 (Qty 4)

M6 x 20 (Qty6)

M8 x 70 (Qty 4)

CTM-MS2

Installation Manual Page - 7 -

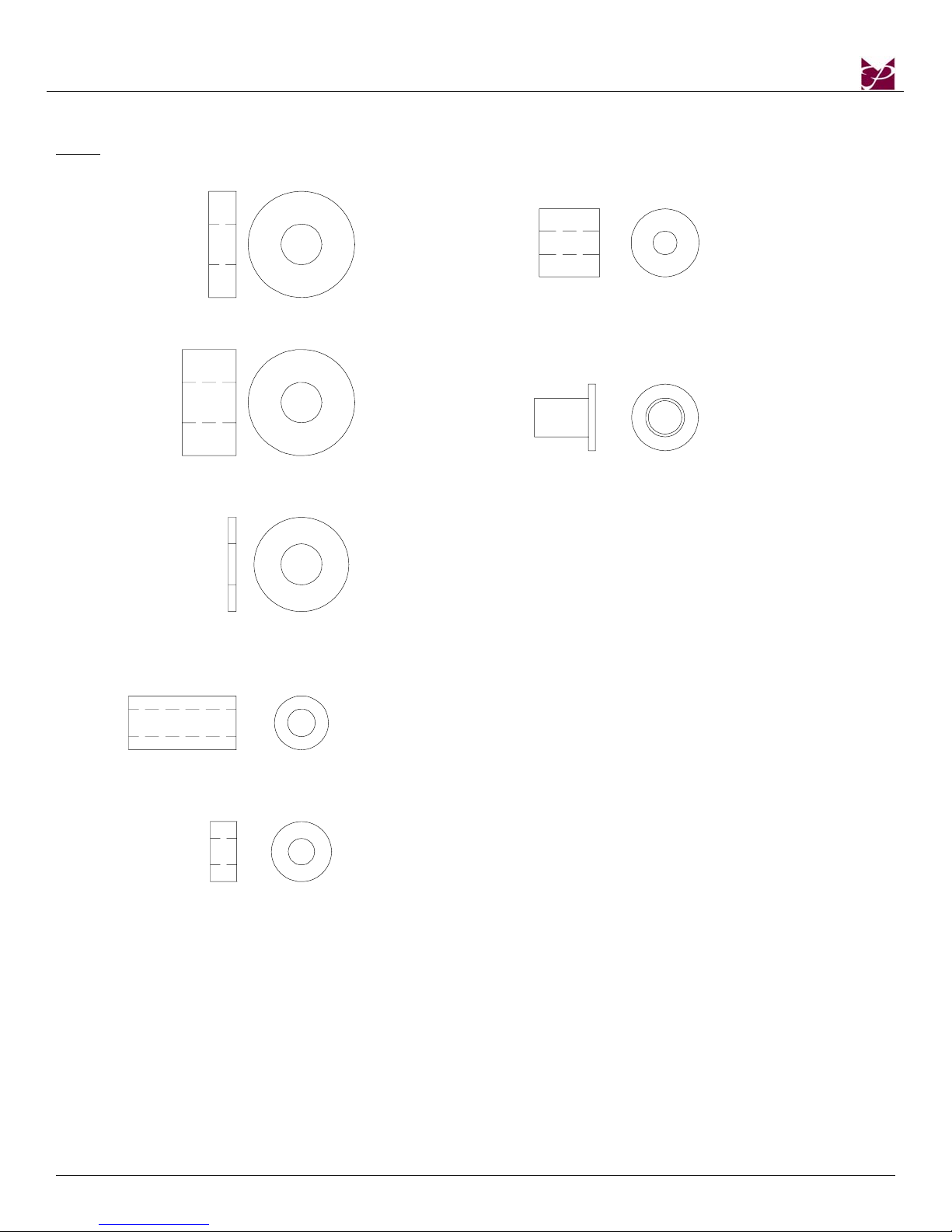

Nylon spacers and flat washers actual size

NOTE: The nylon spacers may be stacked to achieve proper spacing.

1/4" Nylon spacers

5/16" Flat washers

(metal)

1" Nylon spacers

1/4" Nylon spacers

9/16" Nylon spacers

(large)

(small)

1/2" Nylon spacers

(large) Nylon sleeves

(Qty 6)

(Qty 12)

(Qty 6)

(Qty 4)

CTM-MS2

Page - 8 - Installation Manual

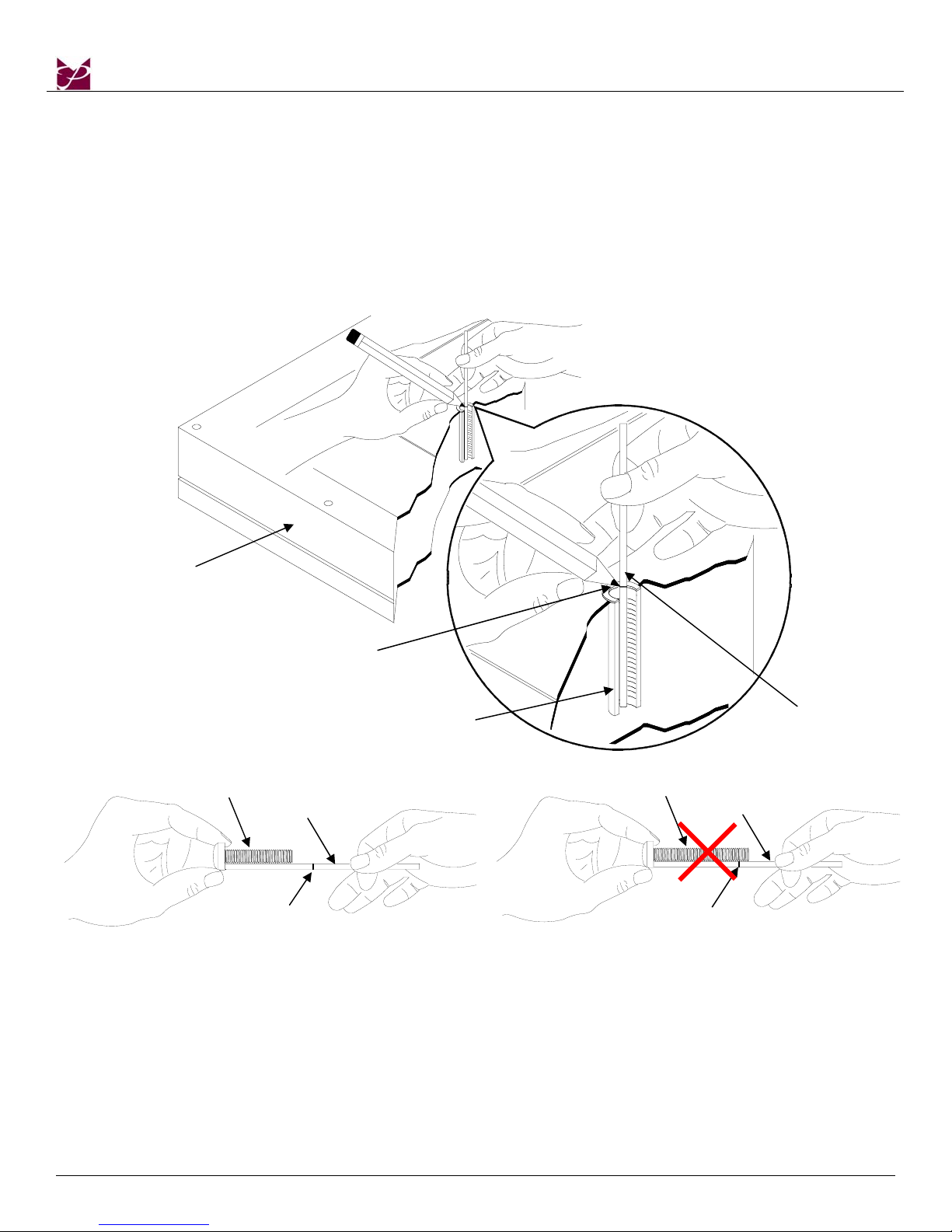

Thread Depth Indicator

1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat

panel to make sure the inserts measure the same full depth and mark it (Figure 1).

2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).

3. If your selected screw is longer than the marking on the thread depth indicator, DO NOT USE this screw.

4. The screw length must not bypass the marking. Select another screw size (Figure 2 and 3), until you

find one that comes closest to your mark without going past.

Figure 1

Figure 2 Figure 3

Marking the depth

Thread depth

indicator

Thread insert

Inverted flat panel

display

Screw

Marking

Thread depth

indicator

Screw Thread depth

indicator

Marking

CTM-MS2

Installation Manual Page - 9 -

Mounting Bracket Installation

NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must

be adhered to. Failure to do so could result in serious personal injury and possible damage to the

flat panel.

WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO

THE FLAT PANEL. USE A BLANKET, FOAM, ETC. FAILURE TO DO SO WILL RESULT IN

DAMAGING THE FLAT PANEL. DO NOT LAY THE FLAT PANEL ON THE FLOOR WITHOUT ANY

PROTECTION TO THE GLASS. THE FLAT PANEL IS HEAVY AND FRAGILE. AT LEAST (2)

QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS

PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE

TO THE FLAT PANEL.

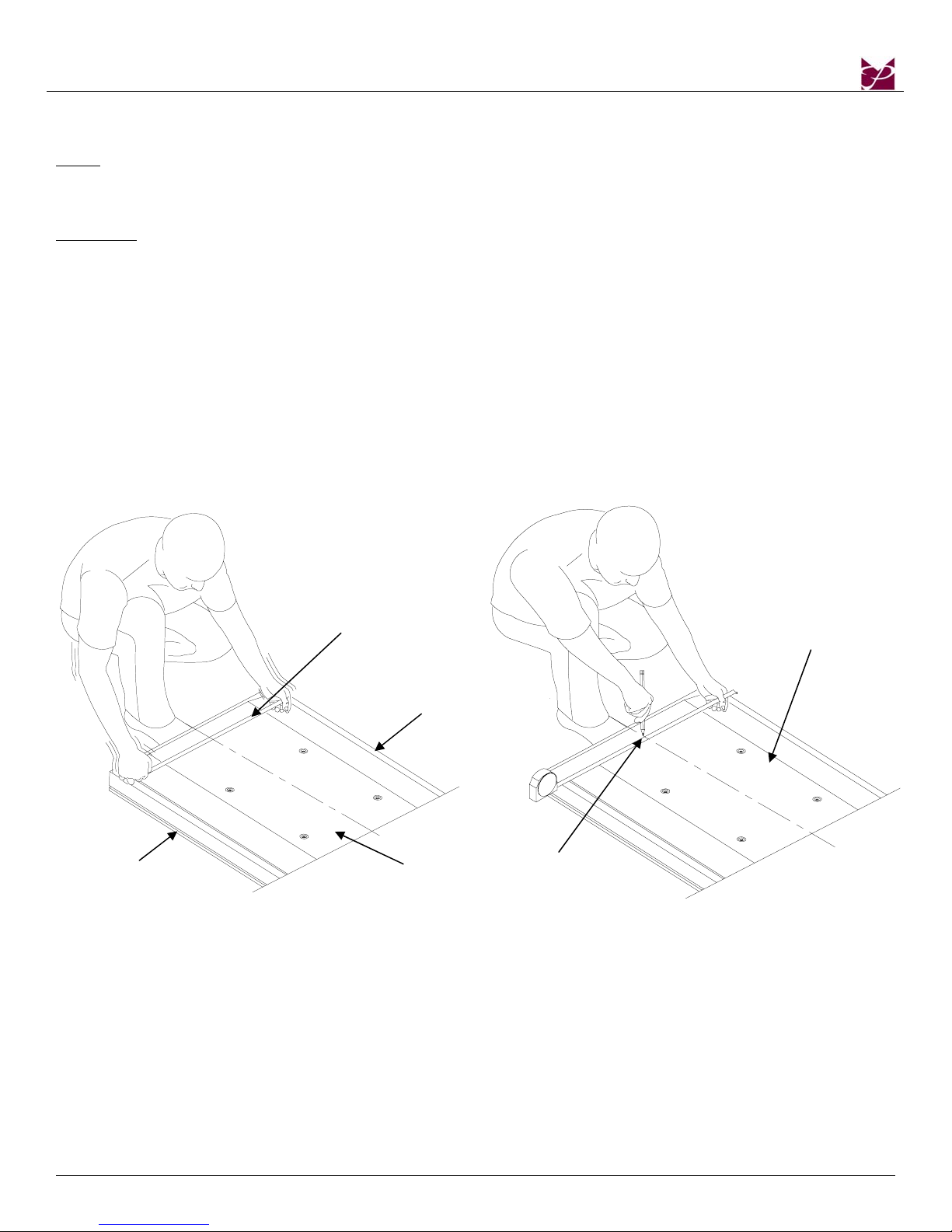

1. Once the flat panel is inverted, use a measuring tape to find the center of your flat panel measuring

from outside to outside of the chassis (Figure 4).

2. Using a pencil lightly mark the center of your flat panel (Figure 5).

Figure 4 Figure 5

Top of flat panel

Measuring tape

Inverted flat panelBottom of flat panel

Inverted flat panel

Mark the center

of the flat

anel

CTM-MS2

Page - 10 - Installation Manual

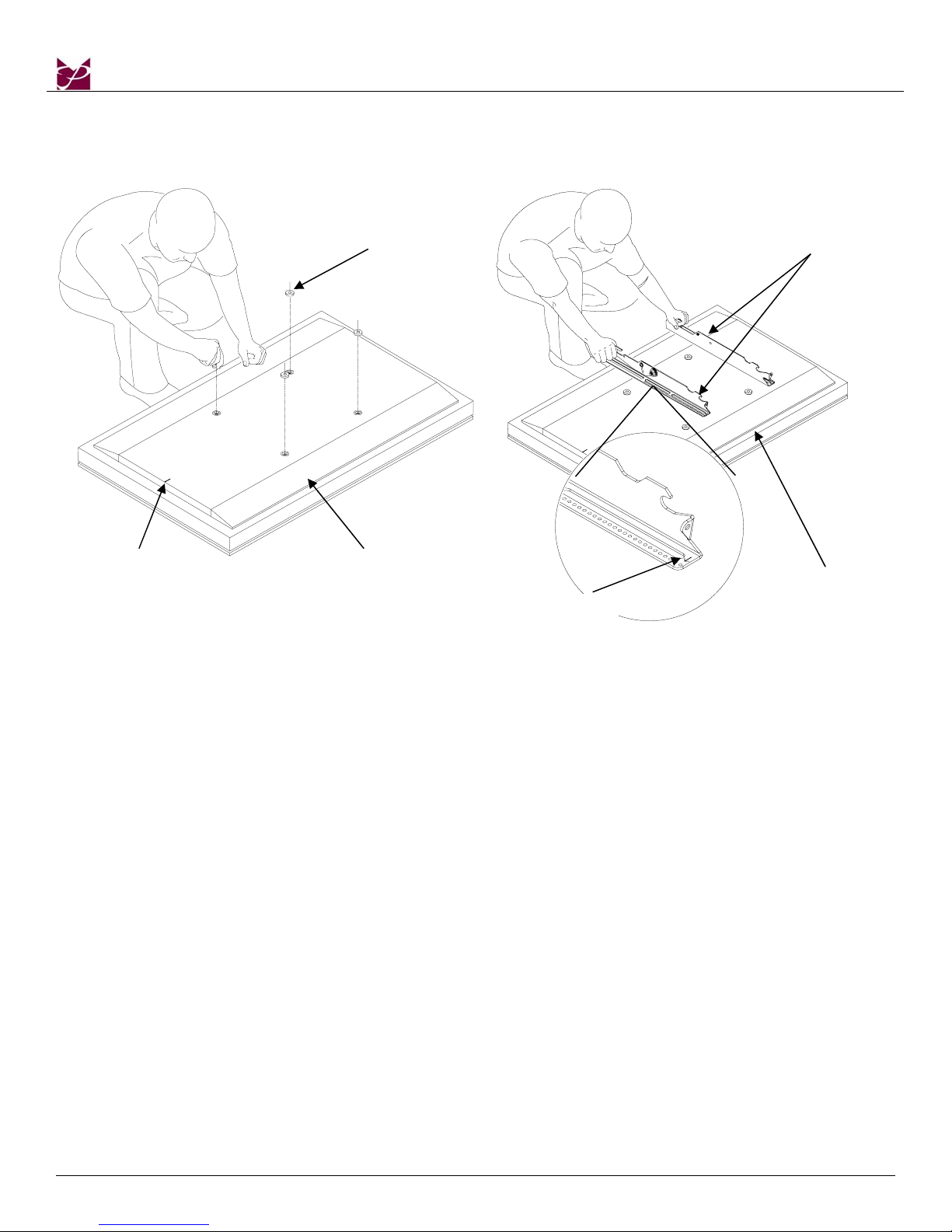

3. Install the nylon spacers (if needed) to the mounting points on the flat panel (Figure 6).

4. Lay the left and right mounting brackets (stamped arrows facing out) - (Figure 7).

Figure 6 Figure 7

5. Match the center of viewing guide with the centerline you marked in Step 1 (Figure 8).

6. The mounting brackets are designed with a center of viewing guide on the outside (Figure 9).

Nylon Spacers, If Applicable

Inverted Flat Panel

Center Mark

Mounting Brackets

Bottom of Flat Panel

Arrows Facing Out
