PRESONUS FIRESTUDIO 26X26 - SCHEMA Manuale utente

FIRESTUDIO

26x26 FireWire Recording System w/ Optical I/O

User’s Manual v.1.0

PreSonus Limited Warranty

PreSonus Audio Electronics Inc. warrants this product to be free of defects in material and

workmanship for a period of one year from the date of original retail purchase. This

warranty is enforceable only by the original retail purchaser. To be protected by this

warranty, the purchaser must complete and return the enclosed warranty card within 14 days

of purchase. During the warranty period PreSonus shall, at its sole and absolute option,

either repair or replace, free of charge, any product that proves to be defective on inspection

by PreSonus or its authorized service representative. To obtain warranty service, the

purchaser must first call or write PreSonus at the address and telephone number printed

below to obtain a Return Authorization Number and instructions of where to return the unit

for service. All inquiries must be accompanied by a description of the problem. All

authorized returns must be sent to the PreSonus repair facility postage prepaid, insured and

properly packaged. PreSonus reserves the right to update any unit returned for repair.

PreSonus reserves the right to change or improve the design of the product at any time

without prior notice. This warranty does not cover claims for damage due to abuse, neglect,

alteration or attempted repair by unauthorized personnel, and is limited to failures arising

during normal use that are due to defects in material or workmanship in the product. Any

implied warranties, including implied warranties of merchantability and fitness for a

particular purpose, are limited in duration to the length of this limited warranty. Some states

do not allow limitations on how long an implied warranty lasts, so the above limitation may

not apply to you. In no event will PreSonus be liable for incidental, consequential or other

damages resulting from the breach of any express or implied warranty, including, among

other things, damage to property, damage based on inconvenience or on loss of use of the

product, and, to the extent permitted by law, damages for personal injury. Some states do

not allow the exclusion of limitation of incidental or consequential damages, so the above

limitation or exclusion may not apply to you. This warranty gives you specific legal rights,

and you may also have other rights, which vary from state to state. This warranty only

applies to products sold and used in the United States of America. For warranty information

in all other countries please refer to your local distributor.

PreSonus Audio Electronics, Inc.

7257 Florida Blvd.

Baton Rouge, LA 70806

www.presonus.com

Table of Contents

1.) General Overview

1.1 Introduction........................................................................................................4

1.2 Package Contents................................................................................................4

1.3 System Requirements..........................................................................................5

2.) Installation and Hardware Overview

2.1 Installation (PC and Mac)...................................................................................6

2.2 Hardware Controls and Analog/Digital Connections..............................................8

2.3 Standalone Operation..........................................................................................10

2.3 Quick Start Up with Cubase LE ..........................................................................10

3.) Control Console

3.1 Control Console - Overview..................................................................................15

3.2 Control Console - Mixer ......................................................................................16

3.3 Control Console - Matrix Router..........................................................................19

3.4 Hardware Settings ..............................................................................................25

4.) Applications and Example Settings

4.1 Expanding Your I/O ............................................................................................26

4.2 Live Recording....................................................................................................27

4.3 Studio Recording ................................................................................................31

5.) Technical

5.1 Troubleshooting..................................................................................................32

5.2 Technical Specifications......................................................................................33

1 Overview

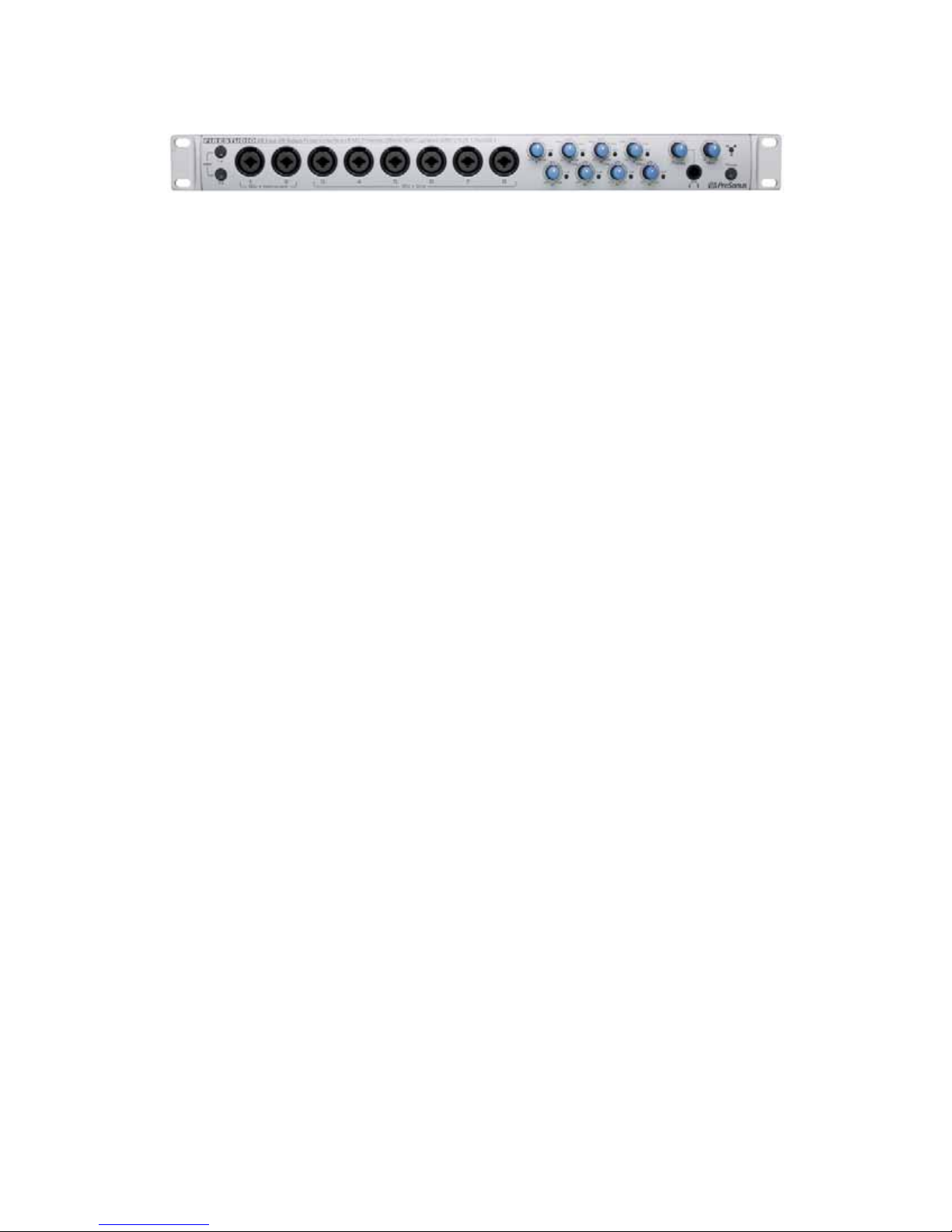

1.1 Introduction

Thank you for purchasing the PreSonus FIRESTUDIO. PreSonus Audio Electronics

has designed the FIRESTUDIO utilizing high-grade components to insure optimum

performance that will last a lifetime. Loaded with 24-bit 96K converters, eight

PreSonus microphone preamplifiers, SPDIF, Dual SMUX 96k ADAT, BNC

wordclock, and MIDI I/O, as well as the optional Monitor Station Remote, the

FIRESTUDIO is the most complete FireWire interface for professional quality

computer recording available today.

We encourage you to contact customer support at 1-225-216-7887 with any questions

or comments you may have regarding your PreSonus FIRESTUDIO. PreSonus Audio

Electronics is committed to constant product improvement, and we value your

suggestions highly. We believe the best way to achieve our goal of constant product

improvement is by listening to the real

experts

, our valued customers. We appreciate

the support you have shown us through the purchase of this product.

We suggest that you use this manual to familiarize yourself with the features,

applications and correct connection procedure for your FIRESTUDIO before trying to

connect it to your computer. This will hopefully alleviate any unforeseen issues that

you may encounter during installation and set up.

Thank you, once again, for buying our product and we hope you enjoy your

FIRESTUDIO!

1.2 Package Contents

•FIRESTUDIO

•Power Adapter

•6’ FireWire Cable

•Driver CD

•Cubase LE CD

•ProPak DVD

•ProPak Complete DVD (additional software)

•Users Manual

•Warranty Card

1 Overview

1.3 System Requirements

Below are the minimum computer system requirements for your FIRESTUDIO.

Windows

- OS: Microsoft Windows XP SP1

- Computer: Windows compatible computer with FireWire port.

- CPU/Clock: Pentium, Celeron with 1.6Ghz or higher

- Memory(RAM): 512 MB (1 GB recommended)

Macintosh

- OS: MacOS X 10.4.x or later

- Computer: Apple Macintosh series with on-board FireWire port.

- CPU/Clock: PowerPC G4/Dual 1 GHZ or faster, all Intel-based Mac models.

- Memory(RAM): 512 MB (1 GB recommended)

Note that the speed of your processor, amount of RAM and size and speed of your

hard drive will greatly affect the overall performance of your recording system. Also, a

more powerful system (faster processor with more RAM) will allow for lower latency

(signal delay) that you might experience while monitoring audio or MIDI signals.

2 Installation and Hardware Overview

2.1 Installation

PC:

The following is a detailed procedure for installation of your FIRESTUDIO Drivers:

*YOU MUST INSTALL DRIVERS BEFORE CONNECTING YOUR FIRESTUDIO*

1.) Quit all currently running applications.

2.) Insert the Driver CD included with your FIRESTUDIO into your computer. (Do not

connect your FIRESTUDIO to the computer at this time).

3.) CD should auto run.* (If not, navigate to CD and double click on

FIRESTUDIO_Installer.exe)

*There are several parts to the installation of your

FIRESTUDIO. The installer will take you through

each step. Please read each message carefully as

the time at which you connect and power on your

FIRESTUDIO for the first time is critical to a

successful installation.

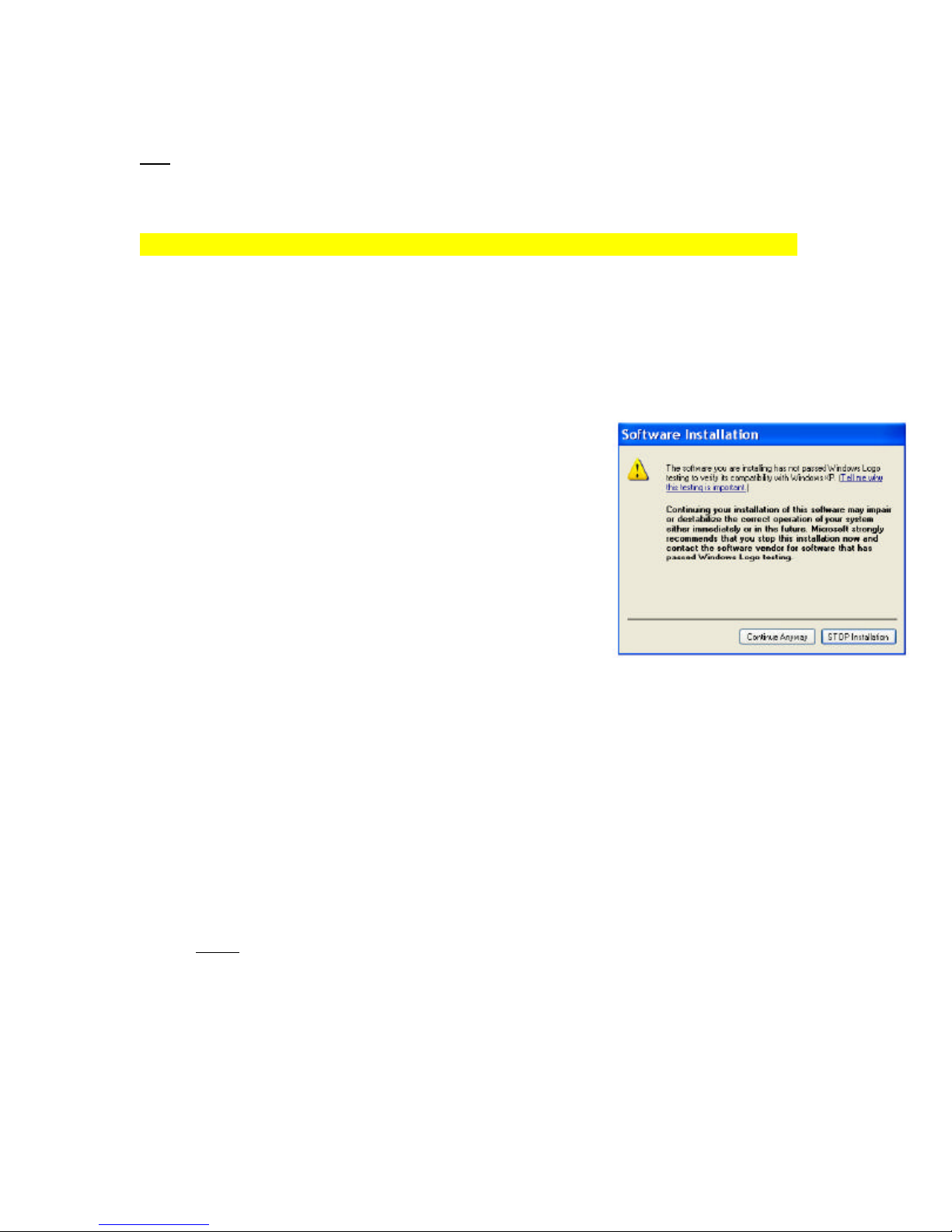

*If at any point during installation a “Software

Installation” message appears from Windows

regarding Windows Logo testing click “Continue

Anyway” to continue installation.

4.) When prompted to restart your computer, do so.

5.) Once the computer has restarted, connect your FIRESTUDIO to the computer via

FireWire and turn it on.

6.) A windows Found New Hardware Wizard should open. Select ‘No, not this time’,

when prompted to connect to the internet for Windows to find a driver. Click Next.

7.) The next window that comes up should identify the PreSonus Driver and allow you

to choose ‘Install Software Automatically’. Click Next.

8.) Click on Finish when the next window opens. You should now see a blue sync light

on your FIRESTUDIO, indicating that it is sync with your computer and ready to use.

Note: The FIRESTUDIO Control Console application can be found in the Start

Menu/ All Programs/ PreSonus Drivers/ FIRESTUDIO CPL.

2 Installation and Hardware Overview

Mac:

*YOU MUST INSTALL DRIVERS BEFORE CONNECTING YOUR FIRESTUDIO*

1.) Quit all currently running applications.

2.) Insert the Driver CD included with your FIRESTUDIO into your computer. (Do not

connect your FIRESTUDIO to the computer at this time).

3.) CD should auto run.* (If not, navigate to CD and double click on

FIRESTUDIO_Installer.exe)

*There are several parts to the installation of your FIRESTUDIO. The installer

will take you through each step. Please read each message carefully as the time

at which you connect and power on your FIRESTUDIO for the first time is

critical to a successful installation.

4.) When prompted with the Software License Agreement, click Continue, and then

click Agree.

5.) Select the destination volume to install the FIRESTUDIO software, typically

‘Macintosh HD’, and click Continue.

6.) Click on Install, and when the software installation is complete, click Close.

7.) You can now connect your FIRESTUDIO via the supplied FireWire cable and turn

it on. You should see a blue sync light on the FIRESTUDIO, indicating it is in sync

with the computer, and ready to use.

Note: The FIRESTUDIO Control Console software can be found in the

Applications folder (unless saved elsewhere), and is called ‘FIRESTUDIO’.

2 Installation and Hardware Overview

2.2 Hardware Controls and Analog/Digital Connections

Your FIRESTUDIO can simultaneously record/playback a total of 26 inputs and

outputs. The following will outline each connection type in detail from left to right on

the front and back panels:

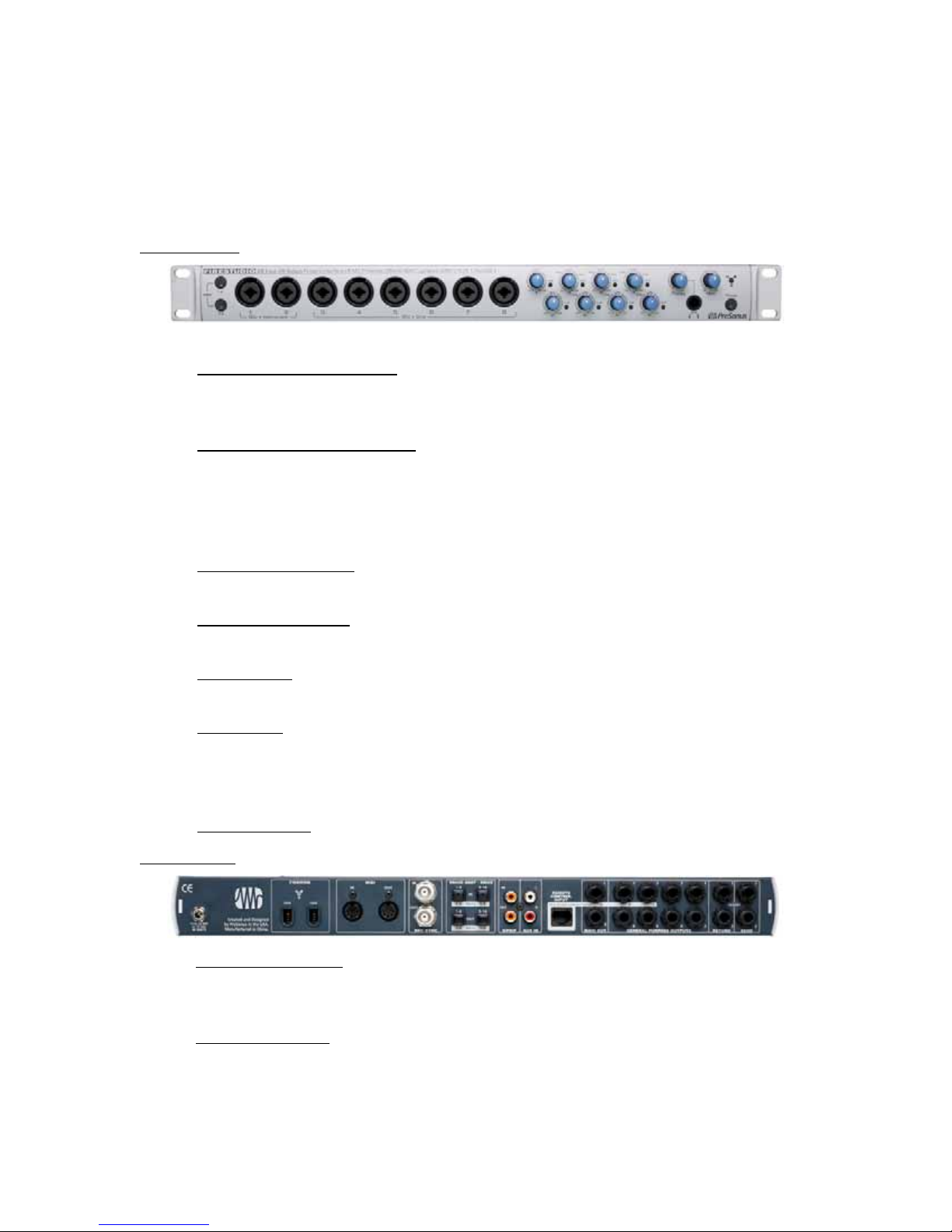

Front Panel:

a.) 48 Volt Phantom Power: These two switches will activate phantom power for

microphone preamps 1-4 and 5-8 respectively. Phantom Power is only active

on the microphone XLR input.

b.) Neutrik Combo Connectors: These connectors can accept either 1/4” TS/TRS

or XLR inputs. Channels 1 and 2 feature an instrument level input on the 1/4”

connector for use as a Direct Injection input for guitar, bass, etc. Channels 3-8

accept line level input on the 1/4” connector. The XLR input on all channels

accepts microphone level input.

c.) Gain/Trim Controls: Each channel has its own gain/trim control and clip light.

The clip light will illuminate red when the preamp is clipping.

d.) Headphone Output: This headphone output can be assigned any output from

your DAW or the FIRESTUDIO Control Console, and has its own level control.

e.) Main Level: This level control will attenuate the Main Output on the back of

the FIRESTUDIO.

f.) Sync LED: This sync LED will illuminate RED when sync is NOT present and

BLUE when sync is present, indicating whether or not your FIRESTUDIO is

properly connected and installed to your computer, or properly synced to

another device (via ADAT, SPDIF, or BNC).

g.) Power Switch: This power switch will turn on/off power for the FIRESTUDIO.

Back Panel:

a.) Power Connector: This power connection allows the included power adapter to

screw tightly in, insuring that power is not accidentally disconnected from the

FIRESTUDIO.

b.) FireWire Ports: The included FireWire cable will connect to either port here

from your computer. The other port can be used to daisy-chain another

FIRESTUDIO.

2 Installation and Hardware Overview

c.) MIDI I/O: The standard MIDI input and output allow connectivity of any MIDI

device to your FIRESTUDIO to be used in your DAW software.

d.) BNC Wordclock I/O: These standard BNC connectors allow you to connect any

device with BNC input or output to your FIRESTUDIO. This is to allow the

FIRESTUDIO to function as a master clock, or to slave to any other device.

e.) Dual SMUX Optical ADAT: These two inputs and outputs can be used to

connect any 96k Dual SMUX ADAT device via standard optical cable to the

FIRESTUDIO. These inputs and outputs can also function at 48k, allowing the

connection of one bank (8 channels) or two banks of ADAT (16 channels). For

more on how to use the optical ADAT I/O, please refer to section 4.1.

f.) SPDIF I/O: These RCA type connectors are for digital SPDIF connections up

to a 96k samplerate.

g.) RCA: This unbalanced RCA input is for use with any device with an analog

RCA output. This input is ONLY for use with the optional Monitor Station

Remote, and allows quick comparison of any other playback material with the

incoming input (ie; comparing your mix to a CD, etc).

h.) CAT-5 Connector: The optional MSR (Monitor Station Remote) connects here.

For more information on the MSR, please refer to the PreSonus website

(www.presonus.com).

i.) Main Out: This stereo TRS balanced output derives its output signal from your

DAW, the FIRESTUDIO Control Console software, or the optional MSR

remote. This output level is attenuated by the Main Level control on the front

panel.

j.) General Purpose Outputs: These stereo TRS balanced outputs can be used for

any purpose, and derive their output signal from your DAW, the FIRESTUDIO

Control Console software, or the optional MSR remote. There are no level

attenuators on the FIRESTUDIO for these outputs.

k.) Line Inputs 1 and 2: These are the 1/4” balanced line inputs for channels 1 and

2. These can be used with the preamp sends on channels 1 and 2 to insert an

external processor, or simply as line level inputs as found on channels 3-8 on

the front panel.

l.) Preamp 1 and 2 Sends: This TRS balanced output will output any analog

signal coming into the respective preamp BEFORE it is converted into digital

format and sent to your computer. This can be used to send the preamp signal

out to an external processor (ie; compressor, eq, etc), and back into the

respective line input for that channel, where it is then converted and sent to

your computer. These outputs are ONLY for channels 1 and 2 respectively.

2 Installation and Hardware Overview

2.3 Standalone Operation

Your FIRESTUDIO is capable of operating in Stand Alone mode without a computer.

The settings you make in the FIRESTUDIO Control Console application will be stored

in flash memory on the FIRESTUDIO itself, allowing you to disconnect the FireWire

connection from your computer and use any routing setup or hardware setting already

made.

Here’s an example:

If you are tracking a live show, you could route all of your inputs to analog or

digital outputs (using the FIRESTUDIO Control Console) to feed a hard-disk

recorder or other recorder for backup. If your computer stops working for any

reason, your backup recording will be unaffected, as all of the routing you’ve

created has been stored in flash memory in the FIRESTUDIO. This eliminates

the need for a more elaborate live recording setup involving splitter snakes, etc.

2.4 Cubase LE Quick Start Up

Use the included Cubase LE installation CD to install Cubase LE. Proceed through the

installation as it prompts you. Make sure to keep the CD envelope sleeve handy to

reference the serial number during installation.

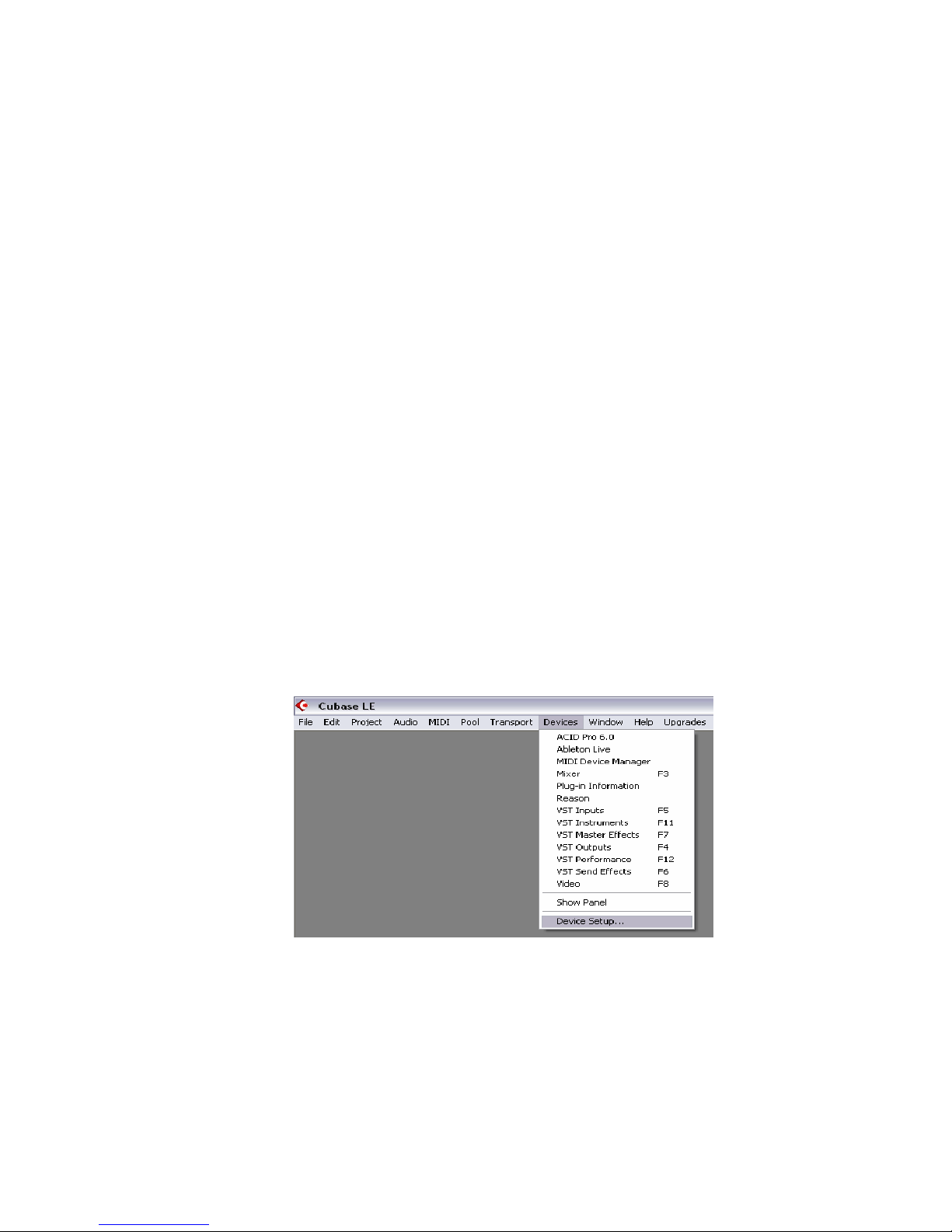

1. Once Cubase LE is installed, launch Cubase LE. First you must set Cubase LE

to the FireStudio drivers. Click the Devices menu and then Device Setup.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali PRESONUS Apparecchiature di registrazione

PRESONUS

PRESONUS Quantum2626 Manuale utente

PRESONUS

PRESONUS FIREPODOD Manuale utente

PRESONUS

PRESONUS Studio 24c Manuale utente

PRESONUS

PRESONUS TubePre V2 Manuale utente

PRESONUS

PRESONUS GTX 44 Manuale utente

PRESONUS

PRESONUS FIRESTUDIO MOBILE - SCHEMA Manuale utente

PRESONUS

PRESONUS 1BOX - Manuale utente

PRESONUS

PRESONUS AudioBox USB 96 Manuale utente

PRESONUS

PRESONUS Firestudio Project Manuale di istruzioni

PRESONUS

PRESONUS AudioBox Stereo Manuale utente

PRESONUS

PRESONUS Studio 24c Manuale utente

PRESONUS

PRESONUS Revelator io24 Manuale utente

PRESONUS

PRESONUS FIRESTUDIO TUBE Manuale utente

PRESONUS

PRESONUS FP10 - SCHEMA 1 Guida

PRESONUS

PRESONUS AudioBox GO Manuale utente

PRESONUS

PRESONUS Eris Series Manuale utente

PRESONUS

PRESONUS Central Station Plus Manuale utente

PRESONUS

PRESONUS QUANTUM 2 Manuale utente

PRESONUS

PRESONUS AudioBox 1818VSL Manuale utente

PRESONUS

PRESONUS HP4 Manuale utente

PRESONUS

PRESONUS FIREBOX Manuale utente

PRESONUS

PRESONUS AudioBox Stereo Manuale utente

PRESONUS

PRESONUS AUDIOBOX USB - V 2.0 Manuale utente

PRESONUS

PRESONUS INSPIRE 1394 Manuale utente

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
